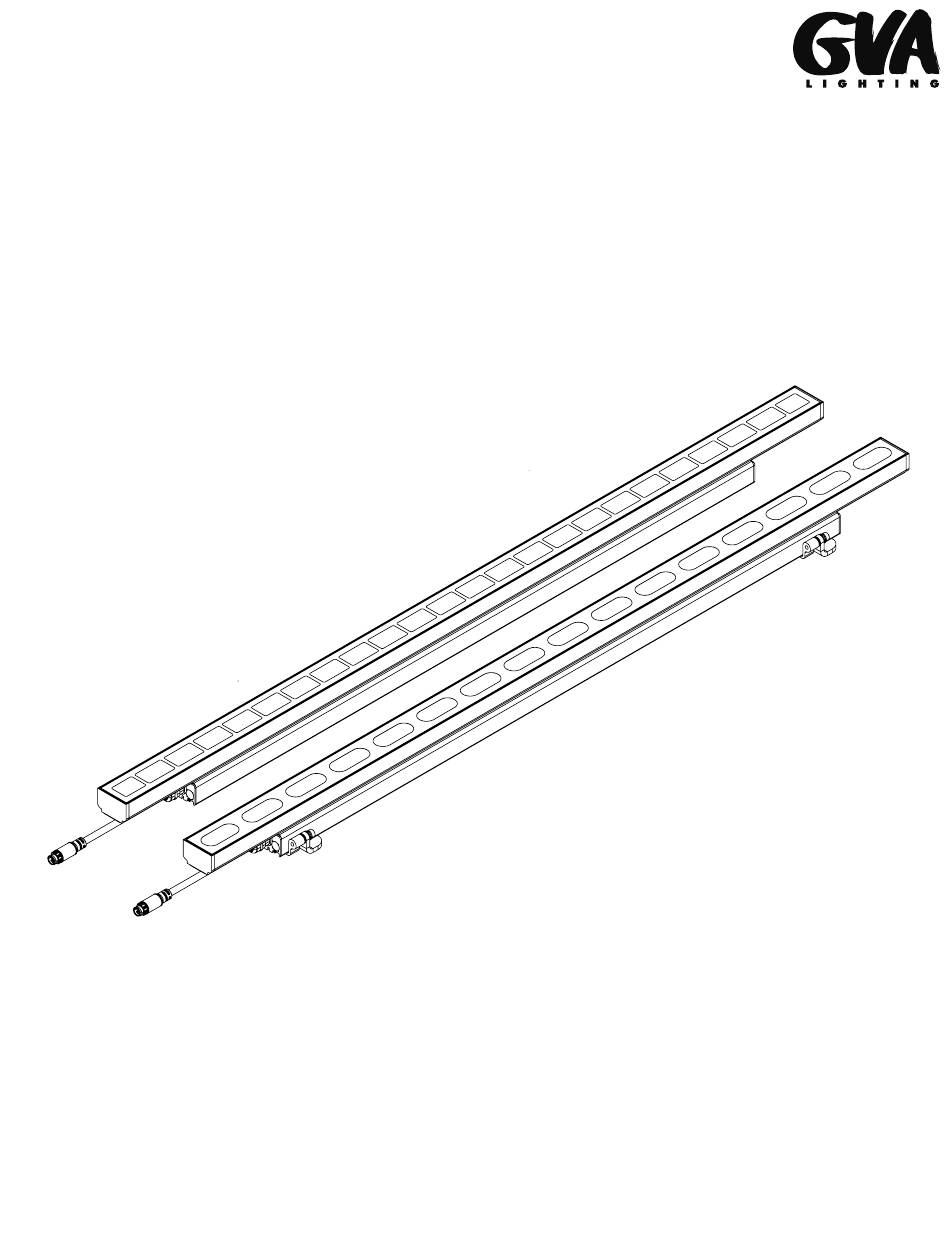

- Page 1 STR10 SERIES INSTALLATION GUIDE Guide d’installation Installationsanleitung Guida all’installazione Guía de instalación IG-STR10-V1.2-2024.05.02...
- Page 2 English Français Deutsch WARNING! ATTENTION ! ACHTUNG! SELECTION MOUNTING HARDWARE: SÉLECTION DU MATÉRIEL DE MONTAGE: AUSWAHL MONTAGEHARDWARE: Ensure that the mounting hardware used is Assurez-vous que le matériel de montage utilisé Stellen Sie sicher, dass die verwendete appropriate for the specific mounting surface. est approprié...
- Page 3 ACCESSORIES Accessoires Zubehör Accessori Accesorios...
- Page 4 6.0 mm (0.2 in) M6 or 1/4 in W190 W165 W140 W140 18.0 mm (0.7 in) 33.0 mm (1.3 in) 6.8 mm (0.3 in) 25.0 mm (1.0 in) 35.0 mm (1.4 in) ø 6.8 mm (ø 0.3 in) M6 or 1/4 in SMA - O SMA - I SMA - I - 3G...
- Page 5 REQUIRED TOOLS (BY OTHERS) Outils requis (par d’autres) Erforderliche Werkzeuge (von anderen) Strumenti richiesti (da altri) Herramientas requeridas (por otros)
- Page 6 M6 (1/4 in) 2 mm 5 mm...
-
Page 7: Mechanical Installation
MECHANICAL INSTALLATION Installation Mécanique Mechanische Installation Installazione Meccanica Instalación Mecánica... - Page 9 >12 mm / 1/2 in...
- Page 12 M6 or 1/4”...
- Page 14 Click <2 mm 2 mm...
- Page 15 2 mm 5 mm = 2 Nm = 5 Nm 2 mm 5 mm...
-
Page 16: Installation Mécanique
MECHANICAL INSTALLATION Optional - Louver Installation Installation Mécanique Optionnel - Installation de persiennes Mechanische Installation Optional - Jalousieinstallation Instalación Mecánica Opzionale - Installazione delle persiane Installazione Meccanica Opcional - Instalación de persianas... - Page 18 = 2 Nm = 6.6 Nm 5 mm 2 mm...
-
Page 19: Electrical Installation
ELECTRICAL INSTALLATION Wiring Diagram Installation Électrique Schéma de câblage Elektrische Installation Schaltplan Installazione Elettrica Schema di cablaggio Instalación Eléctrica Diagrama de cableado... - Page 20 PDC-GEN5-INF-ART-NET/SACN-RJ45-2-INF2/INF3+CS DATA INPUT CABLES (by others) POWER PDC-G5-INF DATA OUTPUT CABLE PDC-G5-INF (380V DC) (optional, by others) POWER INPUT CABLE POWER OUTPUT CABLE (by others) (optional, by others) JUNCTION BOX (by others) POWER & DATA POWER & DATA POWER & DATA POWER &...
- Page 21 PDC-GEN5-INF-1DMX/RDM-2-INF2/INF3+CS DMX1+ DMX1- DMX1 C DMX1+ DMX1- DMX1 C DATA INPUT CABLE (by others) POWER PDC-G5-INF DATA OUTPUT CABLE PDC-G5-INF (380V DC) (optional,by others) POWER INPUT CABLE POWER OUTPUT CABLE (by others) (optional, by others) JUNCTION BOX (by others) POWER & DATA POWER &...
- Page 22 PDC-GEN5-INF-2DMX/RDM-2-INF2/INF3+CS DMX1+ DMX1- DATA INPUT CABLES DMX1 C DMX2+ (by others) DMX2- POWER DMX2 C PDC-G5-INF (380V DC) POWER INPUT CABLE (by others) JUNCTION BOX V DC- V DC+ (by others) POWER & DATA POWER & DATA OUTPUT (LEADER OUTPUT (LEADER V DC+ CABLE) #1 CABLE) #2...
- Page 23 PDC-GEN5-INF-4DMX/RDM-2-INF2/INF3+CS DMX1+ DMX1- DMX1 C DMX2+ DMX2- DMX2 C DMX3+ DATA INPUT CABLES DMX3- DMX3 C DMX4+ (by others) DMX4- DMX4 C POWER PDC-G5-INF (380V DC) POWER INPUT CABLE (by others) JUNCTION BOX (by others) POWER & DATA POWER & DATA OUTPUT (LEADER OUTPUT (LEADER CABLE) #1...
- Page 24 PDC-GEN5-INF-DALI/0-10V-INF2/INF3+CS DALI/0-10V+ DALI/0-10V- DALI/0-10V+ DALI/0-10V- DATA INPUT CABLE (by others) POWER PDC-G5-INF PDC-G5-INF DATA OUTPUT CABLE PDC-G5-INF (380V DC) (optional, by others) POWER INPUT CABLE POWER OUTPUT CABLE (by others) (optional, by others) JUNCTION BOX (supplied by others) POWER & DATA POWER &...
- Page 25 PDC-GEN5-AC-ART-NET/SACN-RJ45-2-AC3+CS DATA INPUT CABLES (by others) POWER DATA OUTPUT CABLE PDC-G5-AC PDC-G5-AC (120-277V AC) (optional, by others) POWER INPUT CABLE POWER OUTPUT CABLE (by others) (optional, by others) JUNCTION BOX (by others) POWER & DATA POWER & DATA POWER & DATA POWER &...
- Page 26 PDC-GEN5-AC-1DMX/RDM-2-AC3+CS DMX1+ DMX1- DMX1 C DMX1+ DMX1- DMX1 C DATA INPUT CABLE (by others) POWER PDC-G5-AC DATA OUTPUT CABLE PDC-G5-AC (120-277V AC) (optional, by others) POWER INPUT CABLE POWER OUTPUT CABLE (by others) (optional, by others) JUNCTION BOX (by others) POWER &...
- Page 27 PDC-GEN5-AC-2DMX/RDM-2-AC3+CS DMX1+ DMX1- DATA INPUT CABLES DMX1 C DMX2+ (by others) DMX2- DMX2 C POWER PDC-G5-AC (120-277V AC) POWER INPUT CABLE (by others) JUNCTION BOX V DC- V DC+ (by others) POWER & DATA POWER & DATA V DC+ OUTPUT (LEADER OUTPUT (LEADER V DC+ V DC-...
- Page 28 PDC-GEN5-AC-4DMX/RDM-2-AC3+CS DMX1+ DMX1- DMX1 C DMX2+ DMX2- DMX2 C DMX3+ DATA INPUT CABLES DMX3- DMX3 C DMX4+ (by others) DMX4- DMX4 C POWER PDC-G5-AC (120-277V AC) POWER INPUT CABLE (by others) JUNCTION BOX (by others) POWER & DATA POWER & DATA OUTPUT (LEADER OUTPUT (LEADER CABLE) #1...
- Page 29 PDC-GEN5-AC-DALI/0-10V-2-AC3+CS DALI/0-10V+ DALI/0-10V- DALI/0-10V+ DALI/0-10V- DATA INPUT CABLE (by others) POWER PDC-G5-AC DATA OUTPUT CABLE PDC-G5-AC (120-277V AC) (optional, by others) POWER INPUT CABLE POWER OUTPUT CABLE ( by others) (optional, by others) JUNCTION BOX (by others) POWER & DATA POWER &...
- Page 30 AC WITH FIXED OUTPUT (NO DATA OR DIMMING CONTROL) POWER (120-277V AC) JUNCTION BOX POWER CABLE LEADER CABLE STR10 LUMINAIRES (by others) JUNCTION BOX (by others) LINE NEUTRAL GND/PE...
- Page 31 NOTES notes Notizen appunti notas...
- Page 32 GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5 support@gvalighting.com | + 1 905 569 6044 | gvalighting.com...
