GeerFabAudio.com
Designed in Milwaukee | Manufactured in China
U.S. Patent Pending
Hi-Res Audio Disc Digital Extractor
Hi-Res Audio Disc Digital Extractor
DSD64 and up to 24/192 PCM from HDMI Input
DSD64 and up to 24/192 PCM from HDMI Input
S/PDIF Coax & Toslink Optical Stereo Outputs
S/PDIF Coax & Toslink Optical Stereo Outputs

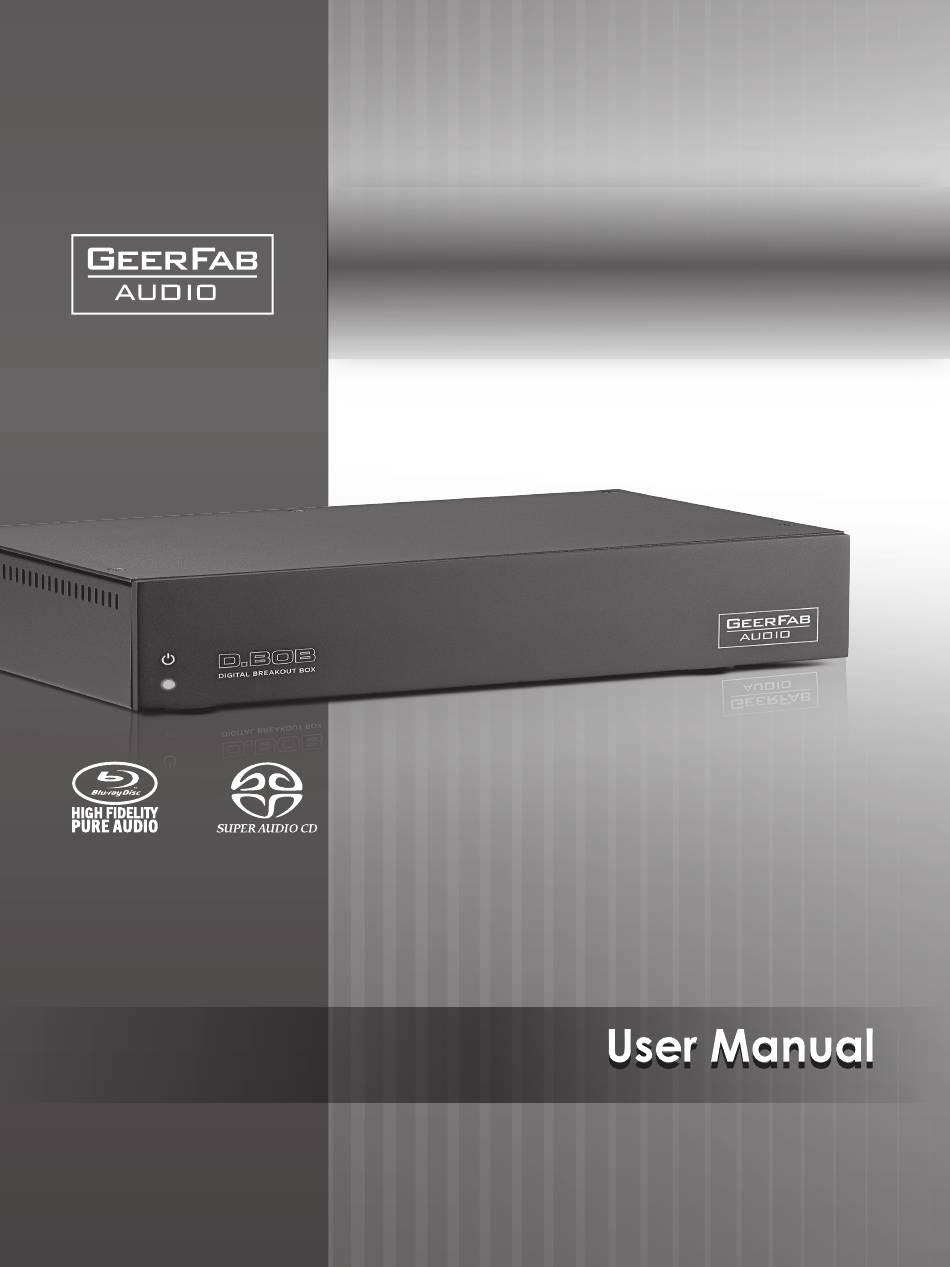

D.BOB (Digital Breakout Box)
D.BOB (Digital Breakout Box)
VER 1.0
Advertisement
Table of Contents
Summary of Contents for GEERFAB AUDIO D.BOB
- Page 1 D.BOB (Digital Breakout Box) D.BOB (Digital Breakout Box) Hi-Res Audio Disc Digital Extractor Hi-Res Audio Disc Digital Extractor DSD64 and up to 24/192 PCM from HDMI Input DSD64 and up to 24/192 PCM from HDMI Input S/PDIF Coax & Toslink Optical Stereo Outputs S/PDIF Coax &...
-
Page 2: Warranty
2. System Requirements A. Universal player must output DSD64 and up to 24/192 PCM via HDMI. If there is only one HDMI output, use the HDMI OUT on the D.BOB to send video to a monitor or TV. B. External DAC must accept DSD via the DoP protocol through S/PDIF Coax (preferable) or Toslink inputs. -
Page 3: Table Of Contents
D.BOB should always be the first component to be turned on. If this rule is not followed, sometimes the DAC screen may read NO LOCK. Should this occur, turn off the D.BOB, the disc player and the DAC and re-power on the D.BOB first. -
Page 4: Introduction
Compact design for easy and flexible installation 5. Package Contents 3. Package Contents 3. Package Contents D.BOB Digital Breakout Box 1×10.2Gbps HDMI with Coax/Optical Audio Extract 3. Package Contents 100 ~ 240V AC 50/60Hz Power Cable 1× 12V/1A DC Locking Power Adapter 1×10.2Gbps HDMI with Coax/Optical Audio Extract... -
Page 5: Specifications
6. Specifications Technical HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 1.4 Video Bandwidth 10.2Gbps Video Resolution Up to 4K60Hz YCbCr 4:2:0 Color Space RGB/YCbCr 4:2:0, YCbCr 4:4:4, YCbCr 4:2:2 8/10/12-bit (1080P60Hz) Color Depth 8-bit (4K60Hz, 4K24Hz) Coax / Optical Audio PCM 2.0, DSD64 2.0 Formats HDMI Audio Formats PCM 2.0 16/20/24-bit, DSD64... -
Page 6: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel Number Name Function description The blue LED will illuminate when the product is Power LED connected to power via the AC or DC power inputs and the power switch is turned on. 7.2 Rear Panel Number Name... -
Page 7: Application Example
Premium High Speed HDMI and Premium Coax and Toslink cables are highly recommended. Recommended player settings (may vary by manufacturer): SACD Priority Stereo HDMI Audio Auto Coax/Optical Output Bitstream SACD Output Auto Since the D.BOB has an HDMI out for a TV, it can provide stereo hi-res DAC conversion for Blu-ray movies. - Page 8 GeerFabAudio.com Designed in Milwaukee | Manufactured in China U.S. Patent Pending...
