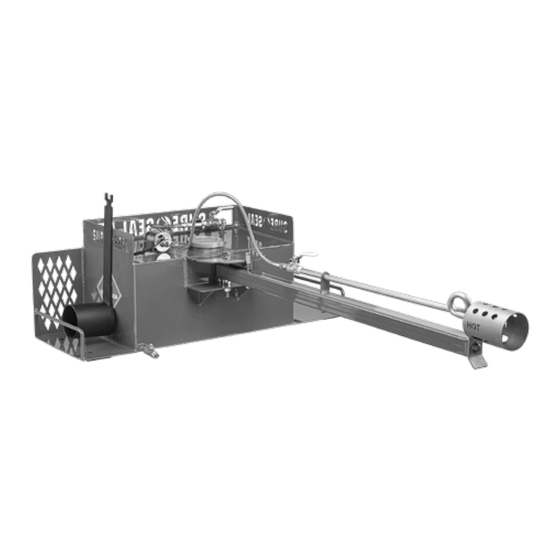

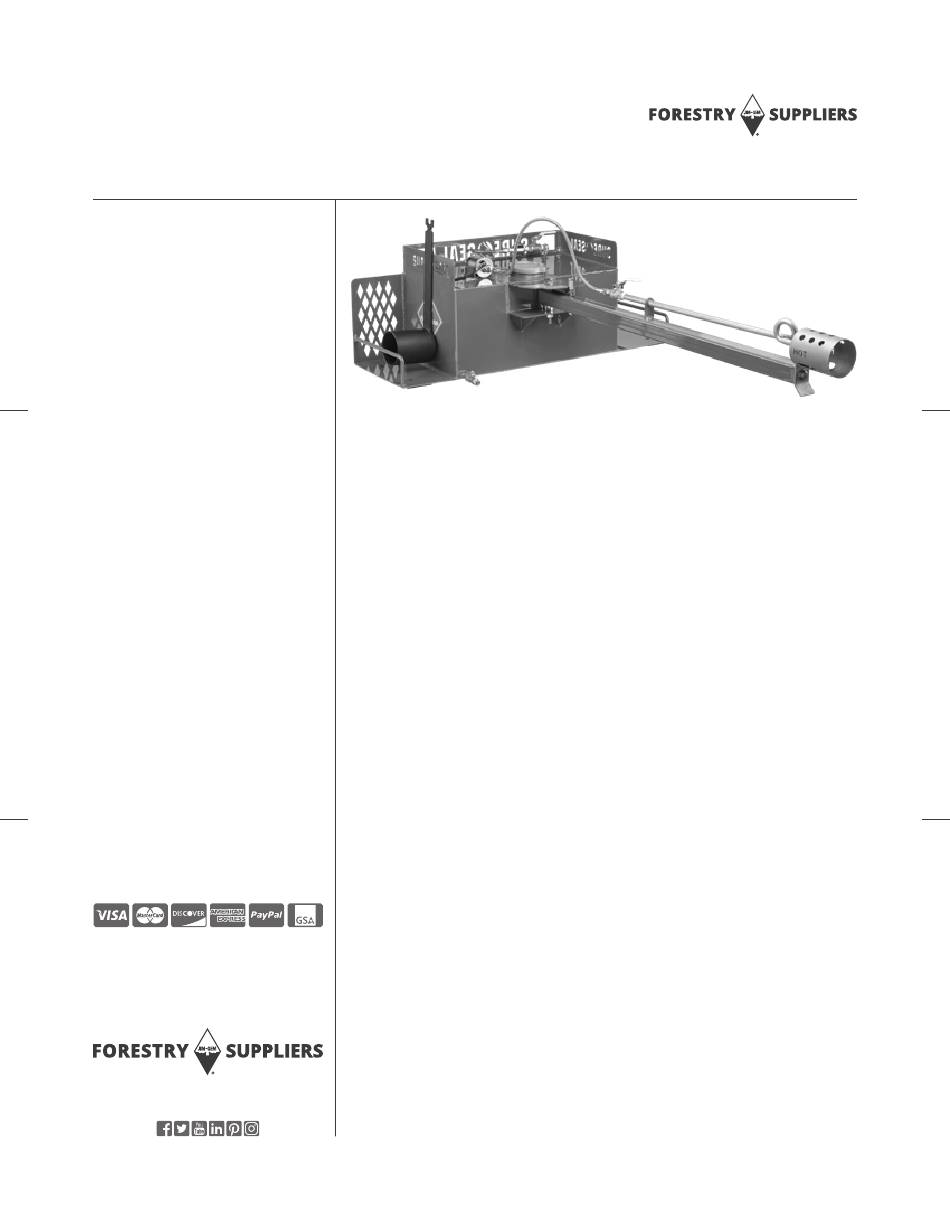

Sure-Seal ATV/UTV DripTorch
No. 85030
Sure-Seal ATV/UTV DripTorch
PRODUCT SUPPORT
800-430-5566
If you need more information
or some expert advice from an
experienced professional, call
our Product Support team.
SALES
P 800-647-5368
F 800-543-4203
Our sales department will gladly
take your order, update you on
pricing, or fax an order form.
ONLINE
www.forestry-suppliers.com
205 West Rankin Street
Jackson, MS 39201
©2023 Forestry Suppliers, Inc. All rights reserved.
MI1551 0M Rev 01/23
CAUTION
Backfiring equipment should be used
by trained, experienced personnel
only. Training and fuel selection
are the sole responsibility of the
user. Precautions should be taken
to prevent danger to yourself and
others. A means of escape should
always be located before setting
fires where rapid spread may prove
hazardous to yourself or others.
All petroleum products should be
handled with the same precautions
as when working with gasoline.
Keep the torch in good working
condition, make sure all connections
are tight, inspect on a regular basis,
and replace any damaged parts with
original replacement parts only.
Assembly Instructions
1. To simplify installation, the burner
arm assembly is a two-piece
design. Attach the longer complete
burner arm assembly with the wick,
shroud, etc. to the shorter pivoting
arm that protrudes from the rear of
the tank by inserting the two pieces
together and placing the two bolts
through the arm and assembling
with the included hardware. This
two-piece design also allows you to
easily disassemble the torch arm
from the unit for transporting and
storage if you choose.
2. Connect the fuel supply line. After
the burner arm assembly is in place
connect the fitting on the end of
the fuel line coming from the pump
to the end of the fitting going in to
the valve on the back of the wand
assembly.
3. If desired a hand held drip torch
mounting bracket (Stock Number
85051, sold separately) can be
mounted on the right side of the
ATV torch using slotted holes in
the right side of the base plate.
Mounting hardware is not included.
Connecting the Pump Assembly
Make the electrical connection to a
12-volt system. The pump is provided
with a quick connect fitting. We offer
a couple of easy assembly options
(sold separately): Stock Number
14054, 12 V accessory adapter with
cord and on/off switch, or Stock
Number 14058, Alligator clips w/
cord and on/off switch that attaches
directly to a battery. You can also
hard wire it in to your system if you
prefer.It is recommended to use an
inline fuse if you choose to do so.
Consult a professional for installation.
Mounting
It is important to securely mount the
unit to whatever off-road vehicle it
is intended to be used on. There are
pass through slots on top of the tank
that allow quick access for mounting
with ratchet straps (not provided) that
work for many applications. We do
offer an optional set of quick mount
brackets (Stock Number 85033). The
quick mount brackets allow you to
have a quick disconnect mounting
system to quickly install or remove
the torch. The brackets are made so
that you can either drill your own
holes for mounting with hardware
you provide or weld in place and
then once installed the torch can
be quickly mounted or dismounted
simply by removing the 4 pins.
Instructions for use
1. Always consult your agency's policy
for authorized fuel mixtures based
on your burning conditions. A good
mixture to start with is a diesel-
to-gasoline ratio of 3:2 or 60%
diesel to 40% gas, and then adjust
the mixture as necessary for your
burning conditions and needs.
Page 1
