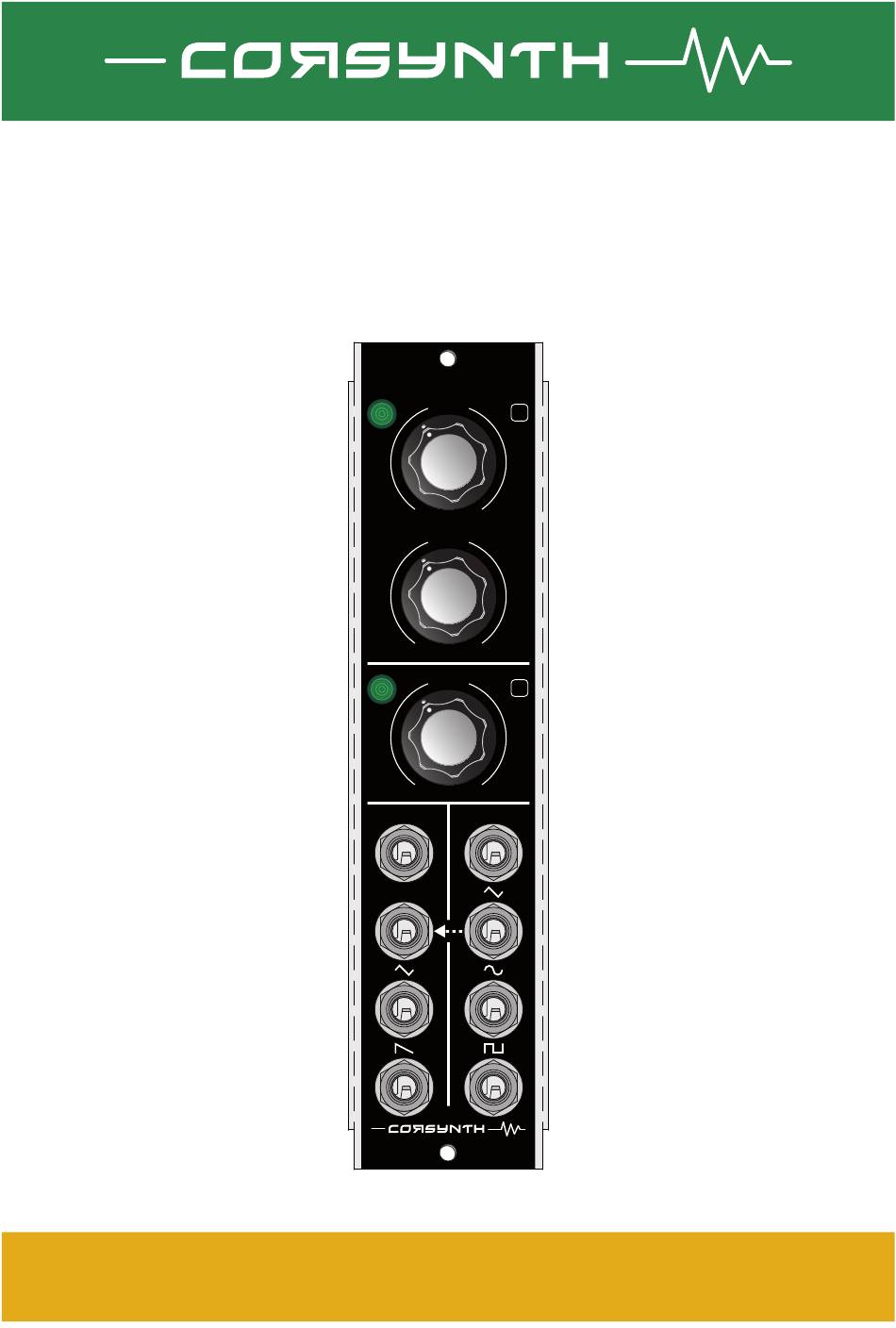

- Page 1 C115 Dual LFO C115 DUAL LFO FREQUENCY 20 Sec 20 Hz FM LEVEL FREQUENCY 40 Sec 10 Hz SYNC 1 SYNC 2 FM IN USER MANUAL...
- Page 2 LFO C115 dual LFO The C115 Dual LFO is a dual low frequency oscillator with some interesting features. Modulation sources are always a must have in C115 every system and this module can be a good addition to save some DUAL LFO space.
- Page 3 C115 Dual LFO Front Panel C115 DUAL LFO FREQUENCY LFO1 frequency control 20 Sec 20 Hz FM LEVEL LFO1 modulation level FREQUENCY LFO2 frequency control 40 Sec 10 Hz SYNC 1 SYNC 2 LFO1 sync input LFO2 synth input...
-
Page 4: Control Description
CONTROL DESCRIPTION FREQUENCY FREQUENCY 1 This knob sets the LFO1 frequency. The frequency range goes from 20 seconds to 20Hz. This range can be expanded using modulation. 20 Sec 20 Hz FM LEVEL FM LEVEL This knob sets the amount of modulation for the LFO1. - Page 5 FM IN FM IN LFO1 frequency modulation input. The input accepts positive and negative signals. It’s internally conected to the LFO2’s triangle wave. The normalization will be broken if a patch cable is inserted into the FM input.
-
Page 6: Technical Data
TRIMMERS AND POWER CONNECTORS IMPORTANT !!!! This module has two power connectors LFO1 - saw wave (MU and MOTM). symmetry Only one is needed to power the module. (MU or MOTM). Never connect both at the same time. - Page 7 LFO MODULAR LEVEL MODULAR SYNTHS HTTP://WWW.CORSYNTH.COM...
