Document #10007403
THE FIRST NAME IN QUALITY COUPLINGS
Installation, Inspection, Operation
& Maintenance Guide

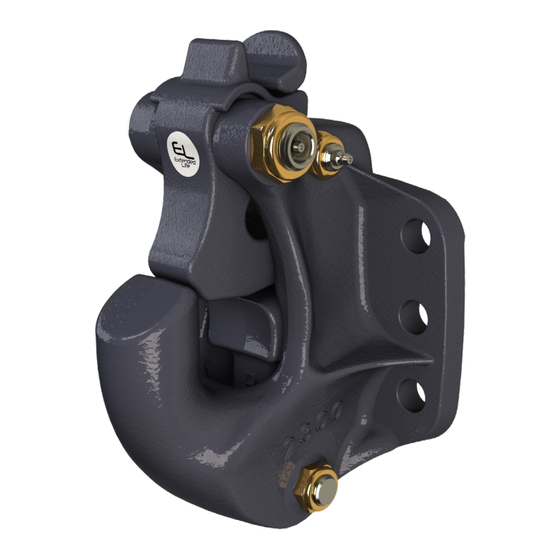

MODEL 2300EL COUPLING
PART #10004709
IMPORTANT
Read these instructions completely before installing, using or
attempting to repair this product. If you have any questions,
call Premier at (800) 255-5387 or (503) 234-9202
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Premier 2300EL COUPLING
Summary of Contents for Premier 2300EL COUPLING
- Page 1 THE FIRST NAME IN QUALITY COUPLINGS Installation, Inspection, Operation & Maintenance Guide MODEL 2300EL COUPLING PART #10004709 IMPORTANT Read these instructions completely before installing, using or attempting to repair this product. If you have any questions, call Premier at (800) 255-5387 or (503) 234-9202...
- Page 2 Below are general guidelines for selecting Premier Coupling and Drawbar Eyes. If you feel that your application is unique, please give Premier a call so that we may help you through the selection process.
- Page 3 Understanding Premier Load Specifications Each Premier product undergoes extensive design and testing prior to being introduced. We use the latest in Computer Aided Design and Analysis Software as well as physical destructive tests. Premier’s published load specifications are the maximum load a given product or part will withstand without failure.
- Page 4 PUSHROD LENGTH IS 3 5/8 in. (92mm) PLUS THICKNESS OF MOUNTING STRUCTURE (X-MEMBER) FOR STANDARD INSTALLATIONS. Pushrod length is 3 5/8 in. (92 mm) plus thickness of mounting structure for standard installations as illustrated. Page 4 PREMIER MANUFACTURING 1-800-255-5387 • www.premier-mfg.com...
-
Page 5: Replacement Part Information
MODEL 2300EL COUPLING Replacement Part Information Item Model # Part # Description *2072A 10000224 Spring *2072EL 10000227 Latch *2073A 10000233 Spring *2073EL 10000236 Latch Lock *373B 10000341 Spacer *2071EL 10000222 Bolt *388BEL 10006296 Bolt *375A 10000347 Locknut *297 10000323 Locknut... -
Page 6: Installation
2. Make certain that the cross member the 2300EL Coupling is to be mounted on is of sufficient strength to withstand the load rating of the coupling. - Page 7 OPENING Coupling Latch: 1. While facing the mounted 2300EL Coupling, push the 2073EL Latch Lock toward the mounting plate (away from you) until full rotational travel is reached. While holding the latch lock in this position, grasp the top of the 2072EL Latch and pull out toward the pintle, rotating the latch until full rotational travel is reached.
- Page 8 12. NEVER USE A COUPLING THAT YOU DO NOT FULLY UNDERSTAND HOW TO PROPERLY OPERATE AND VERIFY SECURE LATCHING OF. 13. NEVER REPLACE ANY PART IN ANY OF PREMIER’S ASSEMBLIES WITH NON-PREMIER COMPONENTS. DOING SO WILL VOID ALL WARRANTY AND POTENTIALLY COMPROMISE THE UNIT’S INTEGRITY, WHICH COULD RESULT IN PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH.
- Page 9 Revised: 5/2023 WARRANTY: We warrant all Premier products to be free from defects in material or workmanship for one year. We will repair or replace, at our option, any Premier product which our examination reveals to be defective, provided that the product is returned to our factory, at Tualatin, Oregon transportation prepaid, within one year of purchase by the first retail purchaser.
