Summary of Contents for HoMedics Circulation Pro CB-200-CA

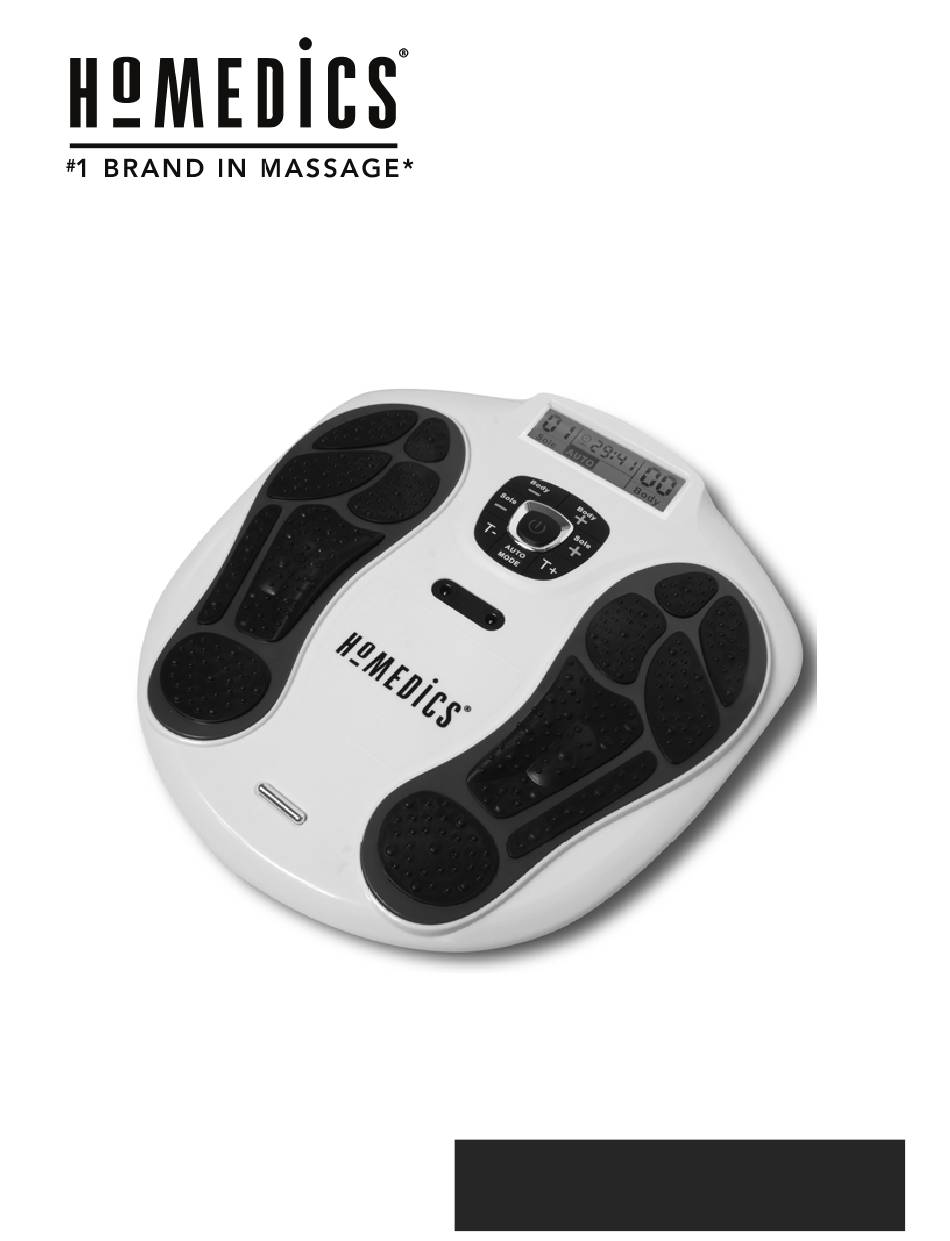

- Page 1 Circulation Pro Instruction Manual and Warranty Information CB-200-CA year Ver. A limited warranty...
- Page 2 QUICK START GUIDE PLEASE NOTE – THIS DEVICE DOES NOT VIBRATE – IT USES ELECTRICAL IMPULSES, NOT VIBRATION! For detailed operation of your Circulation Pro please refer to the comprehensive instructions within this manual. Remove your Circulation Pro from the packaging. Take out the Remote Control and remove the screw from the back door using a screwdriver.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION 1) Please read these instructions thoroughly before use. 2) Please check that you have all of the component parts as detailed in this user manual. 3) Take all parts out of the plastic bags and examine them to familiarize yourself with the components. Notes on safety Danger This unit must not be used in combination with the following medical devices:... - Page 4 Warning Persons with the following conditions must consult a doctor before using this unit: 1) acute disease 2) malignant tumor 3) infectious disease 4) pregnancy 5) cardiac dysfunction 6) high fever 7) abnormal blood pressure 8) skin sensory disorders or skin problems 9) receiving medical treatment, especially those feeling discomfort.
- Page 5 This medical device manufactured by Homedics conforms to this IEC 60601-1-2 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: Do not use mobile (cellular) telephones and other devices, which generate strong electrical or electromagnetic fields, near the medical device.
- Page 6 WHAT IS ELECTRONIC NERVE STIMULATION? INTENDED USE: Medical Purpose This Electronic Nerve Stimulator is intended to be used as a massager to relieve (muscle) pain, increase blood circulation, relax stiff muscles, reduce swollen feet, ankles and fatigue. The massaging effect is achieved by electronic stimulation of the nerves through electrode pads placed on the skin.
- Page 7 MACHINE OVERVIEW AND PART NAMES A. Main Unit B. AC Power Adapter C. Remote Control D. Electrode Gel Pad x 4 pcs. E. Wire cable connecting the Electrode Gel pads and device F. Plastic Protector for Gel Pads Top View 1.
-
Page 8: Function Of Control Panel
FUNCTION OF CONTROL PANEL LCD showing the LCD showing the intensity level for Sole intensity level for body – maximum 99 levels – maximum 99 levels LCD showing the program in AUTO or LCD showing the timer in MODE. ON/OFF switch button BODY –... -
Page 9: Output Waveform
CIRCULATION PRO OUTPUT WAVE FORMS FOOT ELECTRO THERAPY MASSAGE: We will examine the operation in more detail later in your instructions but the principle is relatively easy to understand. Place your feet on the electrode areas, turn on Circulation Pro with the central on/off switch, then increase the intensity for the foot. There are 99 different levels. When you start to feel the mild electro-therapy will depend on your own nerve sensitivity. -
Page 13: How To Operate
HOW TO OPERATE For Foot – SOLE 1. Place your bare feet onto Circulation P ro (do not wear socks). 2. Press the on/off button, the LCD screen will light up in Orange. The program shows AUTO and both Bands show 00, which is in standby mode (see Fig. - Page 14 Homedics or your distributor. Do not clean the electrode gel pads with any chemical. ALWAYS try and protect the gel pads. Store the gel pads on the gel pad...
- Page 15 CONNECT WITH THE SUPPLIED AC/DC POWER ADAPTER Plug the DC plug of the power supply into the socket on the side of Circulation Pro. (See Fig 8) Plug in the power adapter to a suitable wall socket. (Make sure that the input voltage of the wall socket is suitable for the supplied adapter).
- Page 16 • Do not stand on the machine. Use it when sitting down only • Do not spill liquid on the device or its accessories The warranty is void if the product has been altered, misused or abused. HoMedics will not take any responsibility...
-
Page 17: Troubleshooting And Maintenance
TROUBLESHOOTING & MAINTENANCE Problem Cause Rectification Device will not turn on - Batteries inserted in wrong direction - Insert batteries in correct direction or check the battery is in full power - The adapter does not plug into device properly - check the connection of the adapter jack is well connected;... -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Product Name Circulation Pro Model CB-200-CA 6V DC or 4x1.5V alkaline batteries type AA* for the main unit Power supply 2x1.5V alkaline batteries type AAA* for the remote control Supplier of Adapter Golden Profit Electronics Ltd. Model no. of Adapter GPE038-060050-1 Adapter Input AC 100-240V~50-60Hz 0.1A... -
Page 19: Electromagnetic Compatibility (Emc)
IMPORTANT INFORMATION Electro Magnetic Compatibility (EMC) 1. CIRCULATION PRO needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the ACCOMPANYING DOCUMENTS; 2. Portable and mobile RF communications equipment can affect CIRCULATION PRO. 3. - Page 20 Guidance and manufacturer’s declaration – Electromagnetic Immunity The CIRCULATION PRO is intended for use in the electromagnetic environment specified below. The customer or the user of the CIRCULATION PRO should assure that it is used in such an environment. IEC 60601 test Immunity test Compliance level Electromagnetic environment - guidance...
- Page 21 NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 22 Recommended separation distances between portable and mobile RF communications equipment and the Circulation Pro The CIRCULATION PRO is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the CIRCULATION PRO can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the CIRCULATION PRO as recommended below, according to the maximum output power of the communications equipment.
-
Page 23: Limited 2 Year Warranty
Limited 2 Year Warranty HoMedics sells its products with the intent that they are free of defects in manufacture and Mail: workmanship for a period of two (2) years from the date of original purchase, except as noted HoMedics Group Canada below. - Page 24 IB-CB200CCA VER: 001 Made in China...
