Operations Manual
NP2 ES PLUS
How to use the NP2 ES PLUS |

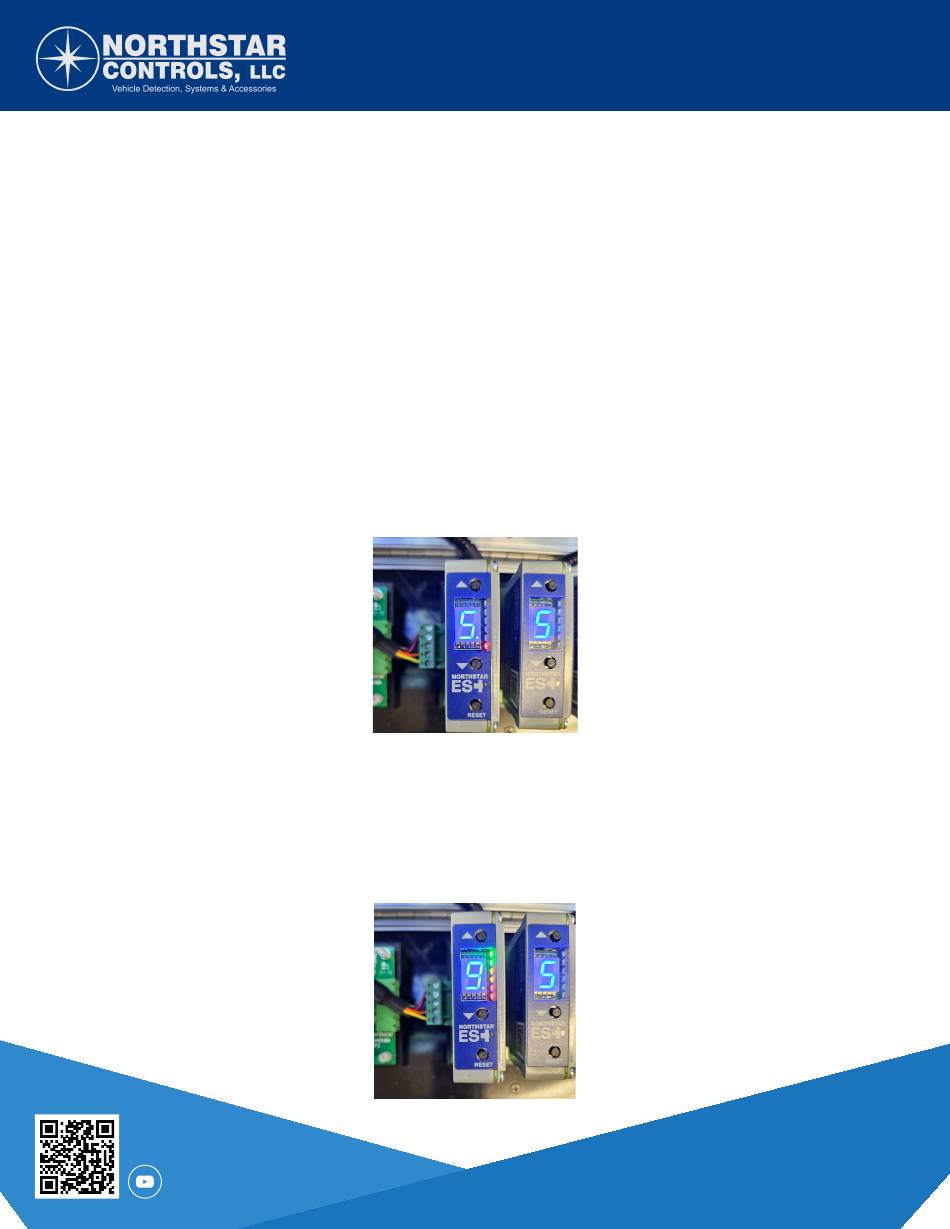

Plug the detector into the loop rack and the detector will light up the segment display screen
with a factory setting of 5. Pull the desired vehicle onto the loop and you will see an array of
red, yellow, and green LED's next to the display. This gives you the signal of the sensitivity
strength of the detector. In most applications the setting of 5 should suit most applications but
loop and vehicle size plays a part in the settings.
Adjusting the Sensitivity |
Step 1: Remove the desired vehicle from the loop.
Step 2: Press and hold down the up-arrow button until you see a flashing blue dot on the led
segment screen and a single red led appear. This will put the detector in EZ-TUNE so the
sensitivity settings can be adjusted. While in this mode no signal will be sent to the gate
operator
DO NOT PLACE A VEHICLE, EQUIPMENT OR PERSON IN THE PATH OF THE GATE!
Step 3: Pull the vehicle directly onto the loop.
Step 4: Use the UP and DOWN arrows to adjust the sensitivity to the desired level.
Step 5: Ideally you will want the full array of LEDs to light up (2 red, 2 yellow, 2 green) for
optimal detection.
northstarcontrols.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the NP2 ES PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NorthStar NP2 ES PLUS

  • Page 1 Operations Manual NP2 ES PLUS How to use the NP2 ES PLUS | Plug the detector into the loop rack and the detector will light up the segment display screen with a factory setting of 5. Pull the desired vehicle onto the loop and you will see an array of red, yellow, and green LED’s next to the display.
  • Page 2 Operations Manual NP2 ES PLUS Step 6: Press the reset button and a single green LED will appear for 5 seconds to lock in the settings. Step 7: Test out the settings by running the vehicle over the loop to see if you get a full array of LEDs to appear.
  • Page 3 Operations Manual NP2 ES PLUS Additional Options There is a 6 position on the side of the detector for your site-specific needs. Press the reset button to implement the desired setting. If there is a fault 2 yellow LED’s will appear and the letters O then C represents an open circuit, and the letter S then C represents a shorted loop.
