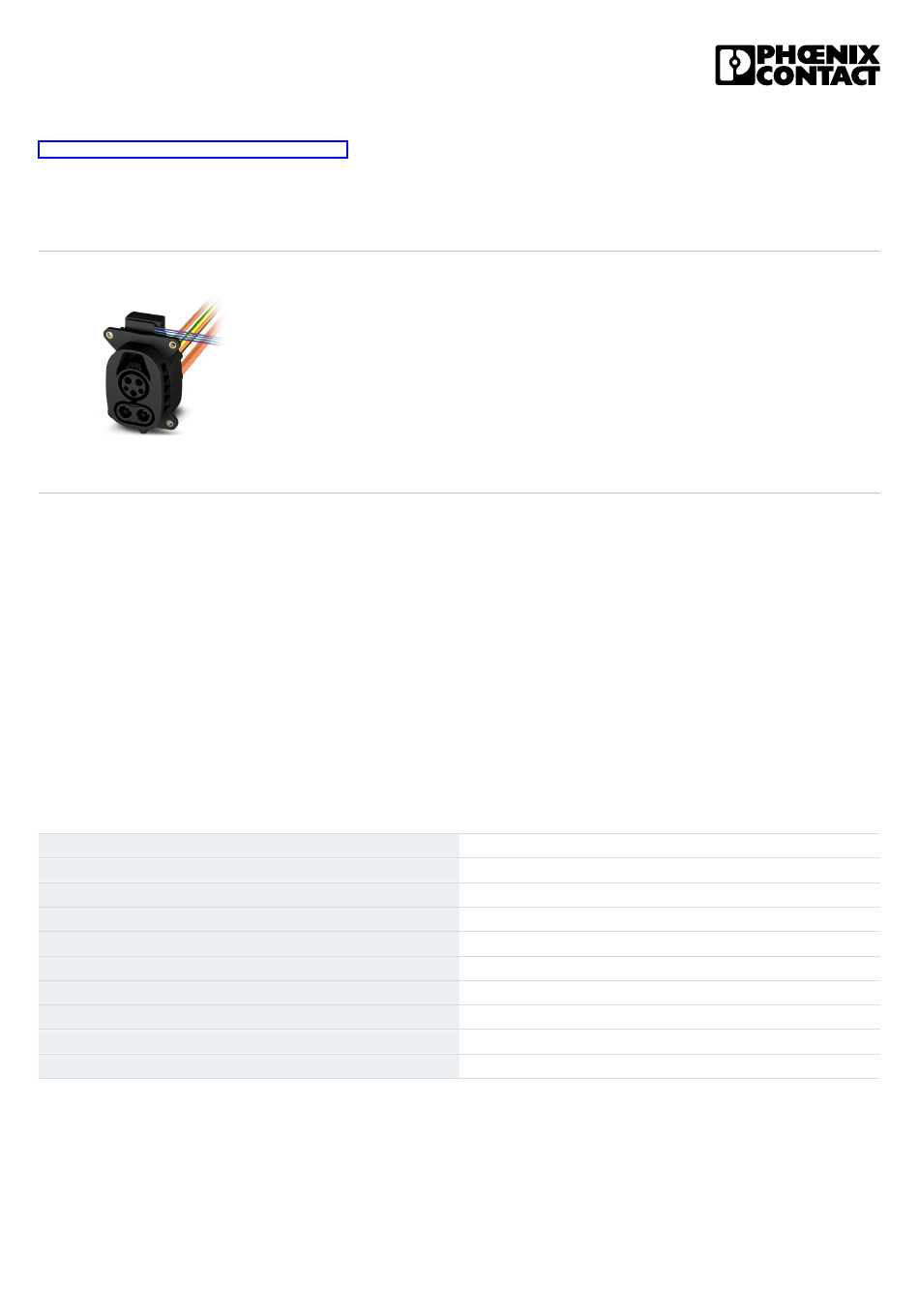

CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle
charging inlet
1360818
https://www.phoenixcontact.com/us/products/1360818
Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user
documentation. Our general terms of use for downloads are valid.
Product description
Vehicle charging inlet for charging with alternating current (AC) and direct current (DC), compatible with type 1 AC and CCS vehicle charging
connectors (EVSE), for installation in electric vehicles (EV).
Your advantages
•
Complete product range
•
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
•
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
•
Integrated interlock during charging
•
Manual emergency release of the locking actuator
•
Protected and sealed against dirt and water with a high degree of protection
Commercial data
Item number
Packing unit
Minimum order quantity
Sales key
Product key
GTIN
Weight per piece (including packing)
Weight per piece (excluding packing)
Customs tariff number
Country of origin
CHARX connect universal, Vehicle charging inlet, for charging with alternating current (AC) and
with direct current (DC), CCS type 1, IEC 62196-2, IEC 62196-3, 200 A / 1000 V (DC), 80 A /
250 V (AC), Single wires, length: 8 m, locking actuator: 12 V, 4-pos., Front and rear mounting,
M6, housing: black, A protective cap is supplied as standard for the DC and AC contacts.
1360818
1 pc
1 pc
EM01
XWCAIB
4063151691561
21,477 g
21,477 g
85444290
PL
May 8, 2024, 8:58 AM
Page 1 (16)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Phoenix Contact CHARX T1HBI12-1AC80DC200-8,0M1
- Page 1 Your advantages • Complete product range • Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets • Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 •...
-
Page 2: Technical Data
CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Technical data Notes General A protective cap is supplied as standard for the DC and AC contacts. Product properties Product type Vehicle charging inlet Product family CHARX connect universal Application for charging with alternating current (AC) and with direct current... -
Page 3: Material Specifications
CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Number 2 (CP, CS) Rated voltage 30 V AC Rated current Temperature sensors (PTC chain) Sensor type PTC chain Standards/regulations DIN EN 60738-1 Attachment point Sensor for the AC contacts Measuring range_resistance 790.00 Ω ... 1420.00 Ω... - Page 4 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Material (Housing) Plastic Material (Contact surface) Silver Cable/line Cable length Cable type Single wires Single wire, cross section 70.00 mm² Single-core wires for AC Cable length Cable structure 2 x 16 mm² Single wire, material...
-
Page 5: Mechanical Properties
Degree of protection (Vehicle charging inlet) IP55 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard- compliant products) IP67 (Inner area of vehicle charging inlet) Ambient temperature (operation) -40 °C ... - Page 6 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Mounting type Front and rear mounting (0 to 90 degree frontal inclination possible) Mounting hole diameter 6.70 mm (ø) Fixing screws Screws included in the scope of delivery none May 8, 2024, 8:58 AM...
-
Page 7: Schematic Diagram
CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Drawings Schematic diagram The Combined Charging System (CCS) principle - standard-compliant charging system for electric vehicles, which supports both conventional AC charging and fast DC charging. Both Vehicle Connectors fit into the CCS Vehicle Inlet. - Page 8 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Diagram = T(R ) = a * R Pt 1000 Pt 1000 = +25 °C 1000 1100 1200 1300 1400 1500 [ Ω] Pt 1000 Pt 1000 characteristic curve at an ambient temperature of 25°C for temperature measurement at the DC contacts...
- Page 9 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Schematic diagram [II] [III] [IV] Operating instructions May 8, 2024, 8:58 AM Page 9 (16)
-
Page 10: Dimensional Drawing
CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Dimensional drawing 122,8 97,9 27,4 50,8 80,8 Ø 11 Dimensional drawing Schematic diagram BU/RD 0,5 mm ² BU/GN 0,5 mm ² BU/YE 0,5 mm ² BU/BN 0,5 mm ² Block diagram of the locking actuator... - Page 11 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Connection diagram Installation positions Schematic diagram Shutdown Charging shutdown threshold Temperature sensor technology resistance range at AC contacts May 8, 2024, 8:58 AM Page 11 (16)
- Page 12 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Diagram 200 400 600 800 1000 1200 1400 1600 t [ms] 200 400 600 800 1000 1200 1400 1600 t [ms] Locking states of the locking actuator May 8, 2024, 8:58 AM...
- Page 13 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Approvals To download certificates, visit the product detail page: https://www.phoenixcontact.com/us/products/1360818 cULus Recognized Approval ID: E473195-20210730 May 8, 2024, 8:58 AM Page 13 (16)
- Page 14 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Classifications ECLASS ECLASS-11.0 27144706 ECLASS-12.0 27144706 ECLASS-13.0 27144706 ETIM ETIM 9.0 EC002898 UNSPSC UNSPSC 21.0 39121800 May 8, 2024, 8:58 AM Page 14 (16)
- Page 15 CHARX T1HBI12-1AC80DC200-8,0M1 - Vehicle charging inlet 1360818 https://www.phoenixcontact.com/us/products/1360818 Environmental product compliance EU RoHS Fulfills EU RoHS substance requirements Exemption 6(c), 7(c)-I China RoHS Environment friendly use period (EFUP) EFUP-10 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration".
- Page 16 CHARX connect universal, Locking, Accessories, for mounting on vehicle charging inlets, Type 1, IEC 61851-1, Single wires, length: 1 m, locking actuator: 12 V, 4-pos. Phoenix Contact 2024 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road...
