Summit Appliance SCFM Installation Instructions

Installation Instructions for SCFM Freezers

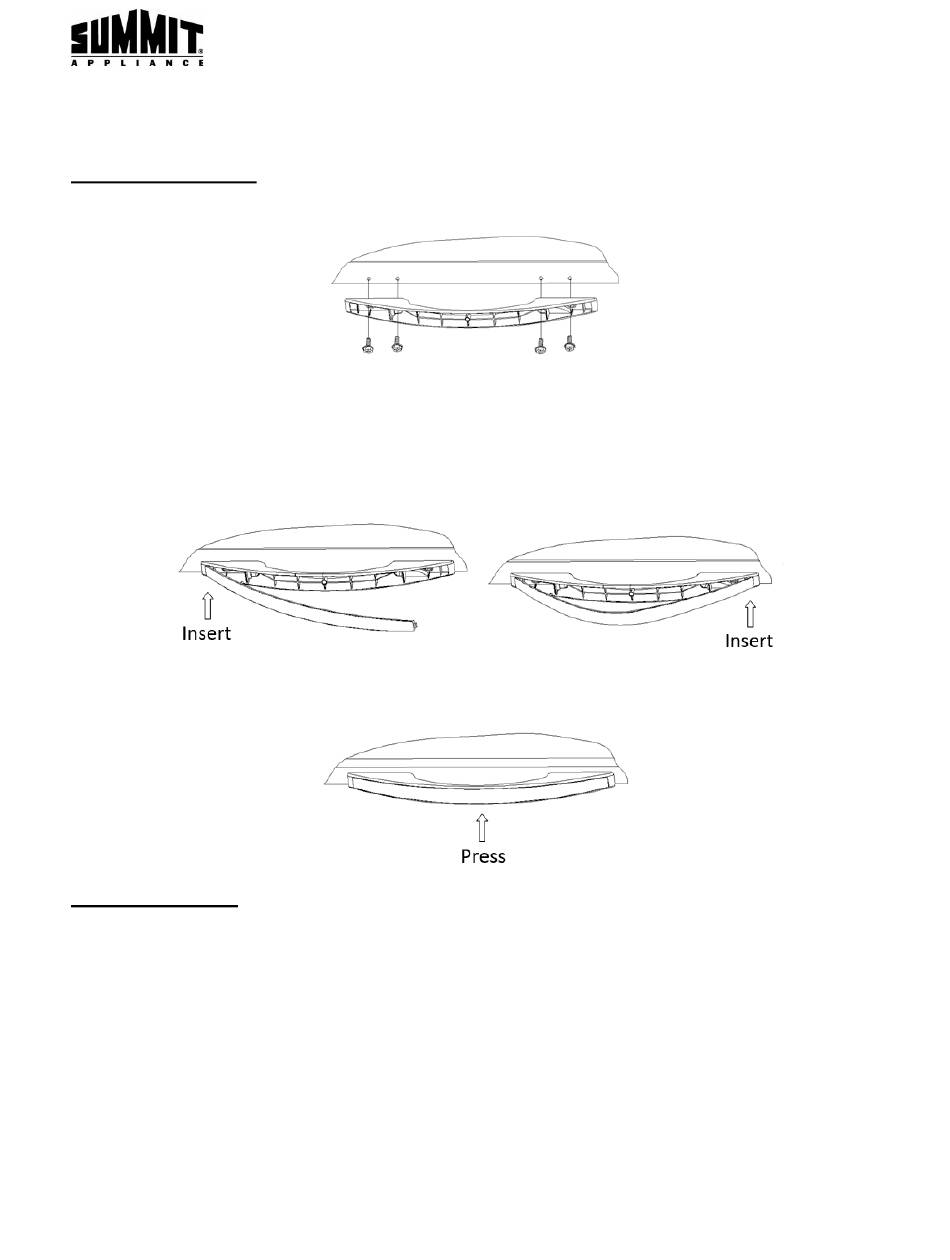

Installing the Handle
1. Fix the handle to the door with the provided screws.
NOTE: There is a notch cut into the handle, designed to accommodate the freezer lock. The handle
must be positioned with the notch on the right-hand side, facing down.
2. Insert one side of the handle cover into the handle holder, then insert the other side.
3. Press the cover into the handle.
Installing the Lock
1. Secure the lock assembly to the cabinet using the provided screws. The lock assembly is
installed.
2. Place the lock cover over the lock assembly and press it onto the lock. You should hear a
clicking sound once the cover is attached.
