Summary of Contents for Medion LIFE X14355

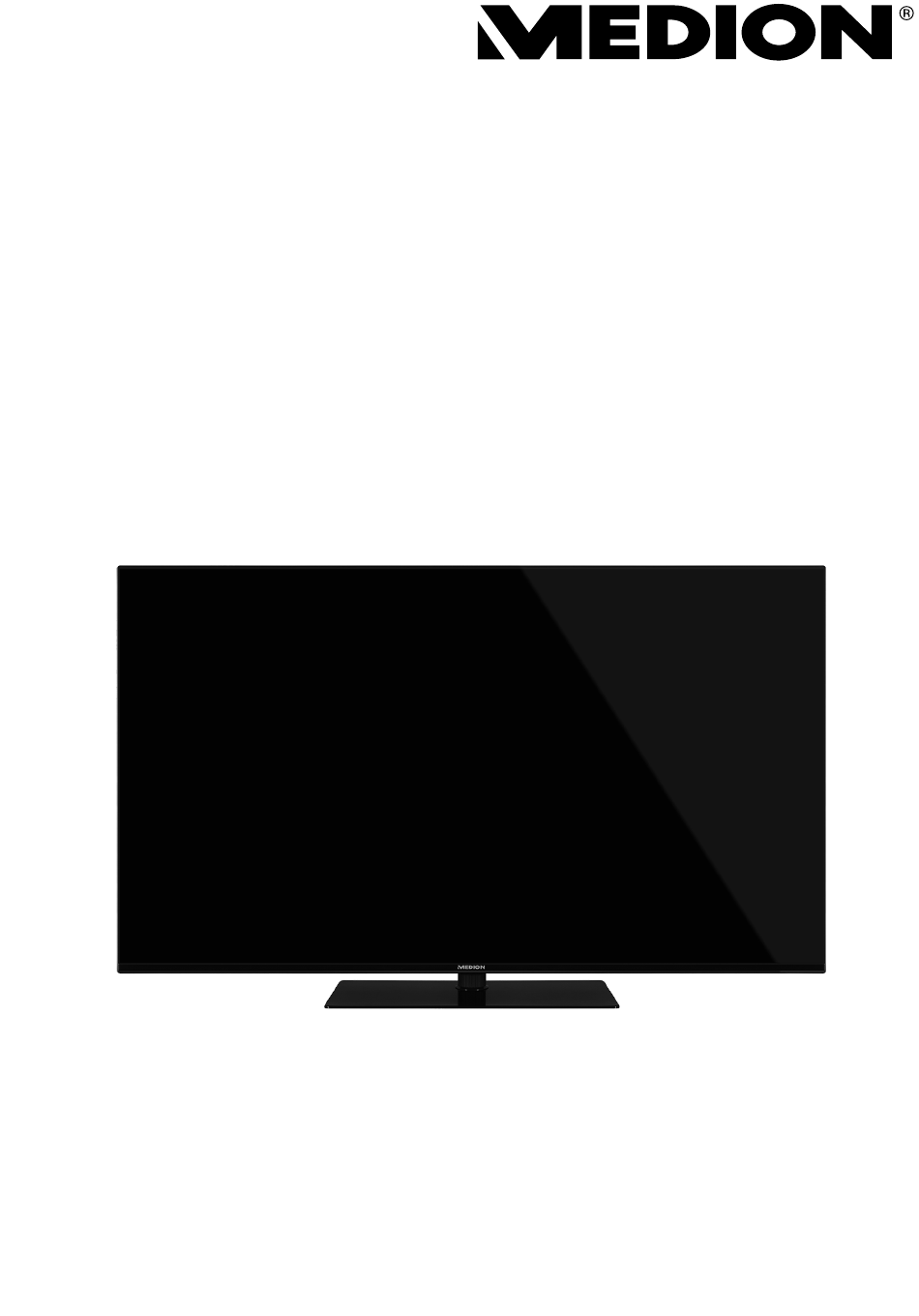

- Page 1 User manual Ultra HD Android Smart-TV ® ® MEDION LIFE X14355 (MD 31476) / X15034 (MD 31477) / X15518 (MD 31478) / X16544 (MD 31479)
-
Page 2: Table Of Contents
11.3. Record menu ............................50 Channel list.......................... 54 Multi Media Player (MMP) ....................55 13.1. Main menu for the media player ..................... 55 Google Cast ......................... 59 HbbTV system ........................59 Data protection MEDION® Smart TV ................. 60 HDMI 2.1 standard ......................60... - Page 3 17.1. eARC ................................. 60 17.2. ALLM ................................60 Troubleshooting ......................... 61 18.1. Do you need more help? ........................62 18.2. Smart TV pixel faults ..........................63 Cleaning ..........................64 Storing the device when not in use ................... 64 Disposal ..........................65 Technical specifications .....................
-
Page 4: Information About This User Manual
1. Information about this user manual Thank you for choosing our product. We hope you enjoy using this device. Read the safety instructions carefully before using the device for the first time. Note the warnings on the device and in the user manual. Always keep the user manual close to hand. -
Page 5: Proper Use
Protection class II Electrical devices in protection class II are devices that have double and/or reinforced in- sulation throughout, and do not have the option of connecting a protective earth. The housing of an electrical device in protection class II, with surrounding insulating material, might either form all of the additional or reinforced insulation, or part of it. -
Page 6: Package Contents
2. Package contents Please check your purchase to ensure that all items are included. If anything is missing, contact us within 14 days of purchase. The following items are supplied with your product: • Android UHD smart-TV • Remote control (RC1832) incl. 2 x LR03 (AAA) 1.5 V batteries •... -
Page 7: Safety Information
3. Safety information 3.1. Operating safety – Before using the device for the first time, check the device for damage. A defective or damaged device may not be operated. – This device may be used by children over the age of 8 and by persons with limited physical, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the device and have un- derstood the dangers that result from it. -
Page 8: Installation Location
– the device has fallen or its housing is damaged – The device produces smoke 3.2. Installation location – The TV must not be mounted at heights exceeding 2 m. The device must be mounted on a solid surface such as cement or concrete. –... -
Page 9: Ambient Temperature
– Do not place the TV on suspended furniture, such as wall cupboards or shelves, with- out safely and securely fixing both the furniture and the TV set. Take care to ensure that the furniture is mounted correctly and do not exceed its maximum load. –... -
Page 10: Safety When Connecting
3.5. Safety when connecting 3.5.1. Power supply – Even when deactivated, some of the device components are live. To disconnect the power to your Smart TV or to completely isolate the device from voltage sources, dis- connect the device from the power supply completely. To do so, remove mains plug from the socket. -
Page 11: Handling Batteries
3.6. Handling batteries WARNING! Risk of explosion! Batteries may contain combustible materials and leak, heat up excessively, ignite or even explode. Avoid improper handling of the batteries to prevent damage to your device and your health. Please follow the safety advice below closely: –... -
Page 12: Eu - Declaration Of Conformity
4. EU – Declaration of Conformity Medion AG hereby declares that this device complies with the required regulations in the EU and the fundamental requirements and the other relevant provisions of the following: • Radio Equipment Directive 2014/53/EU • Ecodesign Directive 2009/125/EC •... -
Page 13: Device Overview
5. Device overview 5.1. Front Screen Infrared sensor: Reception field for the infrared remote control signals. Operating light: lights up when the device is in standby mode. -
Page 14: Rear And Right-Hand Side
5.2. Rear and right-hand side 300mA Max. 13 Vdc/18 Vdc SPDIF Optic. out COMMON INTERFACE (CI+): Card slot for connecting pay TV cards ANT.: For connecting the antenna (analogue, DVB-T or DVB-C) HDMI 1-2: HDMI connection for devices with HDMI output (HDMI 2 can be used for eARC) USB (5 V , 500 mA max.): USB connections for media playback/recording (PVR) : Switch the device on and off... -
Page 15: Remote Control
5.3. Remote control MENU TEXT... - Page 16 : Switch smart TV on/off (switch standby mode on/off ). Number buttons: TV: Channel selection, teletext: Page selection : DTV/satellite/media browser: subtitle function : Mute : Channel selection buttons TV: select next (+) / previous (−) channel; teletext: select next (+) / previous (−) page : Microphone button for activating voice control : Open the start screen : Digital TV: show information (e.g.
-
Page 17: Getting Started
6. Getting started Before using for the first time, ensure you read the “Safety instructions” section. 6.1. Unpacking • Select a suitable place for setting up the device before unpacking. • Open the box very carefully, to avoid damaging the device. The device might get damaged if you use a knife with a long blade to open the box. -
Page 18: Inserting Batteries In The Remote Control
6.3. Inserting batteries in the remote control Remove the battery compartment cover on the back of the remote control. Insert two LR03 (AAA) 1.5 V batteries in the battery compartment of the remote control. Check the battery polarity (see label on the bottom of the battery compartment). ... -
Page 19: Initial Installation After Switching On For The First Time
6.7. Initial installation after switching on for the fi rst time You will be guided through the initial installation after you switch on the device for the first time. You can call up the initial installation at any time via the SETTINGS >... - Page 20 6.7.2. Network/Internet settings Next, you can establish a connection to the network/Internet. Select your Wi-Fi network Wi-Fi You can also connect an Ethernet cable to connect to the Internet Other network... Use Ethernet Skip All available WLAN networks are displayed directly. ...
- Page 21 6.7.5. Optimising voice control for your television (optional) You can now optimise voice control for your device. If you want to use voice control without log- ging into your Google account, select . If you do not want to con- USE ASSISTANT WITHOUT SIGNING IN figure any settings, select SKIP...
- Page 22 The following options are then available: Cable scan configure SCAN MODE Select the required search mode (only for provider selection FULL here. OTHERS ADVANCED QUICK FREQUENCY (KHZ) Set the frequency here. The default setting is AUTO NETWORK ID Set the network ID here. The default setting is AUTO ...
- Page 23 If necessary, you can now configure satellite settings for the relevant satellite: Satellite setup SATELLITE STATUS Activate/deactivate the satellite status. When deactivated, LNB set- tings can be changed or a search started. SATELLITE SELECTION The selected satellite is displayed here. SCAN MODE Select whether you wish to search for only encrypted, only freely available channels or for all channels here.
-
Page 24: Using The Multimedia Connections
6.8. Using the multimedia connections NOTICE! Risk of damage! Incorrect operation can cause damage to the devices used. Before wiring and first use, you must also read the user manual of the devices you are connecting. Take care to ensure that all devices are switched off during wiring. - Page 25 6.8.4. USB A USB port can be used to connect and read storage media such as USB sticks or external hard drives. Use a suitable USB cable. If a suitable USB cable is supplied, you should use this (e.g. for hard drives).
-
Page 26: Operation
7. Operation 7.1. Channel selection buttons on the remote control, use the To select a channel, press either one of the multi- function switch on the device or select the channel directly using the number buttons. For a two- or three-figure number, press the number buttons in the corresponding order. ... -
Page 27: Displaying Information
This function is used to zoom a widescreen image (picture format 14:9) MOVIE EXPAND 14:9 to the upper and lower edges of the screen. This function is used to zoom a widescreen image (picture format 16:9) MOVIE EXPAND 16:9 to the upper and lower edges of the screen. Please note that not all picture formats are available depending on the chosen picture source. -
Page 28: Teletext
An input source that you want to select must be marked as visible in the SETTINGS > DEVICE menu. PREFERENCES > INPUTS If the CEC function is enabled, the HDMI source could be renamed from the external player if necessary. The remote control of the TV set controls the connected devices. 8. -
Page 29: Using The On-Screen Display Menu (Osd Menu)
9. Using the On-Screen Display menu (OSD menu) 9.1. Navigating in the menu Press the menu button to activate the OSD. MENU Select the main menu with the direction buttons. Select the submenu from the main menu using the direction buttons. ... -
Page 30: Live Tv Menu
11. Live TV menu 11.1. Channels menu 11.1.1. Programme guide menu Here you can open the EPG (Electronic Programme Guide). You can also open the PROGRAMME directly by pressing the button. GUIDE You will see the current programme and the next programme for the available stations in the table. ... - Page 31 11.2.5. CI card menu CAM Info CAM Menu User preference If you want to watch subscription channels, you must first register with the channel provider. Once you have registered, you will receive a Conditional Access Module (CI module) and a special card from your provider.
- Page 32 11.2.6. Advanced options menu Advanced Options Audio Audio Language Second Audio Language Soundtracks Setup Blue Mute Default Channel Interaction Channel MHEG PIN Protection HBBTV Settings Subtitle Teletext System information Menu option Settings AUDIO Here you can set the audio language of the current programme, if more AUDIO LANGUAGE than one audio language is supported.
- Page 33 Menu option Settings Activate/deactivate the HbbTV function HBBTV SUPPORT Activate/deactivate the HbbTV/Internet Tracking op- tion. When are set, you enable the DEFAULT evaluation of your HbbTV/Internet performance to DO NOT TRACK optimally adapt the service to your preferences. If you do not want this, select the setting.
- Page 34 11.2.7. Settings menu Settings Suggestions Set your device name Use this name when casting photos, videos and more from your phone General Settings Network and Internet Wi-Fi is turned off Channel Accounts and sign-in No accounts Apps Device Preferences Remotes and accessories Menu option Settings Activate/deactivate the WLAN function...
- Page 35 Menu option Settings ETHERNET The status of the Internet connection is displayed here via Ether- NOT CONNECT- net, IP and MAC addresses. Manually set an HT-TP proxy for the browser. This proxy must PROXY SET- TINGS not be used by other apps. Configure the IP settings of your TV.
- Page 36 Menu option Settings Decide which channels you want to search for: CHANNEL SCAN ONLY FREE CHANNELS, ONLY ENCRYPTED CHAN- TYPE (free and encrypted channels). NELS Select the channel memory type here. : Search for digital TV channels and digital radio stations. CHANNEL STORE : Search for digital TV ONLY DIGITAL CHANNELS...
- Page 37 Menu option Settings Here you can edit channels in the channel list. Edit the name and channel number of the se- lected channel and, if available, call up infor- mation on the network name, frequency, col- CHANNEL EDIT our system and sound system for this channel. Other options can also be edited depending on the channel.
- Page 38 Menu option Settings Displays the signal SIGNAL QUALITY quality. Displays the signal le- SIGNAL LEVEL vel. Select the desired frequency, TRAN- symbol rate and polarisation for SPONDER the transponder here. SIGNAL Displays the signal quality QUALITY SIGNAL Displays the signal level LEVEL MORE Select the required satellite here.
- Page 39 Menu option Settings Set channels to be skipped when switching the channels on the remove control. Highlight CHANNEL SKIP the desired channels in the list and press select or deselect them. Open the channel change list here. This option takes you to the pro- gramme at the top of the dis- PAGE UP played page.
- Page 40 Menu option Settings AUTO CHAN- Activate/deactivate the automatic channel update. NEL UPDATE CHANNEL UP- Activate/deactivate the channel update messages. DATE MESSAGE If you confirm this by pressing , a dialogue box opens. The password (or lock key) is requested. Enter the password that was assigned during the initial installation or the master password .
- Page 41 Menu option Settings Here you will find a range of information about your system, in- cluding your Netflix ESN number. The ESN number is a unique ID number created to identify your TV set. You can also log out of Netflix here.
- Page 42 Menu option Settings All inputs of the TV can be shown or hidden here. You can also rename each input by selecting one of the predefined names or by assigning a name. HDMI CONTROL Enable this function to allow all devices that are connected via HDMI to communicate with each other.
- Page 43 Menu option Settings Depending on the input source selected, some menu options may not be available. PICTURE MODE Select picture mode: USER, STANDARD, VIVID, SPORT, MOVIE, GAME When changing the setting, a message may occasion- ally appear stating that the energy consumption could increase as a result.
- Page 44 Menu option Settings MPEG noise reduction removes image noise in MPEG-compressed video data for enhanced MPEG NR picture quality. Select between OFF, LOW, MEDI- STRONG Activate/deactivate the MaxVivid function to achie- MAX VIVID ve a more dynamic and smoother image display This function adjusts the contrast settings to ADAPTIVE provide deeper black and brighter white per-...
- Page 45 Menu option Settings In PC mode, some of the picture processing al- gorithms are reduced to keep the signal type PC MODE as it is. It can be used especially for RGB inputs. Select the de-contour setting. DE-CONTOUR Select the MJC settings. Select this setting according to the input RGB signal range of the HDMI source.
- Page 46 Menu option Settings EQUALISER DETAIL Here you can make individual sound adjustments in the fre- quency range of 120 HZ, 500 HZ, 1500 HZ, 5000 HZ 10000 HZ You can only access this function if DOLBY AUDIO PROCESSING has previously been deactivated. SPEAKER DELAY Select the desired speaker delay here.
- Page 47 Menu option Settings DOLBY ATMOS NOTIFICATION When this option has been activated (EIN), the Dolby Atmos logo is displayed briefly as soon as you view content with Dolby Atmos. When this option is deactivated (AUS), the Dolby Atmos logo is not displayed. DTS VIRTUAL X Activate/deactivate the DTS Virtual:X surround sound effect RESET TO DEFAULT...
- Page 48 Menu option Settings Activate/deactivate demo mode. STORE MODE AN/AUS If you activate the Google Assistant, you can then optimize voice control by signing in to your Google account. If you do not want this, select the option. USE ASSISTANT WITHOUT SIGNING IN ACCOUNTS Select your active account.
- Page 49 Menu option Settings AUDIO TYPE Select the desired accessibility aid here Select this setting if you do not require any ac- NORMAL cessibility aids. Once the option is activa- AUDIO DESCRIPTION AUDIO DE- ted, you can apply the following settings in this SCRIPTION menu: Activate this function if you want the subtitles...
-
Page 50: Record Menu
11.3. Record menu Before starting a recording, ensure that you have connected a USB storage device to one of the USB ports. 11.3.1. Record list menu Record List 3sat HD_20210427_000021_..3sat HD_20210427_000022_..3sat HD_20210427_000023_..Page up Delete Infor Page down In Live TV mode, select this option and press . - Page 51 11.3.2. Device info menu Device info USB-STICK 41,5/57,7 GB PVR/TSHIFT Info EXIT Exit This option can be used to make settings for the connected USB storage devices. Select a medium and press . The following options are then displayed: Menu option Settings Specify whether the selected USB storage device is to be used for the timeshift SET TIMESHIFT...
- Page 52 11.3.3. Schedule list menu Schedule List ..... Exit EXIT All programmed timers are listed in the schedule list. Press the button to add additional remind- ers or record timers. You can then make the following settings. Menu option Settings Select the desired source (e.g.
- Page 53 11.3.4. Time shift menu Record Setting Time Shift Mode Activate this function to enable timeshift recording. Recording via the media buttons You can operate the recording and playback using the media buttons. Press this button to start recording the current programme. ...
-
Page 54: Channel List
12. Channel list When the device is in use, press the button to open the list of channels. Channel list - All channels 1 Das Erste HD 2 ZDF HD 3 RTL 4 SAT.1 5 kabel eins 6 ProSieben 7 RTL2 8 VOX 9 SUPER RTL 10 SPORT1... -
Page 55: Multi Media Player (Mmp)
13. Multi Media Player (MMP) If you connect a USB storage device to the TV, you can play back the photos, music, videos or text stored on it. Select Multi Media Player (MMP) on the home page and press to open it and browse the connected USB devices or media servers and play or view content. - Page 56 13.1.1. Video If you select in the main menu, the available video files are filtered and displayed on the VIDEO screen. If the storage medium has several folders, press the buttons to first select a folder and then press to open it.
- Page 57 13.1.2. Photo If you select in the main menu, the available photo files are filtered and displayed on the FOTO screen. If the storage medium has several folders, press the buttons to first select a folder and then press to open it.
- Page 58 13.1.3. Music If you select in the main menu, the available music files are filtered and displayed on the MUSIK screen. If the storage medium has several folders, press the buttons to first select a folder and then press to open it.
-
Page 59: Google Cast
14. Google Cast With the integrated Google Cast technology, you can transfer content from your mobile device di- rectly to the TV. If your mobile device has the Google Cast function, you can mirror the screen of your mobile device to the TV via Wi-Fi. ... -
Page 60: Data Protection Medion® Smart Tv
Please check the privacy policy of the provider beforehand. MEDION® shall not be liable if the HbbTV, the portal or a service does not comply with the user’s re- quirements, nor does it guarantee that safe and error-free use of such services can always occur without restrictions, or continuously, at the required time. -
Page 61: Troubleshooting
18. Troubleshooting Malfunctions can sometimes have quite trivial causes, but they may also be the result of defective components. We have included a brief troubleshooting guide below which may help to solve any problems. If these measures don’t solve the problem, we’ll be more than pleased to help you fur- ther. -
Page 62: Do You Need More Help
Fault Actions The menu cannot be • Check whether CEC is enabled. In this case, the menu cannot be opened. opened. This is not a defect. In some cases, the menu of the device connected via HDMI opens. This is dependent on the playback device and must be supported accordingly. -
Page 63: Smart Tv Pixel Faults
18.2. Smart TV pixel faults 5 Pixel Despite the state-of-the-art production methods, in rare cases there may be individual or multiple pixel drop-outs (dead pixels) due to the highly complex technology. Rows For active matrix TFTs with a resolution of 3840 x 2160 pixels, which are each made up of four sub-pixels (red, green, blue, white), there are a total of approx. -
Page 64: Cleaning
19. Cleaning WARNING! Risk of electric shock! There is a risk of death due to an electric shock when the housing is open and you touch parts inside the device! Do not open the device housing. It does not contain any parts that require main- tenance by the user. -
Page 65: Disposal
21. Disposal Packaging Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner. Device The adjacent symbol of a crossed out wheelie bin means that the device is subject to Di- rective 2012/19/EU. -
Page 66: Technical Specifications
22. Technical specifi cations Smart-TV X14355 (MD 31476) Device name X14355 (MD 31476) Rated voltage 220–240 V ~ 50 Hz Rated voltage/current for satellite con- 13 V/18 V , 300 mA max. nection Screen size 108 cm (43”) LCD; 16:9 display Power consumption Max. - Page 67 Smart-TV X16544 (MD 31479) Device name X16544 (MD 31479) Rated voltage 220–240 V ~ 50 Hz Rated voltage/current for satellite con- 13 V/18 V , 300 mA max. nection Screen size 163.9 cm (65”) LCD; 16:9 display Power consumption Max. 200 watt Power consumption in standby mode <...
- Page 68 Remote control Transmission type Infrared LED classification Battery type 2 x 1.5V AAA R03/LR03 Ambient temperatures Permissible +5 °C to +35 °C ambient temperature Permissible relative humidity 20% to 85% Dimensions/weight X14355 (MD 31476) Dimensions without foot (W x H x D) Approx. 965 x 565 x 70 mm Dimensions with foot (W x H x D) Approx.
-
Page 69: Product Data Sheet
www.tuv.com www.tuv.com www.tuv.com www.tuv.com MD31476: ID 1111220771 MD31477: ID 1111220767 MD31478: ID 1111220809 MD31479: ID 1111223267 23. Product data sheet Scan the QR code that matches the model on the energy label or alternatively in the opera- ting instructions to download the product data sheet. MD 31476 MD 31477 MD 31478... -
Page 70: Trademark Information
(Article 77 of the GDPR in conjunction with paragraph 19 of the BDSG). For MEDION AG, this is the state official for data pro- tection and freedom of information North Rhine-Westphalia, PO box 200444, 40212 Düsseldorf, Germany, www.ldi.nrw.de. -
Page 71: Service Information
• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at community.medion.com. • Alternatively, use our contact form at www.medion.com/contact. • You can also contact our Service team via our hotline or by post. Opening times Hotline number UK ... -
Page 72: Legal Notice
Please note that you cannot use the address below for returns. Please contact the Service Centre mentioned above. MEDION AG Am Zehnthof 77 45307 Essen Germany Importer for GB market by: MEDION AG c/o MEDION ELECTRONICS LTD. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom... -
Page 73: Index
27. Index Operating safety ............7 Operation ..............26 ALLM ................60 Ambient temperature ..........9, 68 Package contents ............6 Anschließen Photo ................67 Antenne ............20, 22 Pixel faults ..............63 Power supply ..........10, 66, 67 Batteries ............11, 18, 65 Connecting the power supply ......
