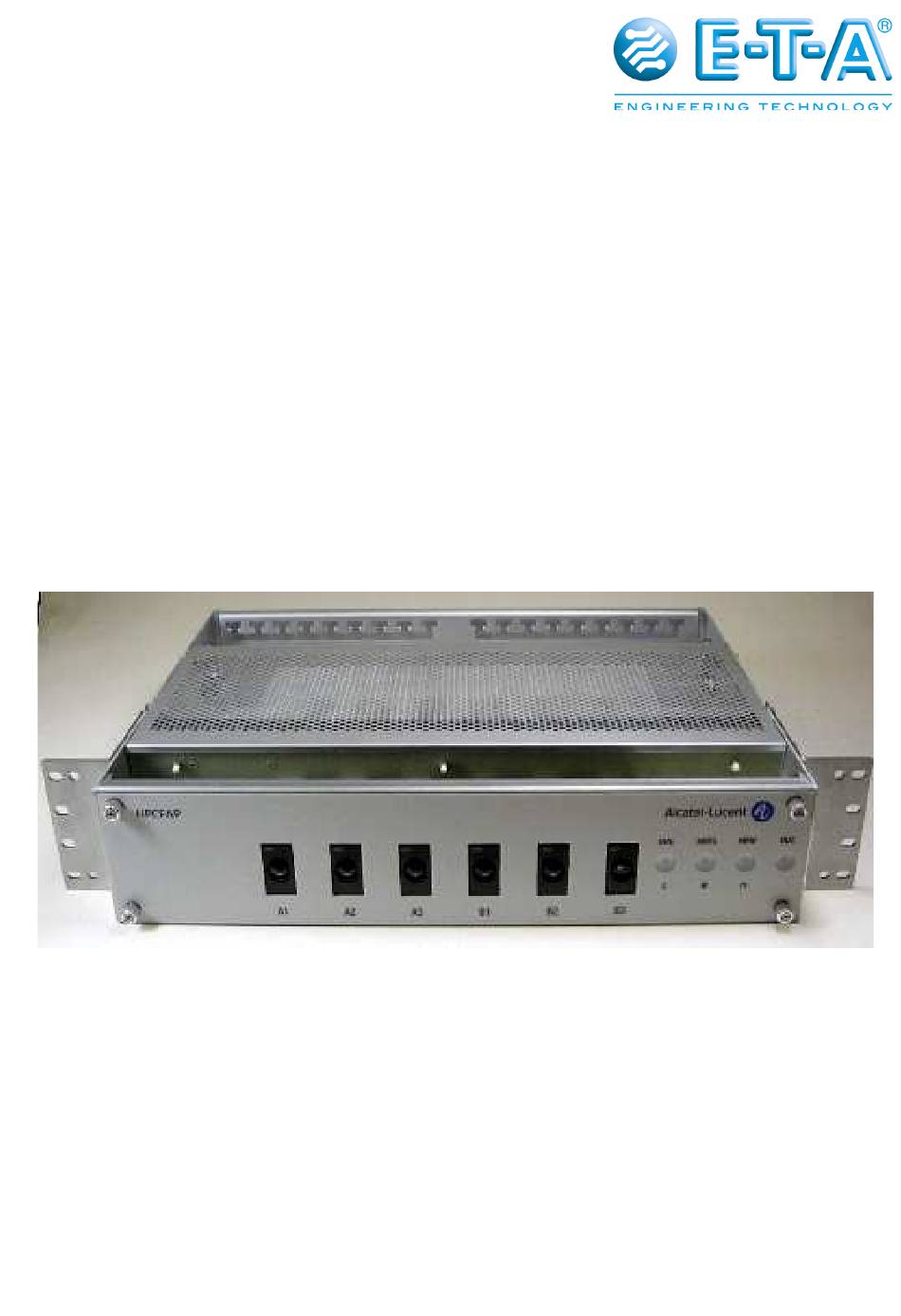

  • Page 1 Installation Guide High Power Connection Fuse & Alarm Panel (HPCFAP)
  • Page 2 CAUTIONS! • PDU must be located in a restricted access location. • PDU is intended to be used in a redundant distribution system where under a normal operation power is distributed at 50 % through each side of the panel. In the event of a single source power loss, the unit is designed to be able to carry 100 % of the load through one side of the panel.
  • Page 3 6 (3 per side) Rated Current per Channel / Total 125 A / 375 A (see also pg. 2 Cautions) Circuit Breaker Type E-T-A Model No. 8345, nominal current versions available: 0,1 ...125 A Short Circuit Current Rating 10 kA Mechanical Specifications Panel Dimensions 438 x 270 x 98 mm or 17.24”...

  • Page 4: Rack Installation

    1. Rack Installation HPCFAP unit can be installed in either an ETSI or ANSI type rack. HPCFAP shall be mounted in the rack’s uppermost position. Mounting brackets are supplied with each unit and can be used interchangeably for both ETSI and ANSI rack installation.

  • Page 5: Terminal Connections

    2. Terminal Connections To access all HPCFAP main terminals, first remove the top cover by loosening the four Phillips fastening screws located on top of the unit. Loosen each screw for max. 1 full turn. The screws shall be left attached to unit. Lift top cover. Fig.
  • Page 6 2.2 Load Terminals The HPCFAP also features 6 load terminals. Each load terminal is a breaker output. The load terminals are labeled -A1 out, -A2 out, … -B1 out, -B2 out …etc. The alpha digit identifies the zone/side and the numeric digit the breaker output channel number .
  • Page 7 2.3.3 Common Return, grounded With this option, all return terminals in the zone and chassis ground are connected by a jumper (provided separately). See Fig. 9a and 9b below for correct jumper connection and orientation. Fig. 9a – Common Return, grounded (A Side) Fig.

  • Page 8: Ground Connection

    2.4 Ground Connection Grounding terminals are located on either side of the sidepanels near the rear wall. Grounding cables may be routed through either the top or the bottom of the HPCFAP. If grounding cables for both supply and load are to be connected, we recommend routing the supply grounding cable through the top and the load grounding cable through the bottom of the HPCFAP.
  • Page 9 For reordering Circuit Breakers, please provide to the following order code: E-T-A- Circuit Breaker Type: 8345-S00219-…..(0,1 ...125 A) 4. Signaling Connector PINs Remove front plate by loosening captive screws. A Signaling PIN Connector is located in the recess on the right hand side of the circuit breaker retaining board.

  • Page 10: Wiring Diagram

    This installation manual reflects the current technical specifications at time of print. We reserve the right to change the technical or physical specifications. E-T-A Elektrotechnische Apparate GmbH Industriestraße 2-8 · D-90518 ALTDORF GERMANY Phone: +49 9187 10-0 · Fax. +49 9187 10-397 E-Mail: info@e-t-a.de ·...
