Endorphin.es NEW GODSPEED Manual

Peak performance auto-tuning thru-zero vco

Advertisement

Quick Links

P E A K P E R F O R M A N C E A U T O - T U N I N G T H R U - Z E R O V C O

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEW GODSPEED and is the answer not in the manual?

Questions and answers

Summary of Contents for Endorphin.es NEW GODSPEED

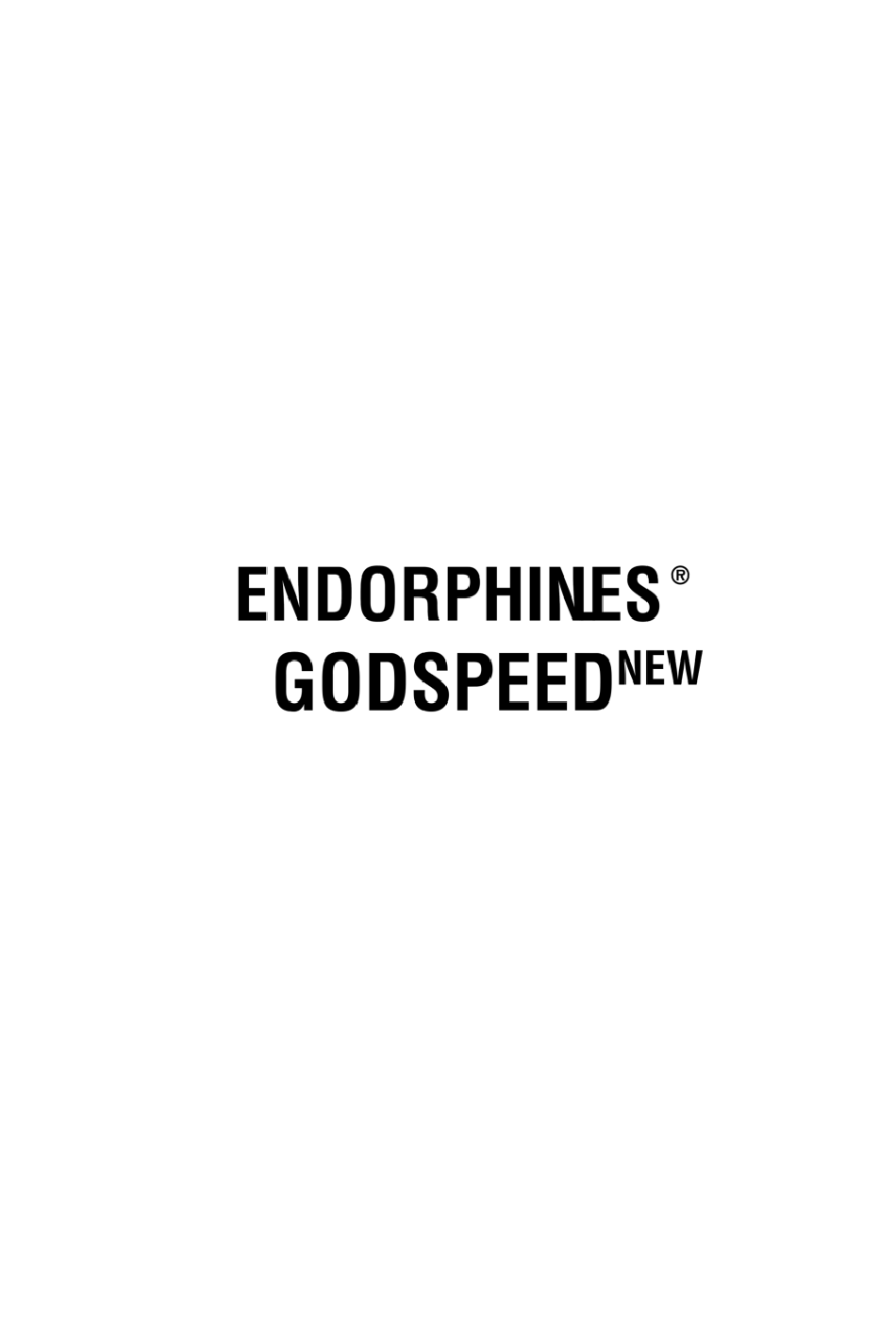

  • Page 1 P E A K P E R F O R M A N C E A U T O - T U N I N G T H R U - Z E R O V C O...
  • Page 2: Table Of Contents

    C O N T E N T WARRANTY ..........................3 VISIT US ........................... 3 INTRO ............................4 CONNECTING THE POWER ....................4 TECHNICAL SPECIFICATIONS ....................4 OVERVIEW ..........................4 INTERFACE ..........................5 REAR CONNECTIONS ......................9 TRS MIDI A/B STANDARDS ....................10 HOW AUTOTUNING WORKS ....................
  • Page 3: Warranty

    For dealer / marketing inquiries: i n f o @ e n d o r p h i n . e s ENDORPHIN.ES is a registered trademark. It is doing business as FURTH BARCELONA, S. L. (EU VAT ID: ES B66836487).
  • Page 4: Intro

    I N T R O is a peak performance, compact 6hp VCO with complex analog N E W G O D S P E E D waveshapers, auto-tuning and MIDI control. It is the successor module of the GODSPEED with the revolutionary, literally instant auto-tuning. The problem with all analog voltage controlled oscillators is that the applied 1v/oct pitch voltage might not match up exactly to what note’s frequency they should generate and it'll end up sounding out of tune.
  • Page 5: Interface

    I N T E R F A C E P a g e 5 o f 1 3...
  • Page 6 is a manual frequency control with -/+2 octaves P I T C H k n o b / m i d i c h * range. Adjustment goes in discrete chromatic semitone steps. Secondary function (pressing and holding while turning the / M I D I C H A N N E L * T U N E / * knob from CCW to CW) will set the...
  • Page 7 interface so it is always recommended to autotune after you patched the pitch CV cable first. �� blinks means that the autotuning works to the nearest t w o S o l notes, frequencies multiple of 392 Hz in both directions. Tuning to G notes would be interesting if you plan to use GODSPEED in the lower range for ®...
  • Page 8 0…+5V external CV control over the (8). 1 0 . T I M B R E C V j a c k : T I M B R E Normalled to +5V when no patch cable is present. is a pure sine output of the VCO. Folds 1 1 .
  • Page 9: Rear Connections

    R E A R C O N N E C T I O N S is 10 pin standard +/-12V power 1 . P O W E R C O N N E C T O R : e u r o r a c k connector with reverse polarity protection.
  • Page 10: Trs Midi A/B Standards

    standard converter. For setting the appropriate jack to a certain TRS MIDI standard: �� Power off your modular system, take the GODSPEED module from the case. You may separate its two boards or just look at its side in the area behind the MIDI jacks.
  • Page 11: How Autotuning Works

    - just ensure to switch to the proper standard behind the module. Example of the TRS-MIDI type B adapter from our webshop: https://www.endorphin.es/accessories/p/35mm-midi H O W A U T O T U N I N G W O R K S...
  • Page 12: Midi Implementation Chart

    MIDI, hybrid waveshapers, optimisation and full code rework by Matim Beta testing by Daniele Giannattasio ENDORPHIN.ES are made in Barcelona province, Spain Follow, like, post and tag us at Instagram: @endorphin.es P a g e 1 2 o f 1 3...
  • Page 13: Compliance

    Changes / modifications not approved by ENDORPHIN.ES doing business as Furth Barcelona, S.L. could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
