Amphenol Wilcoxon P703B Series Quick Start Manual

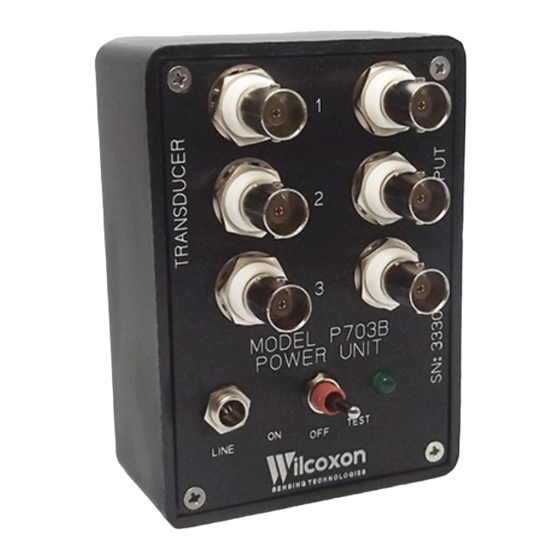

Three channel power units
P703B series
SPECIFICATIONS
Input:
Voltage to transducer
Current to transducer
Maximum input voltage
Output impedance (sensor
attached to input)
Recommended load
impedance
Decoupling capacitator
(internal)
Gain
Frequency response
Channels
Channel separation
LED lights
Battery life
2
Batteries
External power
Temperature range
Size (W x H x D)
Weight
Connectors:
Signal input
Signal output
Pin out (P703BT only)
Notes: 25.2 VDC when using Ni-Cad batteries.
1
For extended operation, the NC3 Ni-Cad battery kit should be used.
2
Accessories supplied: (3) 9V alkaline batteries
Accessories available: NC3 Ni-Cad battery kit; LA704B line adaptor (110V); LA704B-220 line
adaptor (220V); BNC series adaptors
See reverse for operating instructions.
Note: Due to continuous process improvement, specifications are subject to change without notice. This document is cleared for public release.
Wilcoxon Sensing Technologies
An Amphenol Company
98446 Rev.I4 01/22
P703B P703BT
27 VDC 27 VDC
1
2.4 mA DC, ± 20% 2.4 mA DC, ± 10%
10 V rms 10 V rms
same as transducer
>100 kΩ >100 kΩ
22 µF, 35 VDC 22 µF, 35 VDC
1:1 with DC decoupling
same as transducer
3
>80 dB >60 dB
>18 VDC
>40 hours >40 hours
9V alkaline (3)
24 to 30 VDC
0° to +55°C
3 x 2.4 x 4 inches
0.84 lb
Bendix POC2A-
BNC
BNC BNC (front panel)
A: y axis
B: x axis
C: z axis
D: common/return
8435 Progress Drive
Frederick, MD 21701
USA
1
3
1.0 lb
8-4P
Tel: +1 (301) 330-8811
Fax: +1 (301) 330-8873
info@wilcoxon.com
Key features
• Powers 3 separate sensors
• Can drive up to 50 ft. of cable
• Battery condition light
• Manufactured in an ISO
9001 facility
Models available
P703B standard model
P703BT Bendix 4 pin connector
