Summary of Contents for Beko HTE7716WBC

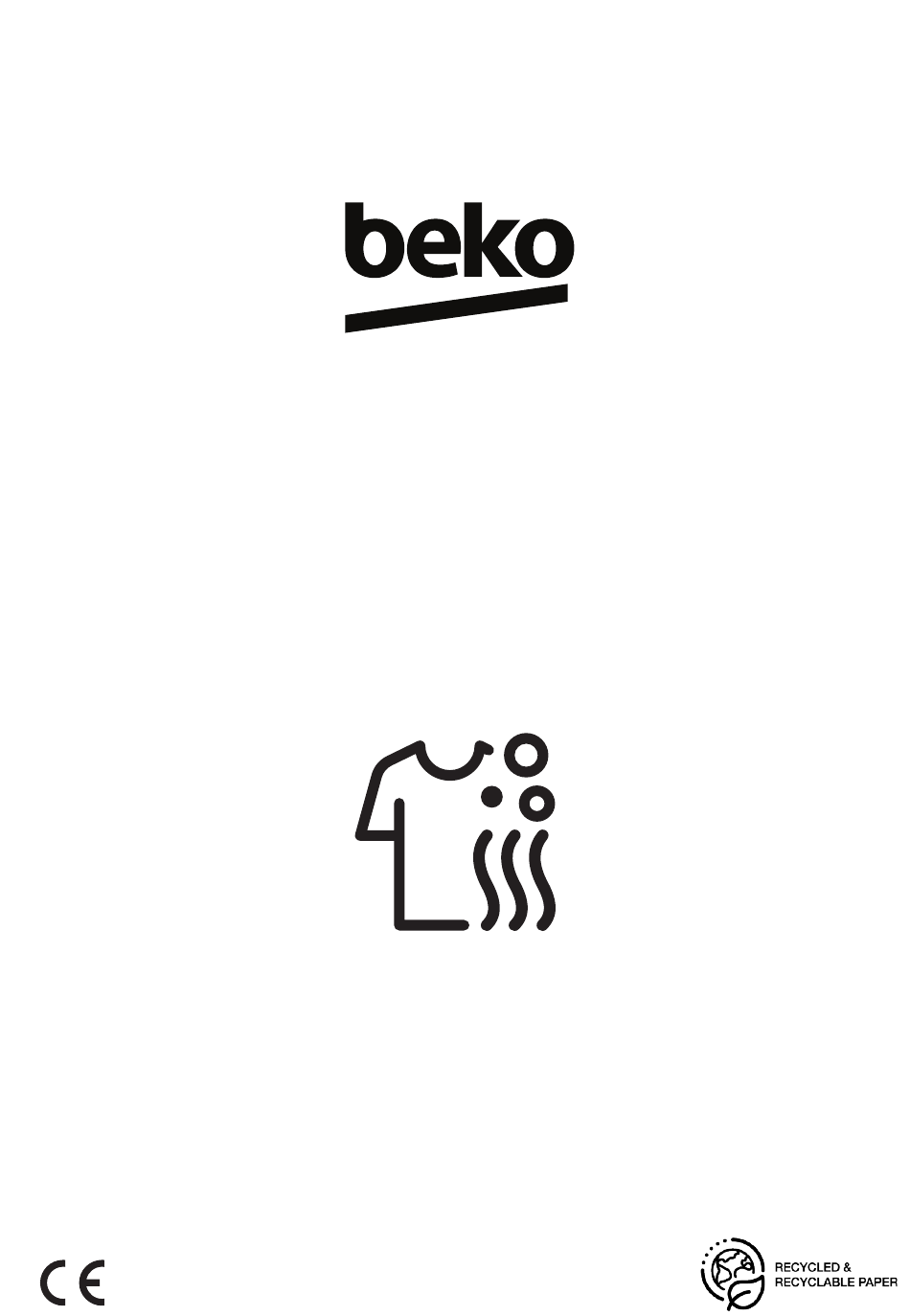

- Page 1 Washer-Dryer User Manual HTE7716WBC Document Number : 2820532020_EN/ 30-04-24.(13:17)
- Page 2 PRECAUTION! Dear Customer, • Precautions that need to be taken. Thank you for choosing a Beko appliance. Please take some time to read this user manual before using your appliance, to ensure you know INFORMATION how to safely operate the controls and functions.
-
Page 3: Important Instructions For Safety And Environment
1 Important instructions for safety and environment 1.1.1 Electrical safety This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow DANGER! these instructions shall void any warranty. • If the product has a failure, it 1.1 General safety should not be operated unless it is repaired by the Authorised Service... -
Page 4: Product Safety
1.1.2 Product safety INFORMATION DANGER! • Do not install or leave the product in places where it might be exposed to • Never open the loading door or remove outdoor conditions. the filter while there is still water in the •... - Page 5 CAUTION! DANGER! • Do not stop the machine before the • Rubber (latex) foam, shower caps, drying programme is completed. waterproof fabrics, clothes and If you have to do so, remove all rubber-reinforced/rubber-foam laundry, place it at an appropriate pillows must not be dried with the place and wait for it to cool down.
-
Page 6: Intended Use
1.2 Intended use WARNING! INFORMATION • Before loading the machine, check each laundry item and make sure • This product has been designed for that there is no lighter, change, domestic use. It is not suitable for metal objects, needles etc. inside commercial use and it must not be them or in their pockets. -
Page 7: Children's Safety
1.3 Children's safety Help protect the environment and natural resources by recycling used products. For children’s safety, cut the power cable and CAUTION! break the lock mechanism of the loading door to make the product non-functional before • Children under the age of 3 must be disposal. -
Page 8: Package Contents
2.2 Package contents Power cable Water discharge hose Transit bolts Mains water inlet hose Liquid detergent container (*) User manual Plastic plug group INFORMATION • Figures in this manual are schematic and may not match the product exactly. (*) This may be supplied with the machine depending on the model of your product. 8 / EN Washer-Dryer / User Manual... -
Page 9: Technical Specifications
2.3 Technical specifications Supplier name or trademark Beko HTE7716WBC Model name 7165147200 Maximum spin speed (rpm) 1400 Washing capacity (cotton) (kg) Drying capacity (cotton) (kg) Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - •... -
Page 10: Appropriate Installation Location
3 Installation PRECAUTION! INFORMATION • Preparation of the location and electrical, tap water and waste water installations at • Your washing machine automatically the place of installation is under customer’s detects the amount of laundry placed inside responsibility. when selecting a program. •... -
Page 11: Removing The Transit Bolts
3.3 Removing the transit bolts CAUTION! PRECAUTION! • Models with a single water inlet should not be connected to the hot water tap. In such • Do not remove the transit bolts before a case the laundry will get damaged or the removing the packaging reinforcement. -
Page 12: Connecting To The Drain
3.5 Connecting to the drain 3.6 Adjusting the feet • Attach the end of the drain hose directly to waste water drain, sink or bathtub. CAUTION! • Your house will be flooded if the hose comes out of its housing during water discharge. -
Page 13: Transportation Of The Product
• Power cable plug must be within 4 Preparation easy reach after installation. • If the current value of the fuse or breaker 4.1 Sorting the laundry in the house is less than 16 Amps, have a * Sort laundry according to type of qualified electrician install a 16 Amp fuse. -
Page 14: First Use
To prepare the product for washing laundry, INFORMATION perform first operation in Drum Cleaning programme. If this programme is not available • Laundry that are subjected to materials on your machine, apply the method described such as flour, lime dust, milk powder, etc. in section 6.2. -
Page 15: Detergent Drawer
• Do not select a programme with prewash if you are using a detergent bag or dispensing INFORMATION ball. Place the detergent bag or the • The loading door is locked while a programme dispensing ball directly among the laundry is running. -
Page 16: Using Softeners
4.7.5 Using softeners 4.7.7 Using gel and tablet detergent Pour the softener into the softener compartment • If the gel detergent thickness is fluidal and of the detergent drawer. your machine does not contain a special • Do not exceed the (>max<) level marking liquid detergent container, put the gel in the softener compartment. -
Page 17: Using Limescale Remover
4.7.10 Using limescale remover • Use just a little amount (approximately 50 ml) of bleach and rinse the clothes • When required, use limescale very well as it causes skin irritation. Do removers manufactured specifically not pour the bleach onto the laundry and for washing machines only. -
Page 18: Tips For Correct Drying
4.9 Tips for correct drying Programmes Cottons Drying Synthetics Drying Babyprotect + Washing and Drying Wash&Wear Washes and dries Washes and dries respectively! Stainless clothes that has Sheet, bedding, baby clothes, respectively! Sheet, Sheet, bedding, baby clothes, been worn for a short time t-shirts, sweatshirts, durable bedding, baby clothes, t-shirts, sweatshirts, durable... -
Page 19: Operating The Product
5.3 Preparing the Machine 5 Operating the product 1. Check if the hoses are connected tightly. 5.1 Control panel 2. Plug in your machine. 3. Turn the tap on completely. 4. Place the laundry in the machine. 5. Add detergent and fabric softener. 5.4 Selecting a washing programme 1. - Page 20 • Cottons • Woollens / Hand Wash You can wash your durable cotton laundry Use this programme to wash your woollen (sheets, bedlinen, towels, bathrobes, underwear clothes. Select the appropriate temperature etc.) in this programme. When you press the complying with the tag of your clothes. Your quick wash function key, programme duration laundry will be washed with very delicate becomes notably shorter but effective washing is...
- Page 21 • Xpress / Super Xpress Use this programme to wash your lightly soiled INFORMATION cotton clothes in a short time. The programme duration can be reduced down to 14 minutes • You can dry your laundry without any when the quick wash function is selected. When interruption right after the washing programme the quick wash function is selected, maximum 2 (it is possible to perform automatic or...
-
Page 22: Temperature Selection
• Mix You can use this programme to wash cottons and INFORMATION synthetics together without the need to sort them. • You can dry your laundry without any interruption right after the washing programme INFORMATION (it is possible to perform automatic or scheduled drying after the washing cycle). - Page 23 Press the Temperature Adjustment key to change the temperature. INFORMATION • Spin Speed Adjustment button works only INFORMATION backwards. For example, if the display shows 800 rpm but you want to select • Temperature Adjustment button works only 1000 rpm, you will need to press the button backwards.
-
Page 24: Washing And Drying Programmes
• Cotton Dry Use this programme to dry cotton clothes with INFORMATION dry weight up to 4 kg. You can perform only • Only for dying programmes, press the drying in this programme. Auxiliary Function Selection button to set the suitable drying option. INFORMATION 5.8 Drying programmes •... -
Page 25: Programme And Consumption Table
• Wash & Wear • Hygiene+ Wash & Dry Use this programme to wash 0.5 kg of laundry Applying a steam step at the beginning of the (2 shirts) in 40 minutes or 1 kg of laundry (5 programme allows to soften the dirt easily. shirts) in 60 minutes. - Page 26 • : Selectable. * : Automatically selected, cannot be cancelled. ***: Eco 40-60 with 40 °C temperature selection is the washing performance test program in accordance with EN 62512 and energy label test program in accordance with Commission Delegated Regulation (EU) 2019/2014 Eco 40-60 with 40 °C temperature and cup board dry selection is the wash and dry cycle test program in accordance with EN 62512 and energy label test program in accordance with Commission Delegated Regulation (EU) 2019/2014 *****: These programmes can be used with the HomeWhiz application.
-
Page 27: Auxiliary Function Selection
Consumption Values (EN) 0,970 1400 03:27 0,630 Eco 40-60 1400 02:41 0,340 1400 02:41 Cottons 1400 03:35 0,700 53,9 Cottons 1,700 53,9 1400 03:35 Synthetics 0,850 1200 02:15 Xpress / Super Xpress 0,200 1400 00:28 2,585 53,9 1400 07:05 Eco 40-60+Cupboard Dry 1,525 37,5 53,9... -
Page 28: Auxiliary Functions
5.11.1 Auxiliary Functions 5.11.2 Functions/Programmes Selected by Pressing the • Prewash Function Buttons for 3 Seconds A Prewash is required only for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time. • Drum Clean+ • Fast+ To select this programme, press and hold the You can press the Quick Wash button to auxiliary function button 1 for 3 seconds. -
Page 29: Time Based Drying - Minutes
• Child lock INFORMATION You can use the Child Lock to prevent children from tampering with the machine. Thus you can • You must complete the first setup of the avoid any changes in a running programme. HomeWhiz app for Bluetooth to be enabled. After the setup, if you press the Remote INFORMATION Control function button while the button... -
Page 30: Starting The Programme
2. Select the washing programme, temperature, spin speed and, if INFORMATION required, the auxiliary functions. • When drying small amount of laundry (2 3. Press the End Time button to set the desired end time. The End Time light will turn on. pieces maximum), select the timed drying steps in the Cottons or Synthetics drying 4. -
Page 31: Switching The Machine To Pause Mode
• Remove the loading door emergency INFORMATION handle behind the filter cover with a tool. • Open the loading door by pulling the loading • The door will be locked if the Remote door emergency handle downwards. Control function is selected. To open the •... - Page 32 5.17.3 Changing the 5.19 End of programme programme selection after Once the programme is completed, the End the programme has started: symbol will be displayed. If you do not press any button for 10 minutes, If Child Lock is not enabled, you can change the machine will switch to OFF mode.
- Page 33 • While the device is in HomeWhiz setup mode, you will see an animation on the display, INFORMATION and the Bluetooth icon will flash until the • To be able to use the HomeWhiz function, machine is paired with your smart device. make sure that the app is installed on your In this mode, only the programme button smart device and that your washing machine...
-
Page 34: Using The Remote Control Function
You can check the Bluetooth symbol on the display to follow the connection status. If the INFORMATION symbol is on, this means that the Bluetooth • The HomeWhiz application may ask you connection is established. If the symbol is to enter the product number stated on established, the product is trying to connect. -
Page 35: Maintenance And Cleaning
If the Remote Control function cannot be 6 Maintenance and cleaning enabled, you will hear a warning after pressing the button. This might occur if the product is Service life of product extends and frequently switched on or if there is no product paired experienced problems will be reduced if it is through Bluetooth. -
Page 36: Cleaning The Body And Control Panel
1. Close the taps. After every washing and 2. Remove the nuts of the water intake drying make sure that hoses to access the filters on the water no foreign substance is intake valves. Clean residues on them left in the drum. with an appropriate brush. -
Page 37: Troubleshooting
2. Open the filter cover. Press the tab 7 Troubleshooting in the direction of the arrow and pull the cover out towards yourself. Programmes won’t start after the loading door has been closed. • You did not press the Start/Pause/Cancel button.>>> *Press the Start/Pause/Cancel button. - Page 38 Machine directly discharges the water it takes in. Programme time does not countdown. (*) • The drain hose might be at an inappropriate height. >>> • The laundry in the machine might be unbalanced. >>> The Connect the water drain hose as described in the user manual. automatic unbalanced load detection system might have been activated due to uneven distribution of the laundry in the drum.
- Page 39 Colour of the clothes faded. (**) There is detergent left on the laundry. • Machine might have been overloaded. >>> Do not overload • Machine might have been overloaded. >>> Do not overload the machine. the machine. • Detergent used might be damp. >>> Keep detergents closed •...
- Page 40 Machine does not start or programme cannot be started. • Power cable might be unplugged. >>> Make sure that the power cable is plugged in. • Programme might not be set, or the Start/Pause/ Cancel button might not be pressed. >>> Make sure the programme is set and the machine is not in Stand-by mode.
- Page 41 Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko ) shall void the guarantee. Self-Repair...
