Summary of Contents for Wallbox UL ENCLOSURE

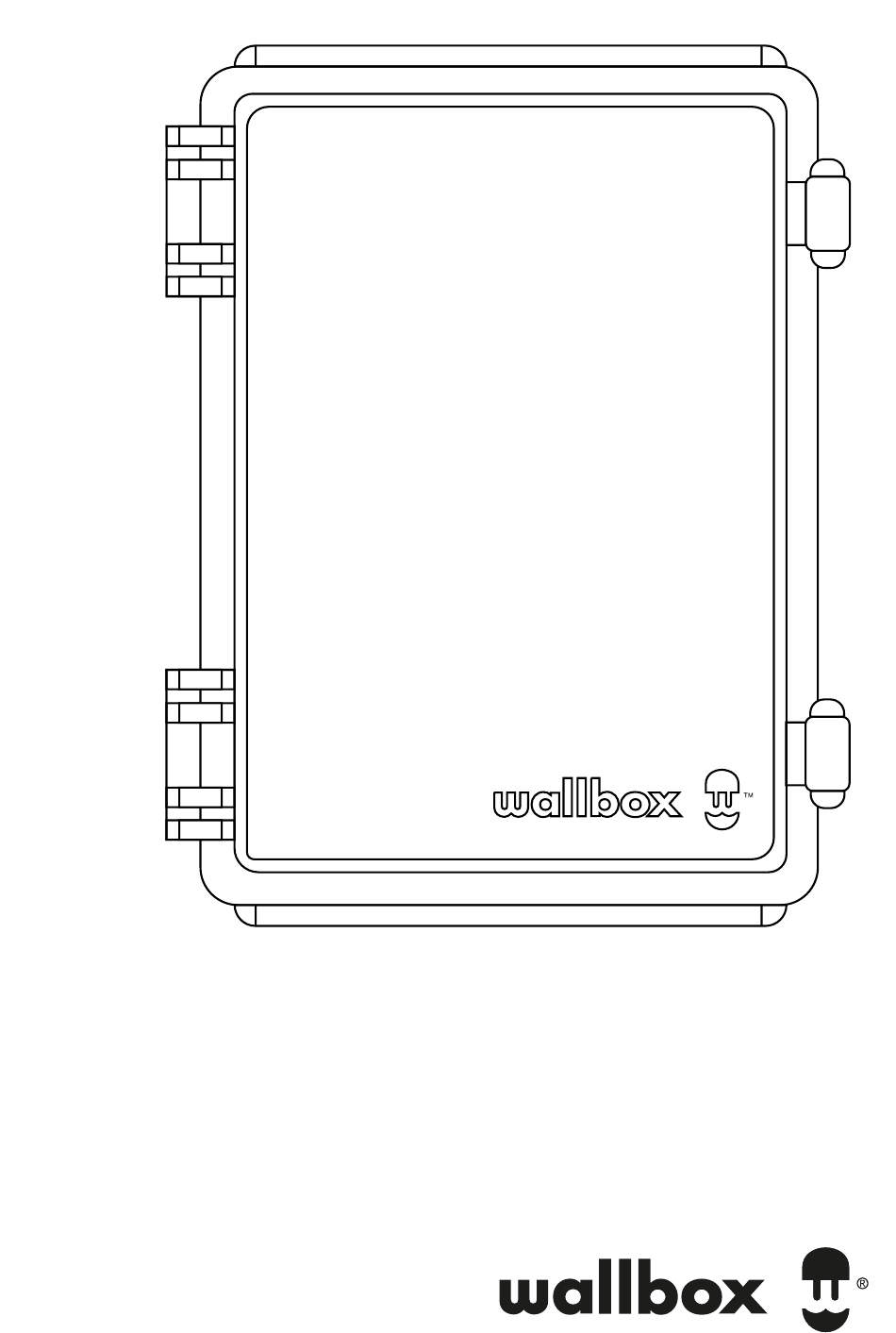

  • Page 1 UL ENCLOSURE Installation Guide...
  • Page 2 Index GETTING STARTED Data Sheet Specifications Inside the box Important notes INSTALLATION Set up and wiring Mounting the meter Dismounting the meter...

  • Page 3: Data Sheet

    Data Sheet Inside the box Specifications UL Enclosure Brackets (x4) Screws (x4) Model Power Meter UL Enclosure Dimensions 135mm x 185mm x 85mm (5.32” x 7.28” x 3.35”) Weight 0.6 Kg / 1.25 lbs Temperature range - 40 ~ + 110 ºC...

  • Page 4: Important Notes

    GETTING STARTED INSTALLATION Important Notes Set up and wiring Regarding the installation of the NA Power meter, UL notes: • Make sure the external disconnecting device is easily accessible, before Fix the brackets to the enclosure by installing the device. using the four screws.

  • Page 5: Mounting The Meter

    Push the plastic tab placed on the out from the electrical panel. back of the meter. Drill a hole on the UL enclosure that will fit the conduit used. Place the meter inside the enclosure by embedding the top of the EM 530 in the din rail.
  • Page 6 INSTALLATION Dismounting the meter Open the plastic tab on the meter. Lift the bottom of the meter, then the top to remove it from the din.
  • Page 7 V-1.0...
