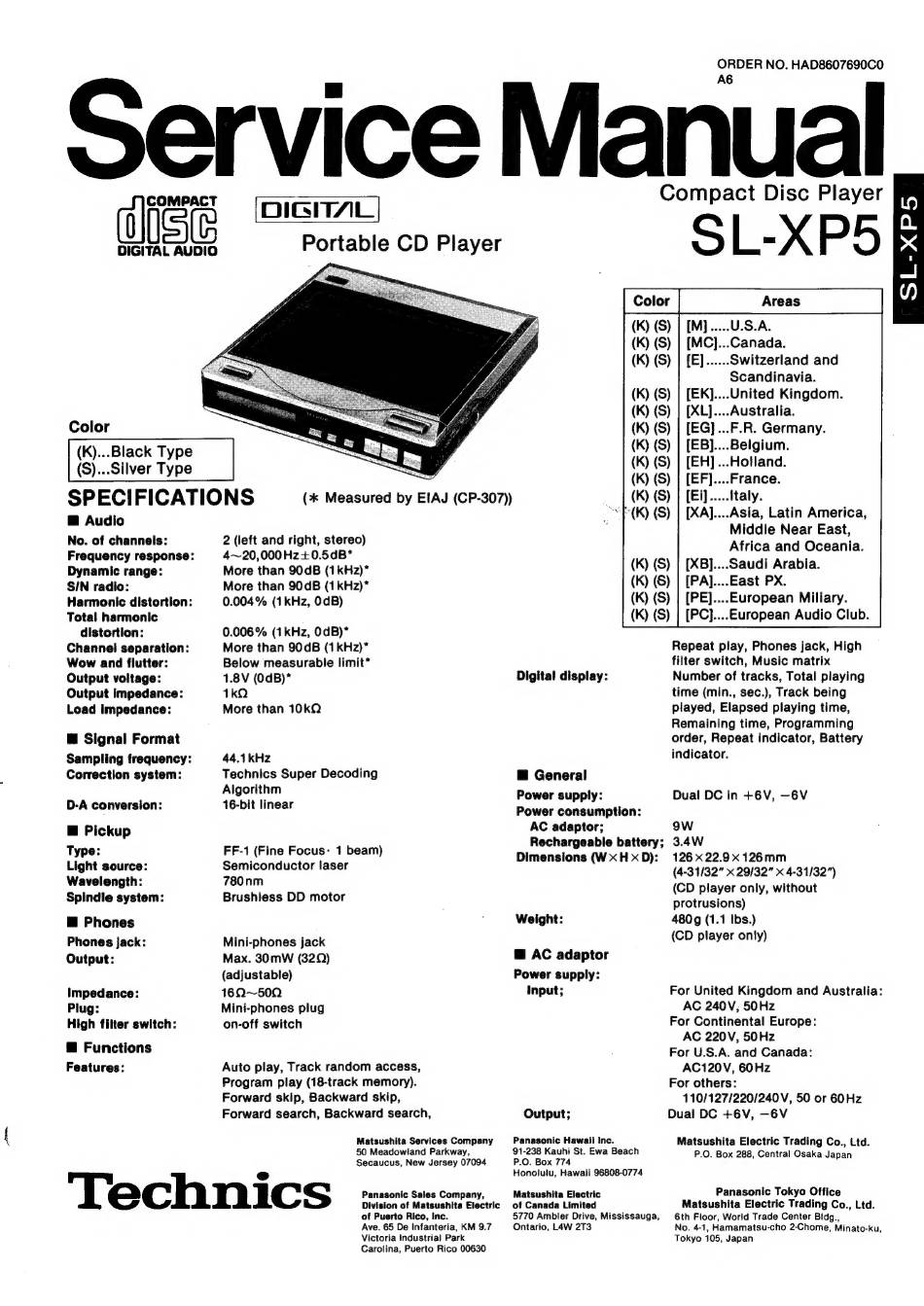

Technics SL-XP5 Service Manual

ORDER NO. HAD8607690C0
aise
alps AUDIO
Color
(K)...Black Type
(S)...Silver Type
SPECIFICATIONS
@ Audio
No. of channels:
Frequency response:
Dynamic range:
SIN radio:
Harmonic distortion:
Total harmonic
distortion:
Channel separation:
Wow and flutter:
Output voltage:
Output impedance:
Load impedance:
@ Signal Format
Sampling frequency:
Correction system:
D-A conversion:
@ Pickup
Type:
Light source:
Wavelength:
Spindle system:
@ Phones
Phones jack:
Output:
Impedance:
Plug:
High filter switch:
@ Functions
Features:
Technics
[DIGITAL|

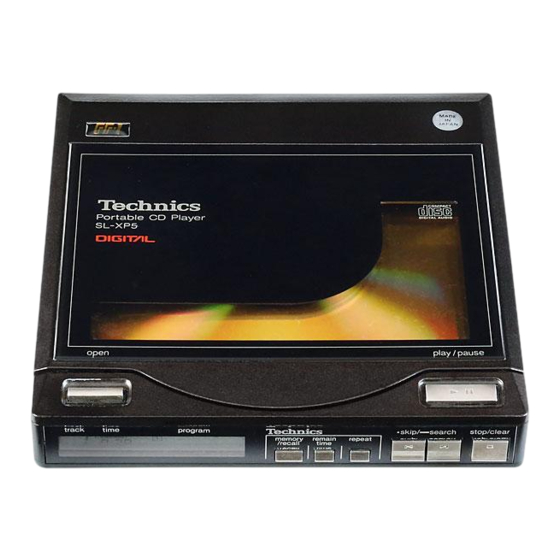

Portable CD Player
2 (left and right, stereo)
4~20,000Hz+0.5dB*
More than 90dB (1kHz)*
More than 90dB (1kHz)*
0.004% (1kHz, 0dB)
0.006% (1kHz, 0dB)*
More than 90dB (1kHz)*
Below measurable limit*
1.8V (OdB)*
1kQ
More than 10kQ
44.1kHz
Technics Super Decoding
Algorithm
16-bit linear
FF-1 (Fine Focus: 1 beam)
Semiconductor laser
780nm
Brushless DD motor
Mini-phones jack
Max. 30mW (32Q)
(adjustable)
16QO~500
Mini-phones plug
on-off switch
Auto play, Track random access,
Program play (18-track memory).
Forward skip, Backward skip,
Forward search, Backward search,
Matsushita Services Company
50 Meadowiand Parkway,
Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 De infanteria, KM 9.7
Victoria industrial Park
Carolina, Puerto Rico 00630
(+ Measured by EIAJ (CP-307))
Compact Disc Player
(K) (S)
OL-XP5S
U.S.A,
(K) (S) ...Canada.
(K) (S) Switzerland and
Scandinavia.
(K) (S) ...United Kingdom.
(K) (S) ...Australia.
(K) (S) ...F.R. Germany.
(K) (S) ....Belgium.
(K) (S) .. Holland.
(K) (S) ...France.
(K) (S) Italy.
_—~P(K) (8) ..Asia, Latin America,
(K) (S)
(K) (§)
(K) (S)
(K) (S)
Digital display:
@ General
Power supply:
Power consumption:
AC adaptor;
Rechargeable battery;
Dimensions (W < H x D):
Weight:
@ AC adaptor
Power supply:
input;
Output;
Panasonic Hawaii Inc.
91-238 Kauhi St. Ewa Beach
P.O. Box 774
Honoluiu, Hawaii 96808-0774
Matsushita Electric
of Canada Limited
5770 Ambler Drive, Mississauga,
Ontario, L4W 2T3
Middle Near East,
Africa and Oceania.
..Saudi Arabia.
...East PX.
...European Miliary.
...European Audio Club.
Repeat play, Phones jack, High
filter switch, Music matrix
Number of tracks, Total playing
time (min., sec.), Track being
played, Elapsed playing time,
Remaining time, Programming
order, Repeat indicator, Battery
indicator.
Dual DC in +6V, —6V
9W
3.4W
126 x 22.9 x 126mm
(4-31/32" x 29/32" x 4-31/32")
(CD player only, without
protrusions)
480g (1.1 Ibs.)
(CD player only)
For United Kingdom and Australia:
AC 240V, 50Hz
For Continental Europe:
AC 220V, 50Hz
For U.S.A. and Canada:
AC120V, 60Hz
For others:
110/127/220/240V, 50 or 60Hz
Dual DC +6V, —6V
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
Panasonic Tokyo Office
Matsushita Electric Trading Co., Ltd.
6th Floor, World Trade Center Bidg.,
No. 4-1, Hamamatsu-cho 2-Chome, Minato-ku,
Tokyo 105, Japan
