- Page 1 Duct electrical heater eKh 100 eKh 250 eKh 400×200 eKh 700×400 eKh 125 eKh 315 eKh 500×250 eKh 800×500 eKh 150 eKh 500×300 eKh 900×500 eKh 160 eKh 600×300 eKh 1000×500 eKh 200 eKh 600×350 uSer'S MaNual...
-
Page 2: Table Of Contents
www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................11 Mounting and set-up .................................. 12 Connection to power mains ..............................14 Technical maintenance ................................20 Storage and transportation regulations .......................... - Page 3 www.blaubergventilatoren.de This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.
-
Page 4: Purpose
DELIVERY SET Name Number Heater User’s manual DESIGNATION KEY EKH 100– 0.6 Heater power [kW] Nominal duct dimensions Connected air duct diameter – for round ducts [mm] Flange size (WxH) – for rectangular ducts [cm] Heater name EKH — Duct electrical heater Designation example: EKH 315-9.0-3 –... -
Page 5: Technical Data
The heater design is constantly improved, so some models may slightly differ from the ones depicted herein. OVERALL AND CONNECTING DIMENSIONS OF HEATERS FOR ROUND DUCTS Dimensions [mm] Heater model EKH 100-0.6 EKH 100-0.8 EKH 100-1.2 EKH 100-1.6 EKH 100-1.8-1 EKH 125-0.6... - Page 6 www.blaubergventilatoren.de Dimensions [mm] Heater model EKH 160-1.2 EKH 160-1.7 EKH 160-2.0 EKH 160-2.4 EKH 160-3.4 EKH 160-3.6 EKH 160-5.1 EKH 160-6.0 EKH 200-1.2 EKH 200-1.7 EKH 200-2.0 EKH 200-2.4 EKH 200-3.4 EKH 200-3.6 EKH 200-5.1 EKH 200-6.0 EKH 250-1.2 EKH 250-2.0 EKH 250-2.4 EKH 250-3.0 EKH 250-3.6...
- Page 7 Number of electric Current Minimum air flow Heater model Power [kW] Number of phases Voltage [V] heating elements x Weight [kg] power [kW] EKH 100-0.6 1x0.6 EKH 100-0.8 1x0.8 EKH 100-1.2 2x0.6 EKH 100-1.6 2x0.8 EKH 100-1.8 3x0.6 EKH 125-0.6 1x0.6...
- Page 8 www.blaubergventilatoren.de OVERALL AND CONNECTING DIMENSIONS OF HEATERS FOR RECTANGULAR DUCTS Dimensions [mm] Heater model EKH 40x20-4.5 EKH 40х20-6 EKH 40х20-7.5 EKH 40х20-9 EKH 40х20-10.5 EKH 40х20-12 EKH 40х20-15 EKH 50х25-6 EKH 50х25-7.5 EKH 50х25-9 EKH 50х25-10.5 EKH 50х25-12 EKH 50х25-15 EKH 50х25-18 EKH 50х25-21 EKH 50x30-6...
- Page 9 www.blaubergventilatoren.de Dimensions [mm] Heater model EKH 50x30-21 EKH 60x30-9 EKH 60x30-12 EKH 60x30-15 EKH 60x30-18 EKH 60x30-21 EKH 60x30-24 EKH 60x35-9 EKH 60x35-12 EKH 60x35-15 EKH 60x35-18 EKH 60x35-21 EKH 60x35-24 EKH 70x40-18 EKH 70x40-27 EKH 70x40-36 EKH 80x50-27 EKH 80x50-36 EKH 80x50-54 EKH 90x50-45 1040...
- Page 10 www.blaubergventilatoren.de MAIN TECHNICAL PARAMETERS OF HEATERS FOR RECTANGULAR DUCTS Number of electric Number of Current Minimum air Weight Heater model Power [kW] Voltage [V] heating elements x phases flow [m [kg] power [kW] EKH 40х20-4.5 3x1.5 EKH 40х20-6 3x2.0 EKH 40x20-7.5 3x2.5 10.9 EKH 40x20-9...
-
Page 11: Design And Operating Principle

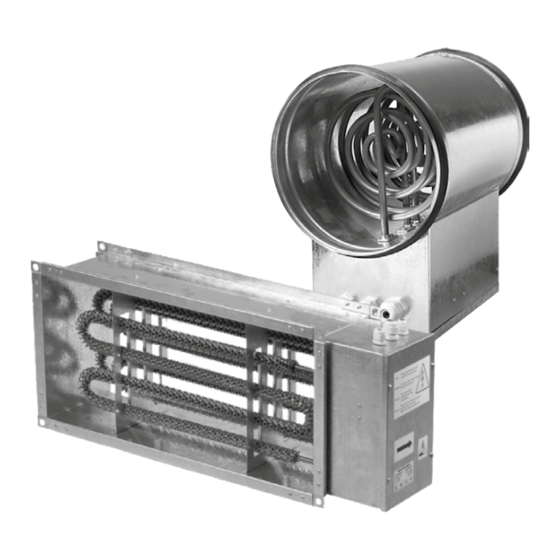

www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The heaters (see the figure below) consist of a casing with a rigidly fixed connecting box that is with the removable cover. The tight seals are located at the external side of the connection box for routing of supply, control and ground cables. The heating elements are located inside the casing. -
Page 12: Mounting And Set-Up
www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT Disconnect the unit from power supply prior to any connection, servicing and repair operations. Prior to the heater installation check the heater for the integrity and reliability of the heating element fixation. The heater shall be installed in the air duct with the same diameter (dimensions). - Page 13 www.blaubergventilatoren.de CONNECTING ROUND AIR DUCTS TO THE HEATER The heater is designed for internal installation into air ducts in the horizontal or vertical position. In a horizontal position the connection box must face upwards. Permitted deviation up to 90 °C. The heater must not be mounted with the connection box suspended downwards (risk of condensate leaking and short circuit of power grid).
-
Page 14: Connection To Power Mains
www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. - Page 15 www.blaubergventilatoren.de WIRING DIAGRAM OF THE HEATER WITH TWO ELECTRICAL HEATING ELEMENTS AND SINGLE-PHASE POWER SUPPLY T° T° RESET E1, E2 WIRING DIAGRAM OF THE HEATER WITH THREE ELECTRICAL HEATING ELEMENTS AND SINGLE-PHASE POWER SUPPLY T° T° RESET E1, -E2, -E3...
- Page 16 www.blaubergventilatoren.de WIRING DIAGRAM OF THE HEATER WITH THREE ELECTRICAL HEATING ELEMENTS AND THREE-PHASE POWER SUPPLY RESET RESET T° T° RESET...
- Page 17 www.blaubergventilatoren.de WIRING DIAGRAM OF THE HEATER WITH SIX ELECTRICAL HEATING ELEMENTS AND THREE-PHASE POWER SUPPLY, STAR CONNECTION AND THERMAL PROTECTION CONTACTS LEADED OUTSIDE T° T° RESET WIRING DIAGRAM OF THE HEATER WITH SIX ELECTRICAL HEATING ELEMENTS, THREE-PHASE POWER SUPPLY, DELTA CONNECTION AND THERMAL PROTECTION CONTACTS LEADED OUTSIDE °...
- Page 18 www.blaubergventilatoren.de WIRING DIAGRAM OF THE HEATER WITH ONE ELECTRICAL HEATING ELEMENT, SINGLE-PHASE POWER SUPPLY AND TIME-DELAY RELAY Heater T° T° RESET WIRING DIAGRAM OF THE RECTANGULAR HEATER WITH THREE ELECTRICAL HEATING ELEMENTS, THREE-PHASE POWER SUPPLY, STAR CONNECTION AND TIME-DELAY RELAY L1 L2 L3 Heater T°...
- Page 19 www.blaubergventilatoren.de WIRING DIAGRAM OF THE RECTANGULAR HEATER WITH THREE ELECTRICAL HEATING ELEMENTS, THREE-PHASE POWER SUPPLY, DELTA CONNECTION AND TIME-DELAY RELAY L1 L2 L3 Heater ° ° RESET WIRING DIAGRAM OF THE RECTANGULAR HEATER WITH THREE ELECTRICAL HEATING ELEMENTS, THREE-PHASE POWER SUPPLY, STAR CONNECTION AND TIME-DELAY RELAY L1 L2 L3 Heater T°...
-
Page 20: Technical Maintenance
www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION. The heaters shall be operated and maintained by duly qualified experts. Check the following conditions during the unit maintenance: •... -
Page 21: Manufacturer's Warranty
www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 22 www.blaubergventilatoren.de...
-
Page 23: Certificate Of Acceptance
www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Duct electrical heater Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 www.blaubergventilatoren.de B09EN-10...
