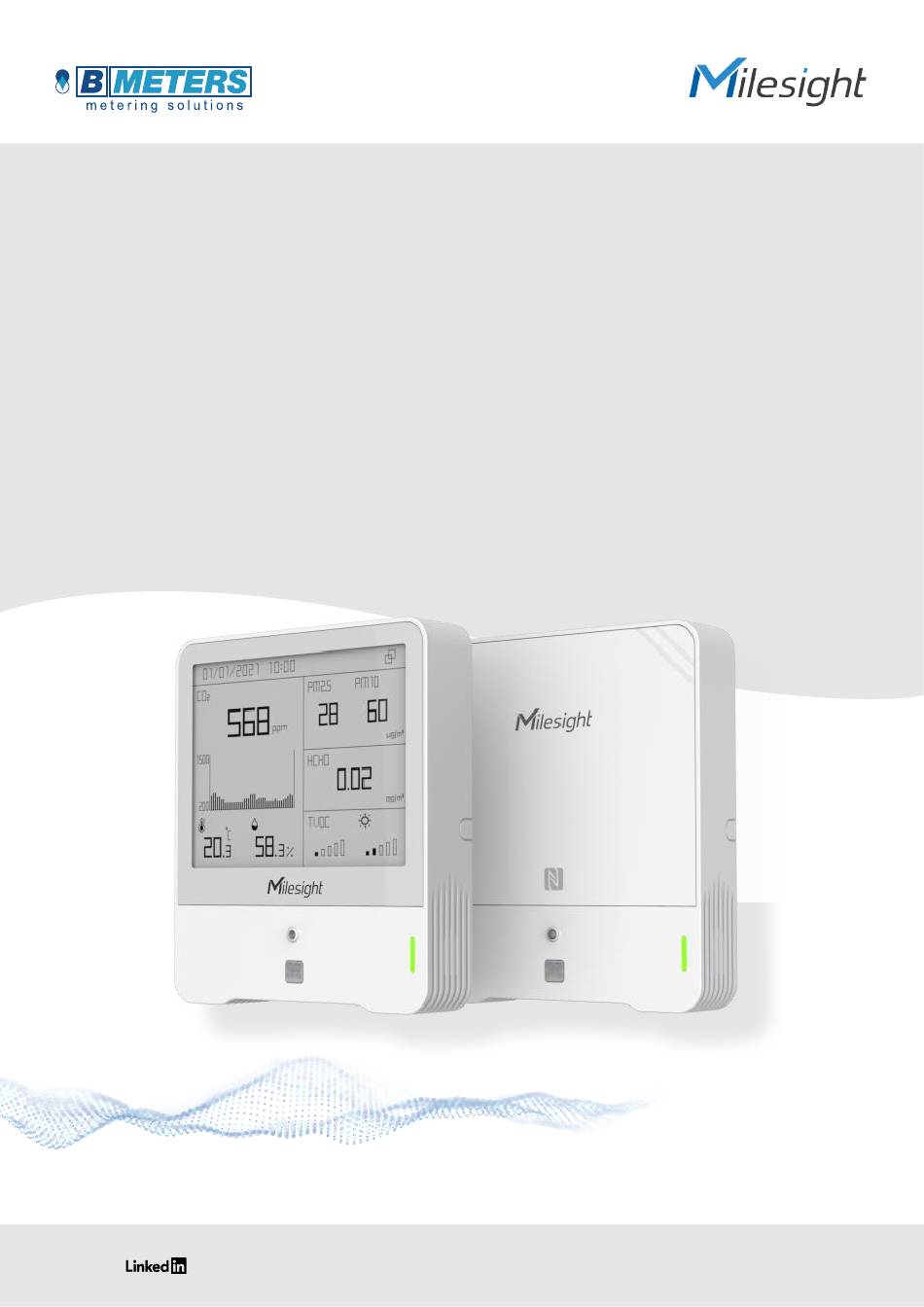

- Page 1 AM300 Series AM307 & AM319 User Guide Indoor Ambience Monitoring Sensor B METERS UK | www.bmetersuk.com | Milesight Follow us: bmetersuk...
- Page 2 Applicability This guide is applicable to AM300(L) series sensors shown as follows, except where otherwise indicated. Model Description AM307(L) Indoor Ambiance Sensor (Temp, Hum, Light, Motion, CO , TVOC, Pressure) Indoor Ambiance Sensor (Temp, Hum, Light, Motion, CO , TVOC, Pressure, AM308(L) PM2.5, PM10) Indoor Ambiance Sensor (Temp, Hum, Light, Motion, CO...
- Page 3 authorization from Xiamen Milesight IoT Co., Ltd. For assistance, please contact Milesight technical support: Email: iot.support@milesight.com Tel: 86-592-5085280 Fax: 86-592-5023065 Address: Building C09, Software Park III, Xiamen 361024, China Revision History Date Doc Version Description Oct.9, 2021 V 1.0 Initial version 1.
-
Page 4: Table Of Contents
Contents 1. Product Introduction ......................... 5 1.1 Overview ...........................5 1.2 Features ........................... 5 2. Hardware Introduction ........................5 2.1 Packing List ..........................5 2.2 Hardware Overview ......................... 6 2.3 E-ink Screen Description (AM300 Series Only) ..............7 2.4 Button and Traffic Light ......................8 2.5 Dimensions(mm) ........................ -
Page 5: Product Introduction
1. Product Introduction 1.1 Overview AM300(L) series is a compact indoor ambience monitoring sensor including motion, humidity, temperature, light, TVOC, CO , HCHO/O level, barometric pressure and PM2.5 & PM10 for wireless LoRa network. It is equipped with NFC (Near Field Communication) and can easily be configured via a smartphone or a PC software. -
Page 6: Hardware Overview
4 × 1 × 1 × 1 × Type-C Cable (1.2 m) Quick Guide Warranty Card ER14505 Li-SOCl & Power Adapter Batteries (AM319(L) Only) (AM30x(L) Only) If any of the above items is missing or damaged, please contact your sales Representative. 2.2 Hardware Overview AM300 Series... -
Page 7: E-Ink Screen Description (Am300 Series Only)
2.3 E-ink Screen Description (AM300 Series Only) Icon Description Battery level (AM30x Only) Battery is exhausted (AM30x Only). Sync time with software or mobile App. The device joins the network. The device fails to join the network. Temperature Humidity Level 0：0-5 lux Level 1：6-50 lux Level 2：51-100 lux Level 3：101-500 lux... -
Page 8: Button And Traffic Light
Note: AM300 series will update screen data every 1 minute and do a full-screen refresh every 30 minutes (AM319) or 60 minutes (AM307 and AM308) in order to remove ghosting. When AM300 series detects the temperature beyond the range from 0°C to 40°C, the screen ... -
Page 9: Power Supply
3. Power Supply 1. Release the screw at the back of device and remove the rear cover. 2. Install the batteries or type-C cable to the device. If the device is powered via type-C port, then left or right side should make an opening to pass through the type-C cable. 3. -
Page 10: Usb Configuration
information. Basic information and settings of the device will be shown on ToolBox App if it’s recognized successfully. You can read and configure the device by tapping the Read/Write device on the App. In order to protect the security of the device, please change password when first configuration. -
Page 11: Lorawan Settings
4. After logging in the ToolBox, users can turn on/off device and change other settings. 4.2 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN ® network. Basic LoRaWAN Settings: Configure join type, App EUI, App Key and other information. You can also keep all settings by default. - Page 12 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port is used for sending and receiving data, default port is 85. Join Type OTAA and ABP mode are available.
- Page 13 the device will re-join the network. Reporting interval > 35 mins: the device will send a specific number of LinkCheckReq MAC packets to the network server every reporting interval to validate connectivity; If there is no response, the device will re-join the network.
-
Page 14: Time Synchronization
1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled 4.3 Time Synchronization ToolBox Sync: Go to Device > Status of ToolBox App to click Sync to sync the time, or go to Status page of ToolBox software to sync the time. -
Page 15: Basic Settings
commands to enquire the time from network server every time it joins the network. This should ensure the network server supports this feature. 4.4 Basic Settings Go to Device Settings > Basic of ToolBox software or Device > Settings > General Settings of ToolBox App to change the reporting interval, screen mode, etc. - Page 16 automatically stop when the concentration values are lower than the Bad threshold. Check Button When enabled, users can press the power button to stop the buzzer beep. When enabled, users can choose to lock the feature of power button: Button Lock refresh display, power on, or power off.
-
Page 17: Advanced Settings
4.5 Advanced Settings 4.5.1 Data Collection Settings Go to Device Settings > Basic of ToolBox software or Device > Settings > Data Collection Settings of ToolBox App to select the data you need to monitor. Among them, temperature, humidity and CO are not allowed to disable. -
Page 18: Threshold Settings
Besides numerical calibration, ToolBox provides more calibration methods for CO Manual Calibration: Put the device in an open outdoor environment for more than 10 minutes and click this button to calibrate the CO value. Restore Factory Calibration: Clean the manual calibration and turn back to factory calibration. Auto Background Calibration: When enabled, keep the device work in a well-ventilated environment for 180 hours (around 7 days), then disable the calibration. -
Page 19: Data Storage
For CO , TVOC, PM2.5, PM10 and HCHO/O , it supports defining Excellent, Polluted and Bad threshold for traffic light, buzzer and screen alarms. Besides, when one of concentrations of air pollutants exceeds the Bad threshold, AM300 series will upload the current data once instantly. 4.5.4 Data Storage AM300(L) series supports storing more than 18000 data records locally and exports data via ToolBox App or ToolBox software. -
Page 20: Data Retransmission
4.5.5 Data Retransmission AM300(L) series sensor supports data retransmission to ensure network server can get all data even if network is down for some times. There are two ways to get the lost data: Network server sends downlink commands to enquire the historical data for specifying time ... -
Page 21: Maintenance
de-active and the device will record a data lost time point(the time to join the network). 3. After the network connected back, the device will send the lost data from the point in time when the data was lost according to the reporting interval. Note: 1) If the device is rebooted or re-powered when data retransmission is not completed, the device will re-send all retransmission data again after device is reconnected to the network;... -
Page 22: Backup
ToolBox App: 1. Download firmware from Milesight official website to your smartphone. 2. Open ToolBox App and click Browse to import firmware and upgrade the device. Note: 1) Operation on ToolBox is not supported during the upgrade. 2) Only Android version ToolBox supports the upgrade feature. 4.6.2 Backup AM300(L) series supports configuration backup for easy and quick device configuration in bulk. -
Page 23: Reset To Factory Default
ToolBox App: 1. Go to Template page on the App and save current settings as a template. You can also edit the template file. 2. Select one template file that saved in the smartphone and click Write, then attach it to another device to write configuration. -
Page 24: Installation
Via ToolBox Software: Go to Maintenance > Backup and Reset to click Reset. Via ToolBox App: Go to Device > Maintenance to click Reset, then attach smart phone with NFC area to device to complete reset. 5. Installation Fixed by 3M Tape: 1. -
Page 25: Device Maintenance
Note: In order to ensure the best detection and LoRaWAN communication effect, it is recommended ® to install AM300(L) series as follows: There should not be any isolates or barriers in PIR and light detection range. Do not mount the device where the temperature is below/above operating range and ... -
Page 26: Device Payload
Storage Time (Power Off) Operating Time Less than 1 month At least 2 days 1~6 months At least 3 days More than 6 months At least 7 days 7. Device Payload All data are based on following format(HEX), the Data field should follow little-endian: Channel1 Type1 Data1... - Page 27 Temperature INT16/10, Unit: °C Humidity UINT8/2, Unit: %RH 01: Occupied PIR Status 00: Vacant 00：0-5 lux 01：6-50 lux 02：51-100 lux Light Level 03：101-500 lux 04：501-2000 lux 05：> 2000 lux UINT16, Unit: ppm UINT16/100 TVOC Level TVOC UINT16, unit: µg/m Concentration Barometric UINT16/10, Unit: hPa Pressure...
- Page 28 Channel Type Value Channel Type Value 5e 01 => 01 5e cd 04 => 04 cd =350 TVOC =1229 ppm Level=350/100 =3.50 Channel Type Value 51 27=>27 51=10044 （Barometric Pressure=10065 Pressure） /10=1006.5 hPa 2. AM308 Periodic Package 0367ea00 04688a 050001 06cb01 077dcd04 087d5e01 09735127 0b7d3b00 0c7d4300 Channel Type...
-
Page 29: Downlink Commands
ea 00 => 00 ea = 8a=>138 Hum=138/2 (Temperature) (Humidity) Temp=234/10=2 =69%RH 3.4°C Channel Type Value Channel Type Value cb (Light 01= level 1 01: Occupied Level) (6-50 lux) Channel Type Value Channel Type Value 5e 01 => 01 5e =350 cd 04 =>... - Page 30 AM319(L): 00: Disable, 01: Enable Barometric Pressure 00: Disable, 01: Enable Compensation 00: Disable 01: Lock Power Off Button Lock 02: Lock Power On 04: Lock Refresh Display 07: Lock All Features Enquire LED and Buzzer Mode 00: Disable LED Mode 01: Always On (AM319&AM319L Only) 02: Blink Stop the Buzzer...
- Page 31 Byte 1-2: ffff Byte 3-4: content status per bit, 0=disable, 1=enable Screen Content temperature humidity Screen Content Light TVOC Emoticon Character PM2.5 PM10 HCHO/O Bit 15-10: 000000 Example: 1. Set reporting interval as 20 minutes. ff03b004 Channel Type Value 03 (Set Reporting Interval) b0 04=>04 b0=1200s =20 minutes 2.
-
Page 32: Historical Data Enquiry
The time zone is GMT-4 5. Disable the e-ink screen display. ff2d00 Channel Type Value 2d (Screen Display) 00: Disable the display 6. Disable the display of emoticon and characters. fff0ffff 9f03 Channel Type Value 9f 03=>03 9f = 0000 0011 1001 1111 f0 (Screen Content) Bit5 and Bit6=0 means emoticon and characters disable... -
Page 33: Appendix
1. The device only uploads no more than 300 data records per range enquiry. 2. When enquiring the data in time point, it will upload the data which is closest to the search point within the reporting interval range. For example, if the device reporting interval is 10 minutes and users send command to search for 17:00’s data, if the device find there is data stored in 17:00, it will upload this data;... -
Page 34: Tvoc Levels And Guidelines
Headaches, sleepiness and stagnant, stale, stuffy air. ≥2000ppm Poor concentration, loss of attention, increased heart rate and slight nausea may also be present. Workplace exposure limit (as 8-hour TWA) in most 5000ppm jurisdictions. Exposure may lead to serious oxygen deprivation resulting >40000ppm in permanent brain damage, coma, even death.
