GSM/GPRS/GPS TRACKER
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly.
Make sure to read this manual carefully before using this product. Please note that specification and
information are subject to changes without prior notice in this manual. Any change will be integrated in the
latest release. The manufacturer assumes no responsibility for any errors or omissions in this document.
PST-PT102B
User Manual
Preface
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for PST PST-PT102B

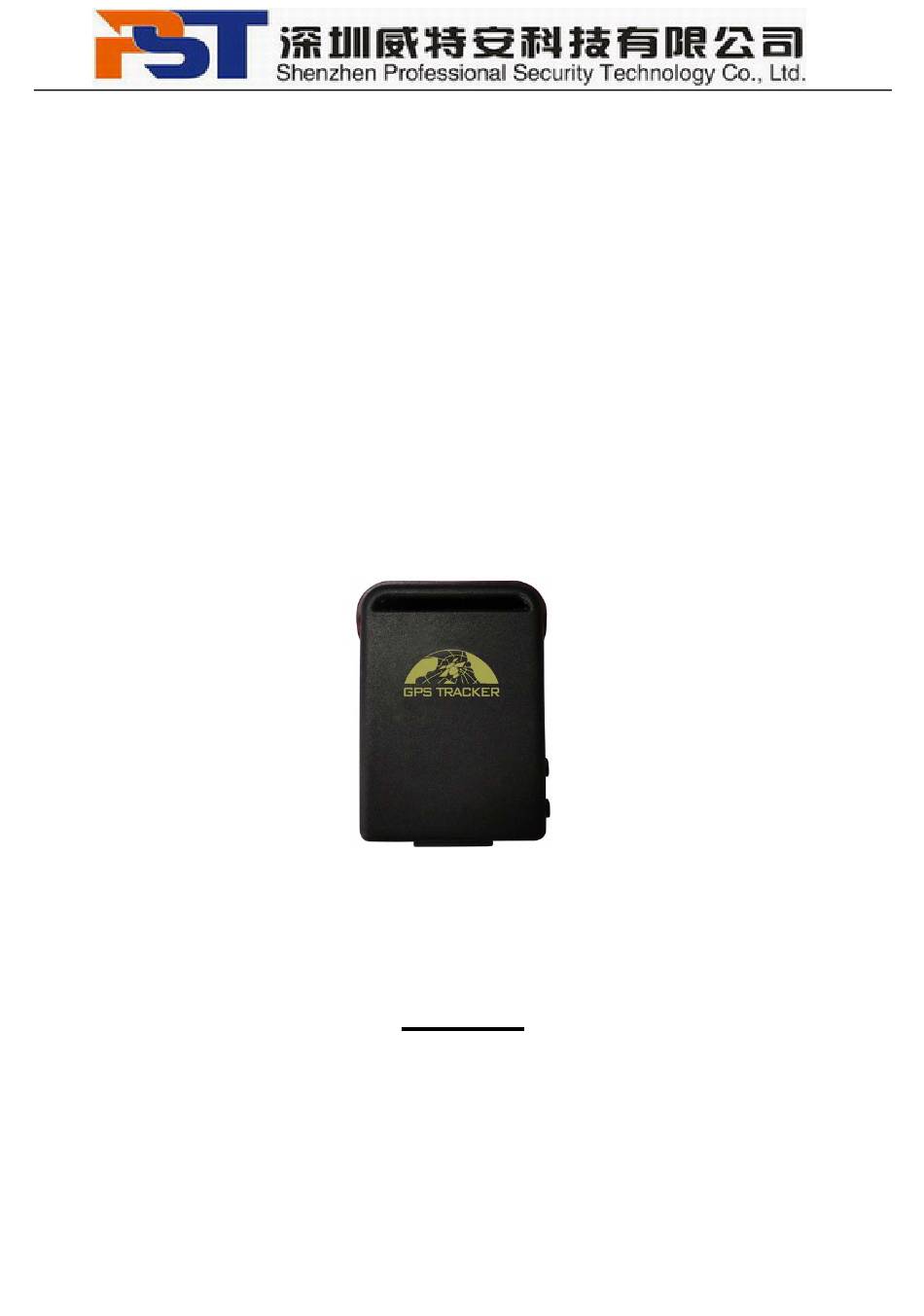

- Page 1 GSM/GPRS/GPS TRACKER PST-PT102B User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the...
-
Page 2: Table Of Contents
Content 1. Summary ................................3 2 Applications................................. 3 3 Hardware Description............................3 4 Specs..................................4 5 Usage ................................... 5 5.1 SIM card installation ............................5 5.2 Battery and Charger............................5 5.3 Startup................................6 ... -
Page 3: Summary
1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. 2 Applications Vehicle rental / Fleet management etc Powerful magnet + water proof, adsorbing in the hidden place of car for tracking secretly. Protect child / the old / the disabled / pet etc Provide peace-of-mind for businessmen Personnel Management... -
Page 4: Specs
Built-in GSM/GPRS antennas Microphone 3.4 Bottom face is inside 3.5 Interior GSM Card Slot Install the battery like this 4 Specs. Content Specs. Dim. 64mm x 46mm x 17mm(1.8”*2.5”*0.65”) Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GPS chip SIRF3 chip GPS sensitivity -159dBm GPS accuracy Cold status 45s... -
Page 5: Usage
5 Usage 5.1 SIM card installation Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text format, can’t be identified for PDU format. Steps: 5.1.1 Open the rear cover, and pick out the battery. 5.1.2 Push the foil up according the arrow on the foil and load the miscro SD card and push back. -
Page 6: Startup
5.3 Startup Put the SIM card and battery in place. Turn on the unit outdoors by pressing the “on/off” button until the indicator is on. For first use, please initialize the unit and restore it to default setting. (Please refer to 5.4 for instruction.) In 10 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals. -
Page 7: Authorization
original setting in case of losing the new password. 5.5.3 Make sure the new password is in 6 digits Arabic numbers, or the tracker can not recognize the password. 5.5.4 Make sure that all the symbol “ +” in sms commends is just for quick understanding, which don’t need to enter “+”... -
Page 8: Auto Track
unauthorized number calls it up. When an authorized number dials up the unit, it will hang up and report a real-time 5.7.2 Geo-info as below: *Tracking location, When GPS signals is weak, the position of latitude and longitude included in the SMS is the position that the tracker received GPS signals at last. If it is different with its exact current location, pay attention to check the time included in the SMS you got. -
Page 9: Gps Drift Suppression
before using this function, if there is user name and password for GPRS login, Please refer to 5.29.1 and 5.29.2 to configure the APN, user name and password for GPRS login. 5.9.2 After configure the APN, send:” address+password” to device, it will reply SMS including absolute street address. -
Page 10: Monitor (Voice Surveillance)
It may not be available in some areas. 5.12 Monitor (Voice Surveillance) 5.12.1 The command to switch between Track and Monitor are “tracker” and “ monitor”. 5.12.2 The default mode is “track” (Track mode). 5.12.3 Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” and switch to “monitor”... -
Page 11: Data Load
support 2GB at most. 5.13.6 The logged data can be copied to computer via the USB cable in the package. The route of the stored data can be seen by importing data in the menu “Data Import” of web platform www.gpstrackerxy.com 5.14 Data Load 5.14.1 Current date Load: Send SMS: “load+ password”... -
Page 12: Geo-Fence
5.15.3 Shock sensor sensitivity configuration: The sensitivity of the built-in shock sensor has three different level: First level: Alarm will be triggered after detect slight vibration, send command" sensitivity+password+space+1" . Second level: Alarm will be triggered after detect 8 times vibration in 2 seconds, send command"... -
Page 13: Overspeed Alert
of a radius of 200 meters, it supports 4 digits at most. Unit: Meter). It will reply “move OK”. In case of such a movement (the default distance is 200m), it will send SMS “Move+ latitude & longitude” to the authorized numbers at 3 minutes interval. 5.17.2 Cancel: Send SMS “nomove+password”... -
Page 14: Sleep By Time
5.21.1 Sleep by time Send "sleep+password+space+time", tracker will reply "sleep time ok" if none of the alarms listed under chapter IV has been set and no operations, tracker will fall asleep in 5 minutes, LED will be off, calling or SMS can awake the tracker. If these alarms have been set, tracker will enter sleep by detecting shock sensor. -
Page 15: State Checking
5.24 State Checking Send SMS:”check+password” to the tracker device, it will reply the recent status via SMS as: GSM: 100% GPS: OK/NO GPRS: ON/OFF battery: 100%. 5.25 IMEI checking: Send SMS command "imei+password" to the unit. E.g.: Send SMS command "imei123456" to the unit, an IMEI number in 15 digits will be replied to your cell phone. -
Page 16: Gprs Setting
Note: Correct password is need every time you configure the tracker. For detailed instructions, please refer to the “102 USB configuration user manual” in CD. 5.29 GPRS setting User must send SMS via cell phone to set up IP, port and APN before starting GPRS. 5.29.1 Setting up APN 5.29.1.1 APN standards for Access Point Name and differs from country to country. -
Page 17: Less Gprs Traffic
the tracker returns “user, password OK” 5.29.3 IP and port setup 5.29.3.1 Send SMS as below via a cell phone: adminip +password + Space + IP Address + Space + Port Number. If succeeded, “adminip OK” is returned by the device in SMS. 5.29.3.2 e.g, Send SMS command “adminip123456 202.104.150.75 9000”... -
Page 18: Setup Monitor Center Number
Send SMS “SMS+password” to the unit, it will reply “SMS ok!” and restore to “SMS” 5.31.3 mode. 5.32 Setup monitor center number 5.32.1 Setup: send command “centernum+password+space+number” to tracker, it will reply“centernum ok”, for example, send centernum 13800138000 5.32.2 Cancel: Send “nocenternum+password”. Note: If monitor center number doesn’t setup, auto track messages will be sent to the cell phone which send this command. -
Page 19: Faults & The Solutions
6.8 Please use the battery and charger provided by manufacturer. Using other batteries and chargers will cause unwanted situation. 7 Faults & The solutions Faults Solution Check the battery and see if it is fully charged or Startup Fail correctly installed. In existence of an authorized number, an unauthorized Hang up Fail number dials up the unit.
