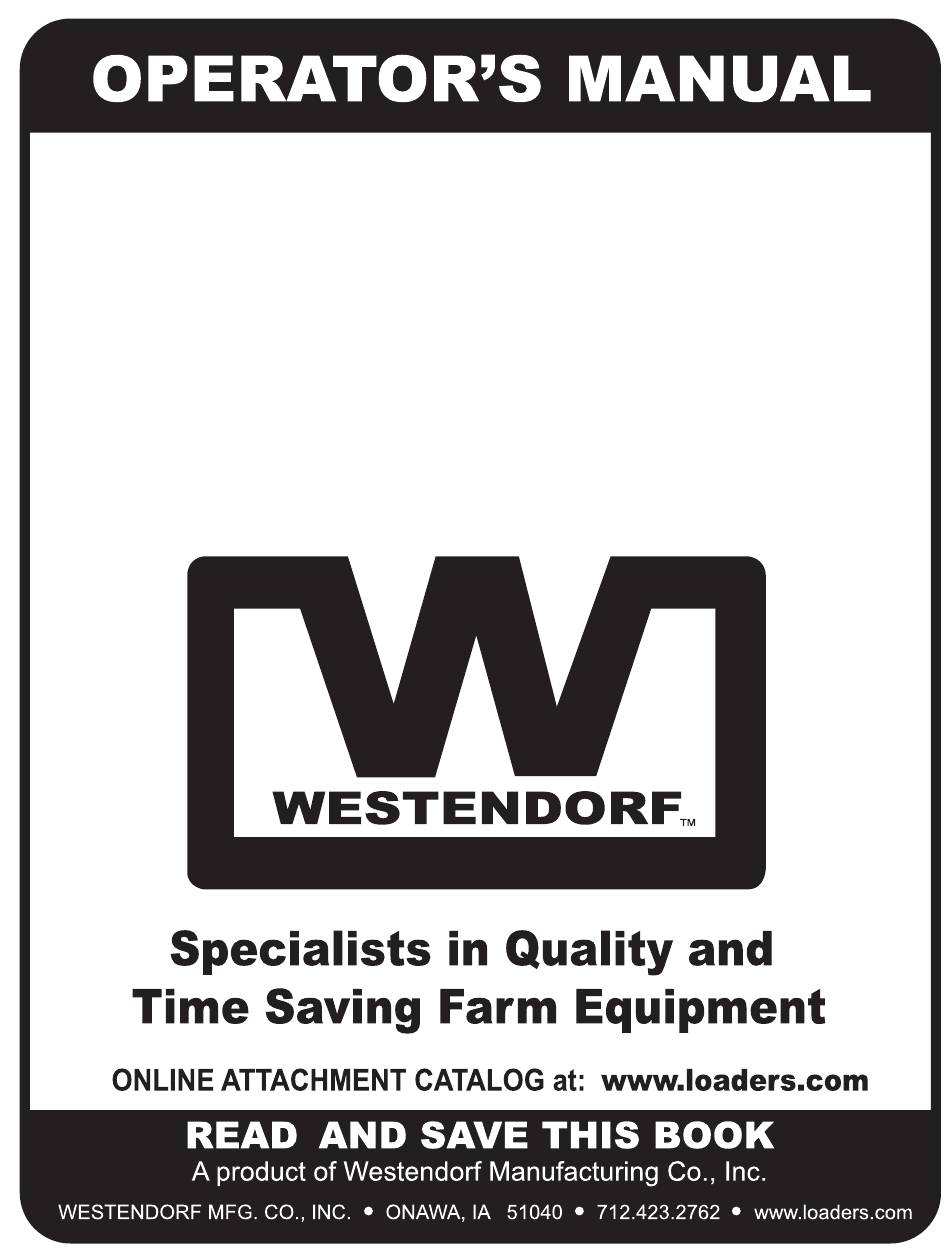

- Page 1 Brush Crusher™ Brush Crusher™ BC-3000 Westendorf Manufacturing Co., Inc. WESTENDORFMFG GPS71022220...
-
Page 2: Section 1: Introduction
Thank you for your purchase of our product. If there is anything further we can do to assure complete satisfaction, contact your Westendorf dealer. If you still need help, please call on us. We will be glad to assist you in any way we can. -
Page 3: Table Of Contents
Brush Crusher™ SECTION 1: CONTENTS Section 1 - Introduction Section 4 - Operation Welcome to the Westendorf Family ......2 The Mechanincal Advantage ........13 Terminology ..............2 ApproachingThe Load ..........13 Table of Contents............3 Serial Number Location ..........4 Section 5 - Service &... -
Page 4: Serial Number Location
Westendorf Manufacturing Co., Inc. warrants to the original The warranties given herein are given in lieu of all other purchaser only, all new Westendorf equipment to be free warranties, expressed or implied, including without limita- from defects in material and workmanship under normal use tion, the warranty of merchantability and the warranty and service. - Page 5 Brush Crusher™ SECTION 1: WARRANTY & REGISTRATION After completion, copy this page and MAIL: Westendorf Mfg.Co., Inc. FAX: (712) 423-1460 EMAIL: internetsales@westendorfmfg.com PO Box 29 Onawa, IA 51040 OR Register Online Now www.loaders.com (Click on My Westendorf) Westendorf Manufacturing Co., Inc.
-
Page 6: Section 2: Safety
This manual provides instructions for the operation and more importantly, have an effect on your safety. care of your Westendorf product. The instructions in this manual must be followed to ensure the safety of persons Know the regulations and laws that apply to you and and satisfactory life of the implement. -
Page 7: Prepare For Emergencies
Replace missing or damaged safety signs. and dumping a load. Monitor the load at Safety signs & part no. locations are identified in this manual. all times. Replacement safety signs are available from your Westendorf dealer at no cost. Westendorf Manufacturing Co., Inc. WESTENDORFMFG GPS71022220... -
Page 8: Prevent Falling Loads
Lower bucket or attachments to the ground, place trac- tor transmission in park, shut off engine and remove key before servicing loader or attachments. 2-LEVER CONTROL Detach loader from tractor to service the tractor. ASAE standard S335.4 shown in above illustrations WESTENDORFMFG GPS71022220 Westendorf Manufacturing Co., Inc. -
Page 9: Determination Of Ballast
This information refers to ASAE S301.3, Front-End Agricultural Loader Ratings and ASAE S390.3, Definitions and Classifications of Agricultural Field Equipment, to EN12525:2000 Agricultural machinery – Front Loaders - Safety. Westendorf Manufacturing Co., Inc. WESTENDORFMFG GPS71022220... -
Page 10: Round Bale Safety
These decals are located on the loader and attachments. If any decals become damaged or illegible you can order replacements, free of charge, by writing to: Westendorf Mfg. Co., Inc. PO Box 29 Onawa, IA 51040-0029 WESTENDORFMFG GPS71022220 Westendorf Manufacturing Co., Inc. -
Page 11: Section 3: Mounting / Dismounting
1. To detach your Brush Crusher from your loader, • Use extreme caution when moving and handling this reverse the attaching procedures. attachment. When not properly secured teeth assemblies will swing together and could cause personal injury. Westendorf Manufacturing Co., Inc. WESTENDORFMFG GPS71022220... -
Page 12: Approved Attachments
SECTION 3: MOUNTING / DISMOUNTING Approved Attachments When using your attachment or selecting attachments for your skid steer or front-end loader use the following chart to determine which attachments are approved for your applications WESTENDORFMFG GPS71022220 Westendorf Manufacturing Co., Inc. -
Page 13: Section 4: Operation
The Mechanical Advantage The Westendorf Brush Crusher is a unique product, take time to understand how it operates. The mechanical ad- vantage allows you to use the bucket cylinders to operate the teeth, saving you the expense of added hydraulics. -
Page 14: Section 5 - Service & Maintenance
7. While in use, listen for abnormal or unusual sounds that may indicate worn, loose or damaged parts. 8. After each use, clean unit and verify all safety decals are legible and not damaged. Replace damaged safety decals. WESTENDORFMFG GPS71022220 Westendorf Manufacturing Co., Inc. - Page 15 .53617-,8.-2/9 @-(0?%$ 7(-1*-,25//537 !"#$: *"1!-( :< ++*%?0=0AA 0B4C,D,<C, &./ > !"#$;1*,#,. .53617-,8(57+/9 ! 20%00%A% $B?C,D,4,0B4C,!1((517-, &./ !"#$;1*,#,( .53617-,8.-2/9 :> +23%?0= 0B4C,3)/ +230%00 $B?C,3)/ !"#$<1* (-1(,/&&/+ !"#44< 1!6537,".1/- !"#:41* .53617- !"#$% !"#$%&'(%$)*+,-.$'/$01.!%$.-2-34-5$3/$'.5-.-5$*%3)6$73%!-5$01.!$)*+,-.%#$89:;<<<$3%$!('$=89>:?<9@AB# !"#!$%&'()(*+, -.//010 E-*/-3F&(2,'27,!&GH,53!G,I,"+J,8;049,A4=#4;:4I,21DJ,8;049,A4=#0A:%,I,KLMNKOPNKQNRSTUVWVXGYTW,I,PPPGMTLSNUKGYTW Westendorf Manufacturing Co., Inc. WESTENDORFMFG GPS71022220...
-
Page 16: Parts
!"#86&' "() > !"#89 "() 0'#*:6 0'1()2 34"5%555*6 47)!1/"() 1&-#5+ 1&(-/"() " !"#$(B'2C77D7'"05 !"#$(B'#'()*+'/0-',-.' 1230-4'"05 678'9 /,65'9 .72!60/50:- ;5< !"#;%+&' "() > !"#;%6&' "() " 0'#*86 0'1()2 1&-#5+ 1&(-/"() 34"5%555*6 47)!1/"() !"#!$%&'()(*+, -.//010 <,'.,)=>-?/@?2A/!>AB/()!A/C/"1D/E8:*F/%*;#*8$*/C/?&GD/E8:*F/%*;#:%$5/C/HIJKHLMKHNKOPQRSTSUAVQT/C/MMMAJQIPKRHAVQT WESTENDORFMFG GPS71022220 Westendorf Manufacturing Co., Inc. -
Page 17: Operational Troubleshooting
• Stored attachments can fall or be knocked over and cause serious injury or death. Securely store attach- ments and implements to prevent them from falling. • Keep playing children and bystanders away from storge area. Westendorf Manufacturing Co., Inc. WESTENDORFMFG GPS71022220... - Page 18 Brush Crusher™ NOTES WESTENDORFMFG GPS71022220 Westendorf Manufacturing Co., Inc.
- Page 19 Brush Crusher™ NOTES Westendorf Manufacturing Co., Inc. WESTENDORFMFG GPS71022220...
- Page 20 Brush Crusher™ WESTENDORFMFG GPS71022220 Westendorf Manufacturing Co., Inc.
