EG4 EG4SP18KDLETH Quick Setup Manual

18kpv 6000xp monitoring adapter ethernet dongle

Download this manual

Note: A customer code is required to register a Monitor Account. The customer code must be provided by the installation personnel or a

distributor. The end user needs to apply to your installation personnel to register a Monitor account, or you can register

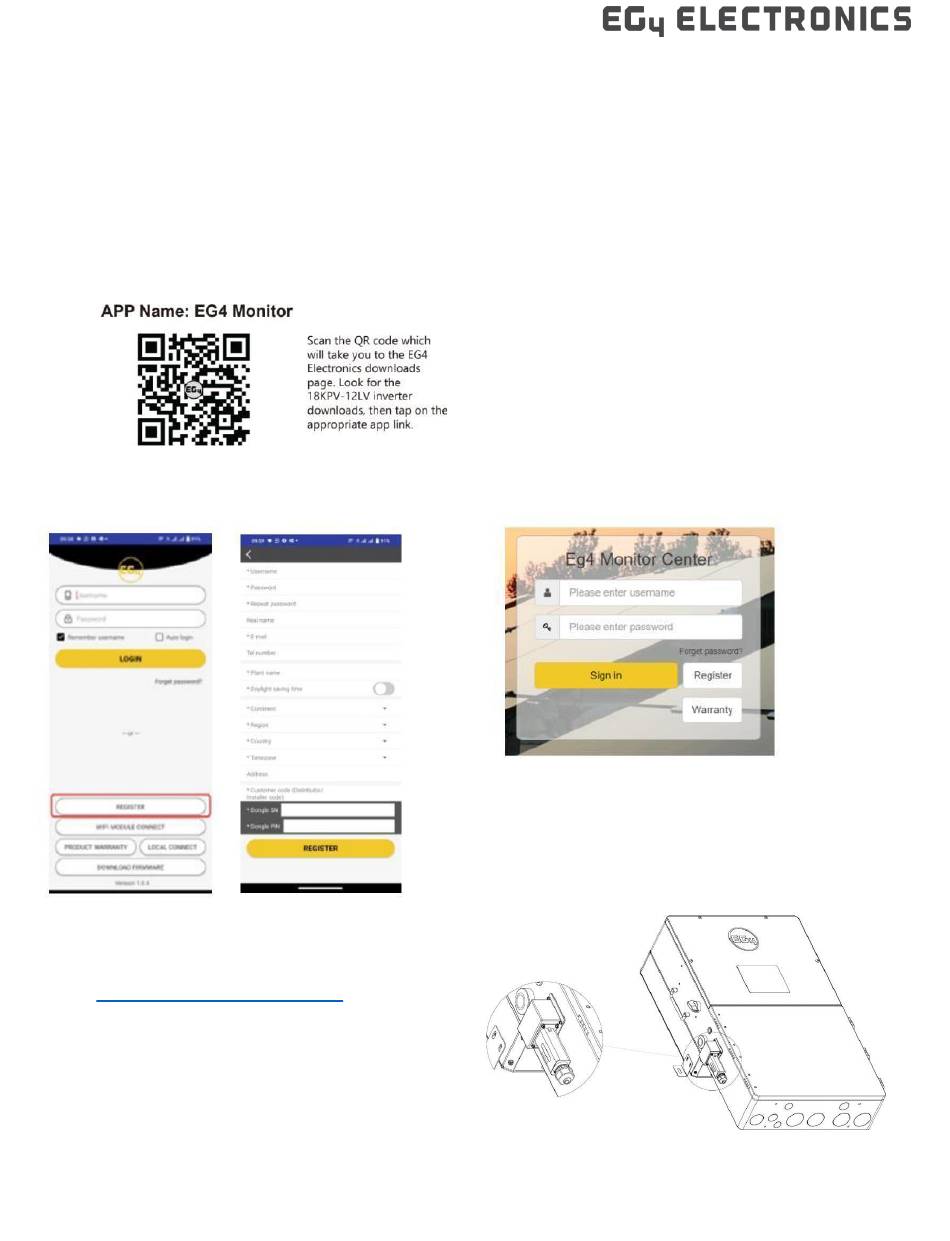

Step 1. Create an end-user account by:

a. registering at https://monitor.eg4electronics.com/.

b. downloading the 'EG4 Monitor' app. The 'EG4 Monitor' app is available via Google play or the Apple APP store.

NOTE: To create a distributor or installer account, please contact support@eg4electronics.com for assistance.

Using Phone to Register:

Step 2. Install the Ethernet dongle:

Power down the inverter, following the proper shutdown

procedures found in section 6.4 of the user manual

which can be downloaded here:

https://eg4electronics.com/downloads/

Plug the Ethernet dongle into the inverter and affix with

the four screws provided (see diagram to the right).

Ver 1.1

EG4 18kPV | 6000XP Monitoring Adapter

Ethernet Dongle Quick Setup Guide

Using Web to Register:

Need help?

Do you have a question about the EG4SP18KDLETH and is the answer not in the manual?

Page 1 Step 1. Create an end-user account by: a. registering at https://monitor.eg4electronics.com/. b. downloading the ‘EG4 Monitor’ app. The ‘EG4 Monitor’ app is available via Google play or the Apple APP store. NOTE: To create a distributor or installer account, please contact support@eg4electronics.com for assistance.
Page 2 Prepare a common ethernet cable (568B Configuration) and connect one end of the Ethernet cable to a port on your router and the other end to the Ethernet dongle (see figure below). NOTE: It is recommended to use a shielded cable and the length should not exceed 65 ft. (20m). LED Indicator Descriptions: Name of LED Description...
