Version 3
AH0322

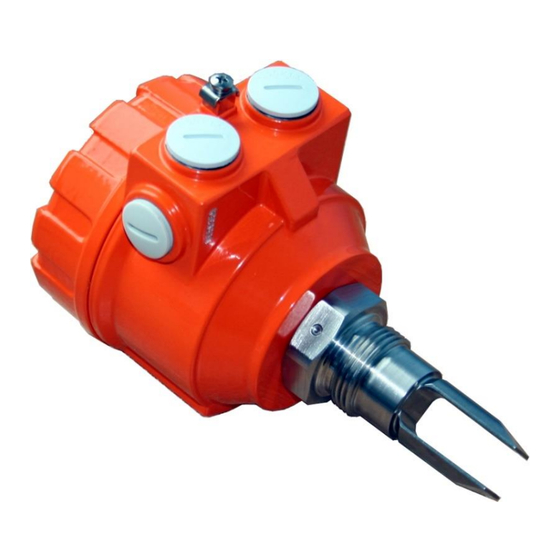

TF SERIES VIBRATING PROBES FOR LIQUIDS
Installation and operating manual
Hycontrol Ltd, Larchwood House, Orchard Street,
Redditch, Worcestershire, UK. B98 7DP
Tel: +44 (0)1527 406800 Fax: +44 (0) 1527 406810
Email: sales@hycontrol.com Web: www.hycontrol.com
Company registered in England No: 1755684
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hycontrol TF Series
Summary of Contents for Hycontrol TF Series

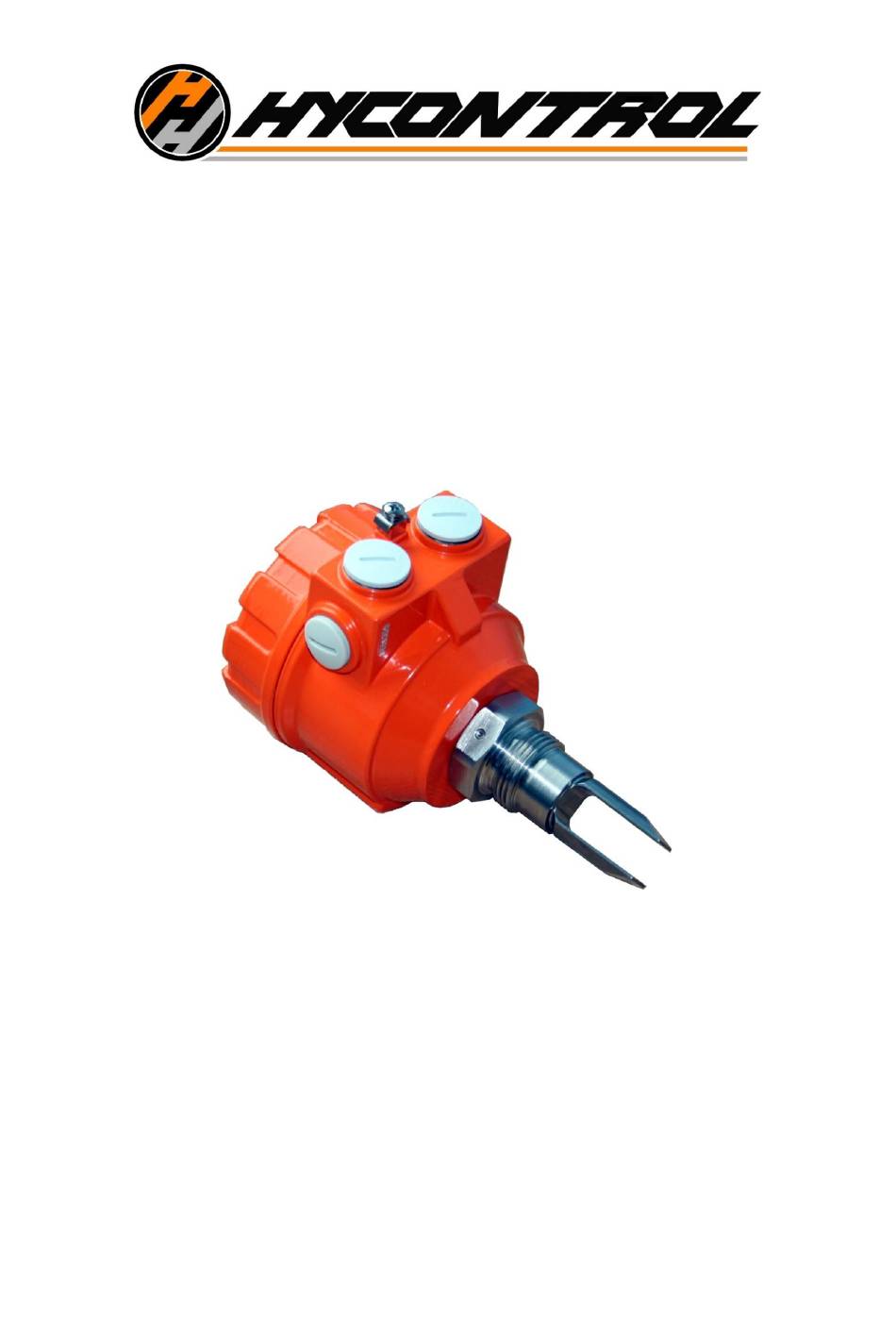

- Page 1 Version 3 AH0322 TF SERIES VIBRATING PROBES FOR LIQUIDS Installation and operating manual Hycontrol Ltd, Larchwood House, Orchard Street, Redditch, Worcestershire, UK. B98 7DP Tel: +44 (0)1527 406800 Fax: +44 (0) 1527 406810 Email: sales@hycontrol.com Web: www.hycontrol.com Company registered in England No: 1755684...
-
Page 2: Table Of Contents
CONTENTS CONTENTS PRODUCT OVERVIEW ..........................3 TECHNICAL DATA ............................. 3 DIMENSIONS ............................4 DERATING DIAGRAMS ..........................4 RESPONSE TIME – MEDIUM VISCOSITY ....................4 INSTALLATION ............................5 ELECTRICAL CONNECTIONS ........................6 ADJUSTMENT ............................6 MAINTENANCE & STORAGE ........................6... -
Page 3: Product Overview
1.PRODUCT OVERVIEW 1. PRODUCT OVERVIEW Hycontrol's TF Series Vibrating Probes are ruggedly-designed switch sensors that are used for detection of liquid levels throughout the process industries, and can be customised for many applications, including corrosive, hazardous or hygienic environments. By using the probes as high or low fail-safe switch overfilling of tanks and dry run of pumps can be prevented. -
Page 4: Dimensions
3.DIMENSIONS 3. DIMENSIONS 2 x M 20x1.5 2 x M20x1.5 2 x NPT 1/2" BSP 1" 2 x NPT 1/2" S=41 NPT 1" BSP 1" 2 x M20x1.5 NPT 1" 2 x NPT 1/2" S=41 BSP 1" NPT 1" S=41 Short Model Standard Model... -
Page 5: Installation
After screwing the device tightly into place, the housing can be rotated by hand (max. 300°) to adjust the cable outlets to the required position. The TF Series probes can be mounted in many possible positions, as illustrated to the right. -
Page 6: Electrical Connections
7 8 9 9. MAINTENANCE & STORAGE The HYCONTROL TF Series switches do not require maintenance on a regular basis. In some instances, however, the vibrating section may need to be cleaned from the deposited material. This must be carried out carefully.
