Sigineer Power TX6KW User Manual

Step up/down isolation transformer
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
www.sigineer.com

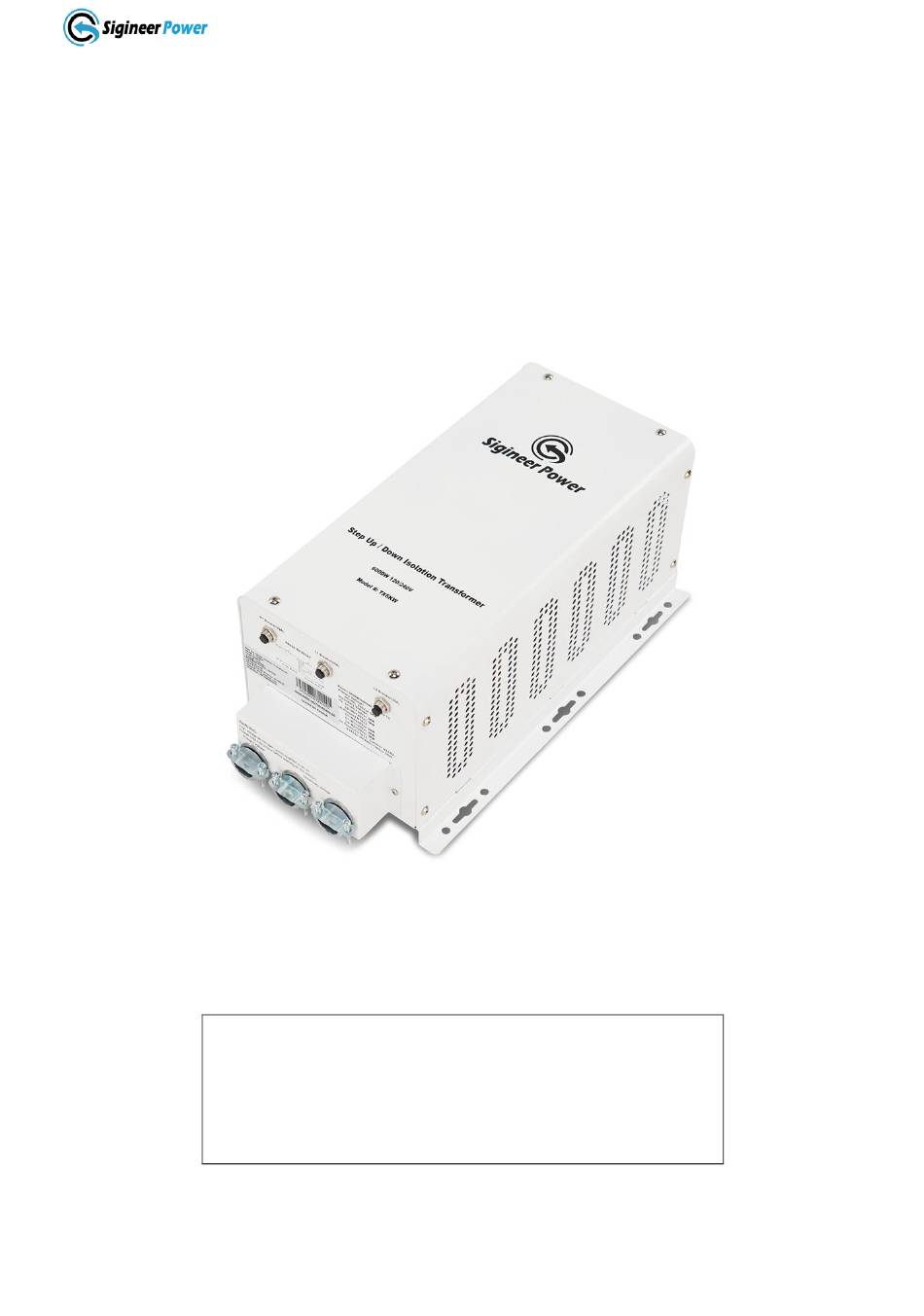

Step Up/Down Isolation Transformer
User's Manual
For Model:
TX6KW
Version 1.1 (PN:TX6KW20230415)
Manufacturer Information
Sigineer Power Limited
Email: info@sigineer.com
TEL: +86 769 82817616
US Warehouse: 205 E Alma Ave A6, San Jose, CA 95112
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TX6KW and is the answer not in the manual?

Questions and answers

Summary of Contents for Sigineer Power TX6KW

  • Page 1 Step Up/Down Isolation Transformer User’s Manual For Model: TX6KW Version 1.1 (PN:TX6KW20230415) Manufacturer Information Sigineer Power Limited Email: info@sigineer.com TEL: +86 769 82817616 US Warehouse: 205 E Alma Ave A6, San Jose, CA 95112...

  • Page 2: Important Safety Information

    General Information Thank you for purchasing the TX6KW Step Up/Down Isolation Transformer. It is designed to power loads with specific voltage requirements that differ from the available line voltage. It provides a means of raising (boosting) or lowering (bucking) a supply line voltage.
  • Page 3 www.sigineer.com Features • Encapsulated with electrical grade resin • Cores of high-quality electrical steel • Aluminum Windings • 60/50 Hz operation with 6000W/6000VA output • 95% Efficiency • 135oC temperature rise, 180oC insulation class • Mounting holes for quick and easy mounting •...

  • Page 4: Main Specifications

    www.sigineer.com Option 4: 120Vac to 240Vac. Input 120Vac(L1-N2) 6KW Output 240Vac (H1-H2) Max 6KW Option 5: 120Vac to 120/240Vac Input 120Vac(L2-N2) 3KW Output 240Vac (H1-H2) Max 3KW Output 240Vac (L1-N1) Max 3KW Main Specifications Nominal Power: 6KW/6KVA Nominal Frequency: 50Hz/60Hz AC Input Voltage: 220-240V or 110-120Vac AC Output Voltage: 110-120V or 220-240Vac Ambient temperature: 0 - 40°...
  • Page 5 www.sigineer.com ※Errors and omissions reserved. Specifications in this manual are subject to change without prior notice. Save This Manual! Read this manual before installation, it contains important safety, installation and operating instructions. Keep it in a safe place for future reference.
