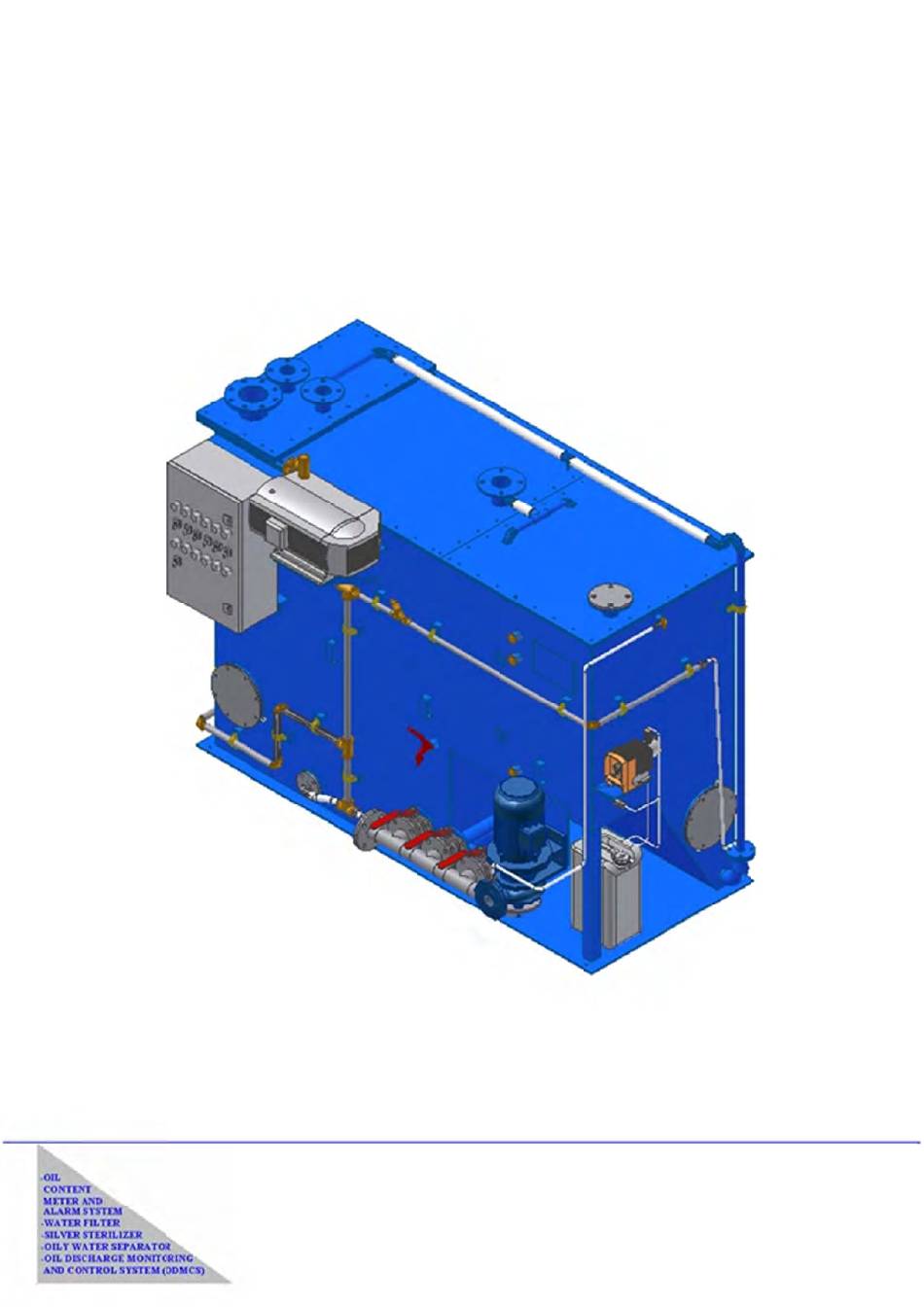

JO
OW
STP 2
2010 S
SE
EWAGE TR
REATMEN
FINAL DRAWINGS
APPRO
OVAL DRA
SHIPYAR
D
STX O
Offshore & S
HULL
1506/07
7/10/11
J
Jowa AB
TELEFO
ON
T
Tulebo 865
+46(0)31
1-795 00 40
S-428 34 KÅLLER
S
RED
G
GÖTEBORG
TELEFA
AX
+46(0)31
1-795 45 40
WA
Series
T PLANTS
AWINGS
Shipbuilding
g Co., Ltd.
INTERNET
www.jowa.s
se
EMAIL
info@jowa.s
se
Advertisement
Table of Contents
Related Manuals for JOWA STP 2010 Series
Summary of Contents for JOWA STP 2010 Series
- Page 1 FINAL DRAWINGS APPRO OVAL DRA AWINGS SHIPYAR STX O Offshore & S Shipbuilding g Co., Ltd. HULL 1506/07 7/10/11 Jowa AB TELEFO INTERNET Tulebo 865 +46(0)31 1-795 00 40 www.jowa.s S-428 34 KÅLLER GÖTEBORG TELEFA EMAIL +46(0)31 1-795 45 40...
- Page 2 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS INTRODUCTION 1.1 G ENERAL 1.2 G UARANTEE AND SERVICE 1.3 N OTE ON RECYCLING SYSTEM DESCRIPTION SPECIFICATIONS INSTALLATION INSTRUCTIONS ELIVERY JOWA STP 2010 LOCATION XTERNAL PIPE CONNECTIONS LECTRIC CONNECTIONS ALARM CONNECTION...
- Page 3 Bioreactors produce no offensive odours. 1.1 General To obtain all advantages operating the JOWA STP 2010, be assured all users have adequate education for the equipment. That the installation is correct maintained and operated in accordance with the instruction in this manual.
- Page 4 Service should only be carried out by an authorised JOWA service engineer. 1.3 Note on recycling. In the design and manufacture of the JOWA STP 2010 all Efforts have been made to use components that can be recycled. This product or the parts of it must be disposed of in an environmentally sound manner.
-
Page 5: System Description

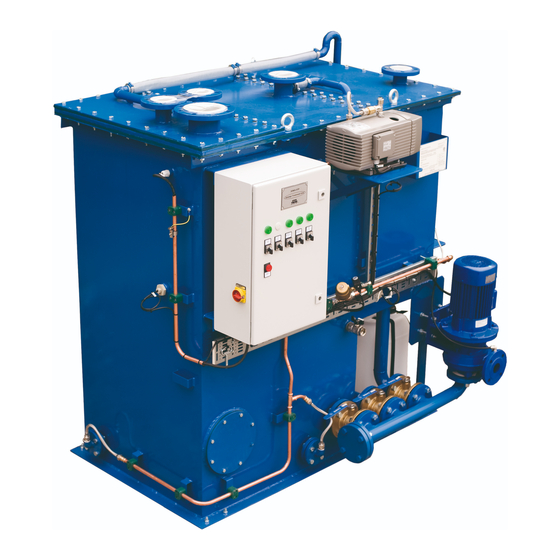

Sign: GS System description The JOWA STP 2010 is an aerated, submerged, fixed-film unit with a proprietary aeration system that provides major advantages for the operator. The raw sewage is led to the pre-bioreactor chamber. In the pre-bioreactor chamber non biodegradable solids are screened and settled for later discharge. - Page 6 STP 2010 Series Sign: GS Due to the high degrading power of the JOWA STP 2010, they are much smaller than comparable biological degradation methods using suspended growth (rather than fixed-film) systems. In addition, because the Bioreactor is a submerged, fixed-film unit, the biomass is more stable and able to tolerate both hydraulic and organic shock loadings better than the alternatives.
-
Page 7: Specifications
Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS 3 Specifications K:\1-NYA K\1.3-JOWA PROJEKT\STP2010\Manual... -
Page 8: Specification
Date: 091221 JOWA STP 2010 Series Rev: E TECHNICAL SPECIFICATION Sign: GS Specification TYPE: 2010-15 2010-25 2010-40 2010-60 Capacity: 15 P.E 25 P.E 40 P.E 60 P.E (At black water gravity system) hydraulic load: (m3/d) 1,05 1,75 2,80 4,20 organic load:... - Page 9 Date: 091221 JOWA STP 2010 Series Rev: E TECHNICAL SPECIFICATION Sign: GS BLOWER: 2010-15 2010-25 2010-40 2010-60 Type: Becker DT Becker DT Becker DT Becker DT 4.16 4.16 4.25K 4.40K or equivalent or equivalent or equivalent or equivalent Inlet capacity:...
- Page 10 Date: 091221 JOWA STP 2010 Series Rev: E TECHNICAL SPECIFICATION Sign: GS Dosing pumps: Type: PROMINENT, CONCEPT PLUS CNPa or equivalent Max capacity: 3,9 L/h Max pressure: 7 bar Stroke rate: 0-180 SPM Voltage: 230 VAC Frequency: 50/60 Hz single phase...
-
Page 11: Installation Instructions
This equipment can be supplied as an option by JOWA. Please contact JOWA. IMPORTANT! Any galley waste water led into the plant should pass through a grease trap. JOWA should be contacted. JOWA can supply a grease trap as an option 4.3.2 Hospital water inlet... - Page 12 IMPORTANT! If it is required that grey water be connected to black water inlet JOWA should be contacted. If the black and grey water lines are not separated and are led to the black water inlet JOWA should be contacted.
- Page 13 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS Electric connections The electric power supply is 3P 400 VAC / 50 Hz or 3P 440 VAC / 60 Hz (should be stated in the order) other supplies as options. Power should be connected to the main switch and ground in the control cabinet, see electrical wiring diagrams chapter for more information.
- Page 14 The user can test free chlorine ppm level using a chlorine test kit available from JOWA. The user should take a sample during the discharge of the clean water tank with the de-chlorination pump switched off. Make sure the ship is not in a restricted zone for discharge of sewage when doing this.
- Page 15 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS The de-chlorination dosing pump needs to be set according to the time taken to discharge the clean water chamber, IV, so that the correct amount of de-chlorination solution is dosed in during the discharge.
- Page 16 Sign: GS Normal operation The JOWA STP 2010 has two modes of operation – auto mode and manual mode In auto mode P02 (air blower) is running constantly. The level switches in Tank IV, Clean water chamber, control the pump P01 (discharge pump); the discharge pump starts when LS02 (high level) is indicated and stops when LS01 (low level) is indicated.
- Page 17 Sign: GS The PLC User Interface The PLC user interface facilitates the running and understanding of the JOWA STP 2010 Sewage Treatment Plant. Through the user interface and display on the main control cabinet door you receive all messages concerning the JOWA STP 2010 Sewage Treatment Plant such as operational status, alarms, and pre-set times.
- Page 18 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS 5.4.1 STP 2010 Manual and Auto modes Reset AUTO Fig 5.3.1 PLC Interface Figure 5.3.1 shows how the user chooses auto or manual mode. After electrical power has been connected or shut down and returned the PLC displays power lost alarm. User presses S7 to reset.
- Page 19 Sign: GS 5.4.2 STP 2010 Timer adjustment There are several timers in the JOWA STP 2010 that can be adjusted by the user in the PLC. The timers may only be adjusted while the STP is in standby mode. All of the timers are factory set by JOWA and the unit is function tested prior to delivery to the customer.
- Page 20 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS 5.4.3 STP 2010 Timer adjustment menus flow chart RESET ALARM Enter Up/Down Left/Right Up/Down Left/Right Up/Down Left/Right Up/Down Left/Right Up/Down K:\1-NYA K\1.3-JOWA PROJEKT\STP2010\Manual...
- Page 21 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS Up/Down Left/Right Up/Down Left/Right Up/Down Left/Right Up/Down Left/Right Up/Down Left/Right Up/Down Enter K:\1-NYA K\1.3-JOWA PROJEKT\STP2010\Manual...
- Page 22 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS 5.4.4 STP 2010 Alarm list. There are four different alarms which can occur: 1. Power lost. Power has been lost to the unit. Normally the unit should run continually with minimal attendance.
- Page 23 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS Discharge of the pre-bioreactor, bioreactor and settling tank Never discharge sewage and sludge when the ship is in harbour or in a restricted area. This has to be done when the ship is in an unrestricted zone or to shore facilities via the Marpol...
- Page 24 Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS o If chemicals come in contact with skin, follow instructions in Safety and Health Data Sheets. If the plant has duplicate Pumps, Air blowers etc. Change the stand by pump to service pump, to get balance the running time.
-
Page 25: Troubleshooting
Date: 2008-10-23 JOWA Rev: E.100119 STP 2010 Series Sign: GS 6 Troubleshooting An alarm occurs if a pump over-current relay has released or if the high level switch, LS02, in the clean water tank detects high level for an excessive time. Open the control cabinet and check the display on the PLC display for what has caused the alarm.
