Order Line (800) 258-7477 Phone (850) 580-4026 Fax (850) 580-4027

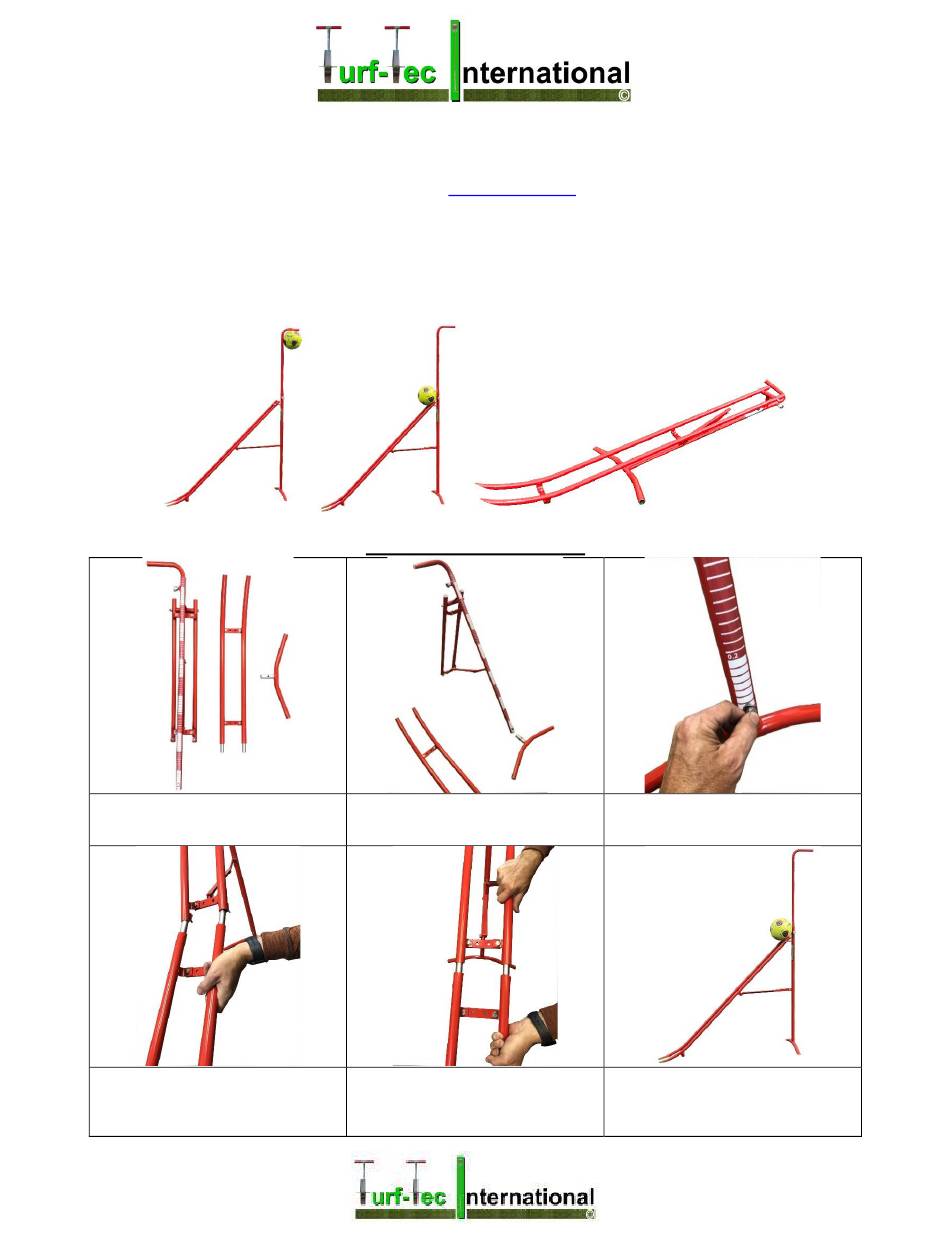

Ball Ramp – Ball Roll and Ball Rebound Instruction Booklet*
For testing soccer, baseball, softball, cricket, and polo fields.
Unassembled Ball Roll and Ball
Rebound unit
Insert bottom section of ball ramp
into top section as shown
1471 Capital Circle NW, Ste #13
Tallahassee, FL. 32303
Website:
www.turf-tec.com
- BALL-ROLL-01-M
Assembly Instructions:
Unfold top section and insert foot as
shown
Slide both sections together
Place bolt provided through holes in
top section and foot and secure (do
not over tighten)
Loosen thumb screw on top section
and extend ball bounce section.
Align 2-meter ruler as shown.
Tighten thumb screw
Page 1 of 6
Advertisement
Summary of Contents for Turf-Tec BALL-ROLL-01-M
- Page 1 Website: www.turf-tec.com Ball Ramp – Ball Roll and Ball Rebound Instruction Booklet* For testing soccer, baseball, softball, cricket, and polo fields. - BALL-ROLL-01-M Assembly Instructions: Unassembled Ball Roll and Ball Unfold top section and insert foot as Place bolt provided through holes in...
- Page 2 FIFA / Soccer / Football Testing FIFA Field Test Positions Unless otherwise specified, tests on site shall be made in the positions in the figure shown below. All field tests, when not otherwise specified, shall be undertaken in positions 1 – 6. The orientation of test positions shall be determined by the tester, however, return visits to the area should use the exact same test areas and test positions.
- Page 3 3. Place the ball on the ball roll ramp so the point below the center of the ball sitting on the ramp is 1000 ±5 mm above the test area. 4. Release the ball and allow it to roll down the ramp and across the test area until it comes to rest.
- Page 4 Calculation and Expression of Results For each test calculate the rebound height using the formula: H = 1.23 (T - Δt)² x 100 Where: H = rebound height in cm T = the time between the first and second impact in seconds Δt = 0.025s Report the value of ball rebound to the nearest 0.01m as an absolute value in meters (e.g.
-
Page 5: Wind Speed
Move ramp supports to inward most Do this for both support brackets Reassemble the ball ramp screw holes and hand tighten bolts, so making sure both rails are in the and spacers as shown, making sure they remain loose innermost holes washers are between each metal part to allow folding up of tool. -
Page 6: Specifications
LIMITED WARRANTY OF TURF-TEC INTERNATIONAL PRODUCTS Turfgrass Products Corporation - dba - Turf-Tec International ("Seller") warrants to the final purchaser, that all Turf-Tec International tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or improperly repaired by persons other than Turf-Tec International.
