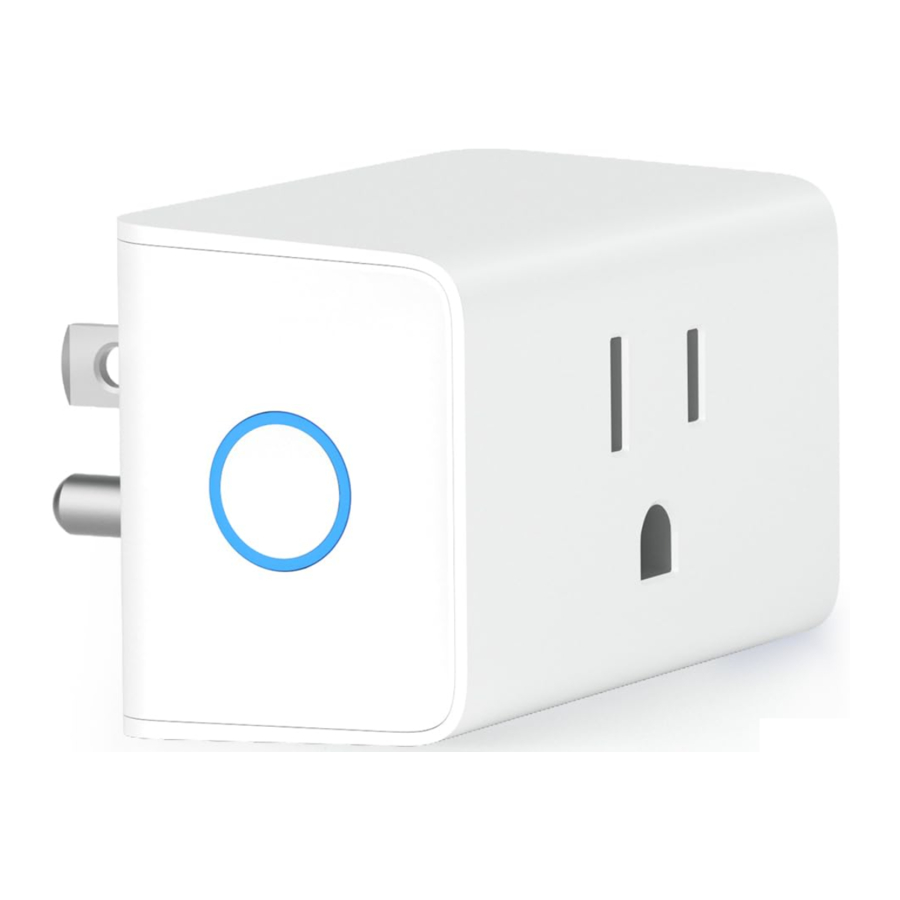

ELEGRP MP10 - Matter Smart Plug Manual

PRODUCT INTRODUCTION

Press the switch button to turn on/off the smart device.
Press and hold the switch button for 5s for network pairing.

LED RING LIGHT STATUS

White: Power On
Flashing Blue: Connecting to Wi-Fi

SPECIFICATION

Model: MP10

Input: 120V~ 60Hz 15A Max.

Output: 120V~ 60Hz 15A 1800W Max. Resistive

Wi-Fi Network: 802.11b/g/n, 2.4GHz (only)

Purpose of Control: Operating Control

Type of Action: Type 1 Action

Pollution Degree: 2

Rated Impulse Voltage: 1500 V

BEFORE WE START

1. Ensure your mobile phone's Wi-Fi is turned on and is connected to your home 2.4GHz Wi-Fi network. If your Wi-Fi router supports both the 2.4GHz and 5GHz dual bands, set their Wi-Fi names (SSID) differently or turn off the 5GHz from the wireless page of the router (the entry address is usually provided on the label attached to the back of the router), then connect your phone to the 2.4GHz Wi-Fi network.
2. Ensure your mobile phone's Bluetooth is turned on.
3. Prepare the Wi-Fi password of the Wi-Fi network that your mobile is connected to.


OPTION 1: USE ELEGRP HOME APP

1. Download the App

   Scan the QR code

   or search ELEGRP HOME to download the App from the Apple App Store or Google Play.



2. Complete Setup in ELEGRP HOME App
   1. Power on the smart device and ensure that the indicator light is blinking - this indicates that the device is in pairing mode. If not, press and hold the switch button of the smart device for 5 seconds until the indicator light starts blinking. The pairing mode will last for 15 minutes.
   2. Open the App.
   3. Scan the Matter QR code on the smart device.
   4. Follow the instructions in the App to finish setup.
   5. You also can enter the device setting page and get a new pairing code for device setup in other Matter-enabled Apps.
      The QR code for Matter network configuration on each device is unique. Please keep it safe.
3. Connect to Amazon Alexa
   1. Open the Amazon Alexa App and tap"Skills and Games" from the"More"menu.
   2. Search the Skill name"ELEGRP HOME".
   3. Tap"Enable to use".
   4. If necessary, type in your ELEGRP HOME login information from the App account and grant authorization in the App.
   5. Then you can control your devices in Amazon Alexa App or using voice through your Amazon Alexa devices.
4. Connect to Google
   1. 1. If you're using Google Home App, open the App and tap the add icon"+"on the top left. Then find"Work with Google"from the list in"Set up device".
      2. If you're using Google Assistant App, open the App and tap your account name on the top right and then tap"Devices". Find"Link a device"from the list in"Add a device".
   2. Search the name"ELEGRP HOME".
   3. Tap"Continue".
   4. If necessary, type in your ELEGRP HOME login information from the App account and grant authorization in the App.
   5. Then you can control your devices in Google Home/Google Assistant or using voice through your Google Home devices.

Create ELEGRP HOME Account First
Due to the limitation of the system, you will need ELEGRP HOME account to connect with Amazon Alexa App or Google Home/Google Assistant App.

OPTION 2: USE 3^RD PARTY MATTER-ENABLED APPS

1. Check Compatibility
   A compatible Matter-enabled hub is required for integration with the respective 3rd party Apps. Before operation, please ensure you have a required matter-enabled hub.

The list provided on the previous page is only a partial reference and may not include all items. Please refer to the websites of each ecosystem for the latest compatible matter-enabled hubs.

2. Download the App

   Search Matter-enabled Apps (including but not limited to HomeKit, Google Home, Amazon Alexa and SmartThings) from the Apple App Store or Google Play.




   * The App icons shown above are for reference only. Please refer to the actual App icons on your phone for accuracy.
3. Complete Setup in 3rd Party Matter-enabled Apps
   1. Power on the smart device and ensure that the indicator light is blinking - this indicates that the device is in pairing mode. If not, press and hold the switch button of the smart device for 5 seconds until the indicator light starts blinking. The pairing mode will last for 15 minutes.
   2. Open the App.
   3. Scan the Matter QR code on the smart device.
   4. Follow the instructions in the App to finish setup.
   5. You also can enter the device setting page and get a new pairing code for device setup in other Matter-enabled Apps.

Please note that the actual steps may differ based on the specific App. For accurate instructions, refer to the corresponding App and contact their customer service for any inquiries. The QR code for Matter network configuration on each device is unique. Please keep it safe.

FAILED TO SET UP

1. Check if your Smart Home App is up to date via the App Store.
2. Check if your Matter Hub is updated with the latest firmware available.
3. Confirm that both your phone and Matter Hub are connected to the same 2.4 GHz Wi-Fi network, and that the network has an active internet connection during the setup process.
4. Note that the Matter pairing mode is available for a limited time of 15 minutes. If your Matter device has been powered on for a longer duration and the indicator light stops blinking, you should re-enter the pairing mode by pressing and holding the switch button of the smart device for 5 seconds until the indicator light starts blinking.
5. If the Matter-certified device has already been added to a different ecosystem, you will need to obtain a new sharing code to proceed with the pairing process.
6. Reset the Matter-certified device by pressing and holding the switch button of the smart device for 5 seconds and retry the setup process.

IMPORTANT SAFETY INSTRUCTIONS

• READ ALL INSTRUCTIONS BEFORE USING.
• Keep away from children and pets.
• Avoid using in humid environments, outdoors, or near heating devices.
• Protect from extreme temperatures, direct sunlight, strong impacts, high humidity, flammable gases, vapors and solvents.
• Do not disassemble, modify, or repair the device. Seek professional help for malfunctions.
• Stop using the device if it's not working properly or is visibly damaged.
• Avoid storing in poor ambient conditions for extended periods.
• Do not use aggressive detergents or chemical solutions.
• Do not connect in series.
• Do not cover during use.
• Unplug before checking voltage.
• Always disconnect Adapter from the outlet when not in use.
• Indoor use only.
• Do not touch any metal part of the adapter while using it.
• The pictures in this manual are for reference only. Please refer to the actual product and App pages for accuracy.

SAVE THESE INSTRUCTIONS

HAVING PROBLEMS? WE CAN HELP!
Email: support@elegrp.com
Call us on: 866-267-3272
Mon-Fri 9:00-17:00 EST (US)

Feel free to contact us with any questions or concerns. Our customer service team will work hard to put a smile back on your face
