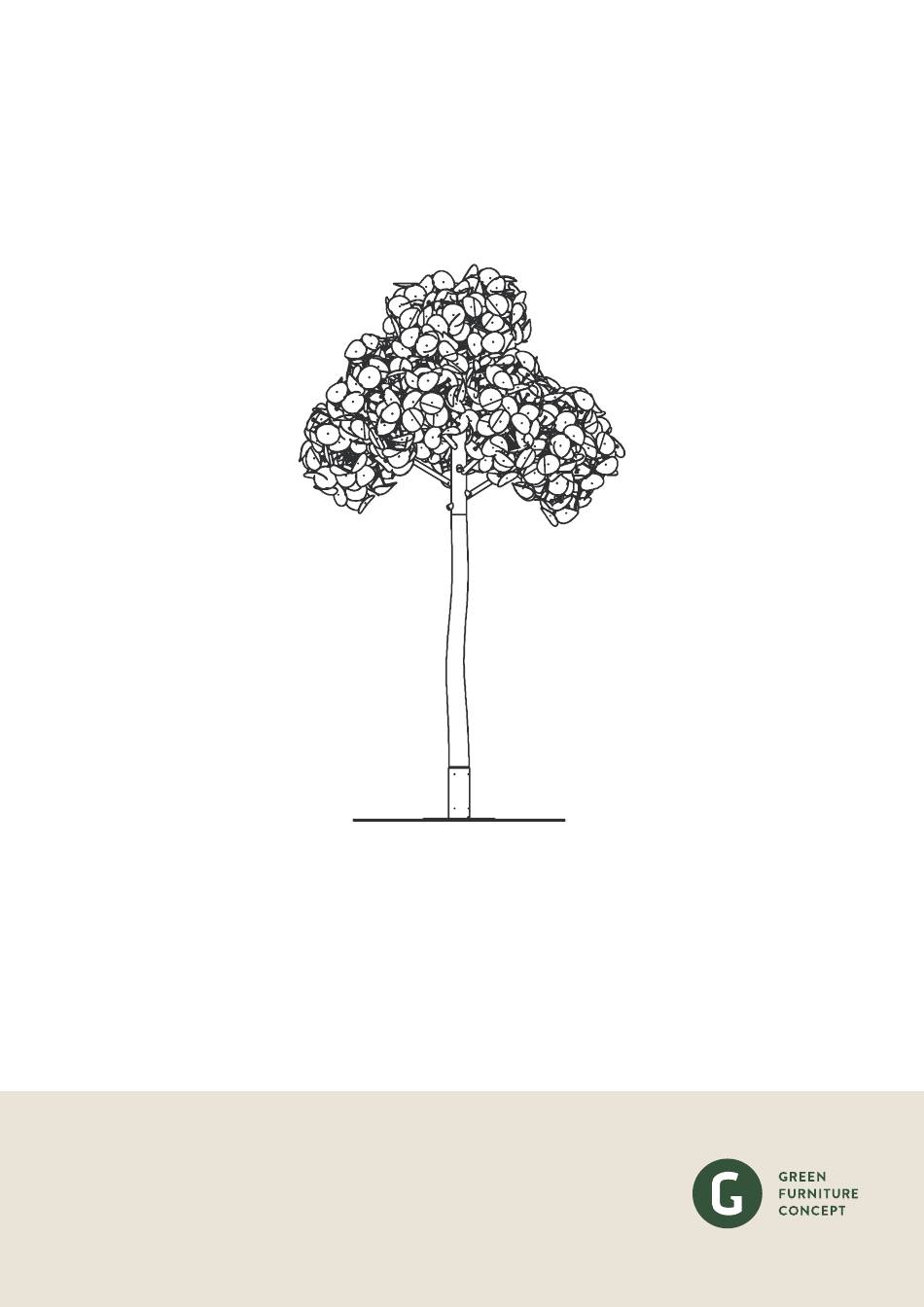

- Page 1 Leaf Lamp Series Leaf Lamp Tree L Manual LL303-EN-V01...
- Page 2 Index Modules Recycling of parts Parts Leaf Lamp Tree L p5-6 Assembly instructions Leaf Lamp Tree L p7-9 LL303-EN-V01 | Leaf Lamp - Tree L - Manual | Green Furniture Concept...
- Page 3 This Leaf Lamp Tree comes with a little birdhouse attached to the trunk at assembly and hides all electrical components inside. LL303-EN-V01 | Leaf Lamp - Tree L - Manual | Green Furniture Concept...
- Page 4 All metal parts such as the foot and small parts should be recycled as steel. Electrical components All electrical components such as cables, chargers and sockets should be separated and recycled as electronic waste. LL303-EN-V01 | Leaf Lamp - Tree L - Manual | Green Furniture Concept...
- Page 5 SP003 SP090 Roundhead Wooden Screw 4,5x40 (torx) Cable Tie L400 Birdhouse SP075 SP068 LL0019 Fastener Set Screw 6x20 Grommet 11,1x6,4x9,5 Roundhead wooden screw 3x16 SP095 SP042 SP061 LL303-EN-V01 | Leaf Lamp - Tree L - Manual | Green Furniture Concept...
- Page 6 Parts – Leaf Lamp Tree L Leaf Lamp Series Distributor Cabel 7000 Cable assembly EC008 EC013D EC002 LL303-EN-V01 | Leaf Lamp - Tree L - Manual | Green Furniture Concept...
- Page 7 Pull the cable out to the side of the foot. Make sure the grommet is in place, Use the set screws to attach and align the protecting the cable around the exit. trunk in the foot. LL303-EN-V01 | Leaf Lamp - Tree L - Manual | Green Furniture Concept...
- Page 8 Connect all clusters to the trunk. Secure all the clusters using the Connect all the cables from the clusters Roundhead wooden screw 3x16. to the distributor in the birdhouse. LL303-EN-V01 | Leaf Lamp - Tree L - Manual | Green Furniture Concept...
- Page 9 Assembly Instructions – Leaf Lamp Tree L Leaf Lamp Series Connect the distributors with the Connect the cable going to the power interconnecting cable. source aswell. LL303-EN-V01 | Leaf Lamp - Tree L - Manual | Green Furniture Concept...
