INSTRUCTIONS
Pressure Transmitter YCQB and YCQC series
Applicable to fluids and refrigerants of GROUP 1 and 2, according to Directive 2014/68/EU
Some models are suitable with water, please refer to the datasheet.
Voltage
Output Signal
*
Pressure range
Maximum Operating pressure
Burst Pressure *
*
Temperature range
Mechanical Connection
Electrical Connection
*
IP enclosure rating
*
Depending on the model – Refer to the model in hand and/or the YCQ drawing
1
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel.
No responsibility is assumed by Sanhua for any consequences arising out of the use of this material.

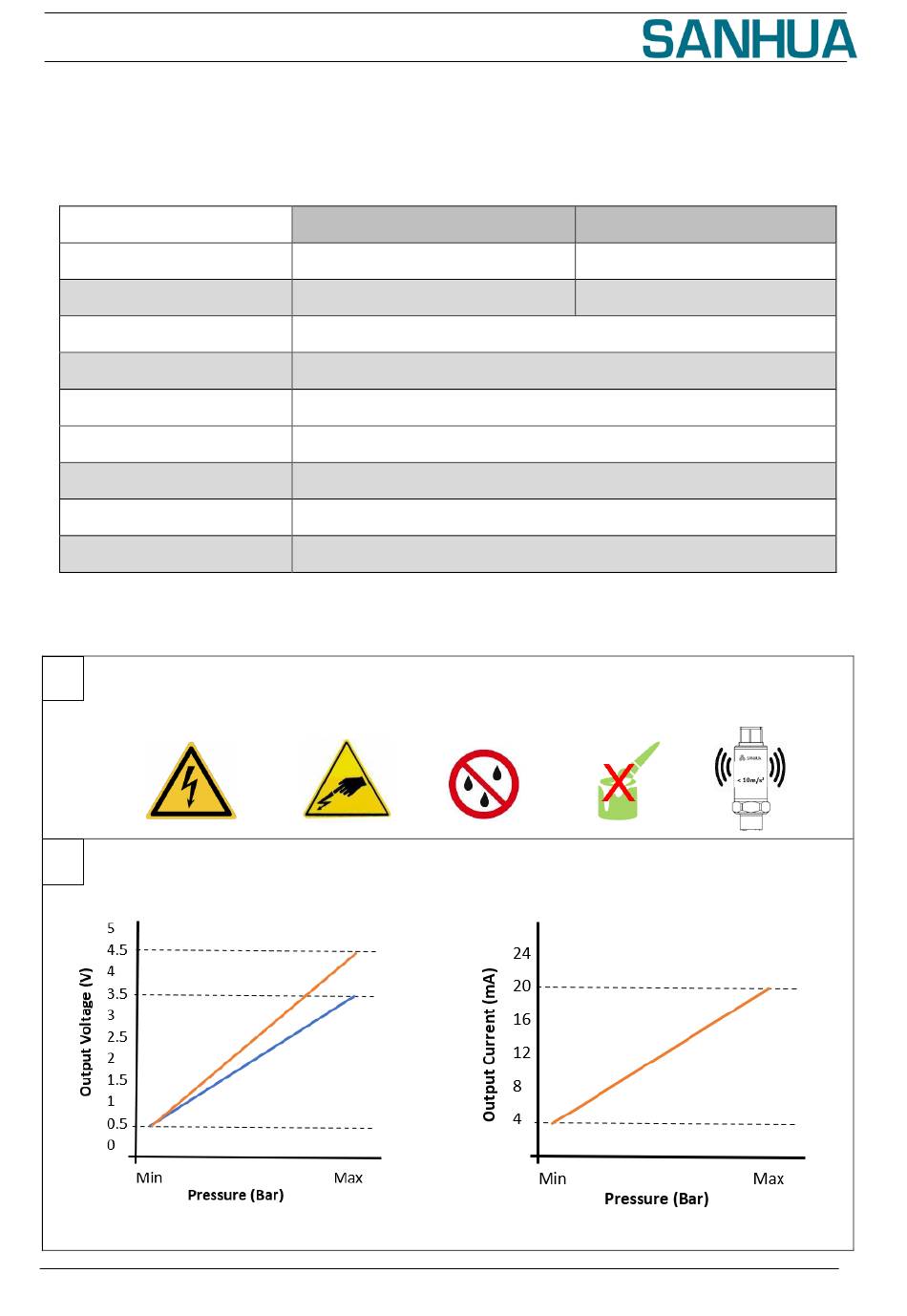

OUTPUT CHARACTERISTICS
2
Copyright ©SANHUA 2023
Subject to change without notice
0.5 – 3.5V or 0.5-4.5V
*
*
*
Disconnect all the supply voltage to avoid electric damage and shock.
YCQB
YCQB
5 VDC
*
From 0 to 150 bar
52.5 bar or 75 bar or 135 bar or 225 bar
≥ 3 x Maximum Operating Pressure
from -40°C or -30°C to +80°C or +120 or +150°C
7/16-UNF Male or Female – Solder – G ¼ - G 3/8
Cable + XHP - Packard – Hirschman – Molex – M12
IP 66 or 67
1
YCQC
10-30 VDC
4-20mA
YCQC
II-YCQ-MU-R2307
