Summary of Contents for Dnake RIM08

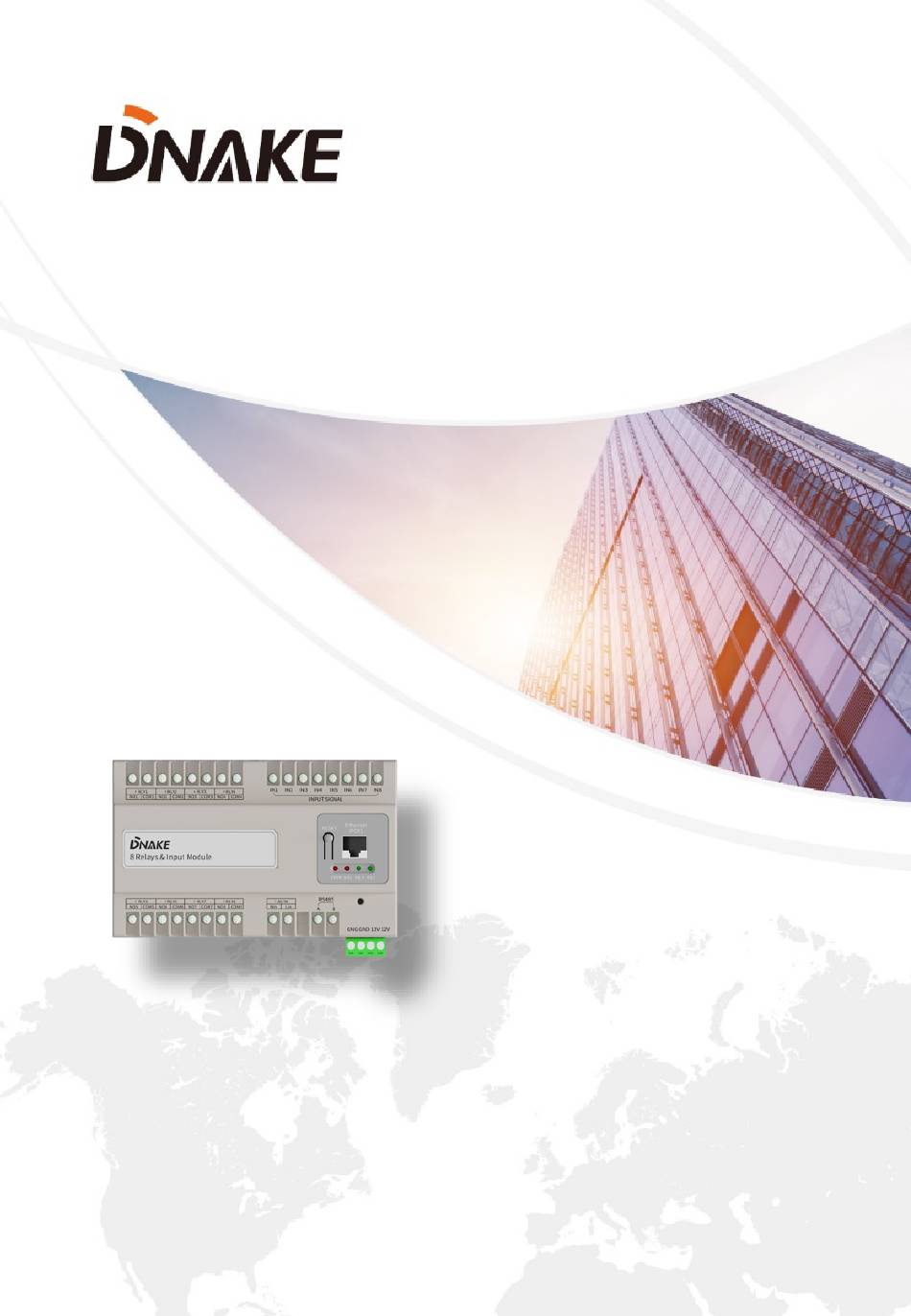

Page 1 User Manual ——— DNAKE RIM08...
Page 3 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech- supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change.
Page 4: Table Of Contents
CATALOG PRODUCT FEATURE ..1 TECHNICAL PARAMETER .. 1 OVERVIEW ......2 WEB SETTING ..... 3 DEVICE SETTING ....10 SYSTEM DIAGRAM ... 12 DEVICE WIRING ....13 INSTALLATION ....18 SAFETY INSTRUCTION ..20...
Page 5: Product Feature
PRODUCT FEATURE 1. Control different devices, such as lights, heating, natural gas, curtains, water valves, etc. 2. Support different control entrances including relay module, indoor monitor, and APP 3. Powered by PoE or power adapter (DC12V/2A) 4. Support remote control of device 5.
Page 6: Overview
OVERVIEW...
Page 7: Web Setting
1. RIM08 web settings Connect RIM08 and PC to a network switch in the same LAN. You can enter the IP address of RIM08 in the web browser search bar and log in with the default account (admin) and password (123456). This is where you can configure the device.
Page 8 Current IP address of the device; Mask: Subnet mask of the device; Gateway: Gateway of the device; DNS: Domain Name Server of the device; 1.2 Device Numbers here are basic settings to relate RIM08 with Indoor Monitor. The Building, Unit, Apartment, and...
Page 9 Sync number should be the same as those in Indoor Monitor. The device number here is to distinguish different RIM08. Building: Number of the building (Range: 1- 999); Unit: Number of the unit (Range: 0-99); Device No: Number of the device (Range: 1-9);...
Page 10 DHCP: Enable DHCP (Dynamic Host Configur ation Protocol) to dynamically distribut e network configuration parameters; IP Address: Configure Static IP address to manuall y distribute network configuration para meters; Mask: Subnet mask; Gateway: A component that is part of two networ ks, which use different protocols;...
Page 11 Backup&Restore: Backup all setting and restore settings; Upgrade: Upgrade equipment; Reset: Reset to factory settings; Reboot: Reboot the device; Packet Capture: Capturing packets can help developers reproduce positioning problems; Logs: Device logs; 2. Indoor Monitor web setting...
Page 12 (admin) and password (123456). This is where you can configure the device. 1.1. Advanced > Relay The Relay settings of RIM08 can be found in the Indoor Monitor’s web page.
Page 13 Name: Customize name for switch button; Zone: The zone of Indoor Monitor; Delay: The length of trigger delay time (0-9s); Trigger: The length of the trigger time; Enabled Enable or disable switch on RIM08;...
Page 14: Device Setting
Connect RIM08 and Indoor Monitor in the same LAN. After setting Building, Unit, Apartment and Sync number with Indoor Monitor on the web, you can find RIM08 on the Indoor Monitor here. Note: The Building, Unit, Apartment and Sync number of RIM08 and Indoor Monitor should be the same.
Page 15 If you set the zone in the Advanced > Relay on indoor monitor’s web page, when the zone is triggered, the relay which is connected to the RIM08 will also be triggered automatically. They are linked.
Page 16: System Diagram
SYSTEM DIAGRAM...
Page 17: Device Wiring
DEVICE WIRING Interface Interface Function Note Name RLY_ Support 8 relays on one Relay interface RIM08 COM_ INPUT SIGNAL Input Dry contact input Zero Crossing ZCD function when AC IN Detection (ZCD) module connect with AC Nin Lin interface device...
Page 18 On: Normal power supply Indicator light- Power indicator light- Off: No powered or the -PWR -RED power is faulty On: System running Indicator light- System indicator properly -SYS light--RED Off: System is starting or the system is faulty Indicator light- Network indicator On: Network connected -NET...
Page 19 3. RS485 Interface RS485 interface can connect to the equipment with RS485 interface; RS485 port can output 12V/100mA power supply, and +12V doesn’t need to be connected when it’s not in use; 4. Input Interface Each input interface can be separately connected to the warping switch, self-reset switch, normally open or normally closed sensor switch;...
Page 20 5. AC IN Interface If you connect an AC device to RIM08, you can connect a 220V AC 50Hz/60Hz input to AC IN interface. Q & A: 1. Q: What is the function of the AC IN interface? A: This interface is used for Zero Crossing Detection (ZCD)
Page 21 2. Q: Can I connect with AC device but don’t connect to AC A: The RIM08 can work normally, but the life of relay interface will be reduced and device security will be degraded. We suggest you connect to AC IN when you connect with AC device.
Page 22: Installation
INSTALLATION Three views of the product: Installation procedure: Clamp the upper end of the module to the guide rail. Lift the spring stop by a flat-head screwdriver, nd mount the module into the guide rail.
Page 23 Installation complete...
Page 24: Safety Instruction
SAFETY INSTRUCTION In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not torque too much.  Do not install the device in the following places: ...
Page 25 Do not use the power supply without the  manufacturer's approval. Do not have the liquids such as water go into the  device. Other Tips In order to prevent damage to the paint layer or  the case, please do not expose the device to chemical products, such as the diluent, gasoline, alcohol, insect-resist agents, opacifying agent and insecticide.
Page 26 When the device isn’t used for a long time, the  adaptor and memory card can be removed and placed in dry environment. When moving, please hand over the manual to  new tenant for proper usage of the device.
Page 27 V1.0 EASY SMART INTERCOM SOLUTIONS...
