Summary of Contents for Motorola solutions PPMNT-1001

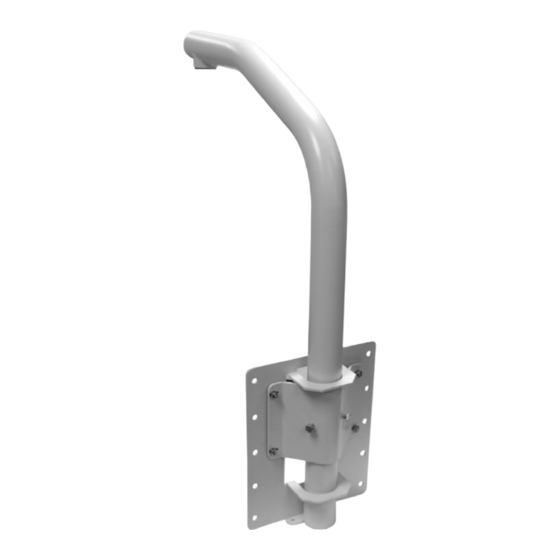

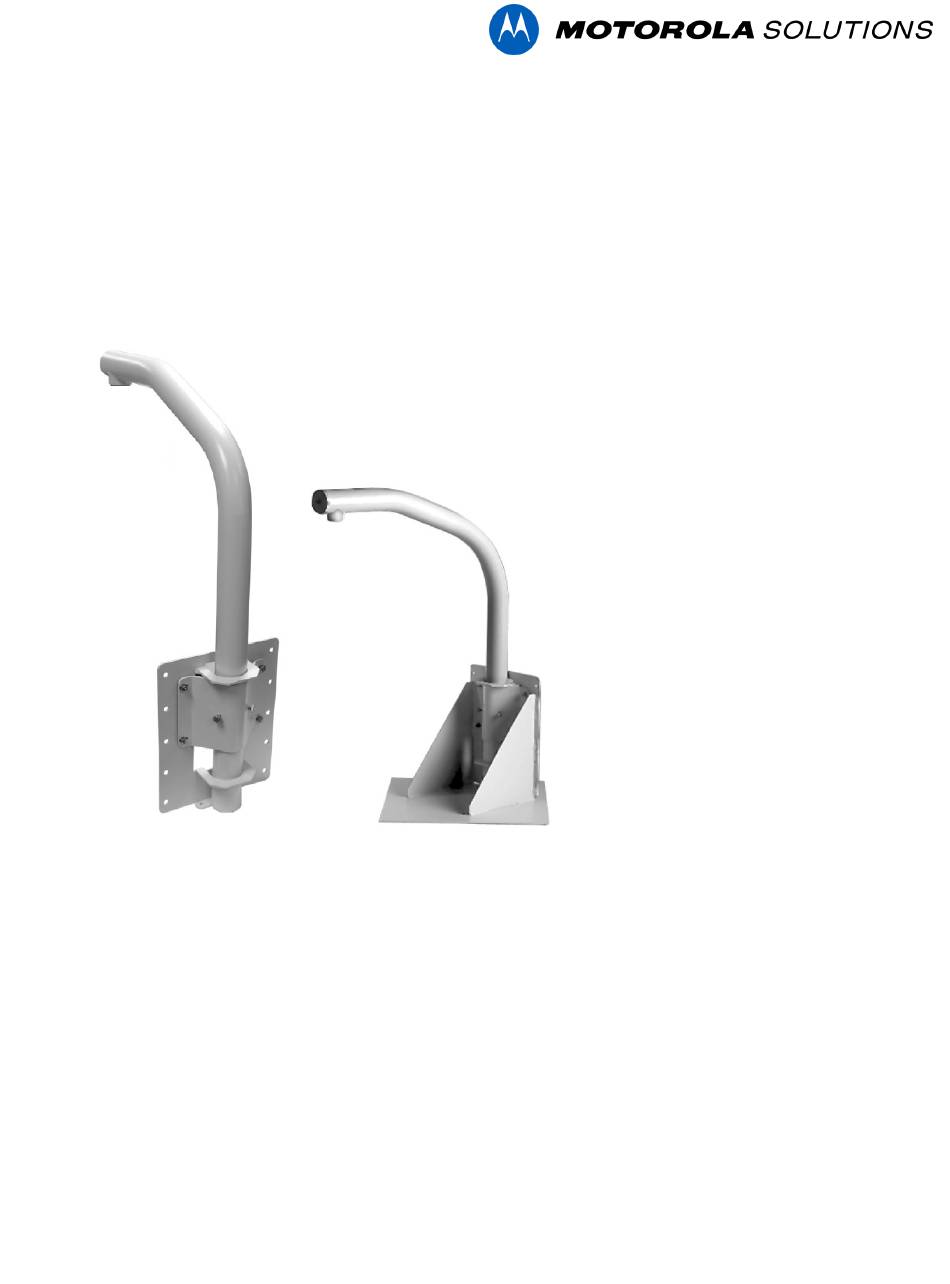

  • Page 1 Installation Guide Parapet and Rooftop Mounts PPMNT-1001 RFMNT-1001 PPMNT-2001 RFMNT-2001...
  • Page 2: Copyright

    The contents of this document and the specifications of the products discussed herein are subject to change without notice. Motorola Solutions Inc. reserves the right to make any such changes without notice. Neither Motorola Solutions Inc. nor any of its affiliated companies: (1) guarantees the completeness or accuracy of the information contained in this document;...
  • Page 3: Table Of Contents

    Table of Contents Copyright Introduction Preparing to Install a Parapet or Rooftop Mount Important Safeguards and Warnings Installing a Parapet or Rooftop Mount Parapet Wall Mount Outline Dimensions Rooftop Mount Outline Dimensions Specifications For More Information...
  • Page 4: Introduction

    PPMNT-1001/2001 RFMNT-1001/2001 The PPMNT-1001 and RFMNT-1001 mounts are designed for outdoor use with small-size pendant cameras, and the PPMNT-2001 and RFMNT-2001 are for outdoor use with medium-size pendant cameras. The PPMNT- 1001 and PPMNT-2001 models mount to parapets, while the RFMNT-1001 and RFMNT-2001 models mount to rooftops or other smooth horizontal surfaces.
  • Page 5: Preparing To Install A Parapet Or Rooftop Mount

    3/8-16 type fastening hardware is recommended. Multiple fastening positions facilitate mounting flexibility. For models PPMNT-1001 and PPMNT-2001, mount using a minimum of three fasteners on each side of the mounting plate. For models RFMNT-1001 and RFMNT-2001, mount using a minimum of two fasteners on each side of the mounting base.
  • Page 6: Installing A Parapet Or Rooftop Mount

    2. Remove the arm. 3. Install the mount PPMNT-1001/PPMNT-2001 Install the mounting plate to the inside or the outside of the parapet. Use a minimum of three fasteners on each side of the mounting plate. Depending on the type of parapet construction, install the mounting plate as close to the top of the parapet as possible.
  • Page 7 4. Reinstall the arm; lower the arm through the guide hoops until it stops at the bottom of the mounting plate. 5. Pull the wires through the arm starting from the bottom of the mounting plate; pull the wires out through the threaded opening at the top of the arm.
  • Page 8: Parapet Wall Mount Outline Dimensions

    Parapet Wall Mount Outline Dimensions PPMNT-1001 25.50 (64.77) 35.08 (89.10) 20.42 (51.87) PPMNT-2001 37.66 (95.65) 42.00 (106.68) 33.00 (83.82) Note: Values in parentheses are centimeters; all others are inches. Parapet Wall Mount Outline Dimensions...
  • Page 9: Rooftop Mount Outline Dimensions

    Rooftop Mount Outline Dimensions RFMNT-1001 25.50 (64.77) 35.27 (89.59) 20.42 (51.87) RFMNT-2001 37.66 (95.65) 42.19 (107.16) 33.00 (83.82) Note: Values in parentheses are centimeters; all others are inches. Rooftop Mount Outline Dimensions...
  • Page 10: Specifications

    Parapet mount for small-size pendant cameras; mounts to inside or outside of parapet. RFMNT-1001 Rooftop or smooth horizontal surface mount for small-size pendant cameras. PPMNT-2001 Same as PPMNT-1001 except overhang clearance and height accommodate medium-size pendant cameras. RFMNT-2001 Same as RFMNT-1001 except overhang clearance and height accommodate medium-size pendant cameras.
  • Page 11: For More Information

    For More Information For additional product documentation, visit motorolasolutions.com. Technical Support Contact Technical Support at motorolasolutions.com/support. For More Information...
