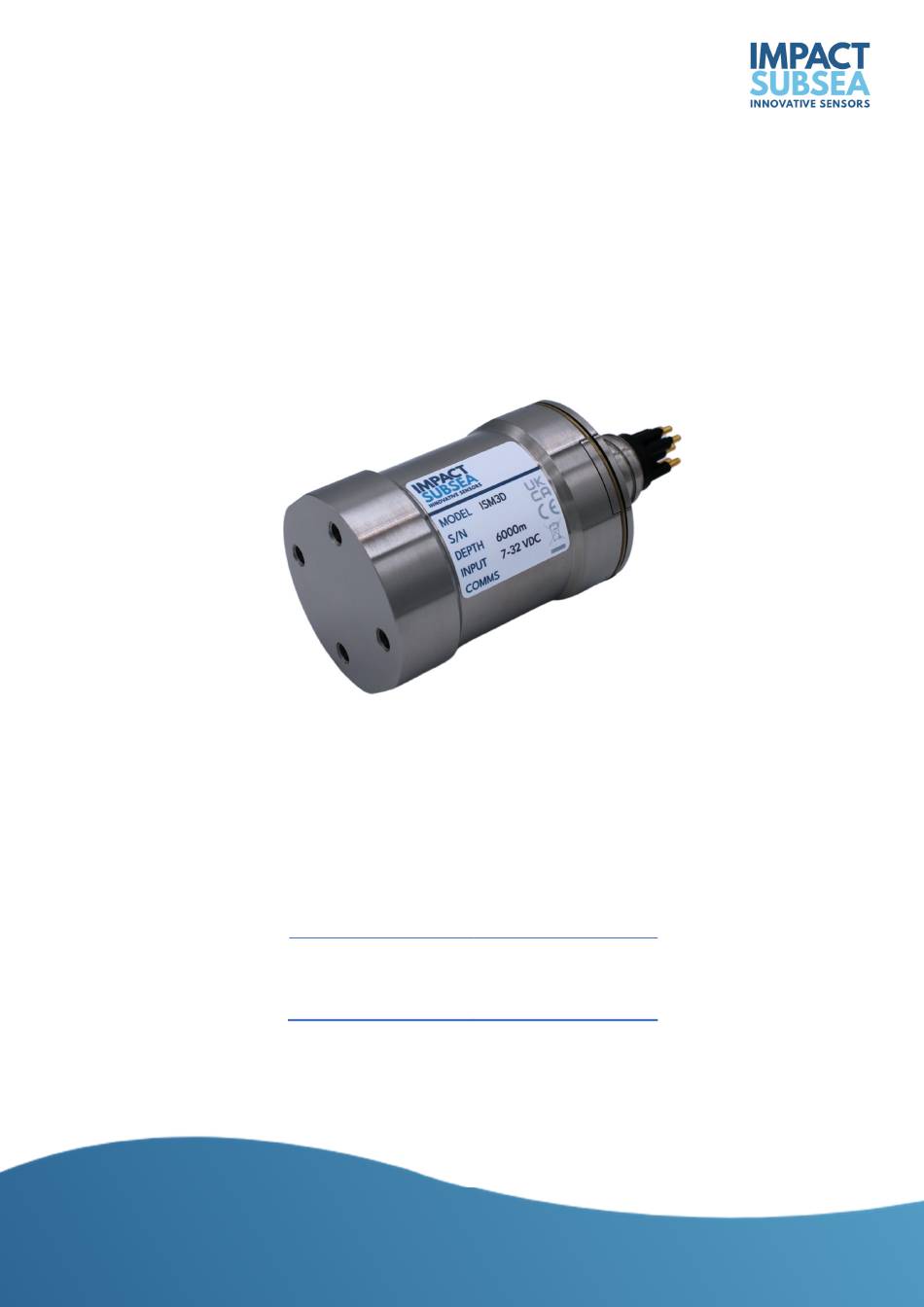

ISM3D

Heading, Pitch & Roll Sensor

Installation & Operation Manual

Revision Number:

1.8

Date

April 2024

+44 (0) 1224 460 850 | info@impactsubsea.co.uk | impactsubsea.com

mpact Subsea Ltd, Company Number: SC498003, Registered in Scotland,

Registered Office: Silverfield House, Aberdeen Energy Park, Claymore Drive, Bridge of Don, Aberdeen, AB23 8GD, UK

Table of Contents

Need help?

Do you have a question about the ISM3D and is the answer not in the manual?

Questions and answers

Summary of Contents for Impact Subsea ISM3D

Page 1 ISM3D Heading, Pitch & Roll Sensor Installation & Operation Manual Revision Number: Date April 2024 +44 (0) 1224 460 850 | info@impactsubsea.co.uk | impactsubsea.com mpact Subsea Ltd, Company Number: SC498003, Registered in Scotland, Registered Office: Silverfield House, Aberdeen Energy Park, Claymore Drive, Bridge of Don, Aberdeen, AB23 8GD, UK...
Page 2: Table Of Contents
1.0 Introduction ............................2 2.0 Specification ............................3 2.1 ISM3D Overview ..........................3 2.2 ISM3D Dimensions ......................... 3 2.3 Attitude & Heading Reference System ..................4 2.4 Communications, Power & Physical ....................4 3.0 Overview ..............................5 4.0 Installation .............................6 4.1 Location ............................6 4.1.1 Magnetic Disturbers (For Heading Accuracy) .................6...
Page 3: Introduction
The ISM3D sensor is a compact and highly accurate Attitude and Heading Reference System providing Heading, Pitch & Roll. Suitable for a large range of underwater applications, the ISM3D can be used with ROVs, AUVs, Hydro-graphic Survey, Construction, Positioning and any other application where accurate Heading, Pitch &...
Page 4: Specification
2.0 Specification 2.1 ISM3D Overview 2.2 ISM3D Dimensions All dimensions are in mm. Document No: 0000.1909 | Version No: 1.8 | 24 April 2024...
Page 5: Attitude & Heading Reference System
2.3 Attitude & Heading Reference System Heading Attitude Accuracy ± 1° of Magnetic North Pitch ± 90° Roll ± 180° Resolution 0.01° Accuracy ± 0.07° Resolution 0.01° 2.4 Communications, Power & Physical Communications & Power Physical Digital RS232 & RS485 Weight Titanium: 0.33/ 0.225kg (Air/Water)
Page 6: Overview
The ISM3D can be configured using the supplied seaView software. seaView allows all settings to be configured (output strings, communications protocol, baud rate etc). In addition to allowing the ISM3D to be configured, seaView also allows all outputs to be viewed in real time and logged.
Page 7: Installation
Alignment with Vehicle (Pitch/Roll) – 4.1.1 Magnetic Disturbers (For Heading Accuracy) Where the heading output is to be used, the ISM3D should be mounted as far as possible from sources of magnetic interference. Electrical items which can cause magnetic interference include motors, transformers and valve packs.
Page 8: Mounting
4.2 Mounting The ISM3D should be mounted using four M5 Screws, screwed into the base of the unit: Alternatively, the unit has a 31mm recess in the main body to enable a clamp to be tightened securely around the unit: Document No: 0000.1909 | Version No: 1.8 | 24...
Page 9: Electrical
This can be achieved by using rubber or plastic strips around the body of the ISM3D. The ISM3D has two flats, on either side of the body – these are to enable the unit to sit tightly against another flat surface if available.
Page 10: Power
4.3.2 Power The ISM3D is reverse polarity protected and fused with a 400mA resettable poly fuse. 4.3.3 Serial Interface The RS232 and RS485 interfaces have in-line fused protection on the serial lines. A prolonged transient voltage on these lines will blow the surface mount fuses which will require replacement by Impact Subsea or an approved distributor.
Page 11: Establishing Communications
The default serial settings are RS232, 9600, N81 If the ISM3D is tilted from vertical to upside down 3 times within the first 10 seconds of power up then it will temporarily configure the serial interface to the default and output an ASCII message with the settings.
Page 12: Operation
RS232 or RS485 at any standard baud rate. The parity must be none, stop bits 1 and data bits 8. If the ISM3D communication settings differ from this then perform the comms reset as described in the 'Establishing Communications' section of this manual.
Page 13 V3.0 ISM3D Application seaView V1.9.0 ISM3D Application Document No: 0000.1909 | Version No: 1.8 | 24 April 2024...
Page 14: Integration With Systems
Autonomous mode will make a measurement and output the results at a specified time interval. The ISM3D can be configured to operate in one or both of these modes at the same time. 5.3 ISM3D Setup The ISM3D unit can be configured to output a variety of output strings, at various output rates, autonomously or by interrogation.
Page 15 5.3.1 Communication Protocol seaView V3.0 ISM3D Application Connection setup seaView V1.9.0 ISM3D Application Communication protocol setup The Serial Mode can be adjusted (RS232, RS485 or RS458 Terminated). The baud rate, word length, parity and stop bits can also be adjusted to suit interface requirements.
Page 16 (either positive or negative degrees). This will enable the ISM3D to report True North heading values. The Inertial Mode of the ISM3D can be enabled or disabled. The default and recommended setting is to have the inertial mode enabled.
Page 17 The setup page allows configuration of the output string, which mode the ISM3D should work in: The required output string can be selected from the drop-down list. Autonomous mode can be enabled and disabled. When enabled, the rate at which the output string is set in times per second (Hz).
Page 18 5.3.3 ISM3D Setup (seaView V1.9.0 and earlier) The second setup page allows configuration of the output string, which mode the ISM3D should work in along with various offsets: The settings on each line (1 to 4) shown above are detailed:...
Page 19: Magnetic Calibration
If the unit has been mounted Horizontally or Inverted, this can be set in the buttons of Line 4. Line 4 also allows the Inertial Mode of the ISM3D to be enabled or disabled. The default and recommended setting is to have the inertial mode enabled.
Page 20 5.4.1 Magnetic Calibration Procedure Ensure that the ISM3D has been physically installed in a location as free from Step 1: magnetic interference as possible (away from value packs, thrusters etc). Check that the ISM3D is mounted securely to the structure ensuring the unit is Step 2: not able to move independently from the structure.
Page 21 Step 5: Once connected to the ISM3D, go into the ISM3D settings: seaView V3.0 seaView V1.9.0 Step 6: For seaView V3.0 onward: Select Setup then click on ‘Calibrate Mag’ For seaView V1.9.0 and earlier: Click on the 'Calibrate' button to open the calibration window: Step 7: (only required for seaView V1.9.0 and earlier)
Page 22 On the 'Acquire Data' button Step 8: (only required for seaView V1.9.0 and earlier) change to 'Start'. The calibration process has now begun. Document No: 0000.1909 | Version No: 1.8 | 24 April 2024...
Page 23 Step 9: Rotate the ROV through 360 degrees. Step 10: Keep rotating the ROV through 360 degrees and pitch/roll the ROV as much as is possible. On screen you will see the sides of a ball forming from a number of dots. Click on the ball to rotate and see if there are any gaps in data.
Page 24 seaView V3.0 seaView V1.9.0 Document No: 0000.1909 | Version No: 1.8 | 24 April 2024...
Page 25 Step 11: Once you have completed the calibration click 'Apply' to save the calibration to the ISM3D unit. seaView V3.0 seaView V1.9.0 Document No: 0000.1909 | Version No: 1.8 | 24 April 2024...
Page 26 Step 12: Power Cycle the ISM3D unit. The ISM3D will now point to magnetic north and provide good operation. If this is not the case, the magnetic calibration has not been completed to a sufficiently high standard and will require to be conducted again.
Page 27: Ascii Output Strings
6.0 ASCII Output Strings 6.1 AHRS The string IDs below are for ISM3D firmware version 3.0 and above. number shown in brackets after the IDXXX (X) is the ID of the string in firmware earlier than version 3.0. If there is no number in brackets, the string is only available from firmware version 3.0 onwards.
Page 28 Q0 floating point number Q1 floating point number Q2 floating point number Q3 NMEA standard checksum ID133 (4): Impact Subsea Accelerometer, Gyro, Magnetometer $ISAGM,a.aaa,a.aaa,a.aaa,g.ggg,g.ggg,g.ggg,m.mmm,m.mmm,m.mmm*xx<CR><LF> Accelerometer reading: X then Y then Z a.aaa Gyroscope reading: X then Y then Z g.ggg...
Page 29 ID134: Impact Subsea heading, pitch, roll, accelerometer, gyro, magnetometer $ISALL,hhh.h,spp.p,srrr.r,a.aaa,a.aaa,a.aaa,g.ggg,g.ggg,g.ggg,m.mmm,m.mmm,m.mm m*xx<CR><LF> sign + or - heading in degrees (0 to 359.9) hhh.h pitch in degrees (90.0 to -90.0) pp.p roll in degrees (180.0 to -180.0) rrr.r Accelerometer reading: X then Y then Z a.aaa...
Page 30 ID136 (3): TCM2 compass, pitch, roll $Chhh.h,Ppp.p,Rrr.r*xx<CR><LF> heading in degrees (0 to 359.9) hhh.h pitch in degrees (90.0 to -90.0) pp.p roll in degrees (90.0 to -90.0) rr.r NMEA standard checksum ID137: TOKIMEK2 $PTVF,appp.ppP,brrr.rrR,hhh.hT,fgg.gPR,hii.iRR,jkk.kAR,lmm.mN,yyyMD,zzzzAL*nn<CR> <LF> [-] stern down; [space] bow down pitch in degrees (90.00 to -90.00) ppp.pp [-] starboard down;...
Page 31 ID138: Watson I hhh.hh arrr.r bppp.p cggg.g dkkk.k hiii.i 0000.0 <CR><LF> heading in degrees (0 to 359.99) hhh.hh [-] starboard down / [+] port down rrr.r Roll rate in degrees per second [-] stern down / [+] bow down ppp.p Pitch rate in degrees [-] heading increasing / [+] heading decreasing ggg.g...
Page 32 ID142: CDL TOGS AHhhh.hh APbpp.pp ARdrrr.rr Mf Eggggggg Sx Cyyyy<CR><LF> Heading in degrees hhh.hh [-] bow down [+] stern down Pitch in degrees pp.pp [-] port down [+] starboard down Roll in degrees rrr.rr Mode flag Cycle Counter ggggggg Fault field CRC value (hexadecimal) yyyy ID143: Micro Tilt...
Page 33: Servicing
Replacement or repair is at the discretion of Impact Subsea Ltd. How long does the coverage last? The Warranty Period for the ISM3D, purchased from Impact Subsea Ltd, is 1 year from the date of dispatch from Impact Subsea Ltd.
Page 34: Technical Support
9.0 Technical Support Should you require technical support for your ISM3D unit, our Support team can be contacted as follows: T. +44 (0) 1224 460 850 E. support@impactsubsea.co.uk W. www.impactsubsea.com An out of hours emergency number is available via the Impact Subsea website.
