Summary of Contents for VARILITE VL2600 Series

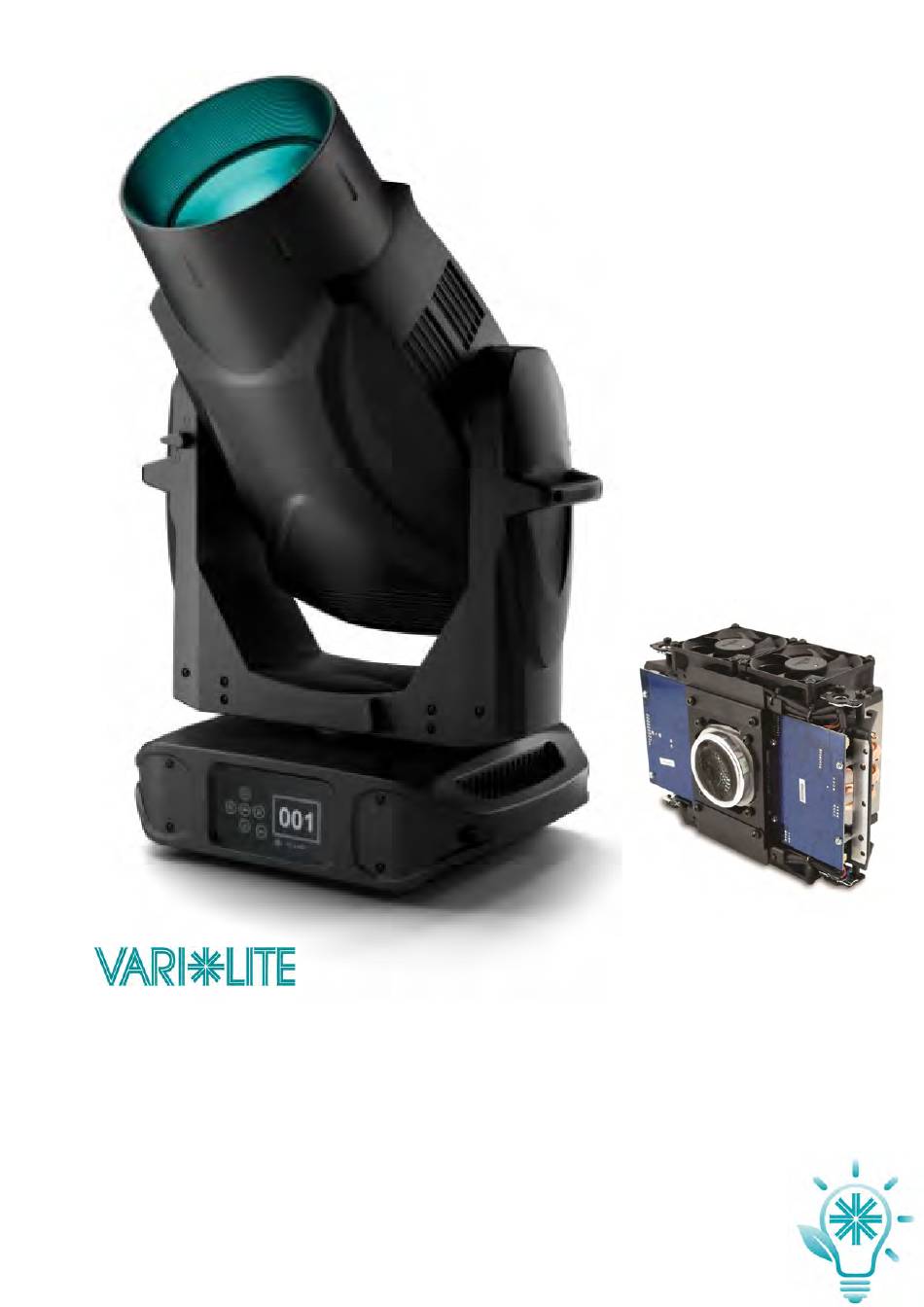

- Page 1 VL2600 Series LED Engine Upgrade SE...
- Page 2 VL2600 Series LED ENGINE UPGRADE SE Est Time : 10-20 mins Caution .. Static Sensitive Devices, Not to be handled by Unauthorized Personnel Tools Required: Materials Required: ● VL 2600 SE Upgraded Sticker Pack ● #2 Philips Screw Driver ● Small Side Cutters ●...
- Page 3 VL2600 Series Step 2. Position the nose of the fixture pointing down and lock off the pan & tilt. This will allow you to work on the LED Engine. Lock off the Pan & Tilt...
- Page 4 VL2600 Series Step 3. Using your snips, remove the cable ties that are holding the cable looms to the LED Engine chassis as highlighted below...
- Page 5 VL2600 Series Step 4. Remove the Power & Data going into the LED Control and let the wiring loom hang loose.
- Page 6 VL2600 Series Step 5. Locate the Earth tether screw and remove it with your #2 Philips Screwdriver...
- Page 7 VL2600 Series Step 6. Using your small flat bladed screw driver, remove the 41V Live & Neutral cables going into the LED Driver Card...
- Page 8 VL2600 Series Step 7. With the cables now released pull up to remove them from the connector. Pull the Live and Neutral up between the cable run gap . Move the Live & Neutral to one side so you have...
- Page 9 VL2600 Series Step 8. With your thumb push the clip in and pull On the Molex connector there is a small clip. the connector up All cables going into the LED Module have The connector is now free. now been disconnected.
- Page 10 VL2600 Series Step 9. With your fixture still in the locked position ,using your #2 Philips Screwdriver remove the following 4 x M4 screws.
- Page 11 VL2600 Series Step 10. Holding the LED Assembly remove the M4 screw as show. Still holding LED Assembly, remove the last M4 screw, please note that LED Assembly is now detached from the chassis and will move releasing the screw.
- Page 12 VL2600 Series Step 11. The LED Assembly is now removed. Repeat the process in reverse installing your new Upgraded LED Assembly Once you have completed the installation of your new LED Engine it is recommended you test & install the latest software for your fixture.
- Page 13 VL2600 Series Step 12. Selecting The SE Mode in the VL2600 Series Menu Structure. Once PEGASUS has sent the VL2600 Software to you fixture, the fixture will enter into Boot Mode as shown above. Once the fixture has completed its boot mode pro-...
- Page 14 VL2600 Series Step 12. You will now be prompted for a password, Using the Down Left Right arrow keys enter 2606 and press Using the Down arrow keys scroll to Upgrade to SE LED and press Using the Down arrow keys select...
- Page 15 VL2600 Series Step 12. On the main display splash screen your fixture will now display SE...
- Page 16 VL2600 Series Step 13. With your fixture now upgraded place the VL2600 SE Upgraded label to the user interface screen on your fixture. Toolbox Tip Place you VL Sustainability Sticker to the base of the fixtures Upper Encloser for easy identification.
