Summary of Contents for SolarV 4912100

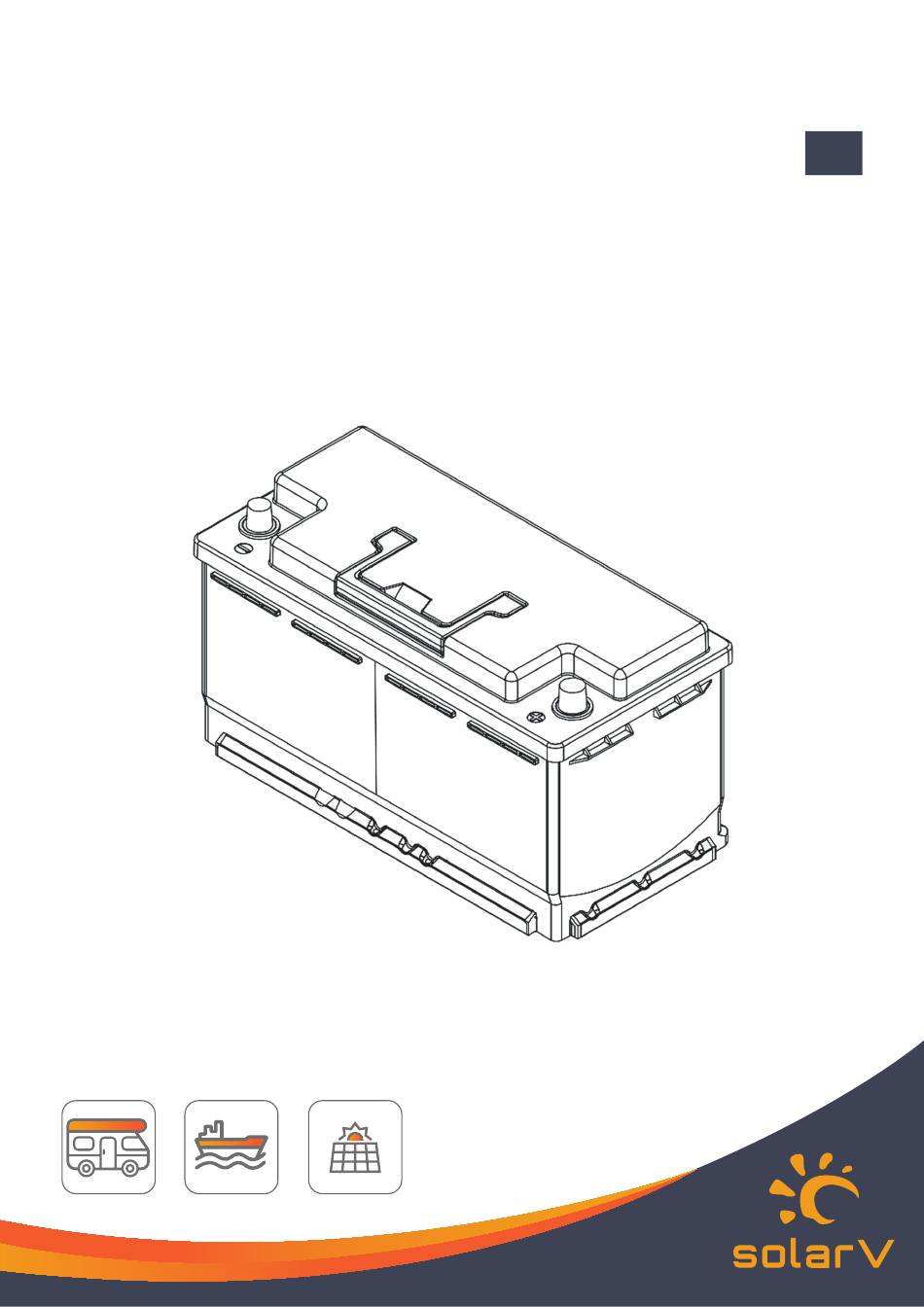

- Page 1 LIFEPO4 BATTERY 12.8V 100AH V2.0 Art.-Nr. : 4912100...
-
Page 2: Dimension (Mm)
Dimension (mm) LiFePO4 Battery 12.8V 100Ah SolarV® Lithium iron phosphate (LiFePO4 or LFP) batteries are considered to be more environmentally friendly energy storage than traditional lead-acid batteries, and they comply with the European RoHS regulations. Lithium storage batteries boast excellent safety, reliability and high efficiency. -
Page 3: Special Features
Reconnect Voltage Maximaler Ladestrom 100A BMS-Ladeschlussspannung Short Circuit Protection 300-800us TEMPERATURE PARAMETERS Discharge Temperature -20°C to 60°C Charge Temperature 0°C to 55°C Storage Temperature -20°C to 60°C BMS High Temperature Cut- off 65°C Copyright© 2024 SolarV GmbH All rights reserved. -
Page 4: Technical Diagrams
DIFFERENT RATE DISCHARGE CURVE (25 °C) DIFFERENT TEMPERATURE DISCHARGE CURVE (0.5C) STATE OF CHARGE CURVE (0.5C, 25°C) STATE OF CHARGE CURVE (0.5C, 25°C) DIFFERENT DOD DISCHARGE CYCLE LIFE CURVE (0.5C) DIFFERENT TEMPERATURE SELF-DISCHARGE CURVE Copyright© 2024 SolarV GmbH All rights reserved. -
Page 5: App-Download
APP-Download New App (SolarV LFP 2.0): Improved battery search function, Bluetooth password reset, multi-battery monitoring, support for remote shutdown and BMS firmware upgrade. IMPORTANT: The new app (SolarV LFP 2.0) is temporarily ONLY compatible with battery V 2.0. Android Operation Manual Please turn on Bluetooth. - Page 6 Please open the App - SolarV LFP 2.0 SolarV LFP 2.0 SolarV LFP 2.0 Click on “ADD NEW SOLARV BATTERY” ADD NEW SOLARV BATTERY SolarV LFP ADD NEW SOLARV BATTERY Copyright© 2024 SolarV GmbH All rights reserved.
- Page 7 "Scan" icon to list the available batteries Your new battery is listed in the app with its serial number, which can also be found on the battery. Click on "Connect" to display the status information Copyright© 2024 SolarV GmbH All rights reserved.
- Page 8 Click "More" and enter the password "1234" (without quotation marks) to view more information in detail 1234 Click on the “SETTINGS” icon and enter the password “1234” (without quotation marks) 1234 Copyright© 2024 SolarV GmbH All rights reserved.
- Page 9 Select the batteries you would like to combine together and click on “GROUP” : Mark at least two batteries ✓ Please select “Series connection” or “Parallel Connection” and name the group Parallel Connection Parallel Connection Copyright© 2024 SolarV GmbH All rights reserved.
-
Page 10: Troubleshooting
NOTE SolarV LFP 2.0 supports the upgrade of BMS and Bluetooth protocol. If the new version is available, you can click the “Update” button to upgrade it. Please refer to the official announcement on www.solarv.de : Mark only one battery ✓... -
Page 11: Important Safety Instructions
• Do not operate with loose connections. • Do not connect or operate batteries in series or parallel with any other type of battery. • Do not connect more than four batteries in series. Copyright© 2024 SolarV GmbH All rights reserved. - Page 12 Guidelines to correctly Charge Batteries To charge the SOLARV battery correctly, you need to ensure that any charging components in the system can be programmed according to the following specifications. Charging components may include but are not limited to converters, inverter chargers, solar charge controllers, DC-to-DC chargers, etc.
- Page 13 5. Connect the other end of the negative cable to the negative terminal of the battery 6. Repeat steps 2-5 for other batteries in the system. Copyright© 2024 SolarV GmbH All rights reserved.
- Page 14 24V 100Ah battery bank. How to connect in series? Note: SolarV batteries can be connected in series up to 48V. However, do not exceed the 48V setting, as connecting beyond 48V can damage the batteries. 1. Before making any connections, charge each battery to 14.2V to 14.6V using an appropriate lithium battery charger.
- Page 15 The BMS will not allow charging when the internal temperature of the battery is below 32°F (0°C), but discharge is possible at a temperature of -4°F (-20°C). • High Current Discharge Impact The BMS will not allow continuous current exceeding 100 (+/-5%) amps for more Copyright© 2024 SolarV GmbH All rights reserved.
- Page 16 When the battery voltage exceeds around 14V during the charging process, the BMS initiates a passive balancing process. This ensures that all cells maintain the same state of charge, which helps improve the battery's lifespan and performance. Copyright© 2024 SolarV GmbH All rights reserved.
- Page 17 SolarV GmbH info@solarv.de www.solarv.de Copyright© 2024 SolarV GmbH All rights reserved.
