ProLine 4G

PRO F ESS IO NA L 2 G/ 4 G G SM / G PR S T R A N S M ITT ER

Table of Contents

Need help?

Do you have a question about the ProLine 4G and is the answer not in the manual?

Questions and answers

Summary of Contents for ASC Global ProLine 4G

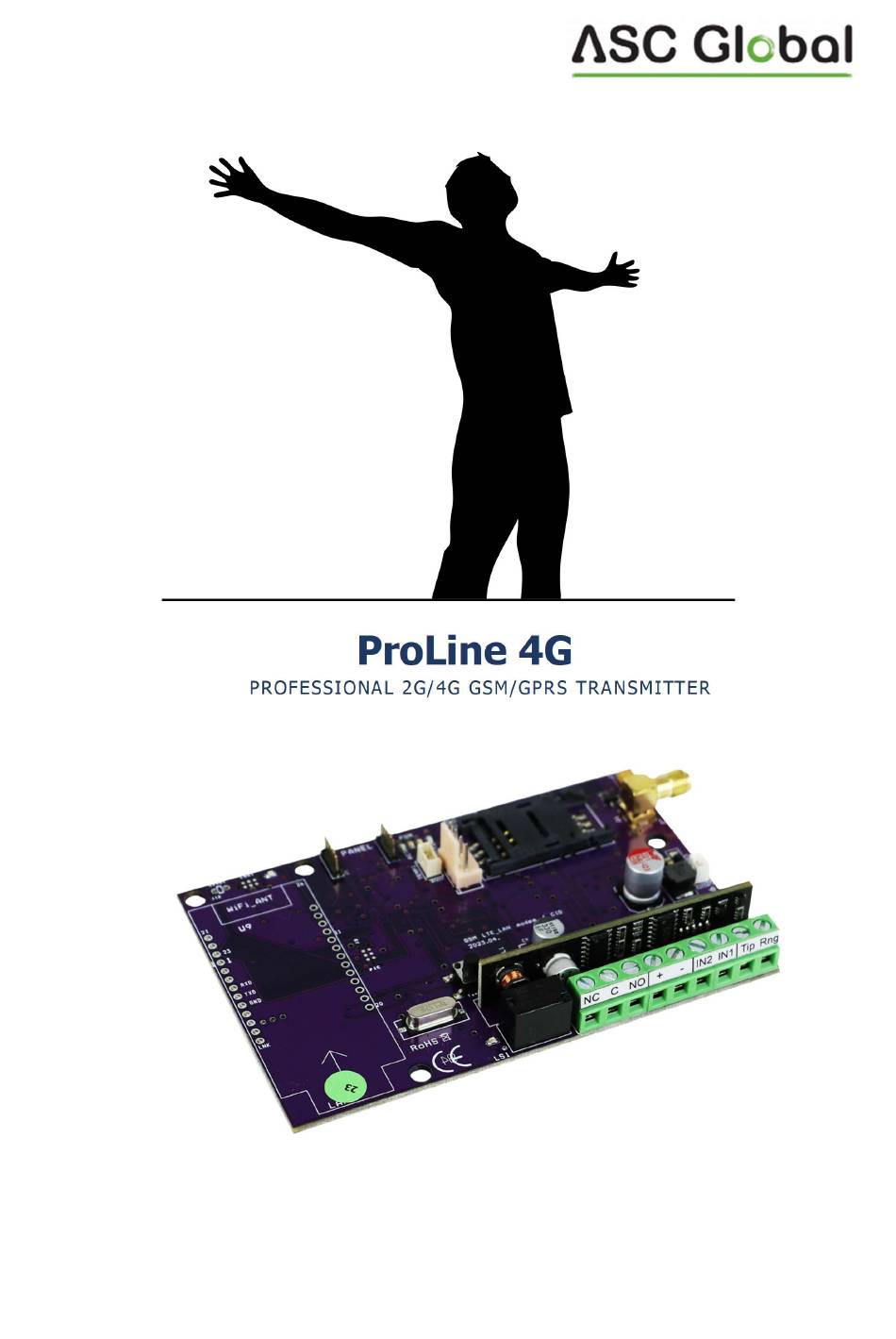

Page 1 ProLine 4G PRO F ESS IO NA L 2 G/ 4 G G SM / G PR S T R A N S M ITT ER...
Page 2: Table Of Contents
ProLine 4G www.ascglobal.eu Content Device description and operation ...................... 3 The module buildup ........................4 Installation guide ..........................5 Technical parameters ........................5 LED signals ............................. 6 Tamper – Factory reset ........................6 Connecting the module (PC) ......................6 Connection with Bluetotth adapter ......................7 Programming using PC software .......................
Page 3: Proline 4G
ProLine 4G www.ascglobal.eu Device description and operation The GSM/GPRS/LTE device can be used as a supplement to alarm centres as a transmitter with 2 inputs or as a GSM/GPRS/LTE based line simulator. The module has two contact inputs and one contact-controlled output.
Page 4: The Module Buildup
ProLine 4G www.ascglobal.eu The module buildup USB / Bluetooth programming connector Status LED GSM diagnostic LED SIM card slot Antenna connector Process LED (SMA) Expansion panel connector Battery connector Tamper / reset button Alarm center connection First and second contact input...
Page 5: Installation Guide
ProLine 4G www.ascglobal.eu Installation guide Technical parameters  Power Voltage: 9-20 VDC  Standby power drain: 80 mA  Maximum power drain: 1000 mA  Relay output load: max. 30V / 1A  GSM module type: SIMCOM A7672E  GSM frequencies: TDD-LTE B38/B40/B41, FDD-LTE B1/B3/B5/B7/B8/B20, WCDMA/HSDPA/HSPA+ B1/B5/B8, GSM/GPRS/EDGE 900/1800 MHz ...
Page 6: Led Signals
ProLine 4G www.ascglobal.eu LED signals Signals give essential information of the module, of GSM signal strength and the actual error codes. By blinking we mean flashes between two longer pauses.  A STATUS LED (green) gives feedback of signal strength value based on the chart below:...
Page 7: Connection With Bluetotth Adapter
ProLine 4G www.ascglobal.eu 4. ATTENTION! For Windows OS, the system will offer to install the driver automatically. It is IMPORTANT that you do the installation using the USB driver, not the system. Manually install USB driver in 10 steps ✔ Get the required driver from our website ✔...
Page 8: Programming Using Pc Software
ProLine 4G www.ascglobal.eu Programming using PC software • For PC settings and programming, use our software, which you can download for free from our website. • The program can be run independently and does not require installation. • Compatible with Windows 7, 8, 10 and 11 operating systems •...
Page 9: Module Status Check
ProLine 4G www.ascglobal.eu Language : Select language (available languages: English, Hungarian, Italian, German, Slovak, Slo- venian, Dutch, Czech, Finnish, Romanian) Contact: Our contact details, e-mail addresses, phone • you can use tabs to switch between windows with different setting options •...
Page 10: Gsm Field Strenght Indication
ProLine 4G www.ascglobal.eu GSM field strenght indication • You can display the graph shown in the picture about the state of the GSM field strength. • You can display the GSM field strength with the button Maintenance → Display GSM field strength.
Page 11: Read Imei Number
ProLine 4G www.ascglobal.eu • In terms of order, the most recent data will appear at the top of the list and the older entries will appear downwards. • If it is not necessary to read the entire list, you can stop the reading by clicking the Stop Reading button.
Page 12: Phone Numbers
ProLine 4G www.ascglobal.eu Phone numbers In the phone numbers menu, you can enter the numbers to which you want to send SMS and/or voice messages. The numbers entered here must be in international format for reliable operation. (Ex.: +36301234567 or 0036301234567) •...
Page 13 ProLine 4G www.ascglobal.eu On this page, you can choose which phone numbers you want to be notified in the form of an SMS or voice message if there is a short circuit or disconnection that triggers an alarm at the given input. It is even possible to send both notifications to the same phone number.
Page 14: Adjusting Outputs
ProLine 4G www.ascglobal.eu Adjusting outputs On the Output window the output settings can be changed. The output type can be monostable namely one statused, (switches for the given period than reverts back to the original status), or bistable namely two statused (it only will revert back to original state after a new controlling) ...
Page 15: Voice Meassage Settings
ProLine 4G www.ascglobal.eu Voice Meassage Settings In the Voice menu item, you can choose which recorded voice message to play for different alarms. • The role of the identification message is to identify the module (e.g.: address, object name), if we expect notifications from several modules.
Page 16: Power Supply Monitoring Setup
ProLine 4G www.ascglobal.eu Power supply monitoring setup The GSM device is able to monitor its power source and send notification of its problems  On the Power monitor tab the trigger voltage level can be set. Below this the module sends an alert.
Page 17: Programming With Sms Commands
ProLine 4G www.ascglobal.eu  For the GPRS client code, it is possible to enter a preset code (specified on the remote monitoring page) or to enable the use of the code taken from the line using Tip/Ring.  You can also enable the sending of your own signals (inputs, power monitor, tamper, life signal). You can enter the corresponding code on the remote monitoring tab.
Page 18 ProLine 4G www.ascglobal.eu tnneeeeeeee t:0 → switched off, 1→24 h normal, 2→ backup; 3→normal alarm 4→ delaye alarm 1234IN- nn→ NO or NC PUT1=INC00100000 eeeee..: First input is: Other parameters: -24 h normal 1.e=1→ send -Normal Close SMS of status re-...
Page 19 ProLine 4G www.ascglobal.eu 12.: life sign 1.: 1st input 2.: 2nd input 3.: 3rd input 4.: 4th input SMS text ending with *. Text tamper SMSTEXT must not contain 1234SMSTEXT1= alarm text* 10.: accented power character! source monitor 12. :life sign 16.: re-...
Page 20 ProLine 4G www.ascglobal.eu 2nd message:  to modify the SMS text of the second input  output and life sign message setup and  saving an output controlling number for controlling  finally modify the SMS security code 5384=SMSTEXT2=second input alarm” OUTCONF1=00003010 ADD=+36705553456 IFETEST=007123000100000 CODE=2345 SMSTEXT2=→modify SMS text of second input.
