Summary of Contents for Scion-Tech SC08.MX200

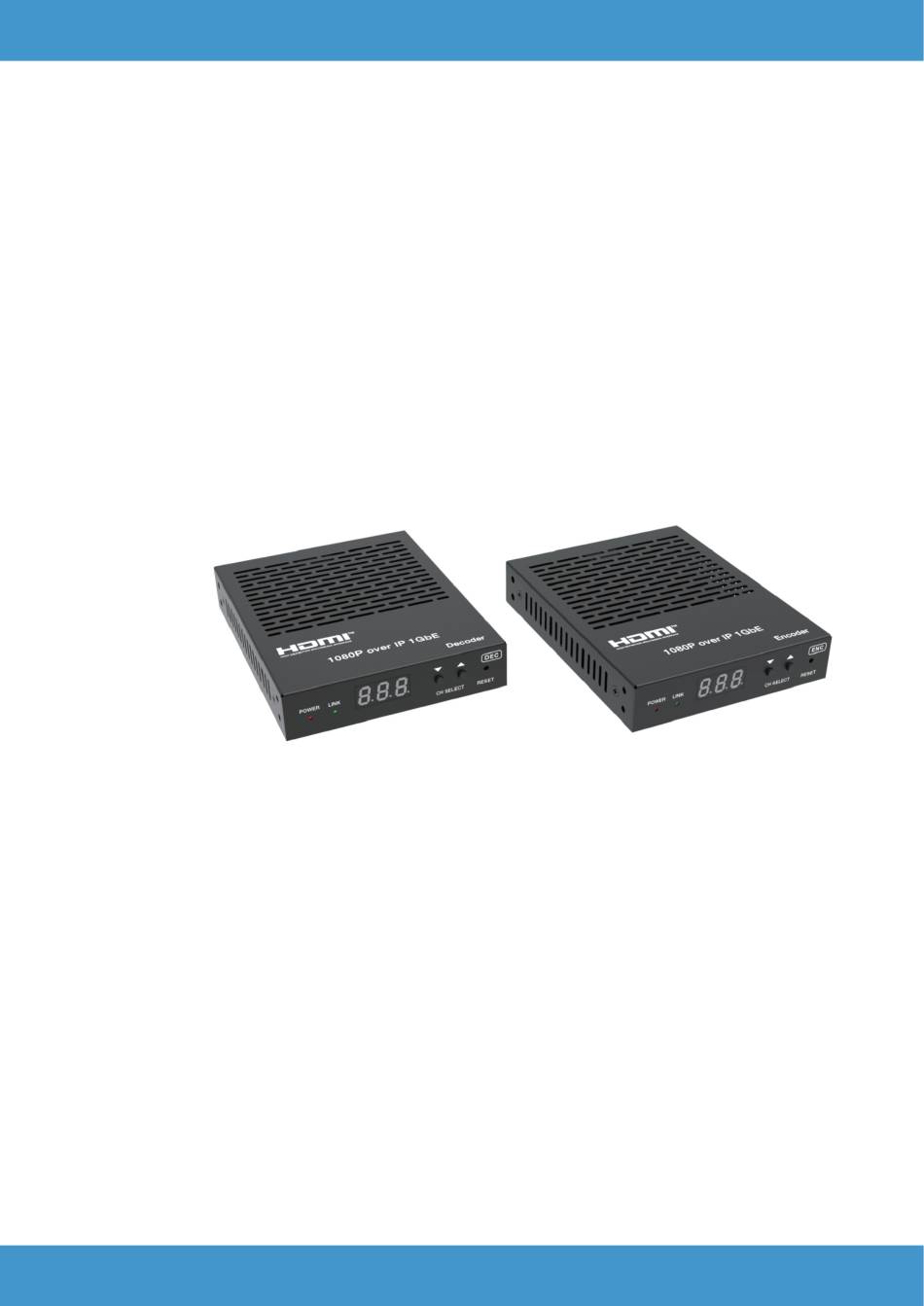

- Page 1 SC08.MX200 Scion Tech User Manual AV over IP with Video Wall Processing SC08.MX200 Scion Tech Ltd Unit 10 Thatcham Business Village Colthrop Lane Thatcham Berkshire. RG19 4LW United Kingdom www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 226450...
-
Page 2: Table Of Contents
SC08.MX200 Scion Tech User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
User Manual 1.0 Introduction The SC08.MX200 is a video over IP solution for high definition signal extension over copper cables. This solution leverages 1G Ethernet switches and enables signal management of 1080p/60Hz (4:4:4) signals with virtually zero frame latency. Bi-Directional RS232, Infra-Red, and embedded audio are also supported. -
Page 4: Specifications
SC08.MX200 Scion Tech User Manual 4.0 Specifications Connections Input: 1 x HDMI Type A (19-Pin Female) 1 x 1G LAN (RJ45 Data Socket) Transmitter Output: 1 x L/R Stereo Audio (3-Pin Phoenix Terminal) Control: 1 x RS232 (3-Pin Phoenix Terminal) -
Page 5: Operation, Control And Functions
SC08.MX200 Scion Tech User Manual 5. Operation Controls and Functions 5.1 Encoder Panel Number Name Description / Function Power LED The LED flashes RED during initialisation then remains on when complete. > LED on: Network is connected (Resolution is less than 1920x1200 and the frame rate is less than or equal to 60) access. - Page 6 SC08.MX200 Scion Tech User Manual Number Name Description / Function > Audio In: Analogue audio input from amplifier etc. Audio In/Out > Audio Out: Analogue audio output to amplifier etc. 100M/1G Network Port. Connect to switch, router or hub for data transmission LAN (PoE) and PoE.
-
Page 7: Decoder Panel
SC08.MX200 Scion Tech User Manual Notes: H Refers to HDMI; D refers to DVI. (The default EDID of 1080P60 will be used if you have not previoulsy copied the EDID to ID 06 or downloaded EDID to ID 07/08 on the SC08.CTL100 web page). -
Page 8: Web Gui Interface
SC08.MX200 Scion Tech User Manual Number Name Description / Function > Audio In: Analogue audio input from amplifier etc. Audio In/Out > Audio Out: Analogue audio output to amplifier etc. 100M/1G Network Port. Connect to switch, router or hub for data transmission LAN (PoE) and PoE. -
Page 9: Configuring Pc Network Properties
SC08.MX200 Scion Tech User Manual 6.0 Web GUI User Guide 6.1 Configuring PC Network Properties Set the PC network segment to the same as the encoders and decoders. The PC IP address should be 169.254.3.150 and the subnet mask should be 255.255.0.0 6.2 Log In... -
Page 10: Device Information
SC08.MX200 Scion Tech User Manual 6.3 Device Information Page The “Status” page provides information about the Encoder/Decoder, such as Firmware Version, IP Address, Subnet Mask and MAC Address. 6.4 Encoder Video Configuration The encoder video configuration page includes settings for Main Stream, Sub Stream, ID Setting, Audio Selection and EDID Settings. - Page 11 SC08.MX200 Scion Tech User Manual Main Stream: You can configure the Video Encoding Format, Audio Encoding Format and Bitrate. The Encoder supports H.264 and H.265 (H.265 is the default setting). The supported audio formats are PCM and AAC, PCM being the default. The encoding resolution cannot be manually set, it follows the input resolution.
-
Page 12: Decoder Video Configuration
SC08.MX200 Scion Tech User Manual 6.5 Decoder Video Configuration The Decoder Video Configuration page includes Transmission Protocol, Scale Setting, Download EDID, Video Timeout Setting, ID Setting and Picture Setting. Transmission Protocol: You can select “udp unicast” or “udp multicast” (udp multicast by default). -
Page 13: Settings
SC08.MX200 Scion Tech User Manual 6.6 Settings On this pag you set Network settings, configure security module, modify the username and login password. Notes: (1) The Network Settings can only be modified if the Mode button is set to Static. -
Page 14: Update
SC08.MX200 Scion Tech User Manual 6.7 Update Page Click “Browse..” to import the upgrade file and click “Update” to start upgrade. There will be a progress bar prompt during the upgrade process. When the progress bar reaches 100%, it indicates the upgrade is successful, and the device will be restarted automatically. -
Page 15: Servicing, Warranty And Maintenance
SC08.MX200 Scion Tech User Manual 7.0 Maintenance, Service & Warranty Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. 7.1 Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●... -
Page 16: Limited Warranty And Exclusions
SC08.MX200 Scion Tech User Manual 7.4 Limited warranty limits and exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by...
