Summary of Contents for crkd NITRO DECK CK24ND

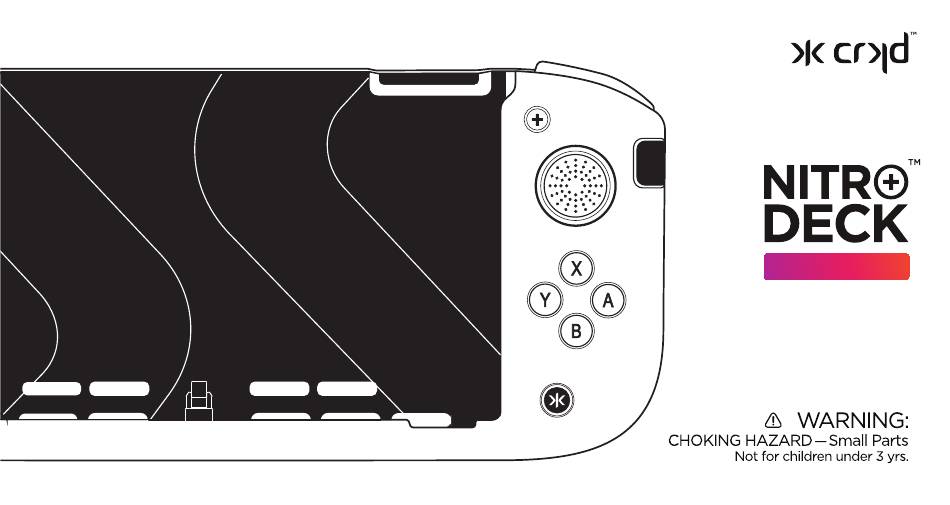

- Page 1 CK24ND USER GUIDE...
- Page 2 WARNING: ADVARSEL: CHOKING HAZARD — Small Parts. KVÆLNINGSFARE — Små Dele. Not suitable for children under 3 years Ikke egnet til børn under 3 år ATTENTION: AVISO: RISQUE D'ÉTOUFFEMENT — Petites Pièces. PERIGO DE ASFIXIA — Peças Pequenas. Ne convient pas aux enfants de moins de 3 ans. Produto Não Adequado Para Crianças Com Menos De 3 Anos.
- Page 3 IMPORTANT | IMPORTANT | IMPORTANTE BEFORE ATTACHING THE SWITCH TO THE NITRO DECK+: OPEN SWITCH CONSOLE SETTINGS AND TURN ON SWITCH PRO CONTROLLER WIRED CONNECTION AVANT DE CONNECTER LA NINTENDO SWITCH AU NITRO DECK+: OUVREZ LES PARAMÈTRES DE LA CONSOLE NINTENDO SWITCH ET ACTIVEZ LA CONNEXION PAR CÂBLE DES MANETTES PRO ANTES DE CONECTAR LA SWITCH AL NITRO DECK+: ACTIVAR LA CONEXIÓN POR CABLE DEL MANDO PRO EN LOS AJUSTES DE LA CONSOLA...
- Page 4 NITRO DECK+ LAYOUT FRONT Minus button Plus button Right stick Left stick (and R3 button) (and L3 button) Sidekick button Sidekick button (S6) (S5) Directional pad Action buttons (A,B,X,Y) Home (CRKD) Capture button Button USB-C connector...
- Page 5 NITRO DECK+ LAYOUT BACK USB Input USB Output (for charging the Switch console (for Docked Mode) Right bumper (R) Left bumper (L) and Wired Mode) Right trigger (ZR) Left trigger (ZL) RFID touchpoint Display stand Programmable Programmable buttons S1 – S2 buttons S3 –...
- Page 6 SETUP Before attaching the switch to the Nitro Deck+, open Switch console settings and turn on Switch Pro Controller wired connection. From the Switch HOME Menu, select “System Settings” → “Controllers and Sensors”, then turn on “Pro Controller Wired Communication.” Remove the Joy-Con controllers and any cables from the Switch.
- Page 7 PROGRAMMING BACK & SIDEKICK BUTTONS STEP 1: Press and hold the Program (PROG) button on back of the Nitro Deck+ for 3 seconds until the Home (CRKD) button starts to flash purple. Release the Program (PROG) button. STEP 2: While the Home (CRKD) button is flashing purple, press the desired inputs you would like to assign to the Back or Sidekick buttons.
- Page 8 CONFIGURING TURBO SETTING Turbo mode will allow the Nitro Deck+ to spam a button at the speed of your choice. STEP 1 Press and hold ZL and Minus Button (-) for 2 seconds. The CRKD LED will flash green. STEP 2 Choose your turbo speed by pressing the plus (+) button to increase turbo rate and minus (-) button to decrease turbo rate.
- Page 9 To adjust the left rumble motor, press and hold “L” and Plus Button (+) for 3 seconds. To adjust the right rumble motor, press and hold “R” and Plus Button (+) for 3 seconds. When the Home (CRKD) LED starts flashing RED, you can begin adjusting the rumble intensity.
- Page 10 25% Travel (Default) After the trigger button actuation setting has been adjusted, the Home (CRKD) button LED will turn back to white after 5 seconds if no further adjustments are made. Note: Turn on rumble for haptic feedback during adjustment.
-
Page 11: Docked Mode
Start Power Block HDMI Adapter NOTE: HDMI adapter is required for Docked Mode play. HDMI adapter is not included with Nitro Deck+. We recommend using the CRKD HDMI Adapter. PLAY & CHARGE The Power Adapter supplied with the Switch can be connected to the USB INPUT on the back of the Nitro Deck+. The Power Adapter... -
Page 12: Bluetooth® Wireless Mode
Use the Bluetooth® wireless mode function as an alternative to wired communication. Press and hold Home (CRKD) button for 3 seconds. The Home (CRKD) button will flash Cyan and turn solid. To leave wireless mode, press and hold the Home (CRKD) button for 3 seconds. - Page 13 Home (CRKD) button LED changes to Orange to indicate Wired Mode. Press and hold both L3, R3 and (+) again to change back to Handheld mode. The Home (CRKD) button LED changes to white indicating you are back in standard handheld mode.
-
Page 14: Adjusting Led Brightness
ADJUSTING LED BRIGHTNESS The Nitro Deck+ Home (CRKD) button features an LED to show the play mode and other settings. The LED brightness can be adjusted or set to OFF using the Program button on the back of the Nitro Deck+. Each press of the Program button decreases the brightness, and the last setting sets the LED to OFF. -
Page 15: Specifications
Switch console. HDMI adapter (sold separately): USB-C to HDMI, HDMI adapter length (sold separately): 58cm (23in), Wireless Connection: Bluetooth® CUSTOMER SUPPORT If you have questions about setup or use, contact CRKD direct. The CRKD App includes informational support videos. Visit support on the web at crkd.gg/support. If you still need help, please contact our support team: support@crkd.gg LIMITED WARRANTY CRKD warrants to the original consumer purchaser that product will be free from defects in materials and/or workmanship for the length of time specified in the warranty period... - Page 16 SAFETY STATEMENTS USE AND HANDLING • Before use, check that there is plenty of space around you. • When using the controller, grip it firmly and make sure it cannot slip out of your hand. • If using a controller that is connected to the console with a cable, make sure that the cable will not hit a person or object. Also take care to avoid pulling out the cable from the console.
- Page 17 (EMC). © 2024 Freemode Go, LLC. All rights reserved. CRKD, NITRO DECK and the CRKD logos are trademarks of Freemode Go, LLC. All other trademarks are owned...
- Page 18 ver. 1.0 MANUFACTURED BY UK AUTHORIZED REPRESENTATIVE EU AUTHORIZED REPRESENTATIVE (2019R1020) FREEMODE GO LLC FREEMODE GO LTD AR Service, 77 Camden Street Lower, 3142 Constitution Drive, Unit 19 Hither Green Industrial Estate, Dublin, D02 XE80, Ireland Livermore, CA 94551, USA Clevedon, Somerset, BS21 6XU, UK...
