Saxby Lighting 91043 Instruction Manual

Matching code operation
If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction
before using:
1. Step 1: Pressing key "mode" and hold on, power on the controller, the load LEDs will be 50% brightness white as
responding.
Step 2: Continuously to press the key "C/W" for 3 times within 5 seconds after step 1, the brightness of LEDs will change
from 25% -10% as responding.
2. Code learning successfully, the LEDs will be back to the status before the power off, and the receiver only can be controlled
by the remote
3. If not, please re-operate from step 1 to 2.
Clear code operation
Back to factory default, receiver can be controlled by any of the same remote controls.
1. Pressing key "mode" and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
2. Pressing "Speed/Brightness -" 3 times in 5 seconds, corresponding to the operation, the LED's brightness will change
as 25%-10%-back to preset level.
3. Code clearing successfully, the LEDs will be back to the status before the power off, and the receiver can be controlled by
any remote control (any of the same remote control can be used to clear the code).
4. If not, please re-operate from step 1 to 2.
Wall-panel Installation
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
V1 26/09/2023
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Instruction manual

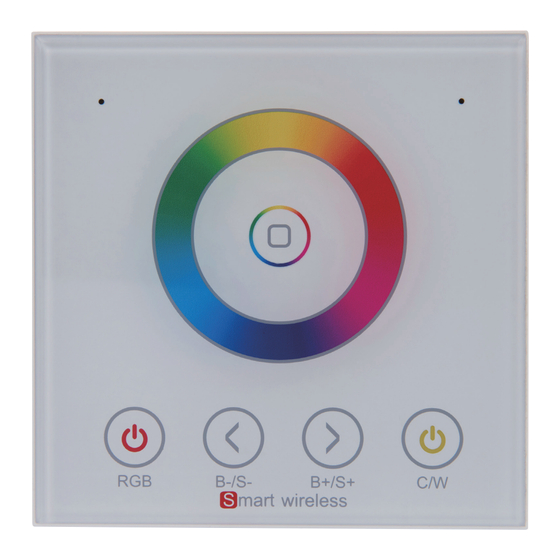

OrionRGBW LED Touch Faceplate
91043
www.saxbylighting.com
