Taramps CRX4 Manual

Electronic 4 way crossover
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

The installation of this product must be made by a qualified professional.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRX4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Taramps CRX4

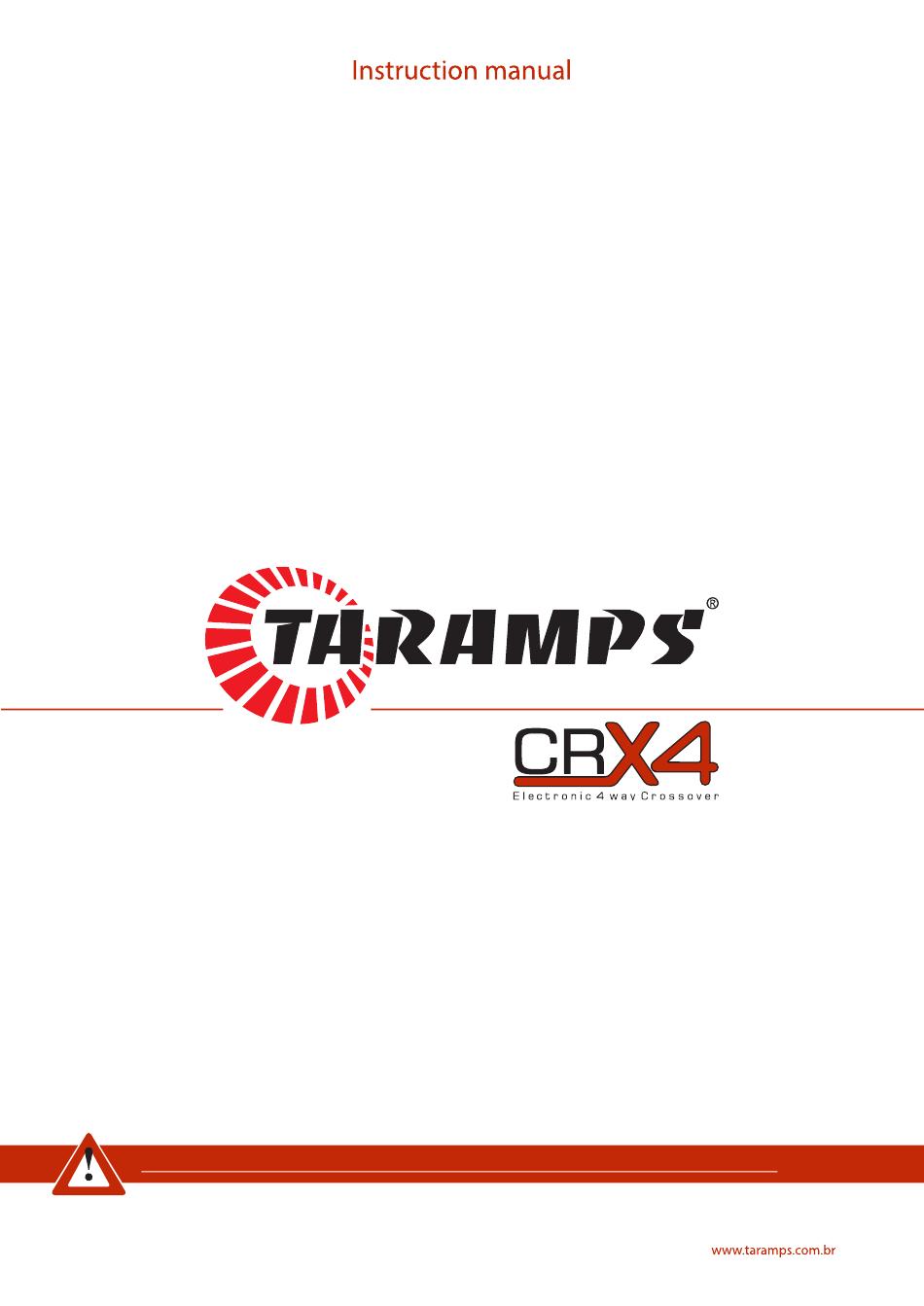

  • Page 1 The installation of this product must be made by a qualified professional.

  • Page 2: Term Of Warranty

    07 • Technical features Term of warranty TARAMPS, located on Abilio Daguano Street 274, Res. Manoel Martins – Alfredo Marcondes, SP - Brazil, ZIP CODE 19180-000, guarantees this product against any defects on terms of project, making, assembling, and/or with solidarity, due to project vices which cause it improper or inadequate to its original use within 12 months from the date of purchase.

  • Page 3: Safety Requirements

    Failure to heed the instructions will result in risk of injury to user or product damage. Taramps reserves the right to modify the contents of this document at any time without prior notice and does not have the obligation to apply the changes in units which were previously produced.
  • Page 4 Crossover overview 1 Signal input (mono) for bass / subwoofer (LOW) way 2 Signal input (mono) for LOW MID way 3 Signal input (L channel) for mid-treble (HIGH MID) and high (HIGH) way 4 Signal input (R channel) for mid-treble (HIGH MID) and treble (HIGH) way 5 Power connector 6 Signal output (mono) of bass / subwoofer (LOW) way 7 Signal output (mono) of LOW MID way...
  • Page 5 Low Way Input of LOW way Boost Freq. - Setting the frequency of the BASS-BOOST operation. In the example below, the frequencies between 20Hz and 65Hz will have an approximate 6dB boost. Audio track 20Hz 65Hz LPF - Setting the upper cut-off frequency. Variable from 40Hz to 275Hz which determines the end of the operating frequency of the LOW way.
  • Page 6 High Mid Way Input of HIGH MID way LPF - Setting the upper cut-off frequency. Variable from 1.2KHz to 12KHz which determines the end of the operating frequency of the HIGH MID way. HPF - Lower cut-off frequency setting. Variable from 200Hz to 5KHz that determines the start of the operating frequency of the HIGH MID way.

  • Page 7: Input And Output Connections

    1A protection fuse closest to the battery. Remote Cable 0.50mm² Head Unit CAUTION IMPORTANT: Any connection to the Crossover must be made with it turned off. RCA Cables Taramps Subwoofers Woofers Tweeters Compression Driver LOW MID HIGH MID HIGH...

  • Page 8: Technical Features

    Technical features Number of ways:........................4 Via Low / Low way (Mono) Cutting frequency / Variable (LPF) ......40Hz ~ 275Hz (-12dB/8ª) Bass Boost: Frequency Central Variable ........20 ~ 65Hz (6dB / Fixed gain) Via Low Mid / Low Mid way (Mono) Minimum frequency of (cut HPF) / Variable ....25Hz ~ 140Hz (-12dB/8ª) Maximum frequency of (cut LPF) / Variabl e..300Hz ~ 7.5KHz (-12dB/8ª) Via High Mid / High Mid way (Stereo)
  • Page 9 Manufactured by: TARAMPS ELECTRONICS LTDA TAX ID: 11.273.485/0001-03 Street: João Silvério, 121 • Res. Manoel Martins Alfredo Marcondes - SP Made in Brazil...
