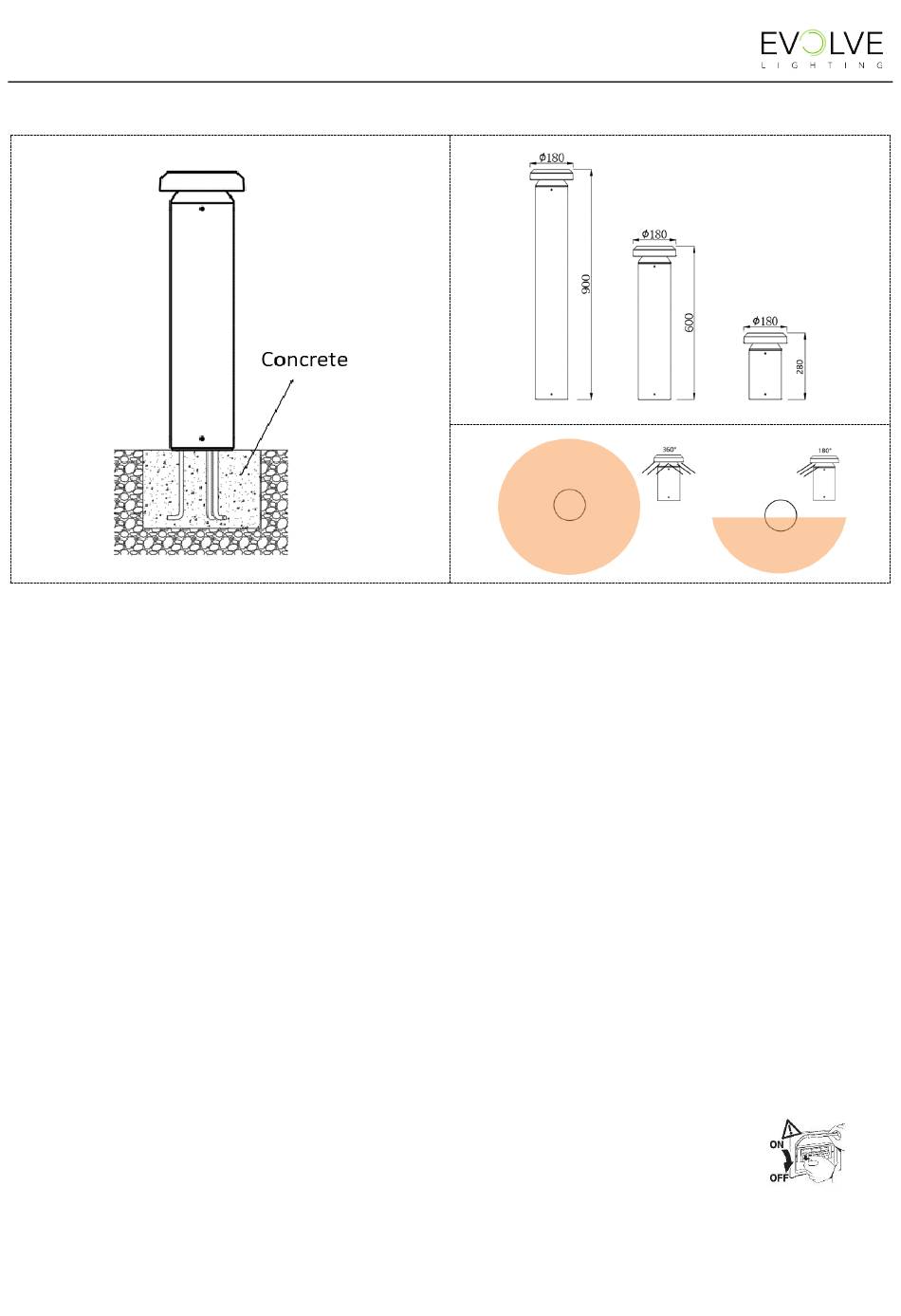

Installation Instruction
Installation Instruction
Bitta Bollard
S106 Aeolos® Bollard luminaire
IMPORTANT NOTICE
Read the instructions carefully before installation and commissioning!
Leave the instructions for users/customers for future reference!
GENERAL: Upon receipt of the fixture, thoroughly inspect for any freight damage which should be brought to the
attention of the delivery carrier. Compare the catalog description listed on the packing slip with the fixture label on
the housing to assure you have received the correct material.
SAFETY: This fixture must be wired in accordance with the National Electrical Code and applicable local codes and
ordinances. Proper grounding is required to ensure personal safety. Carefully observe grounding procedure under
installation section.
WARNING ! Risk of electric shock!
• Before carrying out maintenance and installation on the luminaire, disconnect from the mains supply and also
from any other DALI control wiring, and ensure that all power is switched off.
• Do not operate luminaires with damaged.
ATTENTION!
• Do not open the luminaire head. In case of damage or a defective LED module, the entire luminaire must be
returned to the factory.
• When installing, always observe the national installation and accident prevention regulations.
General Safety Information
Lighting
Powered by Eway
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Evolve Bitta Bollard
Summary of Contents for Evolve Bitta Bollard
- Page 1 Lighting Installation Instruction Installation Instruction Bitta Bollard S106 Aeolos® Bollard luminaire Powered by Eway IMPORTANT NOTICE Read the instructions carefully before installation and commissioning! Leave the instructions for users/customers for future reference! GENERAL: Upon receipt of the fixture, thoroughly inspect for any freight damage which should be brought to the attention of the delivery carrier.
- Page 2 Lighting Installation Instruction Installation Instruction Bitta Bollard S106 Aeolos® Bollard luminaire Powered by Eway Intended use • The luminaire is suitable for outdoor use. • The luminaire is approved for vertical standing installation only. • The luminaire should not be used in area of limited ventilation or inside high ambient temperature enclosures.
- Page 3 Lighting Installation Instruction Installation Instruction Bitta Bollard S106 Aeolos® Bollard luminaire Powered by Eway Figure 1 STEP-4: Installation Type-A with Concrete anchor 1. Install the Concrete anchor with Anchor bolts. 2. Undo the 3 Allen screws at the sides. 3. Remove base plate from the luminaire and place over the cable.
-
Page 4: Overvoltage Protection
Lighting Installation Instruction Installation Instruction Bitta Bollard S106 Aeolos® Bollard luminaire Powered by Eway Figure 3 STEP-5: Electrical installation For 3-circuit installation: to avoid any damage to the control gear, the neutral conductor must never be connected or disconnected during operation. - Page 5 Lighting Installation Instruction Installation Instruction Bitta Bollard S106 Aeolos® Bollard luminaire Powered by Eway Note on cable color: Brown --- Phase Blue --- Neutral conductor Black --- DALI Grey --- DALI Yellow/Green --- Ground Figure 6 STEP-6: Final installation, mounting the Luminaire 1.
- Page 6 Lighting Installation Instruction Installation Instruction Bitta Bollard S106 Aeolos® Bollard luminaire Powered by Eway Maintenance and or Replacing the LED module Figure 7 1. Release the 3 Allen screws (M8) on the sides of LED module by rotating anti-clockwise 3-5 circles Figure 7 2.
