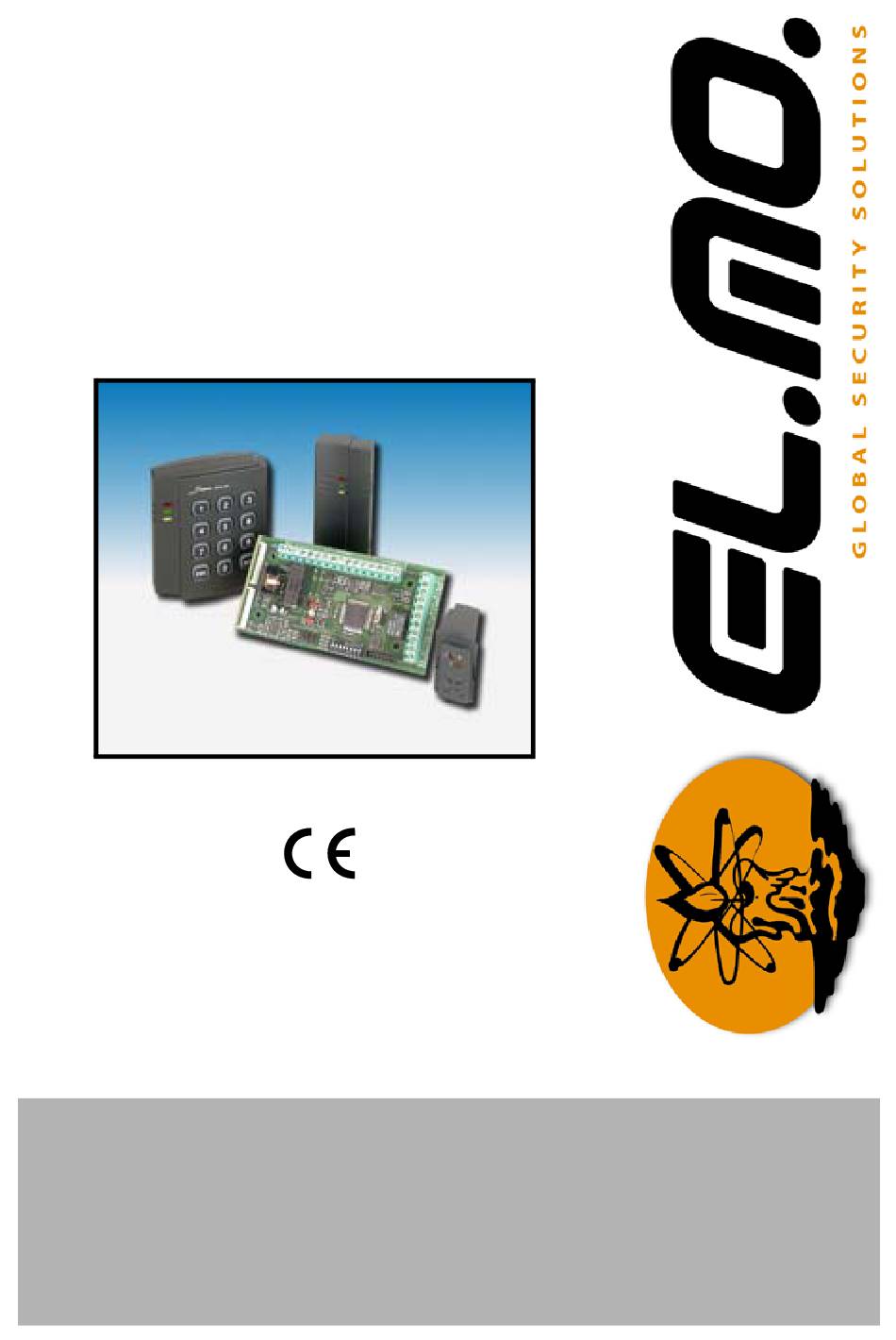

- Page 1 Passage control module mod. ETR-VARCO TECHNICAL MANUAL...
- Page 2 EU DECLARATION OF CONFORMITY The product complies with current European EMC and LVD directives. The full text of the EU declaration of conformity is available at the following Internet address: elmospa.com – registration is quick and easy. 2 - ETR-VARCO - TECHNICAL MANUAL...
-
Page 3: Generals
1. GENERALS ETR-VARCO is an electronic designed for a sophisticated passage control system, in fact it allows to man- age people passage through doors or ways considered sensitive and therefore to be kept under stict control. ETR-VARCO is compatible with ETR128, ETR256 and ETR512 units, a special setup enables to manage passage activity and to save in log events actions made by users authorized to transit. -
Page 4: Block Diagram Of A System Managed By An Etr Series Control Unit
3. BLOCK DIAGRAM OF A SYSTEM MANAGED BY AN ETR SERIES CONTROL UNIT 4 - ETR-VARCO - TECHNICAL MANUAL... -
Page 5: Wirings
4. WIRINGS Wiring to terminal board diagram. ETR-VARCO - TECHNICAL MANUAL - 5... - Page 6 Presettings and selections. 6 - ETR-VARCO - TECHNICAL MANUAL...
-
Page 7: Proximity Readers/Axm Axxess Magnetic Badge Wiring
Strating from this stage on, device functioning is similar to functioning with proximity cards readers. Internal codes communication to the board is made always on "High security". Necessary wiring for readers are indicated in following image: ETR-VARCO - TECHNICAL MANUAL - 7... - Page 8 External led and buzzer wiring: Note: Outputs are Opern Collector type, suitabel for 30 mA power. External buzzer can be used also with PROXY key readers. 8 - ETR-VARCO - TECHNICAL MANUAL...
-
Page 9: Setup Tables
5. SETUP TABLES ETR-VARCO - TECHNICAL MANUAL - 9... -
Page 10: Functions
On this mode code sent can proceed from a card or a proximity key or from the keypad. Proximity card or M4 key use When a card is leant to a reader, ETR-VARCO decode the code and communicate to ETR unit that a card has been recognised. -
Page 11: Unit Arming On High Security
A user who has NOT been defined as "Passage Control" on the unit, besides being able to carry out above- mentioned operations, he is allowed to arm and disarm partitions used for user permissions definition and pas- sage relevance. ETR-VARCO - TECHNICAL MANUAL - 11... -
Page 12: System Status Signals
3 acoustic confirmations. For proximity cards you just need to bing them nearer 3 times consecutively, you will hear 3 acoustic confirmations. Exit time acoustic signal is found also in ETR-VARCO. Note: A user with attribute "Passage control" cannot arm and disarm the system or the area. -
Page 13: Setup
8. SETUP 8.1 ID code setting via internal selector Use table in this manual to set ETR-VARCO ID code, dip shifting operations can be made also with powered module. 8.2 ETR-VARCO and relevant zones setupETR-VARCO 8.3 Proxy cards storage To store proxy cards use menu for Proxy cards recognition and when "Lean proxy" message appears, just bring the card nearer or dial the code on RFK101 terminal keypad as described in "normal"... -
Page 14: Notes
9. NOTES 14 - ETR-VARCO - TECHNICAL MANUAL... -
Page 15: Disposal Instructions
10. DISPOSAL INSTRUCTIONS Dispose of ETR-VARCO concentrator in compliance with current city regulations and by leaving the device in a dumping ground which is authorized for the disposal of electronic products; if required, please contact the appropriate city office for additional information. -
Page 16: Table Of Contents
8.1. ID code setting via internal selector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13 8.2. ETR-VARCO and relevant zones setupETR-VARCO - - - - - - - - - - - - - - - - - - - - - - - - - - - 13 8.3.
