Summary of Contents for KARLSON WRWD60SS

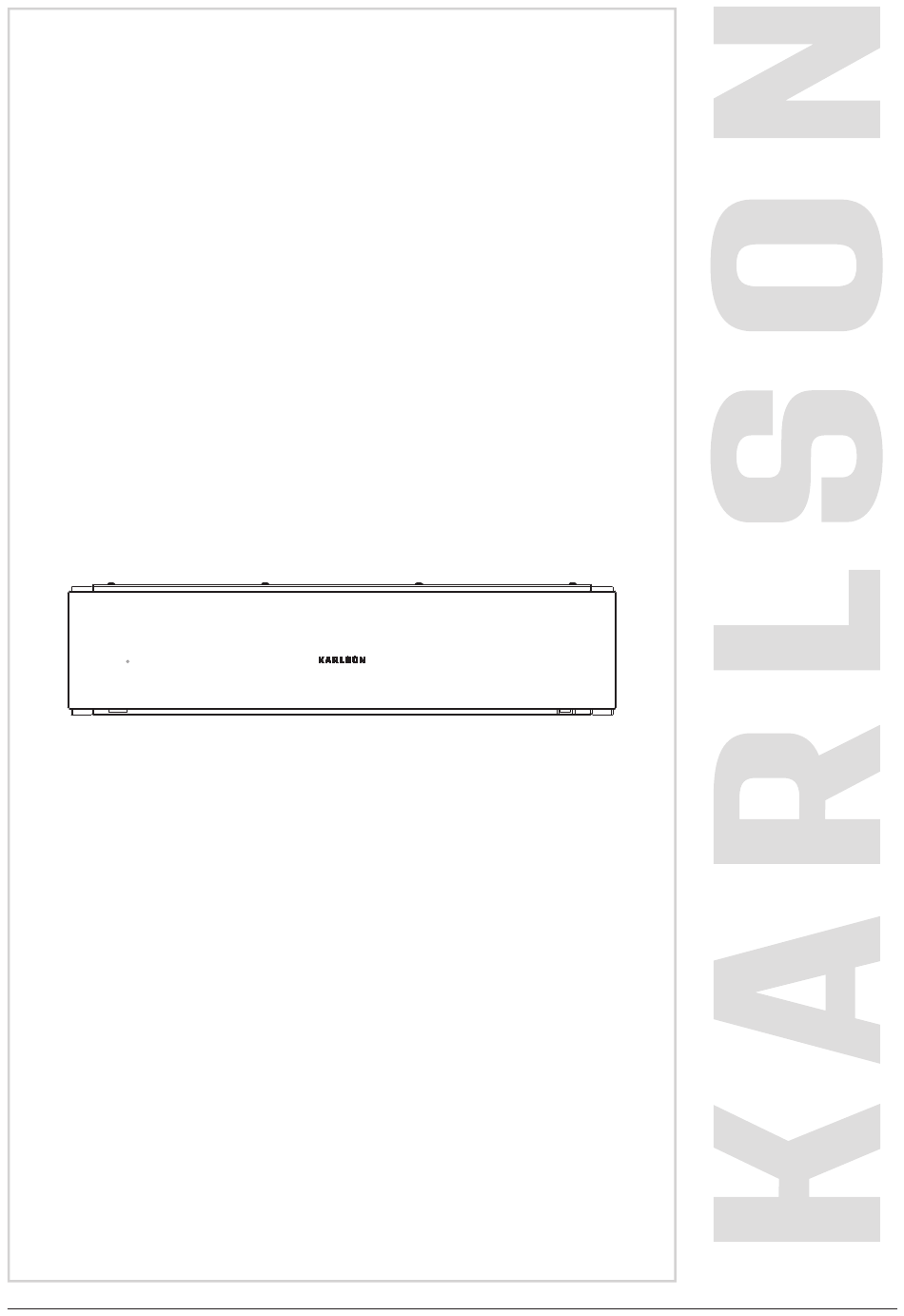

- Page 1 60CM BUILT-IN WARMING DRAWER in black or black with stainless steel trim WRWD60SS WRWD60BK User Manual...
-
Page 2: Table Of Contents
Contents BEFORE USING YOUR APPLIANCE SAFETY ELECTRICAL INSTALLATION TECHNICAL DATA TROUBLESHOOTING GUARANTEE WHAT'S REQUIRED FOR INSTALLATION WHAT'S IN THE BOX INSTALLATION CONTROLS & SETTINGS CARE & MAINTENANCE SERVICE & SPARES... -
Page 3: Before Using Your Appliance
Safety BEFORE USING YOUR SAFETY APPLIANCE Do not keep plastic or flammable Please read this instruction manual carefully. objects in the appliance. When This will allow you to use your warming the warming drawer is turned on, drawer in complete safety. Always keep the instruction manual handy. - Page 4 Safety GENERAL SAFETY - If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. - Do not use the appliance to keep warm, re-heat or cook foods and beverages.
-
Page 5: Electrical Installation
Safety ELECTRICAL INSTALLATION IMPORTANT: Contact a qualified technician for the electrical connection of this product . Before connecting the warming drawer to the electrical mains supply, ensure that the technical data (voltage: V and frequency: Hz ) indicated on the rating plate corresponds with those of the mains supply. -
Page 6: Technical Data
Safety TECHNICAL DATA Model identification WRWD60SS / WRWD60BK Total Power 380-460W Installation Type Built-in Unit Dimensions W x D x H (mm) 595 x 525 x 141 Rated Voltage 220-240V AC Rated Frequency 50Hz Protection Type... -
Page 7: Troubleshooting
- Please refer to the conditions of guarantee that appear on the warranty card that you receive with the warming drawer. KARLSON operates a policy of continuous improvement and reserves the right to adjust and modify its products without prior notification. -
Page 8: Guarantee
Object of the declaration: Object of the declaration: - Product: 60cm Warming Drawer - Product: 60cm Warming Drawer - Model: WRWD60SS - Model: WRWD60SS - Model: WRWD60BK - Model: WRWD60BK The object of the declaration described above... - Page 9 Guarantee RECYCLING & DISPOSAL DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment...
-
Page 10: What's Required For Installation
Installation WHAT'S REQUIRED FOR INSTALLATION WHAT'S IN THE BOX [02] x 2 2.9 x 29mm [01] x 1 [02] x 2 2.9 x 29mm [02]... -
Page 11: Installation
Installation CHECK YOUR DIMENSIONS FOR INSTALLATION WARMING DRAWER WITH WARMING DRAWER WITH COMPACT OVEN H454mm OVEN H595mm 20mm • The back panel of the cabinet needs to removed to allow for ventilation, and cooling inside the cabinet or cupboard to ensure correct operation of the warming drawer and oven. -
Page 12: Use
USING YOUR WARMING DRAWER Load Capacity Before switching on your Load capacity depends on the height of the warming drawer appliance and the size of the dishes. • Read this guide, taking special The following example is approximate. note of the Safety section. Single load of one of the Approx •... -
Page 13: Controls & Settings
BEFORE YOU START WARNING: Read the instructions before using the appliance. Switch on the appliance at the switched fused connection unit. The warming drawer is ready for use. CONTROLS & SETTINGS Controls PUSH 1. Temperature Selector 2. Power Switch 1. On/Off Switch 2. - Page 14 General Use Temperature Selection - The Temperature Selector (1) allows Push the door once to open the you to select a temperature between drawer. approximately 30 and 75 °C °C - Turn the Temperature Selector (1) clockwise On/Off Switch to select required temperature until it Turn on the Power Switch (2) on the reaches MAX, then turn counter-clockwise control panel.
-
Page 15: Care & Maintenance
Care & Maintenance LOOKING AFTER YOUR APPLIANCE IMPORTANT: Please ensure your warming drawer is disconnected from the electricity supply before cleaning. Cleaning - Clean all surfaces with a soft sponge, a bit of detergent and lukewarm water. Then dry with a soft cloth. -
Page 16: Service & Spares
Service & Spares AFTER SALES & SERVICE SUPPORT For after sales, service enquiries & spares support Please contact: 0333 247 1128 Monday to Friday: 9am-5pm Saturday: 9am-1pm Email enquiries: wrenservice@apelson.co.uk Dedicated spares online at: karlson.co.uk KARLSON WRWD60SS/60BK V3 AUG 2022...
