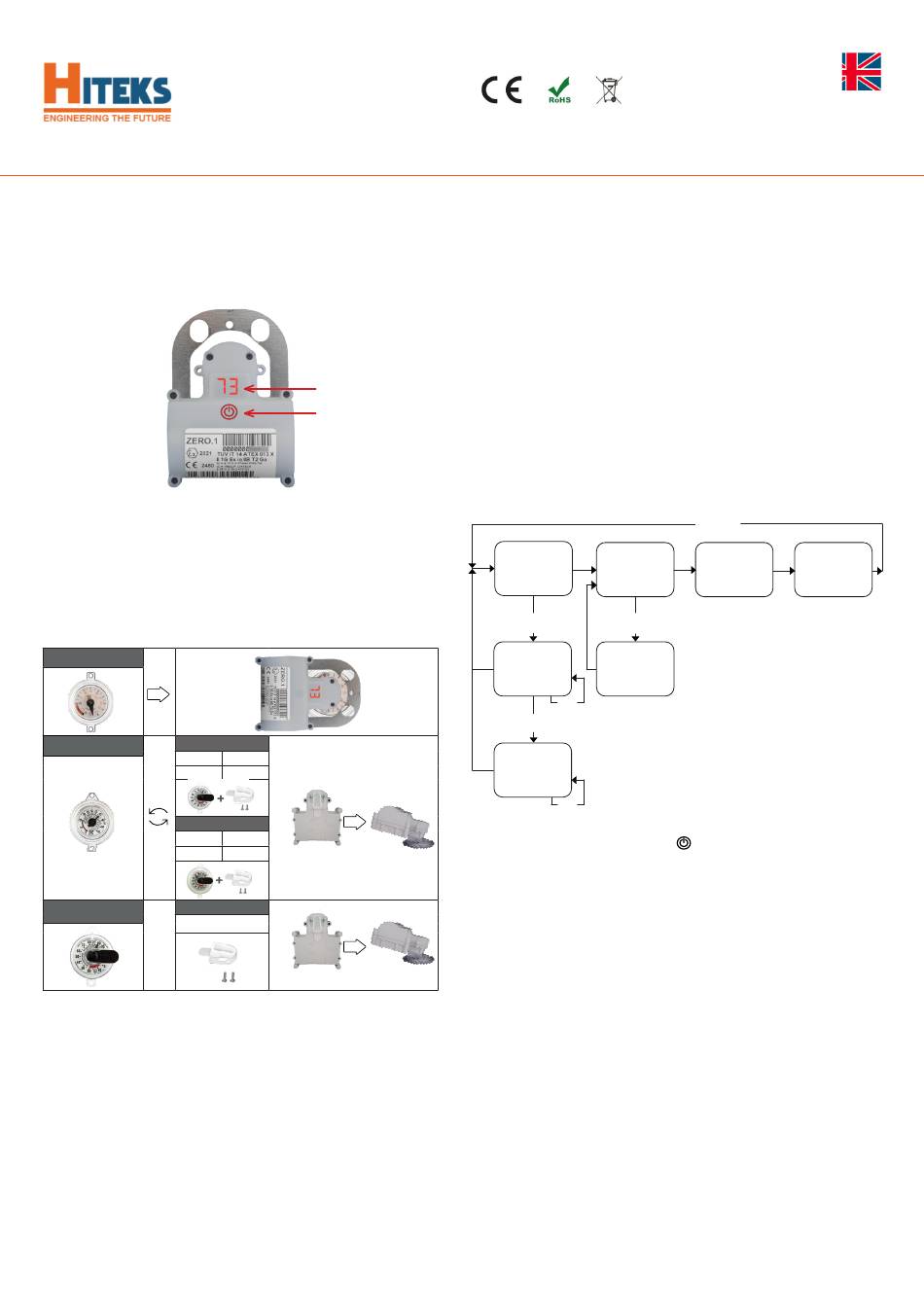

Hiteks ZERO.1 Quick Installation Manual

QUICK INSTALLATION GUIDE
1.BASIC KIT CONTENTS
• Remote reading device Zero.1 complete with battery
and mounting bracket
• Quick Installation Guide
• n°1 screw Ø3,5 x 16 mm (optional upon request)
2. ASSEMBLY TOOLS
Cross-head / flat-head screwdrivers
3. INSTALLATION RECOMMENDATIONS AND SAFETY
Zero.1 must be installed on the dial of the level indicator
with any accessories required according to the model as
shown in the examples below:
Cotrako /SRG Rotarex
© ©
Junior
Rochester Junior/Senior
©
Horizontal
SC-020/02.01
Senior
Horizontal
SC-020/02.03
Rochester Junior/Senior R3D Dial Adapter
©
R3D Dial Adapter
S C - 0 2 0 / 0 2
+
The device must not be covered by snow or water. In
the installation area there must be a good GSM network
signal. The manufacturer doesn't take any responsibility
for the wrong or inadequate use of the device and/or if the
use doesn't comply with the safety rules showed. Zero.1
is suitable to work in hazardous area (Zone 0) according
to the mark:
II 1 G Ex ia IIB T3 Ga
Uo=4.1V Io=4.1mA Po=17mW Co=999uF Lo=1mH
Ui=4.1V Ii=4.1mA Pi=17mW Ci=1uF Li=1uH
Operating environment temperature range: -25°C ≤ Ta ≤ +70°C.
DISPLAY
TOUCHKEY
Vertical
SC-020/02.02
=
Vertical
SC-020/02.04
=
ZERO.1
Regarding the ATEX marking reported above, the device
belongs to:
• Group II (Electric equipment of Group II are
ment to be installed in places with explosive
environment for the presence of mines gases
including grisou).
• EPL Equipment Protection Level is Ga (double failure).
• Gas group IIB
• Temperature class is T3 (200°C).
• Atex parameter for the digital/analog inputs
Uo Io Po Co Lo Ui Ii Li Ci Li
4. DISPLAY AND TOUCHKEY
The display shows the measured level, GSM signal strength
and battery charge.
The button allows you to scroll through the various pages, to
set the type of tank vertically or horizontally and to activate
the device.
LEVEL
click
press
5 sec.
TANK H / V
click
press
5 sec.
ANGLE
click
DISPLAY TURN ON: PRESS
To turn on the display press the touchkey and held for at least
5 sec. It will automatically turn off after 30 sec. of inactivity (no
touchkey press).
LEVEL:
The first 'LEVEL' screen displays the measured % level. e.g.: 78,
means that the measured level is 78%. From the "LEVEL" screen:
tab.1
• to change the "TANK H/V" configuration from Vertical ( LV )
to Horizontal ( LH ) or vice versa you must press and hold the
button for at least 5 sec. and make the selection with a short
press.
• from the "TANK H/V" screen, to change the ANGLE
configuration from Zero.1 with metal bracket ( An ) to Zero.1
with R3D adapter ( Ar ), it is necessary to press and hold the
button for at least 5 sec. and make the selection with a short
press.
• to return to the "LEVEL" screen, wait 10 sec. A short press
switches to the "SIGNAL" screen.
IG0006_EN_ZERO.1 V 1.8
c l i c k
SIGNAL
click BATTERY click
press
5 sec.
ON
5 SEC.
TEST
