Operating instructions

Twin piston compressor

11139992

These operating instructions should be read thoroughly before use and followed carefully. These

operating instructions should be retained for future reference.

Translation of the original operating instructions

Table of Contents

Need help?

Do you have a question about the 11139992 and is the answer not in the manual?

Questions and answers

Summary of Contents for TRAXOR 11139992

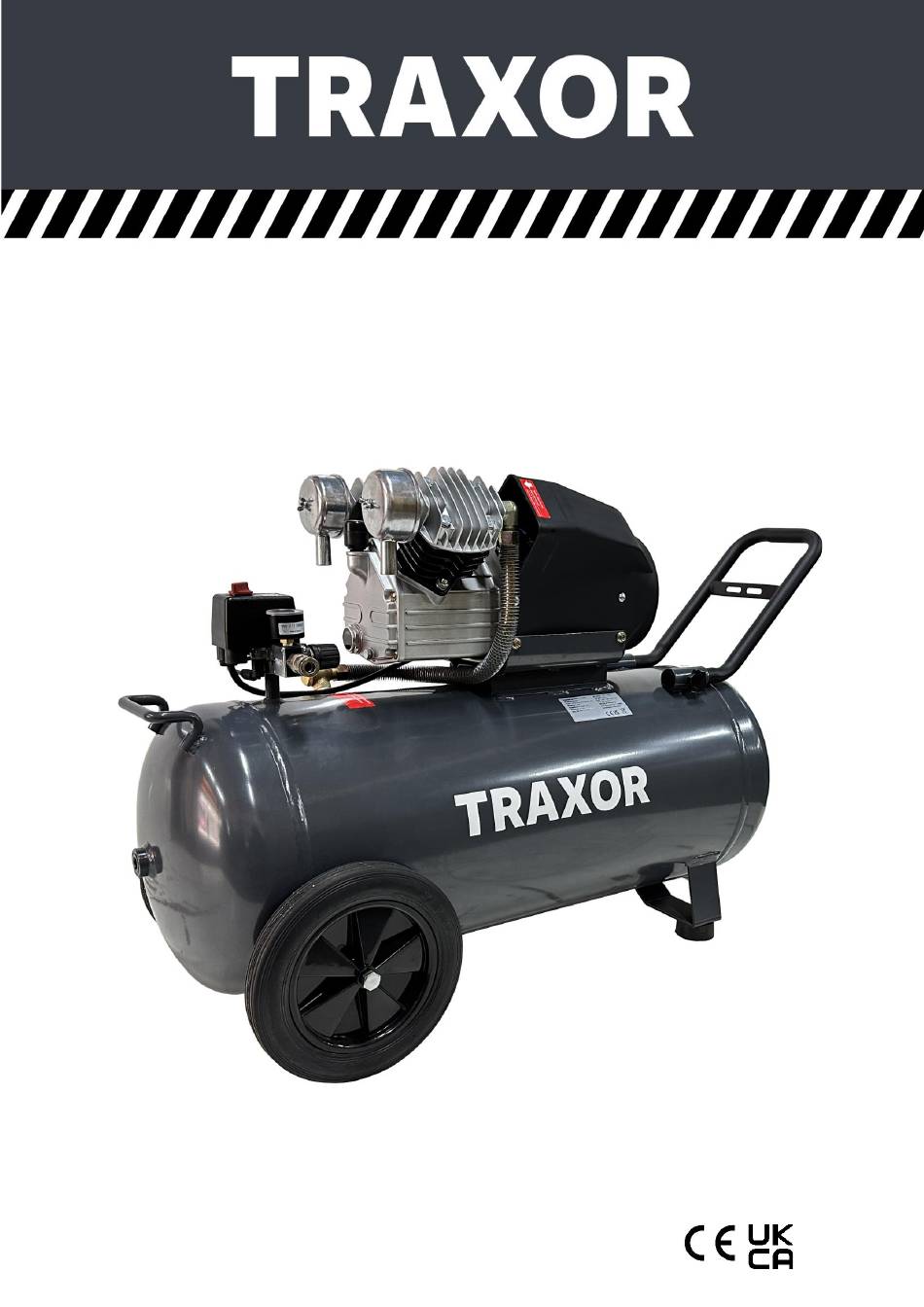

Page 1 Operating instructions Twin piston compressor 11139992 These operating instructions should be read thoroughly before use and followed carefully. These operating instructions should be retained for future reference. Translation of the original operating instructions...
Page 2: Table Of Contents
Operating instructions 11139992 Content About these operating instructions and description of symbols ......3 Safety and accident prevention regulations ............3 Safety in the working area ................3 General safety instructions ................3 Specifications ....................5 Intended use ....................5 Glossary .....................
Page 3: About These Operating Instructions And Description Of Symbols
Operating instructions 11139992 About these operating instructions and description of symbols Unsafe operation of the compressor may result in serious injury to yourself or others. Caution Improper operation or maintenance of this product may lead to severe injuries and property damage.
Page 4 Operating instructions 11139992 Danger of electric shock: The air compressor is powered by electricity. Like any electrically operated appliance, it can cause electric shock if used incorrectly. Electrical earthing: If this product is not adequately earthed, the risk of electric shock increases.
Page 5: Specifications
Operating instructions 11139992 Always switch off the compressor and release the pressure from the compressed air line before carrying out maintenance or attaching tools or accessories. Danger due to moving parts: The compressor switches on automatically when the pressure switch is in the On/Auto position.
Page 6: Duty Cycle
Operating instructions 11139992 Duty cycle All manufactured air compressors should be operated with a load cycle of no more than 50%. This means that an air compressor pumping more than 50% load for one hour of air is considered misuse because the compressor is undersized for the required air demand.
Page 7 Operating instructions 11139992 CHECK VALVE: When the air compressor is in operation, the check valve is "open" so that compressed air can enter the compressed air tank. When the compressor reaches deactivation pressure, the check valve is closed so that the air pressure in the compressed air tank is maintained.
Page 8: 3.7 Exploded Drawing
Operating instructions 11139992 3.7 Exploded drawing Description item number BOLT 11139992-1 CYLINDER HEAD 11139992-2 AIR CLEANER 11139992-3 PACKING (HEAD-VALVE) 11139992-4 VALVE ASS'Y 11139992-5 PACKING (VALVE-CYL.) 11139992-6 CYLINDER 11139992-7 COMPRESSION RING 11139992-8 OIL CONTROL RING 11139992-9 PISTON 11139992-10 PISTON PIN 11139992-11...
Page 9 Operating instructions 11139992 Description item number BREATHER CAP 11139992-15 OIL PLUG 11139992-16 OIL LEVEL GAUGE 11139992-17 CASE 11139992-18 ELBOW 11139992-19 PACKING (FRONT COVER) 11139992-21 CRANKSHAFT 11139992-22 FRONT COVER LOCK BOLT 11139992-23 FRONT COVER 11139992-24 REAR COVER (MOTOR) 11139992-25 OVER RELAY...
Page 10: Lubrication And Oils
Operating instructions 11139992 Installation and commissioning Location of the air compressor: Install the air compressor in a clean, dry and well ventilated area. The compressed air filter must be kept free of obstacles that could reduce the compressed air supply of the air compressor.
Page 11: Pipes
Operating instructions 11139992 Use only an approved 3-wire extension cord with a grounding-type plug and a grounding- type receptacle that will accept the compressor plug. Make sure that the extension cable is in good condition. Pipes: Plastic or PVC pipes are not suitable for use with compressed air. Regardless of the specified pressure rating, plastic pipes can burst due to the air pressure.
Page 12: Initial Start-Up
Operating instructions 11139992 Initial start-up Checklist for daily commissioning 1. Before attaching the air hose or accessories, make sure that the pressure switch lever is in the "OFF" position and the air pressure regulator or shut-off valve is closed. 2. Attach the hose and accessories. If the air pressure is too high, there is a risk of bursting.
Page 13: Maintenance And Repair
Operating instructions 11139992 Maintenance and repair The unit starts automatically when the power is on. Before maintenance and repair work, disconnect the compressor from the mains and release the air pressure. To ensure efficient operation and a longer service life of the air compressor, a routine maintenance schedule should be established and followed.
Page 14: Maintenance Instructions
Operating instructions 11139992 Maintenance instructions Compressed air filters - inspection and replacement: Always keep the compressed air filter clean. Do not operate the compressor with the compressed air filter removed. A dirty filter will not allow the compressor to operate at full capacity. Before operating the compressor, check the compressed air filter to ensure that it is clean.
Page 15: Troubleshooting
Operating instructions 11139992 Troubleshooting When carrying out repairs, voltage sources, moving parts or compressed air sources may be exposed, which can cause injury. before carrying out repairs, disconnect the compressor and release the pressure from the compressed air tank. PROBLEM...
Page 16 Operating instructions 11139992 PROBLEM CAUSE CORRECTIVE MEASURE The pressure on If an excessive pressure drop occurs It is normal for some pressure drop to occur. when using the accessory, adjust the regulated gauge regulator according to the instructions. drops when...
Page 17 Operating instructions 11139992 PROBLEM CAUSE CORRECTIVE MEASURE Check valve is Remove and clean, or replace. The motor is not working. stuck open. (continued) Loose electrical Check the wiring in the area of the pressure connections. switch and the terminal box.
Page 18: Eu Declaration Of Conformity
Operating instructions 11139992 EU declaration of conformity The Distributor, Fricke Holding GmbH Zum Kreuzkamp 7 DE-27404 Heeslingen hereby declares under its sole responsibility that the compressor type/series identification: 11139992 complies with the provisions of the 2006/42/EC Machinery Directive The product was developed in accordance with the following standards:...
Page 19: Ukca Declaration Of Conformity
Operating instructions 11139992 UKCA Declaration of Conformity The manufacturer, Fricke Holding GmbH Zum Kreuzkamp 7 DE-27404 Heeslingen declares under their sole responsibility that the air compressor Type/series identification: 11139992 conforms to the provisions of Supply of Machinery (Safety) Regulations 2008...
Page 20: Disposal
Fax: +49 (4281) 712 700 Postal and delivery address: Fricke Holding GmbH Zum Kreuzkamp 7 DE-27404 Heeslingen Legal notice Translation of the original operating instructions for the compressor 11139992 Distributor: Fricke Holding GmbH - DE-27404 Heeslingen 1st edition March 2023 ©2023...
