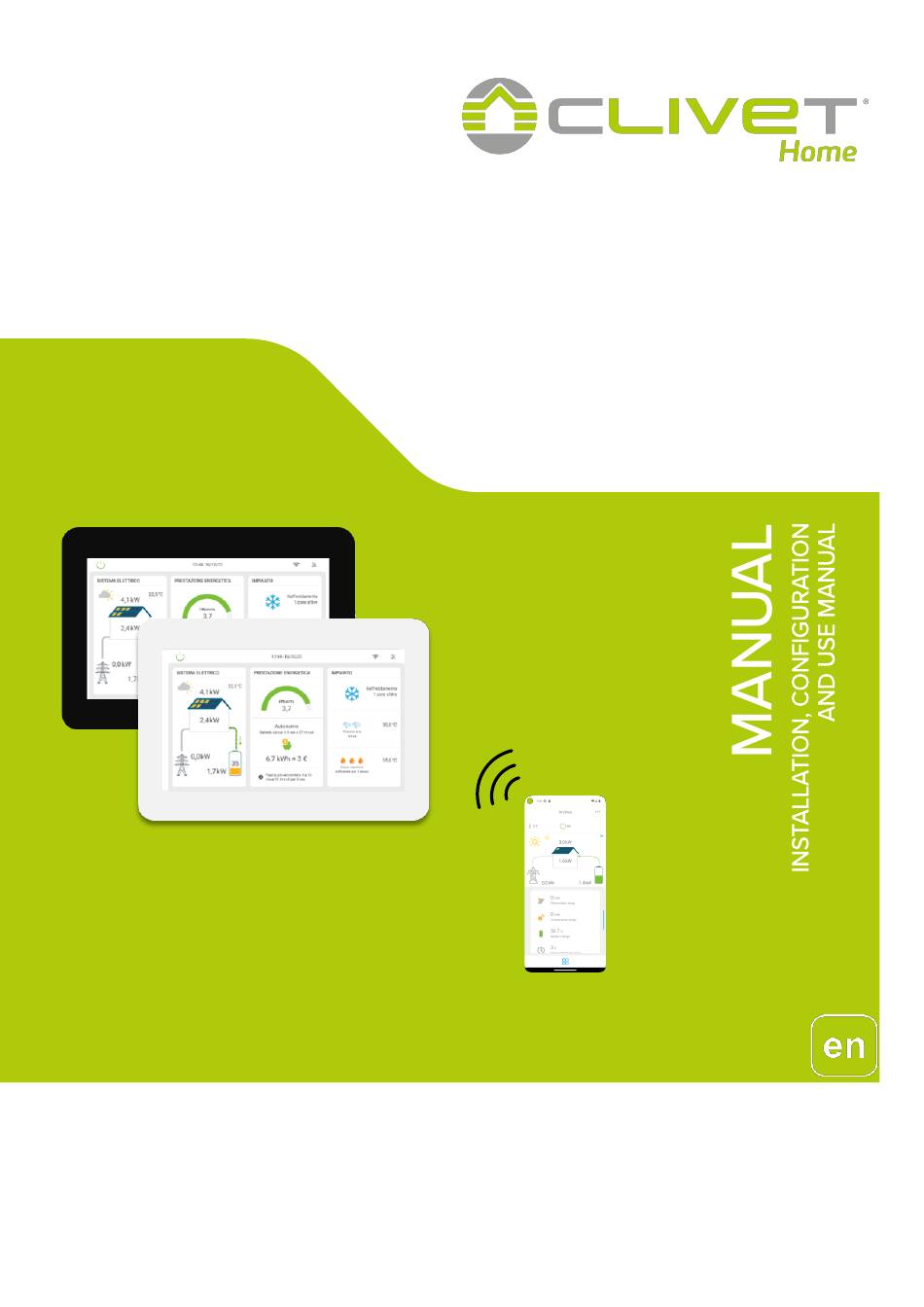

Page 1 CONTROL4 NRG Change living home M0CZ00007-03 16/04/2024...
Page 2 Best regards and have a nice reading ! CLIVET Spa The data contained in this manual is not binding and may be changed by the manufacturer without prior notice. All reproduction, even partial, is prohibited. © Copyright - CLIVET S.p.A. - Feltre (BL) - Italy...
Page 3: Table Of Contents
Fresh air: ELFOFresh ............................ pag.20 "Away from home " management ........................pag.22 Consumptions weekly report ........................... pag.23 Area programming ............................pag.24 Alarms ................................pag.28 Modification of the program name ........................pag.29 App Clivet Eye ..............................pag.31 INSTALLER MANUAL ............................pag. 32...
Page 4: Main Functions
MAIN FUNCTIONS Indications for the use Main functions of the System. Management of all ELFOSystem elements through the "touch screen" Keep this manual in an accessible place for the operator. panel or remotely with the use of the dedicated App, if there is an In case of breakdown or malfunction: internet connection module.
Page 5: Display
DISPLAY MAIN PAGE CONTROL4 NRG comfort and energy assistant. The new main screen is split into 3 separate sections that display all the system information. The sections are displayed according to the system configuration: ELECTRICAL SYSTEM This section can be found on the main screen if the SINERGY unit is available in the system configuration.
Page 6: Switching On And Off The System
Connected = CONTROL4 NRG is connected to the Internet via Wi-Fi or wired Ethernet Not connected to the Cloud = CONTROL4 NRG is connected to the Internet but not connected to the Cloud Connected to the Cloud = CONTROL4 NRG is connected to the...
Page 7 DISPLAY 2. System areas:  schedule 3. System status System settings Heat pump operating status automatic: red = heating, blue = cooling off : gray with x at the top DWH only : drop status components found in the system: Radiators, Fan coils, Radiant panels, Production of domestic hot water operating status...
Page 8 SYSTEM START-UP AND SWITCH-OFF 1 - The system can be:    away from home select 2 - Start up the system 3 - Switch off the system Switch off the system until day / hour: at the due time, the system returns to the status previously set. Move cursor "5"...
Page 9: Adjusting Date And Hour
SYSTEM CHANGE MODE 1 - Operation of the system. select Select: 2 - Heating only (red background) 3 - Cooling only (blue background) 4 - Automatic switches from heating to cooling automatically, depending on the outdoor and indoor temperature detected mode enabled only if ELFOFresh EVO, is present ADJUSTING DATE AND HOUR Set date and hour to synchronise the system operation.
Page 10 SYSTEM After the date has been changed, press OK “3” to exit select After the time has been changed, press OK “4” to exit select After the time has been changed, press SAVE AND RESTART “5” to save the changes made M0CZ00007-03...
Page 11: Heat Pump
HEAT PUMP SET HEAT PUMP OPERATION Information displayed:  supply water temperature  supply water setpoint  return water temperature  operation status (heating/cooling/off)  compressor (% capacity)  signal power  components found in the system (radiators, fan coils and radiant panels) and relative status (enabled / excluded).
Page 12 HEAT PUMP CLIMATE SETTINGS Set the operation set point of each circuit:  winter or summer,  fixed or compensated 2 - Hydraulic circuits of the system: select Select the single circuit to customise the set point 3 - Set point regular intervals: Winter Summer 4 - Supply water set point:...
Page 13 HEAT PUMP CHANGE OF SET POINT, FROM FIXED TO COMPENSATED 1 - Select the single circuit to customise the set point 2 - Select "fix" select 3 - Compensated supply water set point:  set the compensation curve that corrects the water set point value, depending on the outdoor air temperature value.
Page 14 HEAT PUMP MODIFY THE OUTDOOR TEMPERATURE: 5 - select 6 - Set the required values: Max 30°C Min. 15°C 7 - Modify the correction select select 8 - Modify the correction example: + 1.2°C The correction can be used to modify the climatic curve rapidly. Example: Outdoor air = 30°C supply water set point = 7°C Outdoor air = 15°C supply water set point = 12°C...
Page 15 HEAT PUMP AIR SET POINT COMPENSATION BASED ON THE OUTSIDE TEMPERATURE The air temperature set point correction function is enabled in COOLING ONLY mode. The function applies a correction to the zone set point based on the outside temperature value. The same outside temperature limits set for the climate curve of the PDC are used.
Page 16 HEAT PUMP Example of zone programming selezionare The air set point is corrected by applying an offset to the slider of the individual thermostats selezionare 8 - Press “Comfort” for 2 seconds Scheduled zone set point = 20°C M0CZ00007-03...
Page 17 HEAT PUMP Set point corrected by air climate = 20° C The calculation interval of the air set point correction is set in Parameter 2 Default 1 minuto The parameter is the same one used to calculate the water set point climate.
Page 18: Domestic Hot Water
DOMESTIC HOT WATER DOMESTIC HOT WATER OPERATION Information displayed:  storage temperature 2 - Automatic operation: domestic hot water is produced automatically, according to the requirement, using all the resources available. 3 - With thermal solar system only: the storage tank temperature is ensured only using solar collectors, even with a greater set point.
Page 19 DOMESTIC HOT WATER Programming example: Day: Thursday Program: Circulation program 1 Operation Profile: start set point end time mode time (previous page) Maintenance ref. 8 Recharge and recirculation ref. 7 + ref. 11 Maintenance and ref. 8 + ref. 11 recirculation Recharge and recirculation ref.
Page 20 ELFOFRESH FRESH AIR 1- Information displayed:  Elfofresh on / off  operation status: heating / cooling / ventilation off If 4 units are available, data of unit 1,2,3 and 4 are displayed alternatively. The display shows the unit number to which the data is combined with 1 = unit 1 data 2 = unit 2 data 3 = unit 3 data...
Page 21 ELFOFRESH PROGRAMMING Provide fresh air depending on a daily time schedule. 5 preset daily programs are available (max 14 programs). All programs can be modified. A different program can be combined to each unit. Operation mode: Normal: optimal fresh air. To be used in case rooms are occupied.
Page 22 "AWAY FROM HOME" CONTROL The "away from home" control mode can be activated when the room is not occupied. The "Away fom home" control allows setting the operation of:  climatic zones  fresh air unit  domestic hot water select "AWAY FROM HOME"...
Page 23 REPORT ENERGETICO The electric energy is displayed on the CONTROL4 NRG panel and provides a weekly profile of the energy used by the air conditioning system and by the photovoltaic system (when present). To access the energy report, press anywhere in the ELECTRICAL SYSTEM section on the main page.
Page 24 ZONE SCHEDULING The operation of every zone can be SCHEDULED or MANUAL. Scheduled zone in temperature (gray) Scheduled zone in call (red = heat; blue = cool) Zone off Manual zone in temperature (gray) Manual zone in call (red = heat; blue = cool) In the time scheduling of the zones, for the slave terminals it is select not possible to do an off-set using the cursor...
Page 25 ZONE SCHEDULING 7 - Select:  cooling or heating  the day of the week to be programmed: the selected day is highlighted in red.  cooling or heating program among those available The temperature of the “Comfort” profile is preset for all the house zone: ...
Page 26 ZONE SCHEDULING The temperature of the “Economic” profile depends on the temperature of the“Comfort” profile:  it is higher in cooling  lower in heating. To modify the temperature difference:  press "Economic" for 2 sec press for 2 sec Set: ...
Page 27 ZONE SCHEDULING Modification of a single component temperature select 2 –correction setting cursors Example sub-zone Final temperature Living room 1 20.0°C Living room 2 19.0°C Main entrance 21.5°C M0CZ00007-03...
Page 28: Alarms
ALARMS Attention: Before resetting an alarm, identify and remove the cause generating that. Repeated resets can cause system malfunctions or irreversible damage. In case of doubt, contact the After Sales Centre. Alarms are indicated by the symbol: Alarms are saved in the memory. select Example: ...
Page 29: Modification Of The Program Name
MODIFICATION OF THE PROGRAM NAME Names of the following programs can be customised:  Domestic hot water  Elfofresh  Zone select select press for 2 sec select M0CZ00007-03...
Page 30 MODIFICATION OF THE PROGRAM NAME Use the keyboard to type the name of the program. Key functions: Capital or small letters Numbers Space Delete select M0CZ00007-03...
Page 31 CLIVET APP Search for the Clivet Eye App on PLAY STORE and APP STORE To install:  download the app  register with your email + password  associate your device(s) by entering the serial number and password provided ...
Page 32 Setting menu..............................pag.34 ESS menu ..............................pag.34 Air probe menu ............................... pag.37 Software update .............................. pag.38 Internet connection ............................pag.40 Control4 NRG ..............................pag.41 Bus RS485..............................pag.42 Electricity meter .............................. pag.43 System diagrams ............................pag 45 Electrical connections Unit for the production of thermal energy ......................pag.46 Unit for the production of DHW ........................
Page 33 INSTRUCTIONS FOR THE INSTALLER GENERAL WARNINGS Regulations The information contained in this manual must be integrated with current statutory regulations and by the standards of good practice. Operate with the safety regulations in force. Planning The water and electric system must be determined by the system designers in accordance with the regulation in force.
Page 34 Access to parameters or modifications are only allowed to the installer who takes full responsibility, in case of doubt contact Clivet S.p.A. For any changes not permitted or not approved by Clivet S.p.A., it declines any responsibility for malfunctions and/or damage to the unit/ system.
Page 35 MENU (SETTINGS) From the Settings menu, select: 1- Electricity to set the electrical system information. This information is used by the system to provide personalised statistics and energy tips on the home page of the “ELECTRICAL SYSTEM” and “ENERGY” sections select 3 - Set Installed meter capacity 4 - Set Maximum photovoltaic capacity...
Page 36 ESS MENU From the Settings menu, select: 1 - ESS to access information on the electrical water tank unit select 2 - Name of the unit in the system configuration 3 - Scrollable list showing the unit’s main parameters M0CZ00007-03...
Page 37 AIR PROBE MENU From the Settings menu, select: 1 - Air quality probe to access information on the electrical water tank unit select 2 - List with the names of the air quality probes available in the system configuration. 3 - Dynamic icon representing the air quality index detected by the probe 4 - List of environmental parameters measured in real time by the air quality probe...
Page 38 SOFTWARE UPDATE From the Settings menu, select: 2 - General to access information on the electrical water tank unit. Note: The software update page can be accessed directly also by tapping the software update availability notification icon in the top bar “1”...
Page 39 SOFTWARE UPDATE Please wait for download to com- plete When the download is complete, press Install update to update the software select Wait for the update operations to finish. When finished, the main page will be displayed again. M0CZ00007-03...
Page 40 INTERNET CONNECTION The Connection screen displays the information on: A - CONTROL4 NRG’s Internet connection status and the interface used (Ethernet or Wi-Fi*) B - Internet connection status C - Enables/disables the Wi-Fi board (where available) D - List of available Wi-Fi connections and any connected network...
Page 41 CONTROL4 NRG 193.6 80,9 196,3 Dimensions of uncased box for wall- Dimensions of metal bracket for fixing the mounting CONTROL4 NRG in the box M0CZ00007-03...
Page 42 BUS RS485 Twisted (B) and Shielded cable (A) NO power line and signal cables together Power line A - Corrugated tube NO power line and signal cables together Power line A - Metal conduit SHIELDED CABLE   Maximum number of components: 40 Performed by trained and qualified ...
Page 43 BUS RS485 ELECTRICITY METER - SINGLE PHASE The energy value is acquired by the CONTROL4 NGR via a ModBUS serial communication line Electrical connections Terminals side Assembly on DIN rail A - Diagnostics LED DIP position Blink Communication OK Fixed Communication KO Not feeded M0CZ00007-03...
Page 44 BUS RS485 ELECTRICITY METER - THREE-PHASE The energy values is acquired by the CONTROL4 NGR via a ModBUS serial communication line Electrical connections Install 3 amperometric transformers (supplied) on the 3 phases to be monitored. Transformer (amperometric “split core” type) Assembly on DIN rail Diagnostics Function...
Page 45 SYSTEM DIAGRAMS New building with radiant panels and radiators CONTROL4 NRG ELFOFresh EVO 230 V ~ RS-485 BUS (shielded cable) 12 V 12 V BMZRX HID-TSmart HID-TSmart 230 V ~ Sonda 12 V 230 / 400 V ~ BMZRX HID-TSmart...
Page 46 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY SPHERA EVO 2.0 SPHERA EVO 2.0 SPHERA EVO 2.0 SQKN-YEE 1 BC+MiSAN-YEE 1 S 2.1-8.1 R-32 SQKN-YEE 1 TC+MiSAN-YEE 1 S 2.1-8.1 R-32 SQKN-YEE 1 BC+MiSAN-YEE 1 S 2.1-5.1 R-32 UNIT KEYBOARD M0CZ00007-03...
Page 47 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY SPHERA EVO 2.0 EASYHybrid SQKN-YEE 1 BH+MiSAN-YEE 1 S 2.1-8.1 R-32 M0CZ00007-03...
Page 48 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY SPHERA EVO SPHERA EVO SPHERA EVO SRHME-BC+MDAN-YMi 2.1-5.1 R-32 SRHME+MDAN-YMi 2.1-5.1 R-32 SRHM-IC+MDAN-YMi 2.1-5.1 R-32 ELFOEnergy Edge EVO ELFOEnergy Edge SHEEN EVO WSAN-YMi 21-141 R-32 WSAN-YMi 21-81 R-32 WSAN-YSi 10.1-22.2 R-32 CONTROLL CONTROLL CONTROLL WIRED WIRED...
Page 49 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY Edge EVO 2.0 - EXC WiSAN-YME 1 S 2.1-14.1 CONTROLL WIRED UNIT CONTROLL WIRED M0CZ00007-03...
Page 50 UNIT FOR THE PRODUCTION OF DHW AQUA Plus SWAN-2 190-300 UNIT M0CZ00007-03...
Page 51 FRESH AIR UNIT ELFOFresh EVO CPAN-YIN Size 2 R-32 CONTROLL WIRED UNIT CONTROLL WIRED M0CZ00007-03...
Page 52 FRESH AIR UNIT ELFOFRESH ELFOFRESH ELFOFRSH LARGE CPAN-U 70-120 R134a CPAN-U 200-650 R410a CPAN-U 17-51 R410a Termination SP1X - RS485 serial port for remote communication - optional M0CZ00007-03...
Page 53 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY GAIA ARIA GAIA ACQUA ELFOENERGY GROUND MEDIUM MSER-XEE 31-61 R-410A WSHR-XEE 31-61 R-410A WSH/N-XEE 82-802 Version AD Version AD GAIA MAXI ARIA GAIA MAXI ACQUA ELFOENERGY VULCAN MEDIUM MSER-XIN 61 R-410A WSHR-XIN 61 R-410A WBAN 82-802 R-407C 12Vdc RS485...
Page 54 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY GAIA L Comfort GAIA L Hybrid GAIA-i GLC 2.1-8.1 R-410A GLH 2.1-8.1 R-410A GIGA 2.1-4.1 R-410A M0CZ00007-03...
Page 55 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY SPHERA T Comfort SPHERA T Hybrid SPHERA-i SRHM+MDAM-XMi 2.1-8.1 R-410A SRHM+MDAM-XMi 2.1-8.1 R-410A SRHM+MDAM-XMi 2.1-4.1 R-410A SPHERA B SRHM+MDAM-XMi 2.1-8.1 R-410A M0CZ00007-03...
Page 56 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY ELFOENERGY EXTENDED INVERTER ELFOENERGY DUCT INVERTER WSAN/T-XIN 21-171 R-410A WSN/T-XIN 21-141 R-410A CMSC2X - Serial communication module with RS485 serial converter kit- optional M0CZ00007-03...
Page 57 UNIT FOR PRODUCING THERMAL AND COOLING ENERGY ELFOENERGY MEDIUM ELFOENERGY GROUND WSAN/T-XEE 82-302 R-410A WSH/N-EE17-121 R-410A CMMBX - Serial communication module with supervisor (MODBUS) - optional M0CZ00007-03...
Page 58 AMBIENT TERMINALS ELFOROOM ELFOROOM ELFOROOM OUTVOT 003.0-015.0 INVOT 003.0-015.0 OUTVOT 003.0-015.0 ELFOROOM INVOT 003.0-015.0 SERIAL CARD Set as shown in the figure M0CZ00007-03...
Page 59 AMBIENT TERMINALS AURA CAS (cased) AURA UNC (uncased) CFFA 1-12 CFFA 1-12 CONNECTION WITH THERMOSTAT (AURA AC VERSIONS) KJRP-86A A = Thermostat M0CZ00007-03...
Page 60 AMBIENT TERMINALS AURA CAS (cased) AURA UNC (uncased) CFF 1-12 CFF 1-12 DIRECT CONNECTION WITH RS-485 SERIAL (AURA DC VERSIONS) A = Thermostat M0CZ00007-03...
Page 61 AMBIENT TERMINALS ELFOSPACE BOX3 CFK 007.0 - 011.0 - 015.0 A = main board M0CZ00007-03...
Page 62 AMBIENT TERMINALS ELFOSPACE BOX3 ELFOSPACE BOX3 CFK 021.0 - 031.0 CFK 031.0 - 041.0 CC2 - 2-pipe system (size 021.0 and 031.0) CC2 - 2-pipe system (size 041.0) CC4 - 4-pipe system (size 021.0) CC4 - 4-pipe system (gr 031.0 and 041.0) A = main board M0CZ00007-03...
Page 63 AMBIENT TERMINALS MOOD CFW-2 1-5 A = main board M0CZ00007-03...
Page 64 ELFOSPACE OUT-H 003.0-051.0 ELFOSPACE IN-H 003.0-051.0 ELFODUCT HP 015.0-071.0 ELFODUCT MP 15-71 SP1X - RS485 serial port for remote communication - optional CTS- CLIVET TALK TERMINAL SPACE Electronic for HID-T2 or HID-T3 thermostats - optional CLIVET TALK TERMINAL SPACE M0CZ00007-03...
Page 65 AMBIENT TERMINALS ELFODUCT CF-V 31-242 SP1X - RS485 serial port for remote communication - optional CTS- CLIVET TALK TERMINAL SPACE Electronic for HID-T2 or HID-T3 thermostats - optional CLIVET TALK TERMINAL SPACE M0CZ00007-03...
Page 66 ENERGY STORAGE SYSTEMS SINERGY 51.05 - 51.20 CONNECTOR “COM” DESCRIPTION RS-485 A+ RS-485 B- M0CZ00007-03...
Page 67 SMART THERMOSTAT HID-TSmart RS485 12Vdc RS485 M0CZ00007-03...
Page 68 SYSTEM ACCESSORIES Installation CONTROL4 NRG CONTROL4 NRG AL12X Power supply 230/1/50 - 12Vdc 2A 193x132x5 3mm LxHxP 2 DIN modules 77x90x55 mm LxHxP PS installation box Metal fixing bracket 196,3x141x80,9 mm LxHxP CBSX Shielded cable for RS485 bus; (mounting accessories supplied in the...
Page 69 SYSTEM ACCESSORIES MODULE OF RADIANT Module addressing is done using the selectors. There are three red selectors on the front of the module. To change addresses, refer to selector A and B as shown below: SELECTOR A = Set X10 SELECTOR B = Set X1 Example to assign address 12: : Selector A = 1, selector B = 2 PROCEDURE...
Page 70 20C° from the calculation, in order to not affect the water temperature inside the entire system and the head closes. 0 = Clivet If thermostat model =1 (Modbus thermostats) the parameters from P02 1070 to P07 cannot be set at 5 or 6.
Page 71 Thermostat 6 controls the valve for the heated towel rails SYSTEM ACCESSORIES MODULE OF RADIANT AREAS Example on how to use: Step management Output 5 controls the shut-off valve for the radiant panel Radiator management Output 6 controls the water shut-off valve for the heated towel rail RS485 BT2 COM CH 1...
Page 72 SYSTEM ACCESSORIES MODULE OF RADIANT AREAS WITH HID-UR BUILT-IN MODBUS TEMPERATURE AND HUMIDITY SENSOR The thermostats run only if combined with the radiant module. Set as indicated in the figure Example on how to use: Step management The sensor 1 - 2 - 3 controls one area with 1 component Double step management The sensor 4 controls one area with 2 components Radiator management...
Page 73 RADIANT AREA MODULE WITH ELECTRO-MECHANICAL THERMOSTAT WITH DRY CONTACT This option does not allow the temperature to be displayed by Control4 NRG, it only allows ON/OFF management of the area and time schedule. This option does not allow temperature changes to be made by Control4 NRG.
Page 74 SYSTEM COMPONENT ADDRESSING ADDRESSING Each unit inside the network is recognised thanks to an address. The address must be stored in the memory of the unit using a keyboard or thermostat. Serial addressing Domestic hot water module * The addresses 17,18 and next are used both for terminals and for the single zone modules (page 89).
Page 75 SYSTEM COMPONENT ADDRESSING WSAN-YMI 21-81 EDGE Setting Unit main board S3 = 2 ELFOFRESH EVO CPAN-YIN SIZE 2 if one unit is present: address = 3 if four units are presents: First unit address = 3 Second unit address = 4 Third unit adress = 5 Fourth unit adress = 6 Parameters to be modified...
Page 76 SYSTEM COMPONENT ADDRESSING SPHERA EVO 2.0 EASYHYBRID Parameters to be modified Mnemonic Parameter Description Value Name ModBus supervision serial Index address Baud Rate (0=4800 / 1=9600 Baud Rate 2 =19200) Parity 0=NO / 1=Odd 2=Even Parity supervision serial Enter the password Maintenance operator to access the parameters. Press “Setting”...
Page 77 SYSTEM COMPONENT ADDRESSING CFW-2 1 - 5 MOOD On / off switch Address network ENC2 01 - 16 17 - 32 33 - 48 49 - 64 CFFC / CFFU / CFFAC / CFFAU 1-12 AURA On / off switch Address network ENC1...
Page 78 SYSTEM COMPONENT ADDRESSING CFK 007.0-015.0 ELFOSPACE BOX3 On / off switch Address network ENC1 01 - 15 16 - 31 32 - 47 48 - 63 SWAN-2 190-300 - AQUA PLUS Addressing Press 3 sec. Select C02 Press Select 1 Press M0CZ00007-03...
Page 79 SYSTEM COMPONENT ADDRESSING GAIA ARIA and ACQUA version AC / GAIA MAXI / GROUND MEDIUM / GAIA L COMFORT and HYBRID / GAIA-i / SPHERA Parameters to be modified 15-04-2011 09:30 Esterna: 25.6° 25.9° 41.2° Mnemonic Parameter Description Value Name ModBus supervision serial Index address...
Page 80 SYSTEM COMPONENT ADDRESSING VULCAN MEDIUM Vulcan Medium - Parameters to be modified Mnemonic Parameter Description Value Name Address ModBus supervision serial address Baud Rate Baud Rate (0=4800 / 1=9600 2 =19200) Parity 0=NO / 1=Odd 2=Even supervision Parity serial Enter the Maintenance operator password to access the parameters.
Page 81 SYSTEM COMPONENT ADDRESSING WSAN/T-XIN / WSN/T-XIN Parameters to be modified Parameters Description Value CF30 ModBus protocol controller Address ModBus protocol Baud Rate (2=4800 / 3=9600 CF31 4 =19200) CF32 Parity modbus 1=EVEN / 2=NONE / 3=ODD DI4 Digital input Configuration CL43 ( remote OFF) DI5 Digital input Configuration...
Page 82 SYSTEM COMPONENT ADDRESSING ELFOENERGY / CPAN-U Units can be CPAN-U 70-650 and / or CPAN-U 17-51 if one unit is present: address = 3 if four units are presents: First unit address = 3 Second unit address = 4 Third unit adress = 5 Fourth unit adress = 6 ELFOEnergy - Parameters to be modified CPAN-U - Parameters to be modified...
Page 83 … HID-TSmart 30 The thermostat is connected in daisy-chain topology (in-out) directly to the CONTROL4 NRG serial bus 485 ADDRESSING PROCEDURE HID-TSmart is supplied by default with Modbus address 150. Follow the procedure below to address the HID-TSmart if there is more than one unit in the system.
Page 84 SYSTEM COMPONENT ADDRESSING Set the desired address using the + and - keys displayed on the screen Press OK to confirm Verify that the BaudRate parameter is set to 9.6Kbps AAfter making the changes, press the icon at the top right to return to the main screen Diagnostics When the module is powered, it boots up during which the display shows the thermostat’s Modbus address.
Page 85 SYSTEM COMPONENT ADDRESSING HID-TI6 THERMOSTATS The thermostat only works in conjunction with ELFOROOM2 fan coil units The terminals for connecting to the CONTROL4 NRG bus are located on the HID-T6 thermostat unit CONNECTIONS 1) Connection terminal block (fancoils serial) 2) Connection terminal block of presence contact...
Page 86 It is advisable to table the addresses that the individual fancoils must assume so that they are then easily identifiable once recognized by the system. Contact Clivet service for changing the unit parameters for connecting the HID-T6 thermostat. Fancoil address...
Page 87 SYSTEM COMPONENT ADDRESSING HID-UR TEMPERATURE AND HUMIDITY SENSOR Sensor addressing HIDUR built-in temperature and humidity sensor Channel Flashings The thermostat runs only if combined with the radiant module. Signalling LED A multi-colour LED is fitted on the front part (visible from the front slot) which indicates the device status. After powering on: - The device boots up.
Page 88 2 - Set the address with the selectors on the RS485 module S5 = hundreds. Must always be set to OFF S3 = tens S4 = unit 3 - Set parameters 34 and 35 under Other parameters in the Advanced settings of CONTROL4 NRG (see page 110) M0CZ00007-03...
Page 89 S3 = tens S4 = unit example: 17= S3 =1 , S4 =7 3 - Set parameters 34 and 35 under Other parameters in the Advanced settings of CONTROL4 NRG (see page 110) For module RS485, see page 88 TERMINATION...
Page 90 SYSTEM COMPONENT CONFIGURATION CONTROL4 NRG - SYSTEM CONFIGURATION The configuration is performed directly on ELFOControl introducing:  type of system;  name of the climatic areas (kitchen, living room, etc.);  mixed and not mixed circuits;  units installed ( which and how many: heat pumps, terminals, etc.);...
Page 91 SYSTEM COMPONENT CONFIGURATION select Create / modify areas:   modify  remove  installation reset select Use the keyboard to type the name of the area. Key functions: Capital or small letters Numbers Space Delete select select M0CZ00007-03...
Page 92 SYSTEM COMPONENT CONFIGURATION select Define the hydraulic circuits:  high temperature non-mixed circuits (max. 10) Circuits greater than 4 refer to the 1st high temperature area  low temperature mixed circuits (max. 3) refer to the subsequent page Possible combinations with boosters: STD booster ...
Page 93 SYSTEM COMPONENT CONFIGURATION Define mixed circuits:  low temperature mixed circuits (max. 3)  for combinations, refer to the previous page select Define the composition of the system: heat pump type number of Elfofresh units (max. 4) number of Fancoil modules (max. 40 including other components found) Important: check the fancoil model to see if the direct bus connection is to the unit’s board or via thermostat/HMI...
Page 94 Number of circuit:  mixed circuit n.1 / 2 / 3  non-mixed circuit n.1 / 2 / 3 Thermostats connected: See ELFO Control3 EVO installation manual Clivet Bus Sensor thermostat+ Ambient probe (HID-UR) humidity Thermostat only Modbus (temperature only)
Page 95 GENERIC INPUT/OUTPUT MODES PROVIDED BY THE MULTIPLE RADIANT AREA MODULE Select I/O from Controlled element Define the inputs and outputs of multiple radiant area module canals:  Remote consent remotely activates the CONTROL4 NRG system;  Boiler alarm acquires the backup heater’s alarm.
Page 96 At CLOSED contact it switches DHW OFF DHW ON System off the whole system including (NC) System ON-OFF from CONTROL4 NRG System ON-OFF from CONTROL4 NRG key- keypad disabled System OFF System ON At CLOSED contact is switches DHW ON DHW ON...
Page 97 SYSTEM COMPONENT CONFIGURATION Zone elements They are listed: A. Element 1 to be defined: Single zone modules Terminals (fan coils) B. Smart thermostats A - Single radiant zone modules For each single zone module available, define the type of controlled component for each channel: ...
Page 98 SYSTEM COMPONENT CONFIGURATION B - Smart Thermostats Set the following parameters for each Smart thermostat in the system: Belonging area:  kitchen, living room, etc. Type of circuit assigned:  mixed  non-mixed  mixed circuit n.1 / 2 / 3 ...
Page 99 SYSTEM COMPONENT CONFIGURATION Select the type of Elfofresh installed:  Elfofresh  Elfofresh  Zephir 3  ELFOPack  ElfoFreshEvo A - Combine each used unit to every area. select select select M0CZ00007-03...
Page 100 The access to parameters or modifications are allowed only to the installer who assumes all responsibility, in case of doubts please con- tact Clivet. For any changes not permitted or not approved by Clivet, the same declines any responsibility for malfunctions and/or damages to the unit/system.
Page 101 SYSTEM COMPONENT CONFIGURATION Master terminal Combining the terminal of reference with the master terminal in the configuration NIGHT Component 1 : DAY area, thermostat YES, terminal of reference NONE Component 2 : DAY area, thermostat YES, terminal of reference 1 Component 3 : DAY area, thermostat YES, terminal of reference 1 Component 4 :...
Page 102  172 Energy meter 3 (Production) The meter is preconfigured with address 170 Meter address setting: Power up and connect the meter to the CONTROL4 NRG serial line Go to the “Other parameters” page of CONTROL4 NRG (See screenshots opposite) Set Device address field = 170 press for 2 sec.
Page 103 AUTOCONFIGURATION Check of the auto-configuration procedure end. press for 2 sec. select select To see the other areas, drag area “1” upwards M0CZ00007-03...
Page 104 AUTOCONFIGURATION Autoconfiguration completed For make the autoconfiguration changes effective, turn off and on the power TO MODULES. If you do not see “ Autoconfiguration completed”: 1. check the element is in ON 2. check the network M0CZ00007-03...
Page 105 Communication OFF (grey) select A - Belonging to area: 2 B - Terminal number: 2 C - Circuit number: 1 D - module channel: 3 The unit does not communicate with CONTROL4 NRG, an alarm is notified "communication with interrupted device". M0CZ00007-03...
Page 106 STATUS COMPONENT SYSTEM ZONE ELEMENTS STATUS Check of the installed radiant / fancoil / zone modules operation status,Smart thermostats installed. press for 2 sec. select select For reference only: Status on / off Heating/cooling Ambient setpoint °C Current mode Remote control Setting Air temperature °C Zone...
Page 107 STATUS COMPONENT SYSTEM STATUS OF THE MIXERS Verification of the operation status of the installed mixing circulators. For reference only: A. Circulator status on / off B. Heating/cooling Stato miscelatori C. Supply water setpoint °C Misuratori di energia D. Supply water temperature °C E.
Page 108 STATUS COMPONENT SYSTEM You can insert the contact references. Access to the parameters is reserved only to After Sales Centre. press for 2 sec. select select select M0CZ00007-03...
Page 109 ERROR: RS485 NETWORK TROUBLESHOOTING 1. All the units requested do not 2. Some units requested do not 3. From a certain point on, the units do respond. respond. not communicate Verify no short-circuits occurred on the Ensure they are switched on It is likely that the bus of the first unit RS485 serial line does not communicate due to a short-...
Page 110 The access to parameters or modifications are allowed only to the installer who assumes all responsibility, in case of doubts please contact Clivet S.p.A. For any changes not permitted or not approved by Clivet S.p.A., the same declines any responsibility for malfunctions and/or damages to the unit/system.
Page 111 PARAMETERS ACCESS / VISUALIZATION Key functions: Delete select Device address field= Enter the device’s Modbus address Example: for multiple area module 11 select Parameter address field: enter the value of the Modbus register to be read or written Example: 10011 - Value in the Modbus mapping of the multiple area module select Modbus Function field: select the function code to be used for the reading/writing operation of the parameter to be checked:...
Page 112 PARAMETERS ACCESS / VISUALIZATION In the Enter value field: enter the value to be written for the parameter indicated Write button = writes the value Read button = displays the default value In case of register reading, press end without entering the value. In case of register writing, enter the value to be written.
Page 113 PARAMETERS OF THE COMPONENTS are set by the autoconfiguration Below, we describe the parameters that on the several components of the system; the list must be consid- ered indicative and is an operative trace to be assessed, depending on the type and system configuration. GAIA (version AB and AC) - Anti-dew compensation enabling ( only in cooling) Modbus Parameter...
Page 114 The reading/writing registers are NOT retentive, i.e. a possible lack of the Sten module power supply implies the loss of values written by the system. The settings determined by the external system modify the local ones of CONTROL4 NRG ; it means that in the case of an external system disconnection, CONTROL4 NRG will maintain the last values set.
Page 115 Sten in those "local" to thermoregulate system. Just read the value, CONTROL4 NRG puts it back to 0, and if within a minute the system not puts it to a value different from 0, CONTROL4 NRG one considers disconnected and back to work in stand-alone mode, using its own local settings.
Page 116 Summer humidity Setpoint zone 10%...90% Note: If mode zone = 0, The zone will follow the local programming set to CONTROL4 NRG (Or any area mode manual forcing) 2.2 Status For each zone you can read the data listed in the table below.
Page 117 3 - Domestic Hot Water (DHW) 3.1 Commands Address Description Notes Limits Setpoint reload DHW 25°C…55°C Setpoint maintenance DHW 25°C…55°C 1 = Maintenance + recirculation, 2 = Maintenance, DHW profile 3 = recirculation+ recharge, 4 = recharge 3.2 Stata Address Description Notes DHW temperature...
Page 118 DISPOSAL Disconeting separated by its nature and disposed of by authorised personnel at Only authorised personnel must disconnect the unit. existing collection centres. Avoid leak or spills into the environment. Before disconnecting the unit, the following must be recovered, if present: •...
