Summary of Contents for K-Life BPM-107

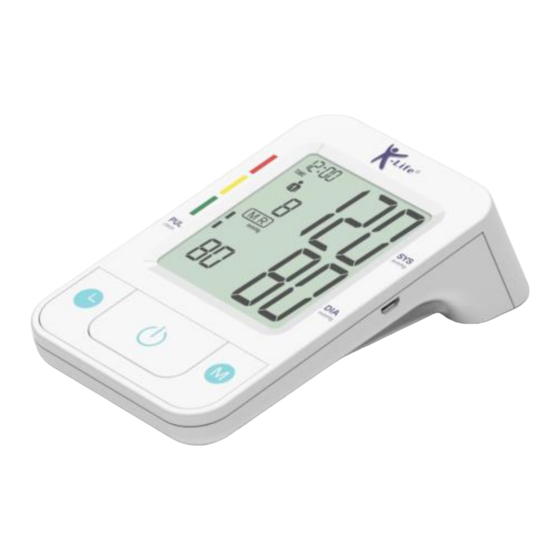

- Page 1 Digital Blood Pressure Monitor Automatic Upper Arm Style Instruction Manual Model No: BPM-107 IB Version: BPM-107 V1.1.2...
-
Page 2: Table Of Contents
7. Error Messages /Malfunctions ............15 8.Care And Maintenance, Recalibration ..........17 9.Guarantee ..................17 10. Service Life ................. 18 11. Battery Life : ................18 12.Safey,Care And Disposal ............... 18 13.Reference To Standards..............19 14.Remark:..................19 IB Version: BPM-107 V1.1.2... - Page 3 15. Technical Specifications ............... 20 16.Manufacturer's Declaration ............21 17.Manufacturer Information:............26 IB Version: BPM-107 V1.1.2...
-
Page 4: Introduction
1. Introduction 1.1. Features of the BPM-107 The blood-pressure monitor BPM-107 (with integrated time/date display) is a fully automatic, digital blood-pressure measuring device for use on the arm, which enables very fast and reliable measurement of the systolic and diastolic blood- pressure as well as the pulse frequency by way of the oscillometric method of measurement. -
Page 5: Important Information On The Subject Of Blood-Pressure And Its Measurement
During the «blood ejection» (Systole) the value is maximal (systolic blood-pressure value), at the end of the heart’s «rest period» (Diastole) minimal (diastolic blood-pressure value). The blood-pressure values must lie within certain normal ranges in order IB Version: BPM-107 V1.1.2... -
Page 6: Which Values Are Normal
Show these values to your doctor. Never use the results of your measurements to alter independently the drug doses prescribed by your doctor. Table for classifying blood-pressure values (unit: mmHg) according to World Health Organization: IB Version: BPM-107 V1.1.2... - Page 7 «labile hypertension». Please consult your doctor if you suspect that this might be the case. Correctly measured diastolic blood-pressure values above 120mmHg require immediate medical treatment. IB Version: BPM-107 V1.1.2...
-
Page 8: The Various Components Of The Blood-Pressure Monitor
3. The various components of the blood-pressure monitor IB Version: BPM-107 V1.1.2... -
Page 9: Putting The Blood-Pressure Monitor Into Operation
After new batteries have been inserted, the clock begins to run TIME 12:00 and DATE 1- 01.You must then re-enter the date and current time. For this, please proceed as IB Version: BPM-107 V1.1.2... - Page 10 With each press of the button (TIME, MEMORY) one input is made (e.g. switching over from hours to minutes mode, or altering the value by +1). However, if you keep the respective button depressed, you can switch more quickly to find the desired value respectively. IB Version: BPM-107 V1.1.2...
-
Page 11: Carrying Out A Measurement
Correctly executed blood-pressure measurements should therefore first be repeated after a 5 minute pause or after the arm has been held up in order to allow the accumulated blood to flow away (after at least 3 minutes). IB Version: BPM-107 V1.1.2... -
Page 12: Fitting The Cuff
Take care, that the cuff lies free. Remain so for 2 minutes sitting quietly, before beginning with the measurement. d) Let legs uncrossed, feet flat on the floor, back and arm supported. IB Version: BPM-107 V1.1.2... -
Page 13: Measuring Procedure
If it is necessary to interrupt a blood pressure measurement for any reason (e.g. the patient feels unwell), the “ON/OFF” power button can be pressed at any time. The device then immediately lowers the cuff-pressure automatically. IB Version: BPM-107 V1.1.2... -
Page 14: Memory - Storage And Recall Of The Measurements
5 seconds, the display will show the symbol «CL» and then release the button. To permanently clear the memory, Press the MEMORY button while «CL» is flashing. 3 short beep sounds will be heard to indicate deletion of stored readings. IB Version: BPM-107 V1.1.2... -
Page 15: Appearance Of The Heart Arrhythmia Indicator For Early Detection
No pulse has been detected. Unnatural pressure impulses influence the measurement ERR 2 result. Reason: The arm was moved during the Measurement (Artifact). The inflation of the cuff takes too long. The cuff is not ERR 3 correctly seated. IB Version: BPM-107 V1.1.2... - Page 16 1. Check the positioning of the cuff. measure the blood pressure 2. Measure the blood-pressure again in peace values, or the values measured and quiet under observance of the details are too low (too high). made under point 5. IB Version: BPM-107 V1.1.2...
-
Page 17: Care And Maintenance, Recalibration
The blood-pressure monitor BPCB0A-3H is guaranteed for 2 years from date of purchase. The guarantee does not apply to damage caused by improper handling, accidents, not following the operating instructions or alterations made to the instrument by third parties. IB Version: BPM-107 V1.1.2... -
Page 18: Service Life
If the instrument is not going to be used for a prolonged period the batteries should be removed. Read the additional safety instructions in the individual sections of this booklet. Ensure that children do not use the instrument unsupervised: some parts are small enough to be swallowed IB Version: BPM-107 V1.1.2... -
Page 19: Reference To Standards
IEC60601-1-6:2010+A1:2013/ EN60601-1-6:2010+A1:2015 IEC60601-1:2005+A1:2012/EN60601 1:2006+A11:2011+A1:2013+A12:2014 IEC60601-1-2:2014/ EN60601-1-2:2015 IEC/EN60601-1-11:2015 IEC80601-2-30:2009+A1:2013/EN80601-2-30:2010+A1:2015 The stipulations of the EU-Guidelines 93/42/EEC for Medical Products Class IIa have been fulfilled. 14.Remark: Some electrical and electrical equipment TUV NO. forbid to abandon and disposal at will IB Version: BPM-107 V1.1.2... - Page 20 Measuring resolution : 1mmHg Inflation: Automatic inflation by internal pump Memory function: 2 x 120 memories for 2 users (SYS, DIA, Pulse) Decompression: Constant exhaust valve system Power source: 4- size “AAA” alkaline batteries Operation 5~40°C/41~104°F IB Version: BPM-107 V1.1.2...
- Page 21 EN60601-1,EN60601-1-2 16.Manufacturer's Declaration The BPM-107 is intended for use in the electromagnetic environment specified below. The customer or the user of the BPM-107 should assure that it is used in such an environment. Electromagnetic Emissions: (IEC60601-1-2)
- Page 22 RF emissions CISPR Class B The BPM-107 is suitable for use in all establishments, including domestic establishments and Harmonic emissions those directly connected to the IEC 61000-3-2 applicable public low voltage power supply...
- Page 23 IEC 61000-4-8 Note: U is the a.c. mains voltage prior to application of the test level. IEC60601- IEC60601- Immunity Electromagnetic environment - 1-2 test 1-2 test test guidance level level Portable and mobile RF communications equipment IB Version: BPM-107 V1.1.2...
- Page 24 BPM-107, including cables, than there commended separation distance calculated from the equation applicable to Conducted 3 Vrms the frequency of the RF IEC 150 kHz 3 Vrms transmitter. 61000-4-6 to 80 MHz...
- Page 25 Recommended separation distance between portable and mobile RF communications equipment and the BPM-107 The BPM-107 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the BPM- 107 can help prevent electromagnetic interference by maintaining a...
- Page 26 Note2:These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. 17.Manufacturer Information: SHEN ZHEN COMBEI TECHNOLOGY CO LTD. 11-5B NO.105, Huanguan South Road, Dahe Community, Guanlan, Longhua New District, Shenzhen, Guangdong, China IB Version: BPM-107 V1.1.2...
