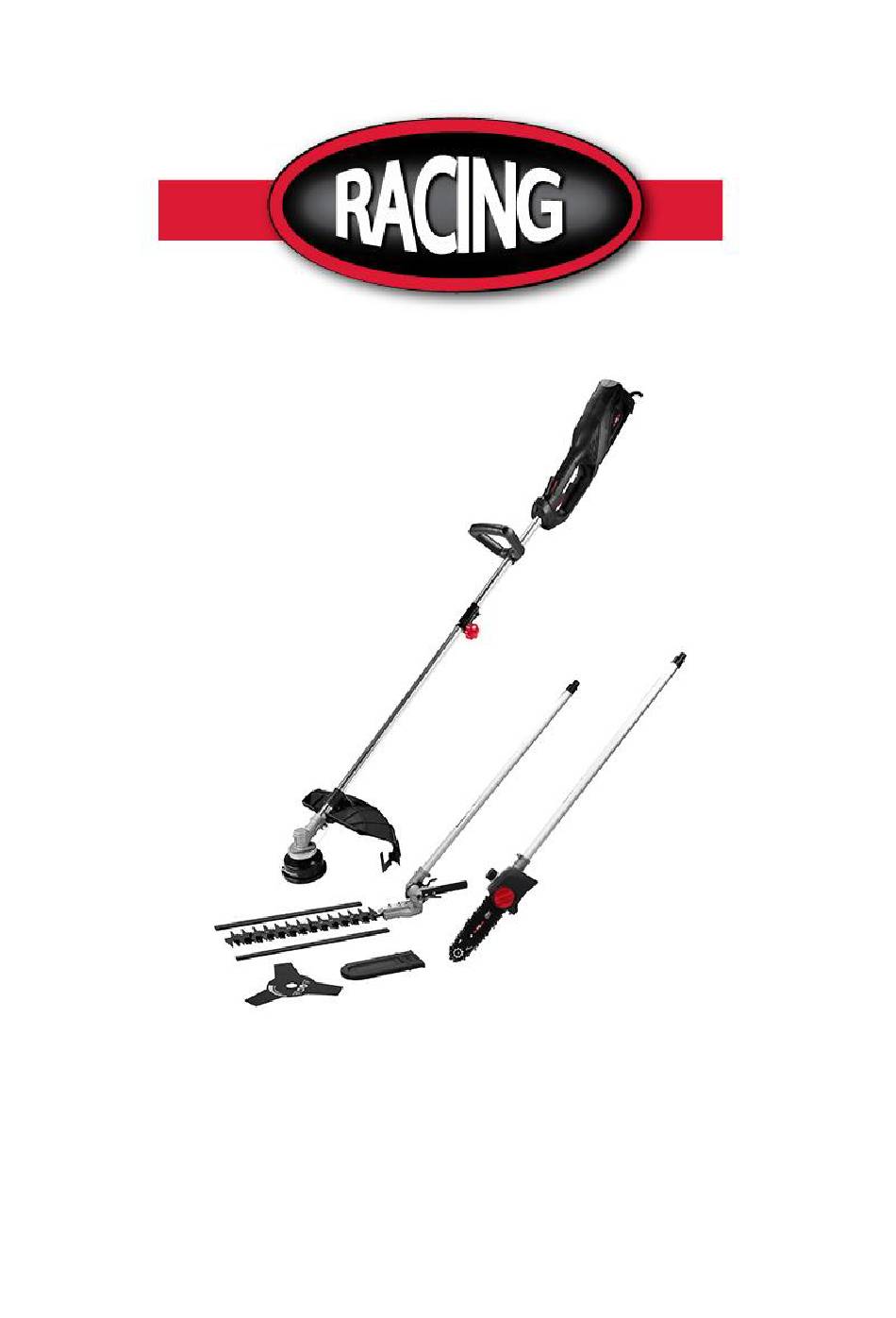

  • Page 1 ORIGINAL INSTRUCTIONS >EN MULTI TOOLS 4 IN 1 RACCOMBI900 INSTRUCTION MANUAL CAUTION: Read this manual before using this machine!

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS........................3 ........................... 27 YOUR PRODUCT ................................30 ......................36 MAINTENANCE AND CLEANING 5. TROUBLESHOOTING.........................37 6. DECLARATION OF CONFORMITY....................40 7. WARRANTY............................41 8. PRODUCT FAILURE ..........................42 9. WARRANTY EXCLUSIONS.......................43...

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 4 refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
  • Page 5 c) Prevent unintentional starting. Ensure switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
  • Page 6 b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
  • Page 7 h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
  • Page 8 IMPORTANT Read carefully before use Keep for future reference Safe operating practices Training Become familiar with the owner’s manual before attempting to operate the equipment. Preparation a) THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the hedge trimmer.
  • Page 9 h) Wear eye protection. i) In case of emergency, stop the hedge trimmer; release the trigger, switch off the tool with the ON/OFF button. Let it completely stop and be cool before any intervention. Operation Use the tool for the intended purpose and follow these provided instructions for use and maintenance a) Stop the engine before: - cleaning or when clearing a blockage,...
  • Page 10 attention to due to the noise of the hedge trimmer. Maintenance and storage a) When the hedge trimmer is stopped for servicing, inspection or storage, shut off the power source, and make sure all moving parts have come to a stop. Allow the hedge trimmer to cool before making any inspections, adjustments, etc.
  • Page 11 c. Never use the device when people, especially children, or pets are nearby. Operation a. Keep the power cord and extension cord away from the cutting elements. b. Wear eye protection, sturdy non-slip shoes and long pants always when using the machine. c.
  • Page 12 parts and accessories. c. Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer. d. When not in use, store the machine out of the reach of children. Recommendation The machinery must be supplied via a residual current device (RCD) with a trip current not exceeding 30 mA.
  • Page 13 necessary before using the machine. DO NOT USE any attachment other than the ones recommended by our company. Serious injury to the operator or bystanders could result as well as damage to the machine. Ask advice to you dealer of manufacturer. - Do not use cutting attachment such as metal multi- piece pivoting chains and flail blades.
  • Page 14 - Do not use the unit when you are tired, ill or under the influence of medication, drugs or alcohol. - Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters, furnaces, etc.
  • Page 15 after the rain as the ground may be slippery. - Be careful not to drop the machine or hit it against obstacles. - Before proceeding to adjust or repair the machine, be sure to stop the engine. - Make periodic inspections to assure safe and efficient operation.
  • Page 16 missed or meet some dysfunctions, do not use the tool and bring it to a service agent for inspection and reparation. - Check the tool after dropping or other impacts to identify any significant defects; if any defects are observed, stop to use the tool and bring it to a service agent for inspection and reparation.
  • Page 17 is strictly forbidden to use this tool for applications other than those described in this manual. - Failure to follow these instructions can result in serious injury and, in some cases, death. - This product is intended for private home use only. Do not use it for commercial purposes.
  • Page 18 - Use only accessories provided or recommended by the manufacturer. The use of other accessories may result in an accident. Read the "Technical data" section of this user manual or ask your dealer for advice. - Don't bend over. - Keep a good balance at all times, always make sure you have a good gait on the slopes.
  • Page 19 Do not use the product on steep and slippery slopes. - Plan your work schedule; Allow enough time to rest. Limit continued use of the device. For example, use 30 to 40 minutes per session and take 10 to 20 minutes off between work sessions.
  • Page 20 times and especially when you turn on and off the tool. - Keep the work area clean. Before working, inspect the work area. - Turn off the tool after use, during transport, when left unattended, when replacing parts and before maintenance.
  • Page 21 any significant defects; If defects are found, stop using the tool and take it to a service agent for inspection and repair. Kickback and related warnings Kickback is a sudden reaction to a spinning wheel, pad, brush or other attachment being pinched or hooked. Pinching or snapping causes the rotating accessory to quickly unhook, forcing the uncontrolled power tool to be forced in the opposite direction to the rotation of the...
  • Page 22 accessory and cause loss of control or recoil. USE OF THE EXTENSION CORD 1) Do not use an extension cord lighter than polyvinyl chloride insulated flexible cable (H05VV-F). It is recommended to use colored extension cords that are more visible. 2) Do not use extension cords longer than 30m.
  • Page 23 VIBRATION AND NOISE REDUCTION To reduce the impact of noise and vibration emissions, limit operating time, use low-vibration and low-noise operating modes, and wear suitable personal protective equipment such as gloves and hearing protection. Consider the following points to reduce vibration and the risks associated with noise exposure: 1.
  • Page 24 REPAIR OF THE TOOL BY QUALIFIED PERSONS 1. Do not try to open the machine housing. Do not attempt to modify the machine in any way. 2. This power tool shall comply with the applicable safety requirements. Having the tool repaired by qualified people using only original spare parts, any other repair can cause dangerous injuries.
  • Page 25 immediate medical attention. IMPORTANT! Become familiar with the use of the product through this instruction manual. Memorize safety indications and follow them to the letter. This will help prevent risks and dangers. 1. Always be alert when using the product, this will prevent the risks involved.
  • Page 26 Wear protective gloves Wear protective footwear Wear a protective mask Wear appropriate protection for the legs and arms. Wear a safety helmet To avoid danger, do not use or leave the tool in the rain. Protection class II. This means that the device is equipped with double insulation.

  • Page 27: Your Product

    The use of metal cutting tools (grass knife, coppice knife, grinding knife, circular saw) presents a risk of rebound, if the tool comes into contact with a solid object (tree trunk, branch, tree stump, stone etc.). The machine is then thrown backwards –...
  • Page 28 1. Main handle/housing 14. Pruner protection case 2. Control trigger 15. Chain guide 3. Trigger lock 16. Chain 4. Power cable 17. 3-tooth blade 5. Auxiliary handle 18. Edge cutter coil 6. Handle length locking bolt 19. Clamping bolt 7. Pruner 20.
  • Page 29 Technical specifications I. MOTOR Model RACCOMBI900 Feeding 230V~ 50Hz Power 1200W Insulation class Class II II. GRASS TRIMMER / BRUSHCUTTER Max blade speed 7500 min Max speed of the cutting head 7000 min Max cutting width 420 mm (cutting head)

  • Page 30: Use

    3. USE I. INTENDED USE This device is designed for - cut weeds, grass or similar tender vegetation in hard-to-reach areas, for example under bushes, on slopes or borders. (trimmer function). Do not use the trimmer as a lever to lift, move or break objects, and do not attach it to fixed supports.
  • Page 31 Proceed in reverse to disassemble the handle. 3. THE AUXILIARY HANDLE Unscrew the 2 parts of the handle. Position the 2 parts of the handle near the foam part of the handle. Tighten the handle firmly on the bracket using the screws. 4.
  • Page 32 5. POLE PRUNER 1. Remove the chain cover by unscrewing the nut that holds it. 2. After dismantling the cover, remove (if applicable) the transport spacer plate to ensure accurate mounting of the chain guide. 3. Mount the guide, taking care to match the light (1) of the guide and the two mounting studs.
  • Page 33 - Chain tension adjustment: Before adjusting the chain tension, make sure the motor is turned off! Wear gloves to carry out any intervention on the machine! Make sure the chain is inside the guide groove. While holding the guide by the end, adjust the chain tension with the tension adjustment screw until the chain teeth touch the bottom of the guide.
  • Page 34 7. USE OF THE CUTTING HEAD Refer to safety instructions. For any accessory replacement or maintenance operation, it is imperative to stop the engine - Wire supply: When necessary, readjust the length of the wire. This type of cutting saves time thanks to its "Tap and go"...
  • Page 35 - For better cutting efficiency, direct the teeth of the device towards the hedge at an angle of about 15 °. - In order to obtain a uniform height of the hedge, pull a wire along the edge of the hedge that will serve as a guide.

  • Page 36: Maintenance And Cleaning

    - Ensure that the position of the feet is stable. Distribute the weight on both feet. - Once in place, press the power switch and press the trigger to turn on the tool. Note: Check that the tool is working before you start using it. - Turn on the tool before starting work.
  • Page 37 2. ÉVITER LES DÉMARRAGES ACCIDENTELS Make sure the switch is in the OFF position before connecting the switch to the network. 3. RALLONGE ET BOBINES Use a power supply protected by a residual current (RCD) device of up to 30 mA. Use an extension cord with appropriate markings for outdoor use only.
  • Page 38 consider the following: • Angle for filing • Diameter of the rounded file • Angle to cut • File depth • Position to file To sharpen the chain proceed as follows: • Wear protective gloves • Ensure that the chain is properly tensioned. •...

  • Page 39: Troubleshooting

    V. RECYCLING AND DISPOSAL Separate collection of electrical and electronic waste. Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU for the disposal of electrical and electronic equipment and its implementation in national law, used electrical products must be collected separately and disposed of in collection points provided for this purpose.

  • Page 40: Declaration Of Conformity

    6. DECLARATION OF CONFORMITY BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Déclare que la machine MULTITOOLS 4 IN 1 RACOMBI900 Serial No: 20221220319-20221220818 Complies with all relevant provisions of European directives following: To the "Machinery"...

  • Page 41: Warranty

    BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
