Summary of Contents for breviglieri b123

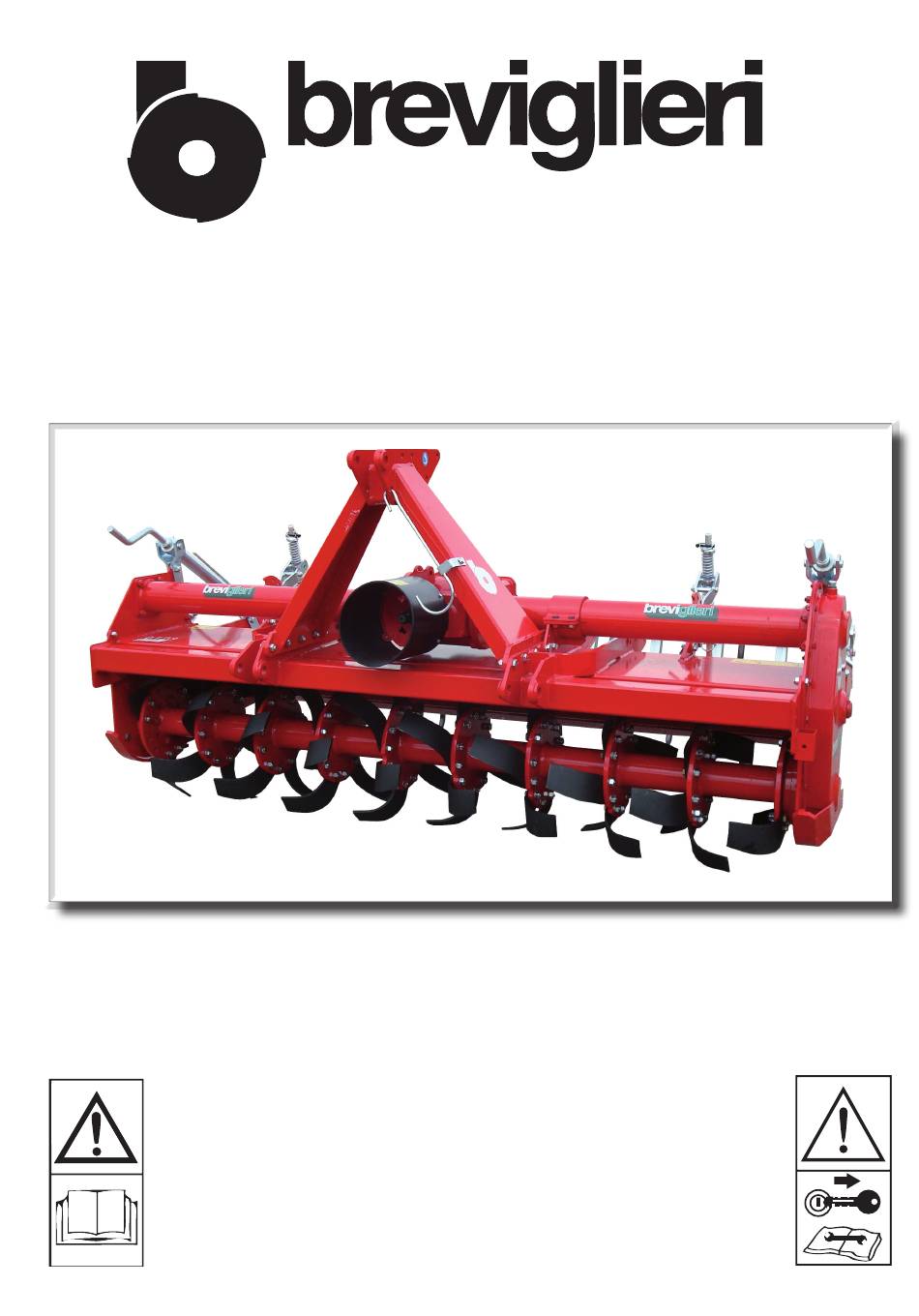

- Page 1 macchine agricole Power Tiller USZ1400172/0 Operating Maintenance Manual Read these operating instructions carefully before using the machine...
- Page 2 Istructions for use ..............................page 10 SECTION 5 Maintenance ................................page 14 SPARE PARTS TABLES ............................page 17 Data shown on the machine identification plate. Technical assistence centre authorised by BREVIGLIERI Spa to be contacted Model: for all technical assistance needs. Serial number: Dealer:...
-
Page 3: Table Of Contents
” rotary tiller (also called machine in the text) manufactured by BREVIGLIERI SpA of Nogara (VR) Italy, also called Manufacturer in the text. The information and indications do not give a full description of the various components or a detailed illustration of how they operate. -
Page 4: Warranty Exclusions
macchine agricole 1.2.1 WARRANTY EXCLUSIONS (Besides the circumstances indicated in the supply contract) the warranty becomes void: ▪ When the damage can be ascribed to insufficient maintenance. ▪ When, following repairs made by the user without the Manufacturer’s consent or owing to the installation of spurious spare parts, the machine has been subjected to changes and the damage is ascribable to these changes. -
Page 5: Description
macchine agricole DIMENSIONS Fig.2 Model 87” 81” - 205 96” 91” - 230 104” 98” 36” 32” - 250 116” 110” - 280 124” 118” - 300 1.3.1 DESCRIPTION Rotary Tiller mainly comprises a metal framework with a central linkage and three-point hitches (1 Fig. 1), and a bladed rotor situated in the lower part (9 Fig. -
Page 6: Noise Level
macchine agricole ▪ «CE» declaration of conformity 1.5 NOISE LEVEL The noise level (overhead noise) has been measured in compliance with the current laws, with the following results: ▪ Acoustic pressure LpAm (A) ............................ dB 82 ▪ Acoustic power LwA (A) ............................ -
Page 7: Safety And Accident Preventing Rules
macchine agricole affixed to the machine and indicate the various situations of insecurity and danger in a brief form. Keep the decals clean and immediately replace them if they detach or become damaged. Carefully read the following descriptions and memorize the meanings of the safety decals. Carefully Before Sharp... - Page 8 macchine agricole ▪ Pay the utmost attention when hitching and unhitching the machine to and from the tractor. ▪ Any accessories used for transportation purposes must be equipped with adequate signs and guards. ▪ Never ever leave the driver’s seat whilst the tractor is operating. ▪...
-
Page 9: Section 3
macchine agricole SECTION 3 Transport and handling 3.1 TRANSPORT AND HANDLING CAUTION If the machine, hitched to the tractor, must circulate on the public roads, comply with the Highway Code regulations in force in the country in which the machine itself is used. The machine must be raised at least 40 cm from the ground for road transport. -
Page 10: Section 4
macchine agricole SECTION 4 Instructions for use 4.1 BEFORE USE WARNING Before he sets the machine at work, the operator must have read and understood all parts of this manual and particularly «Section 2» about safety. Before beginning work, make sure that the machine is in order, that the lubricating oils are at the right level and that all parts subject to wear and deterioration are fully efficient. -
Page 11: Driveline With Adjustable Plate Clutch
macchine agricole 4.1.2 DRIVELINE WITH ADJUSTABLE PLATE CLUTCH The driveline has a safety clutch to protect the transmission components of the machine against stress and excessive overloads. The clutch is calibrated for medium-duty use. If it slips during work, all the nuts that hold the springs must be evenly tightened by half a turn and the operation of the device checked after about 200 meters of work. -
Page 12: During Work
macchine agricole where: i = tractor’s wheelbase d = horizontal distance between the center of gravity of the front ballast and the tractor’s front axle s = horizontal distance between the center of gravity of the machine and the tractor’s rear axle T = weight of the tractor in running order Z = ballast weight M = weight of the machine... -
Page 13: Useful Tips
macchine agricole 200 rpm. Besides holding back the clods already broken up by the blades, the rear bar also gives a well-levelled and uniform surface after the soil has been worked. When the rear bar is raised, the clods are no longer broken up and the soil is no longer levelled. 4.3.3 USEFUL TIPS Here are a few useful suggestions on how to resolve some of the problems that may occur during work. -
Page 14: Stopping The Machine
macchine agricole 4.6 STOPPING THE MACHINE At the end of the job, the operator must: ▪ Disengage the tractor PTO ▪ Lower the machine to the ground ▪ Stop the tractor and engage the parking brake ▪ Make sure that all parts of the machine have come to a standstill Only after the above mentioned operations have been carried out may the operator leave the tractor unattended. -
Page 15: Lubrication
macchine agricole WARNING Before proceeding with any operation, make sure that the machine is parked on a flat surface. Prevent it from moving by placing chocks under the wheels. Servicing, adjusting and the operations required to prepare the machine for work must be carried out with the tractor and the driveline detached from the machine. -
Page 16: Every 100 Hours Service
macchine agricole 5.2.4 EVERY 100 HOURS SERVICE Check the level of the oil in the overdrive housing. If necessary, top it up through the plug on the top of the gearbox. 5.2.5 EVERY 500 HOURS SERVICE Change the oil in the overdrive housing after every 500 hours service or at least once a year. 5.3 PREPARING FOR STORAGE Proceed with the following operations at the end of the season or if the machine is to remain idle for a long period of time: ▪... - Page 17 macchine agricole • S P A R E P A R T S T A B L E S • Table 1 Frame ............................18 Table 2 Three-point hitch ..........................20 Table 3 Gear box ............................22 Table 4 Geared side transmission ......................24 Table 5 Rotor ............................26 Table 6...
- Page 18 macchine agricole - 18 -...
- Page 19 macchine agricole - 19 -...
- Page 20 macchine agricole - 20 -...
- Page 21 macchine agricole - 21 -...
- Page 22 macchine agricole - 22 -...
- Page 23 macchine agricole - 23 -...
- Page 24 macchine agricole - 24 -...
- Page 25 macchine agricole - 25 -...
- Page 26 macchine agricole - 26 -...
- Page 27 macchine agricole Table 5 POS. CODE DESCRIPTION POS. CODE DESCRIPTION ROTOR FLASH ROTOR Z1220027 VERS.205 Z1420209 VERS.205 Z1223027 VERS.230 Z1423209 VERS.230 Z1225027 VERS.250 Z1425209 VERS.250 Z1428209 VERS.280 Z1228027 VERS.280 Z1230027 VERS.300 Z1430209 VERS.300 0003062 BOLT M14x40 FLASH BLADE VERS.205 0020100D VERS.230 VERS.205 VERS.250...
- Page 28 macchine agricole - 28 -...
- Page 29 macchine agricole - 29 -...
- Page 30 macchine agricole - 30 -...
- Page 31 macchine agricole - 31 -...
- Page 32 macchine agricole - 32 -...
- Page 33 macchine agricole - 33 -...
- Page 34 macchine agricole - 34 -...
- Page 35 macchine agricole - 35 -...
- Page 36 macchine agricole - 36 -...
- Page 37 macchine agricole Table 10 POS. CODE DESCRIPTION POS. CODE DESCRIPTION PACKER ROLLER Ø406 0090150 NUT M10 5500043 VERS. 205 VERS. 205 Ø406 VERS. 205 Ø464 5500044 VERS. 230 5500045 VERS. 250 VERS. 230 Ø406 R0128031 VERS. 280 VERS. 250 Ø406 VERS.
- Page 38 macchine agricole - 38 -...
- Page 39 macchine agricole - 39 -...
- Page 40 Via Labriola, 2 - 37054 NOGARA (Verona) - ITALY Tel. +39 0442 537402 - Fax 0442 537 444 www.breviglieri.com - export@breviglieri.com...
