Congratulations for buying your Desktop housing AZ/EL Steel for ERC-M. This
document will guide you through the needed steps for assembly of the Desktop-
housing and integration of the ERC-M. You will reach the best result by following
these instructions step by step.
Table of contents
Safety-Instructions ................................................................................................................. 2
1. Description ......................................................................................................................... 3
2. Bill of material (BOM) ....................................................................................................... 3
3. Assembly bottom-side of PCB ........................................................................................... 4
4. Assembly top-side of PCB ................................................................................................. 5
5. Cable to connect the HID to ERC-M ................................................................................. 7
6. Cable to connect the ERC-M to rear-side D-SUB ............................................................. 8
7. Mechanical integration into the desktop-housing .............................................................. 9
Appendix .............................................................................................................................. 11
Appendix 1: Pin-out of D-SUB15 ERC-M ...................................................................... 11
Appendix 2: Schematics HID ........................................................................................... 12
___________________________________________________________________________
© Ing.-Büro E. Alba de Schmidt
Gartenstr. 21
86703 Rögling / Germany
This document is for the user only. Any publishing (printed or in electronic form) is not allowed.
Page 1 of 12
20240514
Instructions
web :
www.schmidt-alba.de
email :
erc@schmidt-alba.de
Advertisement
Table of Contents
Related Manuals for erc Desktop housing AZ/EL Steel Kit V2.0
Summary of Contents for erc Desktop housing AZ/EL Steel Kit V2.0
-
Page 1: Table Of Contents
Congratulations for buying your Desktop housing AZ/EL Steel for ERC-M. This document will guide you through the needed steps for assembly of the Desktop- housing and integration of the ERC-M. You will reach the best result by following these instructions step by step. -
Page 2: Safety-Instructions
Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions Safety-Instructions Don’t continue using the product if it is damaged. Keep electronic assemblies and components away from children! Products that carry electric voltages must be handled by taking care about the valid instructions and regulations. -
Page 3: Description
Instructions 1. Description The HID is a human-interface-device and provides a 2x16 character LCD-display, 6 LEDs and 4 pushbuttons to the user. The HID and ERC-M is mounted in a powder-coated and laser-marked black sheet-metal-housing. 2. Bill of material (BOM) The BOM is in the order how you should use the parts. -
Page 4: Assembly Bottom-Side Of Pcb

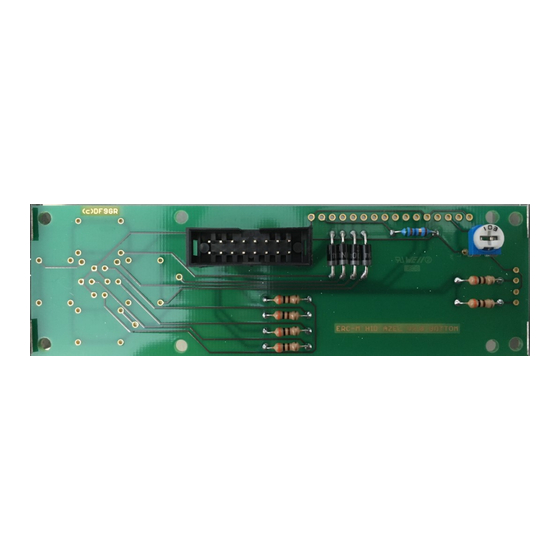

Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions 3. Assembly bottom-side of PCB Assemble and solder the components according to the following drawings. Please read the following instructions before you start: Take care of polarization of the following components:... -
Page 5: Assembly Top-Side Of Pcb
Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions 4. Assembly top-side of PCB Assemble and solder the components according to the following drawings. Please read the following instructions before you proceed: LEDs: flat side short leg long leg round side... - Page 6 Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions This is how it should look like: Assemble the LCD with the 5mm spacers, screws, nuts to the PCB. Put the 16-pole pin-header between PCB and LCD before mounting. Leave the protection-foil on the LCD until the HID will be mounted into the housing.
-
Page 7: Cable To Connect The Hid To Erc-M
Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions 5. Cable to connect the HID to ERC-M Cut 130mm from the flat-ribbon-cable and press the 2x8 pole connectors to both ends as shown in the next picture. Red wire on this side Take care of the orientation of the connectors (red circle) and the position of the red wire. -
Page 8: Cable To Connect The Erc-M To Rear-Side D-Sub
Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions 6. Cable to connect the ERC-M to rear-side D-SUB Take the remaining 200mm of the flat-ribbon-cable and remove 1 wire from the 16-pole cable to get a 15-pole cable (don’t remove the red wire, take the opposite site) Press the 2 DSUB-connectors to both ends as shown in the next picture. -
Page 9: Mechanical Integration Into The Desktop-Housing
Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions 7. Mechanical integration into the desktop-housing Mount the 4 rubber-feet to the desktop housing Remove the protection-foil from the LCD and mount using 4 screws 2.9x6.5mm. the HID into the desktop-housing with 4 Allen-screws M3x6 using the Allen-tool provided with the kit. - Page 10 Adjust the contrast with the potentiometer R1 on the backside of the HID-PCB. Put the top-cover onto the housing and fix it with 4 If you don’t use the LAN-Option of the ERC-M, you screws 2.9x6.5mm can covert he the hole with the blind cap. Therefore cut the lamellas on one side of the cap with a knife and press the cap into the back-panel of the housing.
-
Page 11: Appendix
Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions Appendix Appendix 1: Pin-out of D-SUB15 ERC-M Connector seen from outside to the female connector on the back of the desktop-housing. ___________________________________________________________________________ © Ing.-Büro E. Alba de Schmidt Page 11 of 12 web : www.schmidt-alba.de... -
Page 12: Appendix 2: Schematics Hid
Desktop housing AZ/EL Steel Kit V2.0 for ERC-M Instructions Appendix 2: Schematics HID ___________________________________________________________________________ © Ing.-Büro E. Alba de Schmidt Page 12 of 12 web : www.schmidt-alba.de Gartenstr. 21 20240514 email : erc@schmidt-alba.de 86703 Rögling / Germany This document is for the user only. Any publishing (printed or in electronic form) is not allowed.
