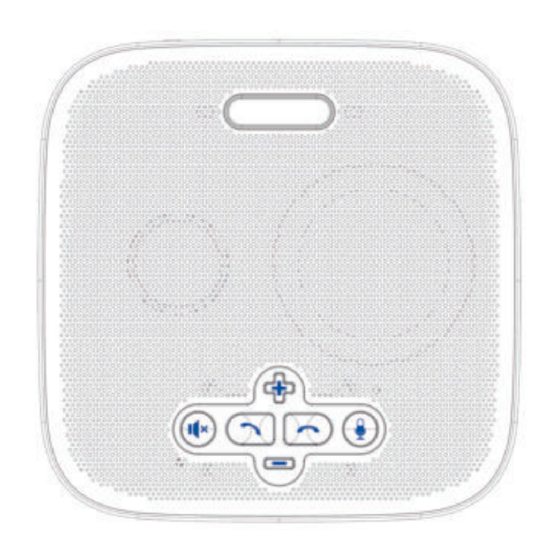

Tenveo M6B User Manual

Omnidirectional Microphone
Expansion mic*2
7
3. Low battery warning
When battery is lower than 20%, the OLED battery turns red to indicate low power.
along with warning tone every 3 minutes.
4. Button Function
4 5 6 7
Answer
Hung up
Daisy Chain 3.5mm jack cable*2
Status indicator
Speaker
Function Keys
Microphone
5 USB Type-C
6 3.5mm Jack
7 Expansion mic interface
8 Microphone
9
9 Bluetooth
10
10 Power
8
Indicator light
ON: Green OFF: Red
LOGO Indicator: 10-level display
Answer when calling
Hung up when calling
ON: Green OFF: Red
pairing
adjusting
6. Connection lntroduction
6.1 USB Connection
Once connected to your computer, it will automatically power on.
lt will automatically power off after 10 minutes of inactivity or no source.
6.2 Bluetooth Connection
1. When the device is under normal working condition, press"
Bluetooth for pairing. The OLED screen display status is
2. Put the mobile device or other devices to be connected in Bluetooth
device search mode, select the model of the device. The OLED will
display " "after a successful connection.
3. Each time you power on the device, it will automatically connect with the
last successfully connected device if available.
4. To disconnect Bluetooth, please press the Bluetooth button again.
6.3 Wireless Connection
1. Connect to your computer by using a USB Dongle.
2. The OLED screen display " " when USB dongle is connected.
Bluetooth Dongle
6.4 Headset Connection
Connect to the headset jack using a 3.5mm headset cable. When the
headset is connected, the speaker is automatically muted.
" to turn on
