FAVXXR6C2100-A01
Installation Instructions
FAMILIARIZE YOURSELF WITH THE INSTALLATION INSTRUCTIONS BEFORE STARTING
ATTENTION INSTALLER:
WARNING
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in
personal injury or death. Disconnect electrical
power to the HVAC system before proceeding.
CAUTION
CUT HAZARD
Failure to follow this caution may result
in personal injury. Sharp metal edges can
cause personal injury from cuts. Use gloves
when cutting plenum openings and handling
ductwork.
Fresh Air Vent Damper and Control
This product must be installed by a qualified HVAC contractor.
Failure to follow this caution may result in unit component damage.
Do not mount the Ventilation Controller on the supply plenum or duct. The
unit will malfunction at heated temperatures and lose its calibration.
When installing the Ventilation Controller on downflow furnaces, ensure
that the blower continues to run after the heat call is satisfied to prevent
high temperatures from damaging the Controller circuit board.
Do not mount the Ventilation Controller downstream from any fresh air
intake port, humidifier or bypass outlet. False humidity conditions will
cause the Ventilation Controller to operate incorrectly.
CAUTION
INSTALLATION HAZARD
Advertisement
Table of Contents
Summary of Contents for Field Controls FAVXXR6C2100-A01

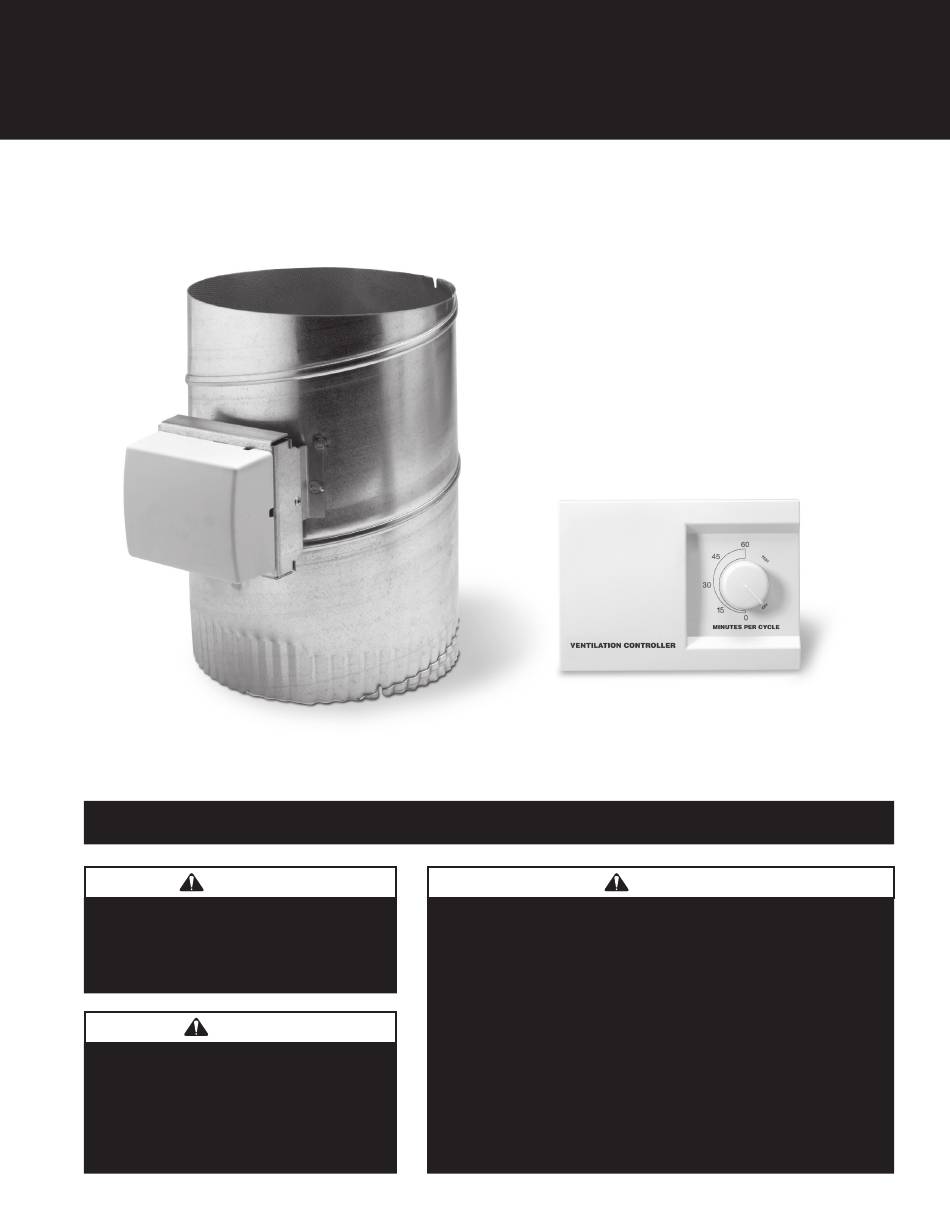

- Page 1 FAVXXR6C2100-A01 Fresh Air Vent Damper and Control Installation Instructions FAMILIARIZE YOURSELF WITH THE INSTALLATION INSTRUCTIONS BEFORE STARTING ATTENTION INSTALLER: This product must be installed by a qualified HVAC contractor. WARNING CAUTION ELECTRICAL SHOCK HAZARD INSTALLATION HAZARD Failure to follow this warning could result in personal injury or death.
-
Page 2: Installation
INSTALLATION STEP 1: REMOVE ITEMS FROM BOX See Figure 1. FIGURE 1 – Carton Contents A. FRESH AIR VENT DAMPER B. VENTILATION CONTROLLER C. TRANSFORMER D. OUTDOOR TEMPERATURE SENSOR E. TIME ONLY RESISTOR INSERT 90-697 STEP 2: DETERMINE VENTILATION CONTROLLER LOCATION AND INSTALL A. - Page 3 D. Install the vent hood, keeping the inlet away from dryer or furnace FIGURE 3 – Vent Hood Installation vents, power generator exhaust, combustion sources, driveways, trash containers and swimming pools or other souces of fumes. Also the inlet Exterior wall vent should be 12 inches (305 mm) above expected snow accumulation (see Figure 3).
-
Page 4: Electrical Shock Hazard
STEP 6: WIRE THE VENTILATION CONTROLLER TO THE HVAC SySTEM CAUTION WARNING EQUIPMENT DAMAGE HAZARD ELECTRICAL SHOCK HAZARD Failure to follow this caution may result in unit damage. Failure to follow this warning could result in personal Improper wiring to the HVAC equipment can damage it or injury or death. -
Page 5: Cut Hazard
FIGURE 8 – Return Air Temperature Requirement for Furnaces FIGURE 9 – Using Fresh Air with Infinity/Evolution Control MAX 80°F / 27°C (IN HEATING MODE) HEAT MIN 60°F / 16°C HOLD COOL The furnace is designed for minimum continuous return-air temperature of 60°F db/16°C db or intermittent operation down to 55°F db/13°C db such as when used with a night setback thermostat. - Page 6 STEP 7: CALCULATE THE VENTILATION REQUIREMENT A. The MINIMUM ventilation requirement is calculated using ASHRAE 62.2-2007. ASHRAE Airflow in CFM = [House Area in Sq Ft x 0.01] + [No. Bedrooms +1 x 7.5] ASHRAE Airflow in L /S = [House Area in m x 0.05] + [No.
- Page 7 STEP 8: DETERMINE THE VENTILATION CONTROLLER’S FRESH AIR DELIVERy RATE AIRFLOW DELIVERy (CFM) VS NEGATIVE STATIC PRESSURE AS MEASURED FOR RETURN DUCT OR PLENUM (IN WC) 0.05 0.10 0.15 0.20 0.25 0.30 DUCT LENGTH FLEX PIPE FLEX PIPE FLEX PIPE FLEX PIPE FLEX...
-
Page 8: Step 11: System Check Out
DIAL SETTINGS WITH 1 & 2 HOUR CyCLE TIMES CFM REQUIRED (obtained from Step 7) 20 CFM 30 CFM 40 CFM 50 CFM 60 CFM 70 CFM 80 CFM 90 CFM 100 CFM Cycle Time 2 hr 1 hr 2 hr 1 hr 2 hr 1 hr...
